nemo_en_Chap00a_sommaire_ed02-2014

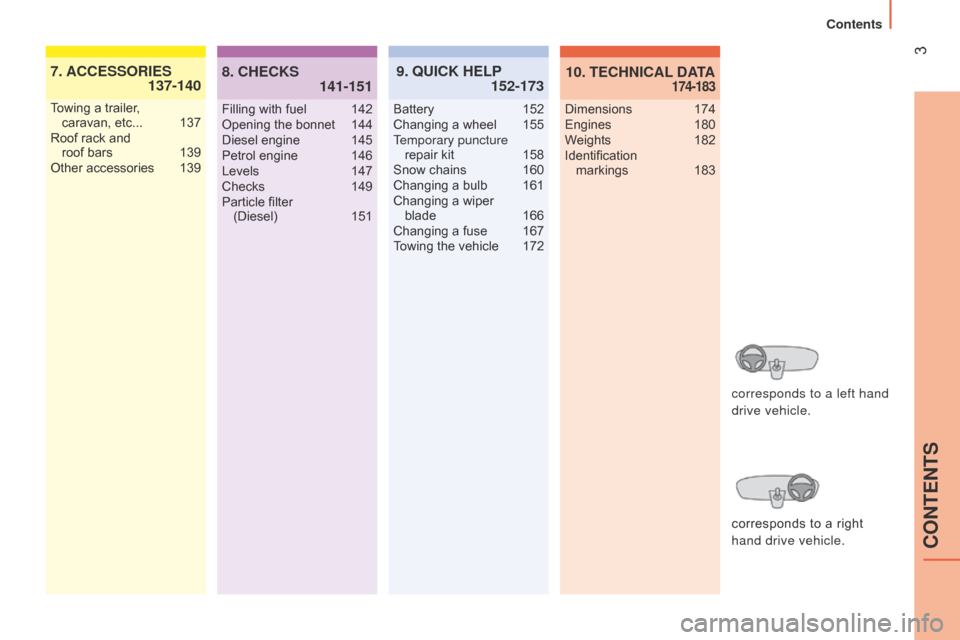

10. 174-183TECHNICAL DATA
7. 137-140
ACCESSORIES

Towing a trailer,
caravan, etc... 137
Roof rack and

roof bars

139
Other accessories


139Filling with fuel

142
Opening the bonnet

144
Diesel engine


145
Petrol engine


146
Levels


147
Checks


149
Particle filter


(Diesel)

151
9. 152-173
QUICK HELP
8. 141-151
CHECKS
Battery 152
Changing a wheel 155
T
emporary puncture repair kit

158
Snow chains


160
Changing a bulb


161
Changing a wiper
blade


166
Changing a fuse


167
T

owing the vehicle
172Dimensions

174
Engines
180
W
eights
182
Identification
markings


183
corresponds to a left hand


drive vehicle.
corresponds to a right
hand drive vehicle.

CONTENTS
Contents

4EXTERIOR (LIGHT VAN)
Rear lamp, direction indicators, 3rd brake lamp ..........46-47, 164-165
Right-hand side:
fuel filler cap, fuel tank


...................
142
fuel cut-off ...............................
142-143
Load space

.................................
77-78
Rear doors

............................
36, 42-45
Opening/Closing to 180°

...........
42, 44
n

umber plate lamps

......................164
Rear parking sensors


......................88
Spare wheel, changing a wheel,
tools
..................................... 155-157
Towing, lifting
................................. 172
T

owbar
.................................... 137-13

8
d

imensions


.............................
174-175
a

ccessories


............................
139-140
Roof rack

.......................................
139
k

ey, remote control, battery

........
36-38
Central locking


.....................
36, 42, 44
Opening/Closing front windows
....... 37
Confidential card .............................. 39
a

larm

...............................................
40
Wiper blades.................................. 156
d

oor mirrors


..................................... 51
Side repeater
................................. 163
Front lamps, foglamps, direction indicators


................. 46-47, 161-162
Headlamp beam height adjustment

... 47
Changing bulbs .......................161-165
Opening/Closing
doors

........

.................... 36, 38, 41-45
Opening the bonnet
....................... 144
Configuration -
a

utoclose


.................... 42, 44, 83, 85 Brakes, pads
.......................... 147, 149
Hill start assist

................................. 60
Braking assistance


................. 112-113
Trajectory control


.................... 113-115
Tyres, pressures

.................... 159, 183
Snow chains


.................................. 160
Location

5EXTERIOR (COMBI)
Brakes, pads.......................... 147, 149
Hill start assist ................................. 60
Braking assistance


.................112-113
Trajectory control


....................113-115
Under-inflation detection .........116-117
Tyres, pressures

....................159, 183
Snow chains


.................................. 160
d

imensions

.............
176-177, 178-179
a

ccessories


............................
139-140
Roof bars

.......................................
139
k

ey, remote control, battery

........
36-38
Central locking


.....................
36, 42, 44
Opening/Closing front windows
....... 37
Confidential card .............................. 39
a

larm

...............................................
40
Wiper blades.................................. 166
d

oor mirrors


.....................................
51
Side repeater
................................. 163
Front lamps, foglamps, direction indicators


.................
46-47, 161-162
Headlamp beam height adjustment

....
47
Changing bulbs .......................161-165
Opening/Closing
doors
........
.................... 36, 38, 41-45
Child lock
......................................... 45
Rear windows


.................................. 52
Opening the bonnet
....................... 144
Configuration -
a

utoclose


.................... 42, 44, 83, 85 Right-hand side:
fuel filler cap, fuel tank


...................
142
fuel cut-off ...............................
142-143
Rear fittings ................................
80-81
Rear doors

............................
36, 42-45
Opening/Closing to 180°

...........
42, 44
n
umber plate lamps

......................
164
Rear parking sensors

......................
88
Spare wheel, changing a wheel,
tools, temporary puncture
repair kit ...............
155-157, 158-159
Towing, lifting
................................. 172
T

owbar
....................................137-13

8
Rear lamps, direction indicators,
3
rd brake lamp ..........46-47, 164-165
1
OVERVIEW
Location

11 7
Reinitialisation
It is necessary to reinitialise the system
every time one or more tyre pressure is
adjusted, and after changing one or more
wheels.Before reinitialising the system, ensure
that the pressures of the four tyres
are correct for the use of the vehicle and in
line with the recommendations on the tyre
pressure label.
The under-inflation detection system does
not give a warning if a pressure is incorrect
at the time of reinitialisation. F
With the ignition on and the vehicle


stationary, press this button for about
3
seconds then release it, an audible
signal confirms the reinitialisation.
The under-inflation alert is only
dependable if the system has been
reinitialised with all four tyres inflated to the
correct pressures.
Snow chains
The system does not have to be
reinitialised after fitting or removing snow
chains. The flashing and then fixed
illumination of the under-inflation
warning lamp accompanied by the
display of a message, depending
on equipment, indicates a fault
with the system.
Before doing anything to the system,


the pressures of the four tyres must be
checked and the system reinitialised.
Operating fault
In this case, under-inflation monitoring of the
tyres is no longer assured.
Have the system checked by a CITROËN
dealer or a qualified workshop.
6
SAFETY
Driving safely

140
Range of accessories for private vehicles
Another range is also available from
CITRo Ë n dealers.
"Comfort":
insulated module, coat hanger fixed to a
head restraint, reading lamp, rear parking
sensors...
"Transport solutions":
boot liner, rear door net, set of transverse
and longitudinal roof bars, roof boxes...
"Style":
embellishers, secure wheel embellishers... "Security and safety":
anti-intrusion alarm, window etching,
breathalyzer, first aid kit, high visibility vest,
warning triangle, child seats and booster
cushions, snow chains...
"Protection":
rubber mats, over-carpets, 3D mats, seat
covers compatible with lateral airbags, sets
of front and rear mudflaps...
"Multimedia":
audio systems, hands-free kit, speakers,
portable satellite navigation systems, speed
camera detectors, Wi-Fi on board...
By going to a CITROËN
dealer, you can also
obtain cleaning and maintenance products
(interior and exterior) - including ecological
products from the "TECHNATURE" range -
products for topping up (screenwash...),
touch-up pens and paint aerosols for the
exact colour of your vehicle, recharges
(cartridge for the temporary puncture
repair kit...), ...
To avoid any risk of jamming of the pedals:
-

ensure that the mat is positioned and

secured correctly,
-

never fit one mat on top of another
.
Equipment

160
SNOW CHAINS
In wintry conditions, snow chains improve
traction as well as the behaviour of the
vehicle when braking.The snow chains must be fitted only to
the driving wheels. They must never be
fitted to "space-saver" type spare wheels.
Take account of the legislation in force
in your country on the use of snow
chains and the maximum running speed
authorised. Advice on installation
F
If you have to fit the chains during a


journey, stop the vehicle on a flat surface
on the side of the road.
F
Apply the parking brake and position any


wheel chocks to prevent movement of
your vehicle.
F
Fit the chains following the instructions


provided by the manufacturer.
F
Move of

f gently and drive for a few
moments, without exceeding 30 mph
(50 km/h).
F
Stop your vehicle and check that the


snow chains are correctly tightened.
It is recommended that before you


leave, you practise fitting the snow
chains on a level and dry surface.
Use only the chains designed to be fitted to
the type of wheel fitted to your vehicle:
For more information on snow chains,
contact a CITR
o Ë n dealer or a qualified
workshop. Original tyre size Maximum link size.
175/70 R14 9 mm
185/65 R15
Avoid driving on roads that have been
cleared of snow, to avoid damaging
your vehicle's tyres and the road surface. If
your vehicle is fitted with alloy wheels, check
that no part of the chain or its fixings is in
contact with the wheel rim.
Snow chains
