2014.5 Citroen C5 RHD Owner's Manual

87
Mats
Removing
F Slide the seat back as far as possible,
F u nclip the fixings,
F

r
emove the fixings, then the mat.
Refitting
F Position the mat correctly,
F c lip the fixings,
F

c
heck that the mat is held is place
c o r r e c t l y.
Equipment available for the driver and front
passenger.
To avoid any inter ference with the
pedals:
-
o
nly use mats which are suitable
for the fixings already present in the
vehicle. The use of these fixings is
essential,
-
n
ever fit more than 1 mat.
The use of a mat not approved by
CITROËN may obstruct access to the
pedals and hinder the cruise control/
speed limiter function.
Floor mats approved by CITROËN
are fitted with a 3rd fixing located in
the pedal area to avoid any risk of
inter ference with the pedals .
3
Ease of use and comfort

88

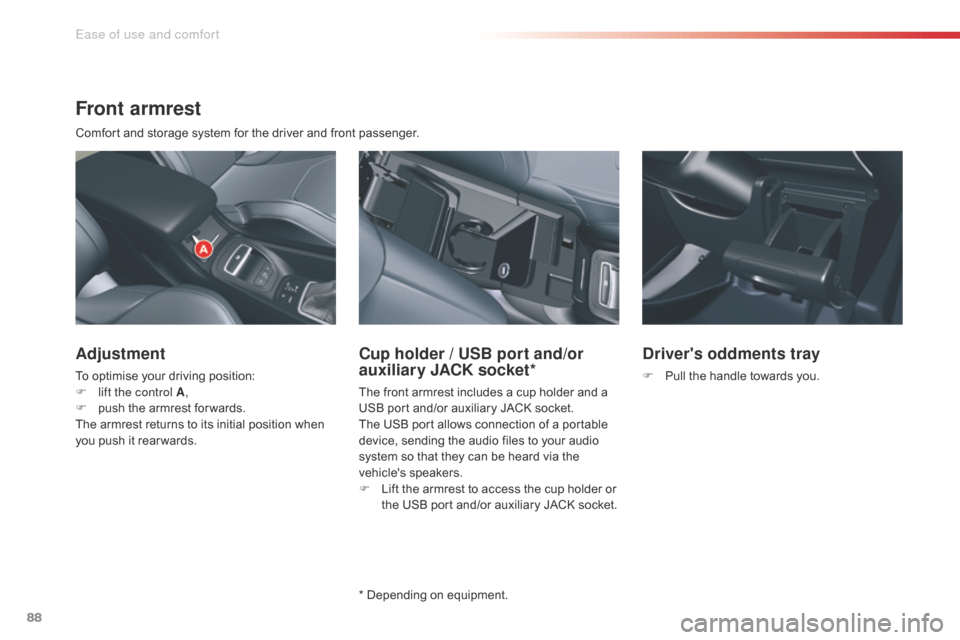

Front armrest
Comfort and storage system for the driver and front passenger.
Adjustment
To optimise your driving position:
F l ift the control A ,
F

p
ush the armrest for wards.
The armrest returns to its initial position when
you push it rear wards.
Driver's oddments tray
F Pull the handle towards you.
Cup holder / USB port and/or
auxiliary JACK socket*
The front armrest includes a cup holder and a
USB port and/or auxiliary JACK socket.
The USB port allows connection of a portable
device, sending the audio files to your audio
system so that they can be heard via the
vehicle's speakers.
F

L
ift the armrest to access the cup holder or
the USB port and/or auxiliary JACK socket.
* Depending on equipment.
Ease of use and comfort

89
Rear armrest
Comfort and storage system for the rear passengers.
Cup-holder
The rear cup-holder A is located in the rear
central armrest.
F
L
ower the rear armrest.
F

P
ull for wards to extract the cup-holder.
Storage
F Lift up the upper part of the rear central armrest to access storage space B .
12 V accessory socket
This is located in the rear ashtray.
Max power: 100 W.
3
Ease of use and comfort

90
Side blinds
F Pull on the tab A and position the blind on the hook B .
Rear blind (Saloon)
F Pull on the tab C to unreel the blind,
F
p osition the blind on the hooks D .
Ski flap
A flap in the backrest, located to the rear of the
armrest, facilitates the carrying of long objects.
To o p e n
F Lower the rear armrest.
F
P ull the flap handle down.
F

L
ower the flap.
F

L
oad the objects from inside the boot.
Ensure that the objects are well secured
and that they do not impede the
operation of the gear lever.
Ease of use and comfort

91
Boot fittings (Saloon)
1. Boot floor (spare wheel storage).2. B oot lamp.
3. L ocation for 6 CD changer.
Luggage securing rings
F Use the 4 securing rings on the boot floor to secure your luggage.
For safety reasons in the event of sharp
braking, you are advised to place heavy objects
as far for ward in the boot as possible.
3
Ease of use and comfort

92
Boot fittings (Tourer)
1. Hook
F or shopping bags.
2.
T

o r c h
T

o recharge, return it to its storage
position.
3.
Sto

rage net 1. L
uggage-cover blind
(
see details on following page)
2.
L

uggage securing rings
U

se the 4 stowing rings provided on the
boot floor to secure your loads.
F

or safety reasons in the event of sharp
braking, you are advised to place heavy
objects as far for wards as possible.
3.
Hoo

ks
T

hese allow a cargo net to be fitted (see
details on following page). 1. B
oot lamp
2. 1 2 V accessories socket
(100 W maximum)
C

igarette lighter type 12 volt socket. It is
located on the rear right-hand trim.
3.
L

oading height control
Y

ou can change the height of the vehicle to
make loading or unloading easier.
4.
Hoo

k
F

or shopping bags.
5.
Sto

rage net or closed housing
L

ocation for the 6 CD changer.
Ease of use and comfort

93
Luggage cover (Tourer)
To reel in
F Press the handle (PRESS) gently. The luggage cover reels in automatically.
The moving part A
can be folded along the rear
bench seat backrest.
To remove
F Compress the control 1 and lift the luggage cover on the right then on the left to
remove it.
To install
F Position the left-hand end of the luggage cover roller in its location B behind the rear
bench seat.
F

C
ompress the roller control 1 and put the
roller in place in its location C on the right.
F

R
elease the control to secure the luggage
c ove r.
F

U
nreel it to its fastening on the rear pillar.
3
Ease of use and comfort

94
High load retaining net
(Tourer)
Hooked onto the special upper and lower
fixings, this permits use of the entire loading
volume up to the roof:
-
b
ehind the rear seats (row 2),
-

b
ehind the front seats (row 1) when the rear
seats are folded.
When positioning the net, check that the strap
loops are visible from the boot; this will make
slackening or tightening easier.
Installation
F fold down the backs of the rear seats,
F p osition the high load retaining net roller
above the two rails 1 located behind
the rear seats (2/3 bench seat). The
two
notches 2 must be placed above the
two rails, F
s lide the two rails 1 into the notches 2 and
push the roller (lengthways) from right to
left to secure it,
F

r
eposition the rear seat backs.
Ease of use and comfort
