2014.5 Citroen C5 bulb

202
Side repeaters
The side repeater is sealed.
If the bulb is faulty, replace the side repeater.
Contact a CITROËN dealer or a qualified
workshop.

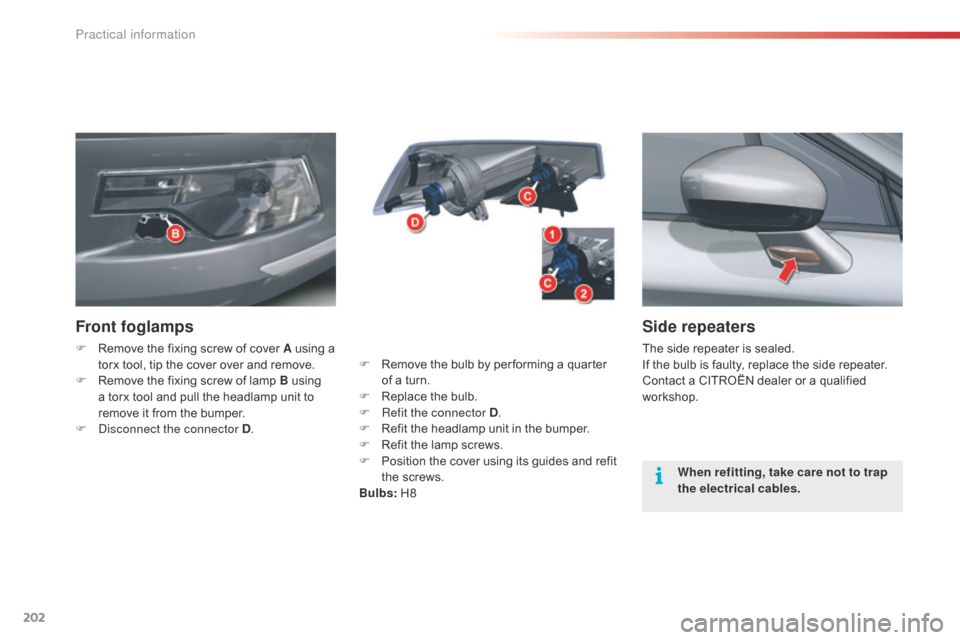

Front foglamps
F Remove the fixing screw of cover A using a
torx tool, tip the cover over and remove.
F

R
emove the fixing screw of lamp B using
a torx tool and pull the headlamp unit to
remove it from the bumper.
F
d
i
sconnect the connector D .F
R emove the bulb by per forming a quarter
of a turn.
F

R
eplace the bulb.
F

R
efit the connector D.
F

R
efit the headlamp unit in the bumper.
F

R
efit the lamp screws.
F

P
osition the cover using its guides and refit
the screws.
Bulbs: H8 When refitting, take care not to trap
the electrical cables.
Practical information

203
Rear lamps (Saloon)
Identify the failed bulb.
1. Brake lamps and sidelamps:
P 21 W
/ 5 W
2.
S

idelamps: R 5 W
3.
R

eversing lamps: H 21 W
4.
F

oglamps: H 21 W
5.
D

irection indicators: PY 21 WBoot-mounted lamps
F Unclip the bulb holder H .
F R eplace the bulb.
F

R
efit the bulb holder H .
F

C
heck that the bulb holder H is secured
correctly by the two clips 6 .
F

R
efit the connector G .
F

R
eplace and fix the trim F with its clips.
F
O
pen the boot.
F
U
sing a flat screwdriver, remove the 3

clips
which fix the trim in the lamp area.
F

P

artially remove the trim F .
F
d
i

sconnect the connector G .
8
Practical information

204
Wing-mounted lamps
F disconnect connector B.
F U nscrew the 2 fixings C .
F

R
emove the lamp from its housing. F

D
etach the bulb holder D
.
F
R
eplace the bulb.
F
R
efit the bulb holder D
.
F
P
lace the lamp in its housing.
F
S
crew in the 2 fixings C
.
F
R
efit connector B
.
F
R
efit the trim A
.
You can use the wheelbrace to screw or
unscrew the fixings C .
F
R
emove the lateral boot trim flap

A . To do
so, pull it towards the inside of the boot,
then pull it upwards.
Practical information

205
Boot-mounted lamps
Rear lamps (Tourer)
Identify the failed bulb.
1. Brake lamps and sidelamps:
P 21 W
/ 5 W
2.
S

idelamps: R 5 W
3.
R

eversing lamps: H 21 W
4.
F

oglamps: H 21 W
5.
D

irection indicators: PY 21 W F

U
nclip the bulb holder J.
F

R
eplace the bulb.
F

R
efit the bulb holder J ensuring that it is
correctly clipped in place.
F

P
osition the lamp in its housing.
F

T
ighten the fixing nut H.
F

R
efit the connector G.
F

P
osition and clip in place the plastic
cover F .
You can use the wheelbrace to screw or
unscrew the fixing nut H .
F

O
pen the boot.
F

U
sing a flat screwdriver, remove the plastic
cover F .
F
d
i
sconnect the connector G.
F

U
nscrew the fixing nut H.
F

D
isengage the lamp from its housing.
8
Practical information

206
Wing-mounted lamps
F disconnect the connector B.
F U nscrew the fixing nut C .
F

R
emove the lamp from its housing. F

D
etach the bulb holder D
.
F
R
eplace the faulty bulb.
F
R
efit the bulb holder D
.
F
P
lace the lamp in its housing.
F
S
crew in the fixing nut C
.
F
R
efit the connector B
.
F
R
efit the trim A
.
You can use the wheelbrace to screw or
unscrew the fixing nut C .
Remove the lateral boot trim A .
To do so:
F

Pull it towards towards the inside of the boot.F Pull it upwards.
Practical information

207
F Insert a thin screwdriver into one of the external holes of the lens.
F

P
ush it outwards to unclip it.
Third brake lamp (LEDs)
For the replacement of this type of LED lamp,
contact a CITROËN dealer or a qualified
workshop.
F

R

emove the lens.
F
C
hange the faulty bulb.
Number plate lamps (W5W)
8
Practical information

208
Interior lamps
Roof lamps
F Unclip the transparent cover of the roof lamp to reach the bulb.
Bulb: W 5 W
Rear reading lamps (Tourer)
F Detach the cover of the reading lamp to
access the bulb.
Bulb: W 5 W
Map reading lamp
F Detach the cover.
F
I f necessary, detach the partition of
the
affected map reading lamp.
Boot lamp
F Detach the cover and use a W 5W bulb.
Practical information

209
Pavement lighting
F Detach the cover and use a W 5W bulb.
Floor lighting
F Detach the cover and use a W 5W bulb.
Glove box
F Detach the cover and use a W 5W bulb.
8
