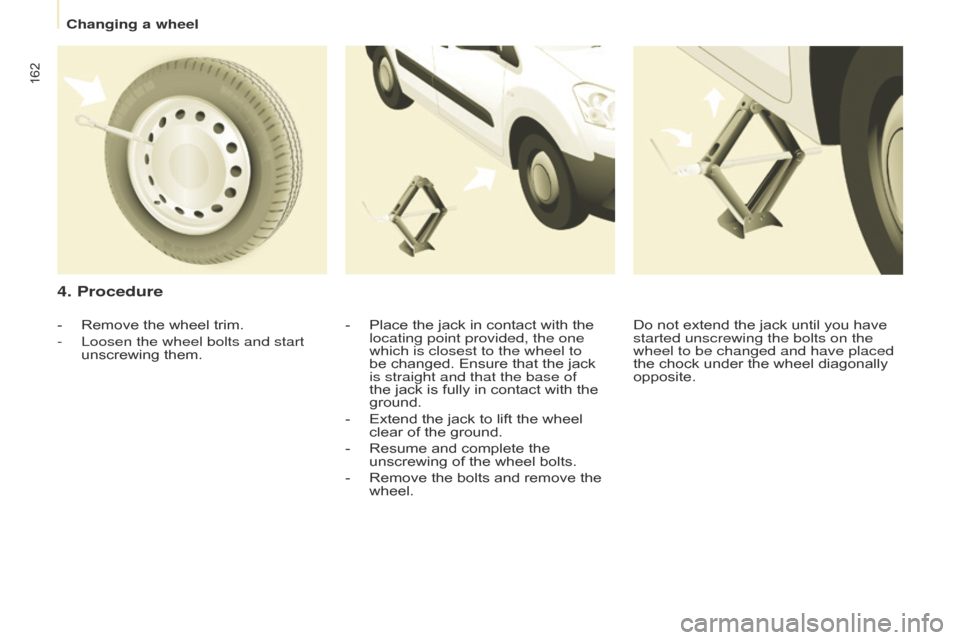

4. Procedure
- Place  the   jack   in   contact   with   the  locating point provided, the one
which is closest to the wheel to
be
  changed.   Ensure   that   the   jack
is straight and that the base of
the

  jack   is   fully   in   contact   with   the
ground.
-


Extend
  the   jack   to   lift   the   wheel
clear

  of   the   ground.
-

Resume
  and   complete   the
unscrewing

  of   the   wheel   bolts.
-

Remove
  the   bolts   and   remove   the
wheel.
-

 Remove

the

wheel

trim.
-

Loosen the wheel bolts and start
unscrewing


them. Do
  not   extend   the   jack   until   you   have  started unscrewing the bolts on the
wheel to be changed and have placed
the
  chock   under   the   wheel   diagonally
opposite.
Changing a wheel

Berlingo_2_VP_en_Chap08_aide-rapide_ed02-2014
170
4. Foglamps type
c , H1 - 55W
-

Remove
  the   three   clips   and   the
screw securing the wheelarch liner

,
located
  below   the   bumper.
-

Move
  the   wheelarch   liner   upwards.
-

Remove
  the   foglamp   by   removing
the screw

, which can be accessed
via the hole provided for this
purpose
  in   the   bumper,   using   a
T

orx
© 30 screwdriver.
-
 Unclip   the   foglamp   by   squeezing
the


clip   to   release   it.
-

Remove the foglamp from the outside.- Turn the yellow cover a 1/4 turn to open.- Separate the clips which secure
the base of bulb on each side to
release   the   bulb.
-

Remove
  the   bulb   by   pulling,
keeping

  it   straight.
-

Insert the new bulb, reposition the
clips around the base of the bulb
and carry out the operations in
reverse

  order   to   put   the   lamp   unit
and

  the   bumper   back   in   position.
SIdE rEPEAtE r
type A,   WY5W   -   5W   (amber)
-
Push the repeater towards the rear
and disengage it by pullin

g the
front.
-

Contact a CITR
o Ë n dealer to
obtain a new repeater which is a
sealed
  component.
-

T
o   refit,   engage   the   repeater
towards the rear and bring it
towards

  the   front.
cOurtESY LAMPS
type A, 12V5W - 5W
-
Unclip the lens by sliding a
screwdriver in the slots on each
side

  of   the   courtesy   lamp.
-

Pull
  the   bulb   out   and   change   it.
-

Clip the lens in its housing and
ensure

  that   it   is   secured   correctly.
Front /
r ear
Changing a bulb

Berlingo_2_VP_en_Chap08_aide-rapide_ed02-2014
171
rEAr LAMPS
This procedure requires the use of the spanner supplied with the tools for
changing  a   wheel.
When
  refitting,   take   care   to
reposition the tabs and the supply
wire correctly to avoid trapping


the
  wire.
a

fter changing the rear direction
indicator
  bulb,   the   reinitialisation   time
is
  above   2   minutes.
-
Move aside the 4 tabs then extract
the
  bulb   holder.
-

Remove
  the   faulty   bulb   by
pressing it lightly while turning it
anticlockwise.
-


Change
  the   bulb.
When
  removing   the   lamp   unit:
-

with
  tailgate,   pull   the   lamp   unit
towards the centre of the vehicle,
-


with
  hinged   doors,   pull   the   lamp
unit

  towards   you.
For

more

information

concerning

the
 bulbs,

refer

to

the

"Types

of

bulb".
1.

Brake lamps / sidelamps


type B

,

P21/5W

-

21/5W
2.
d
irection indicators
type B

,

PY21W

-

21W

(amber)
3.
r
eversing lamps
type B

, P21W - 21W
4.

Foglamps


type B

, P21W - 21W
High pressure jet washing When using this type of washing
on stubborn dirt, do not persist on
the

headlamps,

the

other

lamps

and


their

edges

to

avoid

damaging

their


coating

and

seals. Chapter
  9,   "Changing   a   wheel"
section.
-


Identify the faulty bulb, then open
the

  rear   doors   to   180°.
Chapter
  3,   "Access"   section.
-

Remove
  the   two   fixing   bolts   using
the

  spanner   provided.
-

Pull
  the   lamp   unit   from   the   outside.
-

Holding
  the   lamp,   disconnect   the
electrical

  connector.
Changing a bulb
