2013 YAMAHA YFM700R warning

READ THIS MANUAL CAREFULLY!
It contains important safety information.
WARNING
OWNER’S MANUAL
YFM7RD/YFM7RSED
YFM700RD/YFM700RSED
This ATV should not be ridden by anyone under 16 years of age.
1PE-F8199-60-E0
U1PE60E0.book Page 1 Friday, March 2, 2012 1:22 PM

EBU17170
INTRODUCTION
EBU17322Congratulations on your purchase of the Yamaha YFM7RD/YFM7RSED/YFM700RD/YFM700RSED. This
ATV represents the result of many years of Yamaha experience in the production of fine sporting, touring,
and pacesetting racing machines. With the purchase of this Yamaha, you can now appreciate the high de-
gree of craftsmanship and reliability that have made Yamaha a leader in these fields.
This manual will provide you with a good basic understanding of the features and operation of this ATV.
This manual includes important safety information. It provides information about special tech-
niques and skills necessary to ride the ATV. It also includes basic maintenance and inspection proce-
dures. If you have any questions regarding the operation or maintenance of your ATV, please consult a
Yamaha dealer.
AN IMPORTANT SAFETY MESSAGE:●Read this manual completely before operating your ATV. Make sure you understand all instructions.●Pay close attention to the warning and notice labels on the ATV.●This ATV should not be ridden by anyone under 16 years of age.●This ATV is a high-performance ATV for off-road use only, for sport-type recreational and competitive use
by experienced operators.
U1PE60E0.book Page 1 Friday, March 2, 2012 1:22 PM

EBU17330
IMPORTANT MANUAL INFORMATION
EBU17342FAILURE TO FOLLOW THE WARNINGS CONTAINED IN THIS MANUAL CAN RESULT IN SERIOUS IN-
JURY OR DEATH.
Particularly important information is distinguished in this manual by the following notations:
* Product and specifications are subject to change without notice.This is the safety alert symbol. It is used to alert you to potential per-
sonal injury hazards. Obey all safety messages that follow this sym-
bol to avoid possible injury or death.
A WARNING indicates a hazardous si
tuation which, if not avoided,
could result in death or serious injury.
A NOTICE indicates special precautions that must be taken to avoid
damage to the vehicle or other property.
A TIP provides key information to make procedures easier or clearer.
WARNING
NOTICETIPU1PE60E0.book Page 1 Friday, March 2, 2012 1:22 PM

EBU17420
TABLE OF CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ............................ 1-1
SAFETY INFORMATION .............................. 2-1
DESCRIPTION .............................................. 3-1Left view ...................................................... 3-1
Right view.................................................... 3-2
Controls and instruments ............................ 3-3
INSTRUMENT AND CONTROL
FUNCTIONS .................................................. 4-1 Main switch ................................................ 4-1
Indicator lights and warning lights .............. 4-2
Self-diagnosis device ................................. 4-3
Handlebar switches .................................... 4-4
Throttle lever .............................................. 4-4
Speed limiter .............................................. 4-5
Clutch lever ................................................ 4-6
Brake lever (YFM7RD/YFM700RD) ............ 4-6
Brake lever (YFM7RSED/YFM700RSED).................... 4-7
Brake pedal ................................................ 4-7
Parking brake lever .................................... 4-8 Shift pedal ...................................................4-9
Reverse knob “REV” ...................................4-9
Fuel tank cap ............................................4-10
Fuel ...........................................................4-10
Seat ..........................................................4-12
Adjusting the front shock absorber
assemblies (YFM7RD/YFM700RD) .........4-13
Adjusting the front shock absorber assemblies
(YFM7RSED/YFM700RSED) ..................4-15
Adjusting the rear shock absorber assembly (YFM7RD/YFM700RD)............4-19
Adjusting the rear shock absorber assembly
(YFM7RSED/YFM700RSED) ..................4-21
PRE-OPERATION CHECKS ..........................5-1 Fuel .............................................................5-4
Engine oil ....................................................5-4
Coolant .......................................................5-4
Front and rear brakes .................................5-4
Throttle lever ...............................................5-5
Drive chain ..................................................5-5
Tires ............................................................5-5U1PE60E0.book Page 1 Friday, March 2, 2012 1:22 PM

1-1
1
EBU29680
LOCATION OF THE WARNING AND SPECIFICATION LABELS
EBU30291Read and understand all of the labels on your ATV. These labels contain important information for safe and
proper operation.
Never remove any labels from your ATV. If a label becomes difficult to read or comes off, request a replace-
ment label from your Yamaha dealer.
For Europe
1
1
43
5 2
6
7
U1PE60E0.book Page 1 Friday, March 2, 2012 1:22 PM

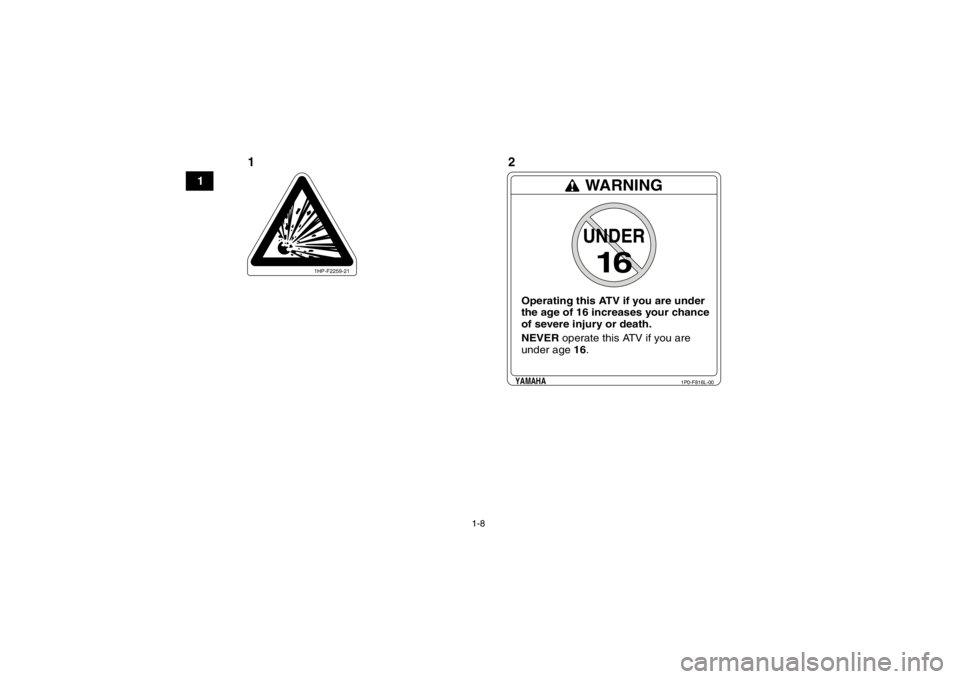

1-8
1
1HP-F2259-21
WARNINGUNDER
16
Operating this ATV if you are under
the age of 16 increases your chance
of severe injury or death.
NEVER operate this ATV if you are
under age 16.
1P0-F816L-00
YAMAHA2
1
U1PE60E0.book Page 8 Friday, March 2, 2012 1:22 PM

1-9
1
WARNING
OPERATING TIRE PRESSURE : Set with tires cold
Recommended
: Front
: 27.5
kPa,
Rear
: 27.5
kPa,

Minimum
: Front
: 24.5
kPa,
Rear
: 24.5
kPa,

Never set tire pressure below minimum.
It could cause the tire to dislodge from the rim.LOADINGMaximum weight capacity :
100 kg, (220 lbs).
Includes weight of operator, cargo and accessories.Improper tire pressure or overloading can cause
loss of control.
Loss of control can result in severe injury or
death.
4.0 psi
4.0 psi 3.6 psi
3.6 psi(
( )
() () )
1PE-F816M-00 WARNINGNEVER ride as a
passenger.
Passengers can causea loss of control,resulting in SEVEREINJURY or DEATH.
3C2-F151H-00
YAMAHA
WARNING
Improper ATV use can result in SEVERE
INJURY or DEATH.ALWAYS USE
AN APPROVED HELMET ANDPROTECTIVE GEAR NEVER USE
ON PUBLIC ROADS NEVER CARRY
PASSENGERS NEVER USE
WITH DRUGS
OR ALCOHOLNEVER operate :
ALWAYS :

conditions.

with another vehicle.

balance and steering and increase risk
of losing control.

vehicle overturns on hills and rough
terrain and in turns.

seriously affect handling and control.LOCATE AND READ OWNER’S MANUAL.
FOLLOW ALL INSTRUCTIONS AND WARNINGS.
4XE-F1568-10
YAMAHA
5 4
3
U1PE60E0.book Page 9 Friday, March 2, 2012 1:22 PM

2-6
2
WARNING
EWB00072Avoid Carbon Monoxide Poisoning
All engine exhaust contains carbon monoxide,
a deadly gas. Breathing carbon monoxide can
cause headaches, dizziness, drowsiness, nau-
sea, confusion, and eventually death.
Carbon Monoxide is a colorless, odorless,
tasteless gas which may be present even if you
do not see or smell any engine exhaust. Deadly
levels of carbon monoxide can collect rapidly
and you can quickly be overcome and unable
to save yourself. Also, deadly levels of carbon
monoxide can linger for hours or days in en-
closed or poorly ventilated areas. If you experi-
ence any symptoms of carbon monoxide
poisoning, leave the area immediately, get
fresh air, and SEEK MEDICAL TREATMENT.●Do not run engine indoors. Even if you try to
ventilate engine exhaust with fans or open
windows and doors, carbon monoxide can
rapidly reach dangerous levels.●Do not run engine in poorly ventilated or par-
tially enclosed areas such as barns, garages,
or carports.
●Do not run engine outdoors where engine
exhaust can be drawn into a building
through openings such as windows and
doors.
