2013 YAMAHA XT1200Z engine

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
NOTICE
ECA10021
Do not continue to operate the en-
gine if it is overheating.TIP●
For radiator-fan-equipped vehi-
cles, the radiator fan(s) automati-
cally switch on or off according to
the coolant temperature in the ra-
diator.
●
If the engine overheats, see page
6-38 for further instructions.
U23PE3E0.book Page 5 Monday, July 30, 2012 8:44 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
DisplayConditionsWhat to do
Under 39 °C
(Under 103 °F) Message “Lo” is displayed. OK. Go ahead with riding.
40–116 °C
(104–242 °F) Coolant temperature is dis-
played.
OK. Go ahead with riding.
117–120 °C
(243–249 °F) Message “HI” flashes.
Stop the vehicle and allow it to idle until
the coolant temperature goes down.
Above 121 °C
(Above 250 °F) Message “HI” flashes.
Warning light comes on.Stop the engine and allow it to cool.
(See page 6-38.)
U23PE3E0.book Page 6 Monday, July 30, 2012 8:44 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
EAU11534
Engine trouble warning light “ ”
This warning light comes on or flashes
if a problem is detected in the electrical
circuit monitoring the engine. If this oc-
curs, have a Yamaha dealer check the
self-diagnosis system. (See page 3-14
for an explanation of the self-diagnosis
device.)
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. The warning light should come
on for a few seconds, and then go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
EAU51661
ABS warning light “ ”
In normal operation, the ABS warning
light comes on when the key is turned
to “ON”, and goes off after traveling at a
speed of 10 km/h (6 mi/h) or higher.
If the ABS warning light:●
does not come on when the key is
turned to “ON”
●
comes on or flashes while riding
●
does not go off after traveling at a
speed of 10 km/h (6 mi/h) or higher
The ABS may not work correctly. If any
of the above occurs, have a Yamaha
dealer check the system as soon as
possible. (See page 3-20 for an expla-
nation of the ABS.)WARNING
EWA16040
If the ABS warning light does not go
off after traveling at a speed of 10
km/h (6 mi/h) or higher, or if the
warning light comes on or flashes
while riding, the brake system re-
verts to conventional braking. If ei-
ther of the above occurs, or if the
warning light does not come on at
all, use extra caution to avoid possi-
ble wheel lock during emergency
braking. Have a Yamaha dealer
check the brake system and electri-
cal circuits as soon as possible.TIPIf the start switch is pushed while the
engine is running, the ABS warning
light will come on, but this is not a mal-
function.
EAU49402
Traction control system indica-
tor/warning light “TCS”
This indicator/warning light flashes
when the traction control system en-
gages.
The electrical circuit of the light can be
checked by turning the key to “ON”.
The light should come on for a few sec-
onds, and then go off.
If the light does not come on initially
when the key is turned to “ON”, or if the
light remains on, have a Yamaha deal-
er check the electrical circuit.
When the traction control system
switch is set to “TCS” modes “1” or “2”,
and the traction control system is oper-
ating, the indicator light flashes.
If the traction control system disables
while riding, “TCS” “Off” is displayed,
and the indicator/warning light and en-
gine trouble warning light come on.
(See page 3-21 for an explanation of
the traction control system.)
ABS
U23PE3E0.book Page 7 Monday, July 30, 2012 8:44 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
Try to reset the traction control system
and the lights by following the proce-
dures under “Resetting” on page 3-22.
EAU38624
Immobilizer system indicator light
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”. The indicator light should
come on for a few seconds, and then
go off. If the indicator light does not come on
initially when the key is turned to “ON”,
or if the indicator light remains on, have
a Yamaha dealer check the electrical
circuit.
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
The self-diagnosis device also detects
problems in the immobilizer system cir-
cuits. (See page 3-14 for an explana-
tion of the self-diagnosis device.)
EAU49606
Multi-function meter unit
WARNING
EWA12422
Be sure to stop the vehicle before
making any setting changes to the
multi-function meter unit. Changing
1. Traction control system switch
2. Traction control system indicator/warning
light “TCS”
3. Engine trouble warning light “ ”
4. Traction control system mode display
4
3
2
1
1. Tachometer
2. Traction control system mode display
3. Coolant temperature display/air intake tem- perature display/instantaneous fuel con-
sumption display/average fuel consumption
display
4. Speedometer
5. Fuel meter
6. Drive mode display
7. Clock
8. Right set button
9. Left set button
10.Odometer/tripmeter/fuel reserve tripmeter
11.Traction control system switch
1
2
3
5
6
78
9
10
4
11
U23PE3E0.book Page 8 Monday, July 30, 2012 8:44 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-9
3settings while riding can distract the
operator and increase the risk of an
accident.
The multi-function meter unit is
equipped with the following:●
a speedometer
●
a tachometer
●
an odometer
●
two tripmeters (which show the
distance traveled since they were
last set to zero)
●
a fuel reserve tripmeter (which
shows the distance traveled since
the last segment of the fuel meter
started flashing)
●
a clock
●
a fuel meter
●
an air intake temperature display
●
a coolant temperature display
●
a fuel consumption display (instan-
taneous and average consumption
functions)
●
a drive mode display (which shows
the selected drive mode)
●
a traction control system mode dis-
play (which shows the selected
traction control system mode)
●
a self-diagnosis device
●
an LCD and tachometer bright-
ness control mode
The left and right set buttons, located
under the display, allow you to control
or change the settings in the multi-func-
tion meter unit.
TIP●
To use the left and right buttons,
the key must be turned to “ON”,
except for the brightness mode.
●
For the U.K. only: To switch the
speedometer and odometer/trip-
meter/fuel consumption displays
between kilometers and miles,
press the left button for at least two
seconds.
Tachometer
The electric tachometer allows the rider
to monitor the engine speed and keep it
within the ideal power range.
When the key is turned to “ON”, the ta-
chometer needle sweeps once across
the r/min range and then returns to zero
r/min in order to test the electrical cir-
cuit.NOTICE
ECA10031
Do not operate the engine in the ta-
chometer red zone.
Red zone: 7750 r/min and above1. Tachometer
2. Tachometer red zone
12
U23PE3E0.book Page 9 Monday, July 30, 2012 8:44 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-12
3
AVE_ _._ km/L, AVE_ _._ L/100 km or
AVE_ _._ MPG
→ air intake tempera-
ture
Air intake temperature mode
The air intake temperature display indi-
cates the temperature of the air drawn
into the air filter case.
This display shows the air intake tem-
perature from –9 °C to 93 °C in 1 °C in-
crements. TIP●
When the air temperature is below
–9 °C, “Lo” will be displayed.
●
Even when the air intake tempera-
ture mode is selected, in the case
of engine overheating, the coolant
temperature mode appears, the
coolant temperature warning light
comes on, and “HI” flashes in the
display.
Coolant temperature modeThe coolant temperature display indi-
cates the temperature of the coolant.NOTICE
ECA10021
Do not continue to operate the en-
gine if it is overheating.
Instantaneous fuel consumption modeThe instantaneous fuel consumption
display modes “km/L”, “L/100 km” or
“MPG” (for the UK only) show the fuel
consumption under the current riding
conditions.●
The “km/L” display shows the dis-
tance that can be traveled on 1.0 L
of fuel.
●
The “L/100 km” display shows the
amount of fuel necessary to travel
100 km.
●
For the UK only: The “MPG” dis-
play shows the distance that can
be traveled on 1.0 Imp.gal of fuel.

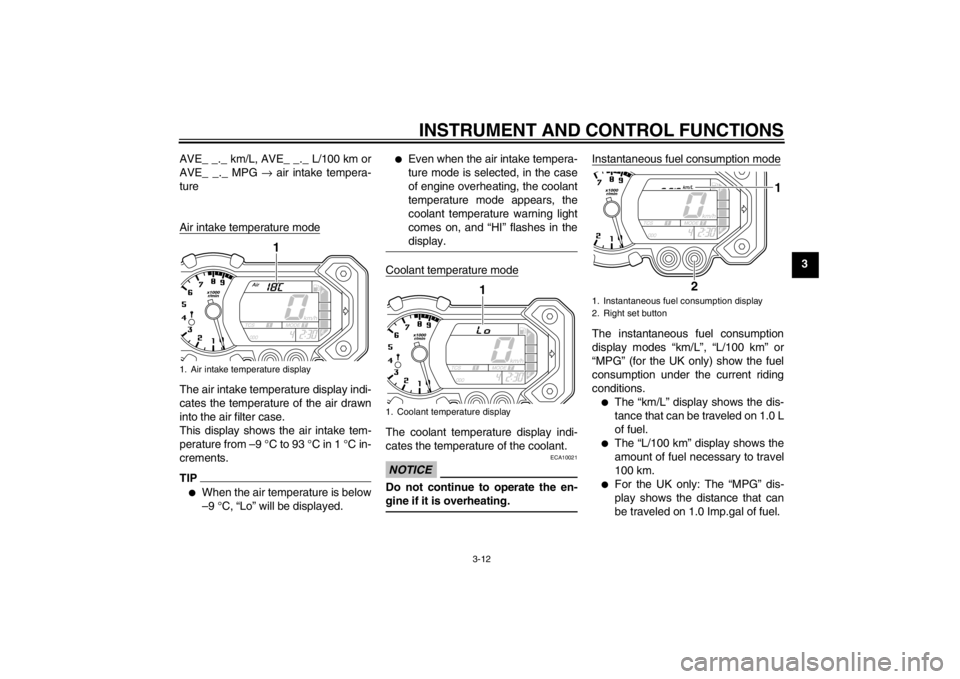

1. Air intake temperature display
1
1. Coolant temperature display
1
1. Instantaneous fuel consumption display
2. Right set button
2
1
U23PE3E0.book Page 12 Thursday, March 6, 2014 10:46 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-14
3
Traction control system mode dis-
play
This display indicates which traction
control system mode has been select-
ed: “1”, “2” or “Off”. For more details on
the modes and on how to select them,
refer to page 3-21. Self-diagnosis device
This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.
If a problem is detected in any other cir-
cuit, the engine trouble warning light
comes on and the display indicates an
error code.
If the display indicates any error codes,
note the code number, and then have a
Yamaha dealer check the vehicle.
If a problem is detected in the immobi-
lizer system circuits, the immobilizer
system indicator light flashes and the
display indicates an error code.
TIPIf the display indicates immobilizer sys-
tem circuit error code 52, this could be
caused by transponder interference. If
this error code appears, try following
the procedure below.1. Use the code re-registering key to
start the engine.TIPMake sure there are no other immobi-
lizer keys close to the main switch, and
do not keep more than one immobilizer
key on the same key ring! Immobilizer
system keys may cause signal interfer-
ence, which may prevent the engine
from starting.2. If the engine starts, turn it off andtry starting the engine with the
standard keys.
3. If one or both of the standard keys do not start the engine, take the
vehicle, the code re-registering
key and both standard keys to a
Yamaha dealer and have the stan- dard keys re-registered.
1. Traction control system mode display
1
1. Engine trouble warning light “ ”
2. Immobilizer system indicator light
3. Error code display
3
1
2
U23PE3E0.book Page 14 Monday, July 30, 2012 8:44 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-15
3
NOTICE
ECA11590
If the display indicates an error
code, the vehicle should be checked
as soon as possible in order to avoid
engine damage.LCD and tachometer brightness
control mode
This function allows you to adjust the
brightness of the LCD, and the tachom-
eter panel and needle to suit the out-
side lighting conditions.To set the brightness
1. Turn the key to “OFF”.
2. Push and hold the left button.
3. Turn the key to “ON”, and then re-
lease the left button after five sec-
onds.
4. Push the right button to select the desired brightness level.
5. Push the left button to confirm the selected brightness level. The dis-
play returns to the odometer or
tripmeter mode.
EAU49431
D-mode (drive mode) D-mode is an electronically controlled
engine performance system with two
mode selections (touring mode “T” and
sports mode “S”).
Push the drive mode switch “MODE” to
switch between modes. (See page
3-17 for an explanation of the drive
mode switch.)TIPBefore using D-mode, make sure you
understand its operation along with the
operation of the drive mode switch.
1. Tachometer panel
2. Tachometer needle
3. LCD
4. Brightness level display
5. Right set button
6. Left set button
1
2
3
4
6
5
1. Drive mode switch “MODE”
1
U23PE3E0.book Page 15 Monday, July 30, 2012 8:44 AM
