2013 YAMAHA FX HO oil

Table of contents
General and important labels ........... 1Identification numbers .................... 1
Primary Identification (PRI-ID)
number ........................................... 1
Craft Identification Number (CIN) ...... 1
Engine serial number ........................ 1
Manufactured date label .................... 2
Model information ........................... 2
Builder’s plate .................................... 2
Important labels .............................. 4
Warning labels ................................... 5
Other labels ....................................... 9
Safety information ........................... 11 Limitations on who may operate the watercraft ............................ 11
Cruising limitations ....................... 12
Operation requirements ............... 13
Recommended equipment ........... 15
Hazard information ....................... 16
Watercraft characteristics ............. 16
Water-skiing ................................. 18
Safe boating rules ........................ 19
Enjoy your watercraft responsibly ................................ 20
Description....................................... 21 Watercraft glossary ...................... 21
Location of main components ...... 22
Control function operation ............. 26 Watercraft control functions ......... 26
Remote control transmitter .............. 26
Yamaha Security System ................ 27
Engine stop switch .......................... 28
Engine shut-off switch ..................... 28
Start switch ...................................... 28
Throttle lever ................................... 29
Steering system ............................... 29
Adjustable tilt steering system ......... 30
Cooling water pilot outlets ............... 30
Water separator ............................... 31
Watercraft operation ....................... 32Watercraft operation functions ..... 32
Shift system ..................................... 32
Quick Shift Trim System
(Q.S.T.S.) ..................................... 33
Watercraft operation modes ......... 35
Low RPM Mode ............................... 35
No-wake mode ................................ 36
Cruise assist .................................... 37
Instrument operation ...................... 40Multifunction information center ... 40
Analog speedometer/tachometer .... 40
Information display .......................... 41
Multifunction display
(FX Cruiser SHO) ......................... 45
Equipment operation ...................... 49Equipment .................................... 49
Seats ............................................... 49
Handgrip .......................................... 50
Reboarding grip ............................... 50
Reboarding step .............................. 50
Bow eye ........................................... 51
Stern eyes ....................................... 51
Cleat ................................................ 51
Pull-up cleats (FX Cruiser SHO) ...... 52
Storage compartments .................... 52
Fire extinguisher holder and
cover ............................................ 57
Operation and handling
requirements ................................... 58Fuel requirements ........................ 58
Fuel ................................................. 58
Engine oil requirements ............... 60
Engine oil ......................................... 60
Draining the bilge water ............... 61
Draining the bilge water on land ...... 61
Draining the bilge water on water .... 62
UF2S71E0.book Page 1 Tuesday, August 21, 2012 2:33 PM

Table of contents
Transporting on a trailer ............... 63
First-time operation......................... 64 Engine break-in ............................ 64
Pre-operation checks ...................... 65
Pre-operation checklist .................... 65
Pre-operation check points .......... 67
Pre-launch checks ........................... 67
Post-launch checks ......................... 74
Operation ......................................... 75 Operating your watercraft ............. 75
Getting to know your watercraft ....... 75
Learning to operate your
watercraft ..................................... 75
Riding position ................................. 76
Launching the watercraft ................. 76
Starting the engine on water ........... 76
Stopping the engine ........................ 77
Leaving the watercraft ..................... 77
Operating the watercraft .................. 77
Turning the watercraft ..................... 78
Stopping the watercraft ................... 79
Operating the watercraft in reverse or neutral ...................................... 80
Boarding the watercraft ................... 81
Starting off ....................................... 84
Capsized watercraft ......................... 85
Beaching and docking the
watercraft ..................................... 86
Operating in weeded areas ............. 86
After removing the watercraft from the water ...................................... 87
Care and storage ............................. 88Post-operation care ...................... 88
Flushing the cooling water
passages ...................................... 88
Cleaning the watercraft ................... 89
Battery care ..................................... 89
Long-term storage ........................ 92
Cleaning .......................................... 92
Lubrication ....................................... 92 Rustproofing .................................... 93
Maintenance .................................... 94
Maintenance ................................ 94
Tool kit ............................................. 94
Removing and installing the engine
cover ............................................ 94
Periodic maintenance chart ............. 96
Engine oil and oil filter ..................... 97
Specifications.................................. 98 Specifications ................................ 98
Trouble recovery ............................. 99 Troubleshooting ........................... 99
Troubleshooting chart ...................... 99
Emergency procedures .............. 102
Cleaning the jet intake and
impeller ...................................... 102
Jumping the battery ....................... 103
Replacing the fuses ....................... 103
Replacing the bilge pump fuse ...... 105
Towing the watercraft .................... 106
Submerged watercraft ................... 107
UF2S71E0.book Page 2 Tuesday, August 21, 2012 2:33 PM

Safety information
20
EJU30991
Enjoy your watercraft responsibly
You share the areas you enjoy when riding
your watercraft with others and with nature.
So your enjoyment includes a responsibility to
treat these other people, and the lands, wa-
ters, and wildlife with respect and courtesy.
Whenever and wherever you ride, think of
yourself as the guest of those around you. Re-
member, for example, that the sound of your
watercraft may be music to you, but it could be
just noise to others. And the exciting splash of
your wake can make waves others won’t en-
joy.
Avoid riding close to shoreline homes and wa-
terfowl nesting areas or other wildlife areas,
and keep a respectful distance from fisher-
men, other boats, swimmers, and populated
beaches. When travel in areas like these is
unavoidable, ride slowly and obey all laws.
Proper maintenance is necessary to ensure
that the exhaust emission and sound levels of
your watercraft will continue to be within regu-
lated limits. You have the responsibility to
make sure that the recommended mainte-
nance in this owner’s/operator’s manual is
carried out.
Remember, pollution can be harmful to the
environment. Do not refuel or add oil where a
spill could cause damage to nature. Remove
your watercraft from the water and move it
away from the shoreline before refueling. Dis-
pose of water and any fuel and oil residue in
the engine compartment according to local
regulations. And keep your surroundings
pleasant for the people and wildlife that share
the waterways: don’t litter.
When you ride responsibly, with respect and
courtesy for others, you help ensure that our waterways stay open for the enjoyment of a
variety of recreational opportunities.
UF2S71E0.book Page 20 Tuesday, August 21, 2012 2:33 PM

Description
25

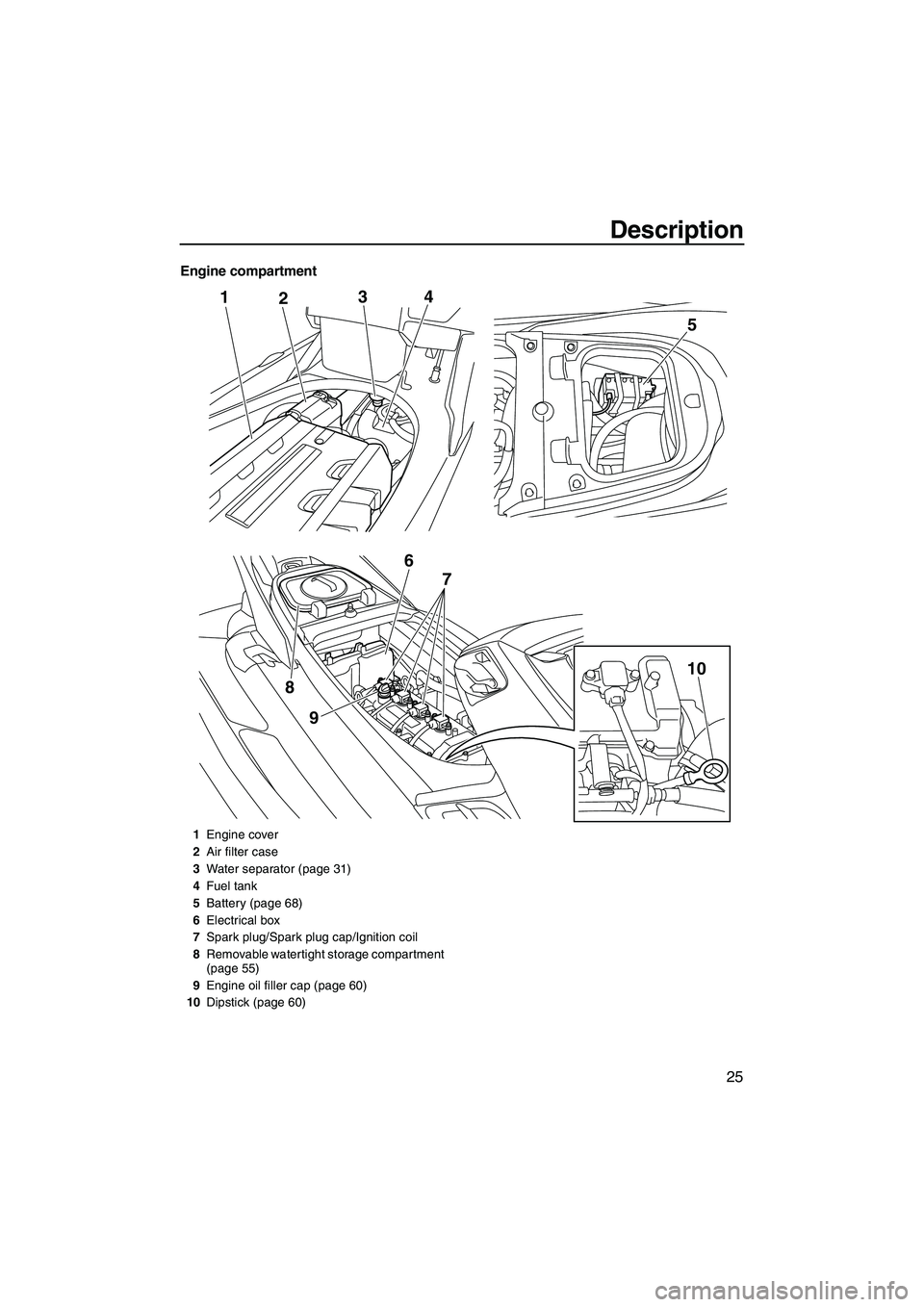

Engine compartment
124
9
8
5
3
6 7
10
1Engine cover
2 Air filter case
3 Water separator (page 31)
4 Fuel tank
5 Battery (page 68)
6 Electrical box
7 Spark plug/Spark plug cap/Ignition coil
8 Removable watertight storage compartment
(page 55)
9 Engine oil filler cap (page 60)
10 Dipstick (page 60)
UF2S71E0.book Page 25 Tuesday, August 21, 2012 2:33 PM

Instrument operation
41
To switch to the tachometer from the speed-
ometer:
Push the “SPEED/RPM” button for at least 1
second after the multifunction information
center is activated. When the meter switches
to the analog tachometer function, the “RPM”
indicator light comes on.
Analog speedometer
The analog speedometer shows the water-
craft speed against water.
The small inner numbers on the meter show
the watercraft speed in kilometers per hour
“km/h” and the large outer numbers show the
speed in miles per hour “mph”.
The “SPEED” indicator light comes on when
the analog speedometer is selected.
To switch to the speedometer from the ta-
chometer:
Push the “SPEED/RPM” button for at least 1
second after the multifunction information
center is activated. When the meter switches
to the analog speedometer function, the
“SPEED” indicator light comes on if “km/h” are
selected as the display units. The “SPEED”
indicator light blinks three times, then comes
on, if “mph” are selected as the display units.(See page 41 for information on switching the
digital speedometer display units.)
EJU35024Information display
The information display shows watercraft op-
erating conditions.
EJU42360Digital speedometer
The digital speedometer shows the watercraft
speed against water.
By switching the display units, the speed can
be shown in kilometers per hour (km/h) or
miles per hour (mph).
1
“SPEED/RPM” button
2 “RPM” indicator light
2
1
1“SPEED/RPM” button
2 “SPEED” indicator light
1 Fuel level meter
2 Fuel indicator
3 Hour meter/voltmeter
4 Digital speedometer
5 Engine overheat warning indicator
6 Check engine warning indicator
7 Oil pressure warning indicator
2
1
123
567
4
UF2S71E0.book Page 41 Tuesday, August 21, 2012 2:33 PM

Instrument operation
44
TIP:
The accuracy of the fuel level meter varies de-
pending on the operating conditions. Use this
function as a reference only.
EJU42340Fuel level warning
If the fuel remaining in the fuel tank drops to
about 18 L (4.8 US gal, 4.0 Imp. gal), the low-
est two fuel level segments, the fuel indicator,
and the “WARNING” indicator light blink, and
the buzzer sounds intermittently.
If the fuel level warning is activated, refill the
fuel tank as soon as possible. (See page 58
for information on filling the fuel tank.)
After the fuel tank is refilled, the warning sig-
nals will be cleared when the engine is restart-
ed.
TIP:
Push any of the operation buttons for the mul-
tifunction information center to stop the buzz-
er.
EJU42270Oil pressure warning
If the oil pressure drops significantly, the oil
pressure warning indicator and the “WARN-
ING” indicator light blink, and the buzzer
sounds intermittently. At the same time, the
engine speed is limited.
If the oil pressure warning is activated, imme-
diately reduce the engine speed, return to
shore, and then check the engine oil level.
(See page 60 for information on checking the
engine oil level.) If the oil level is sufficient,
have a Yamaha dealer check the watercraft.
TIP:
Push any of the operation buttons for the mul-
tifunction information center to stop the buzz-
er.
EJU42370Engine overheat warning
If the engine temperature rises significantly,
the engine overheat warning indicator and the
“WARNING” indicator light blink, and the
buzzer sounds intermittently. Then, the en-
gine overheat warning indicator and the
“WARNING” indicator light stop blinking and
remain on, and the buzzer sounds continu-
1Fuel level meter
1
UF2S71E0.book Page 44 Tuesday, August 21, 2012 2:33 PM

Operation and handling requirements
60
EJU40290
Engine oil requirements EJU41510Engine oil
NOTICE
ECJ00281
Use only 4-stroke engine oil. Usage of 2-
stroke engine oil could result in severe en-
gine damage.
Checking the engine oil level
WARNING
EWJ00340
Engine oil is extremely hot immediately af-
ter the engine is turned off. Coming in con-
tact with or getting any engine oil on your
clothes could result in burns.
NOTICE
ECJ01001
Make sure that debris and water do not en-
ter the oil filler hole. Debris and water in
the engine oil can cause serious engine
damage.
To check the engine oil level:
(1) Place the watercraft in a precisely levelposition on land with the engine stopped.
If the engine was running, allow the en-
gine oil to settle by waiting 5 minutes or
more before checking the oil level.
(2) Remove the seats. (See page 49 for seat removal and installation procedures.) (3) Remove the dipstick and wipe it clean.
(4) Insert the dipstick back into the dipstick
tube completely. Remove the dipstick
again and make sure that the engine oil
level is between the minimum and maxi-
mum level marks.
(5) If the engine oil level is significantly above the maximum level mark, consult a
Yamaha dealer. If the engine oil level is below the minimum level mark, add en-
gine oil.
Recommended engine oil type:
SAE 10W-30, 10W-40, 20W-40, 20W-
50
Recommended engine oil grade: API SE,SF,SG,SH,SJ,SL
1Dipstick
1 Maximum level mark
2 Minimum level mark
1
2
1
UF2S71E0.book Page 60 Tuesday, August 21, 2012 2:33 PM

Operation and handling requirements
61
(6) Loosen the engine oil filler cap and re-move it.
(7) Slowly add engine oil.
TIP:
The difference between the minimum and
maximum level marks on the dipstick is equal
to approximately 1 L (1.06 US qt, 0.88 Imp. qt)
of engine oil.
(8) Wait approximately 5 minutes to allow the engine oil to settle, and then check the
engine oil level again.
(9) Repeat steps 3–8 until the engine oil is at the proper level.
(10) Securely install the engine oil filler cap by tightening it until it stops.
(11) Securely install the seats in their original positions.
EJU40021
Draining the bilge water
NOTICE
ECJ01301
Do not run the engine at full throttle when
bilge water remains in the engine compart-
ment. The bilge water can splash into the
engine, which can result in severe dam-
age.
EJU40033Draining the bilge water on land
To drain the bilge water on land:
(1) Loosen the stern drain plugs and removethem.
(2) Raise the bow of the watercraft, such as by placing the watercraft on a slope, to
drain the bilge water from the engine
compartment.
(3) After the bilge water has drained from the stern drain plug holes, wipe up any re-1Engine oil filler cap
1
1Stern drain plug
1
UF2S71E0.book Page 61 Tuesday, August 21, 2012 2:33 PM
