2013 VOLKSWAGEN TIGUAN warning light

▪ Av. consumption ø --- mpg (average fuel consumption)
▪ Range
▪ Route
▪ Av. speed ø (average speed)
▪ Digit. speed (digital speed display)
▪ Speed warn.
Audio ⇒ Booklet Radio or ⇒ Booklet Navigation system
Navigation ⇒ Booklet Navigation system
Phone ⇒ Booklet Mobile phone package
Vehicle status
Settings
▪ Language
▪ MFI data
– Travel time
– Curr. consum. (current fuel consumption)
– Av. consum. (average fuel consumption)
– Route
– Av. speed
– Digit. speed (digital speed display)
– Speed warn. (speed warning)
▪ Compass (vehicles without navigation system)
▪ Convenience
– ATA confirm
Single door
Auto. close
– Central locking
Auto unlock
Unlock doors
– Window op. (window operation)
OFF
All
Driver
– Mirror down (vehicles with memory seats)
– Mirror adjust
Individually
Both mirrors
– Factory setting
▪ Lights & Vision
– Coming home
– Leaving home
– Footwell light
– Conv. turn sig. (convenience turn signal)
– Factory setting
▪ Time
– Hours
– Minutes

– Speed warn. (speed warning)
▪ Compass (vehicles without )
▪ Convenience
– ATA confirm
Single door
Auto. close
– Central locking
Auto unlock
Unlock doors
– Window op. (window operation)
OFF
All
Driver
– Mirror down (vehicles with memory seats)
– Mirror adjust
Individually
Both mirrors
– Factory setting
▪ Lights & Vision
– Coming home
– Leaving home
– Footwell light
– Conv. turn sig. (convenience turn signal)
– Factory setting
▪ Time
– Hours
– Minutes
– 24 hr. mode
– Daylight save
▪ Snow tires (winter tires)
– On
– + 5 mph
– - 5 mph
▪ Units
– Temperature
– Consump./ dist.
▪ Tire pressure , Tire pressure monitoring system (TPMS)
▪ Alt. speed dsp (alternative speed display On/Off)
▪ Service
– Info
– Reset
▪ Factory setting

Main menus Function See
MFI Multi-Function Indicator (MFI) information.
Audio
Station indicator in radio mode.
Track display in CD mode.
Track display in media mode.
⇒ Booklet Radio or
⇒ Booklet Navigation
system
Navigation
Information displays on the navigation system:
When destination guidance is active, turn arrows and prox-
imity bars are shown. The illustration is similar to the sym-
bol display in the navigation system.
If destination guidance is inactive, driving direction (com-
pass function) and the current street name are displayed.
⇒ Booklet Navigation
system
Phone Information and settings of the mobile phone package. ⇒ Booklet Mobile
Phone Package
Vehicle
status
Current warning and information messages.
This menu item is only displayed when warning or informa-
tion messages are available. The number of available
messages is shown in the display. Example: 1/1 or 2/2.

Settings
Includes the Convenience and Lights & Vision sub-menus,
as well as many settings such as time, speed warning for
winter tires, language, units and “Display OFF”.


MFI menu (Multi-Function Indicator): Premium version

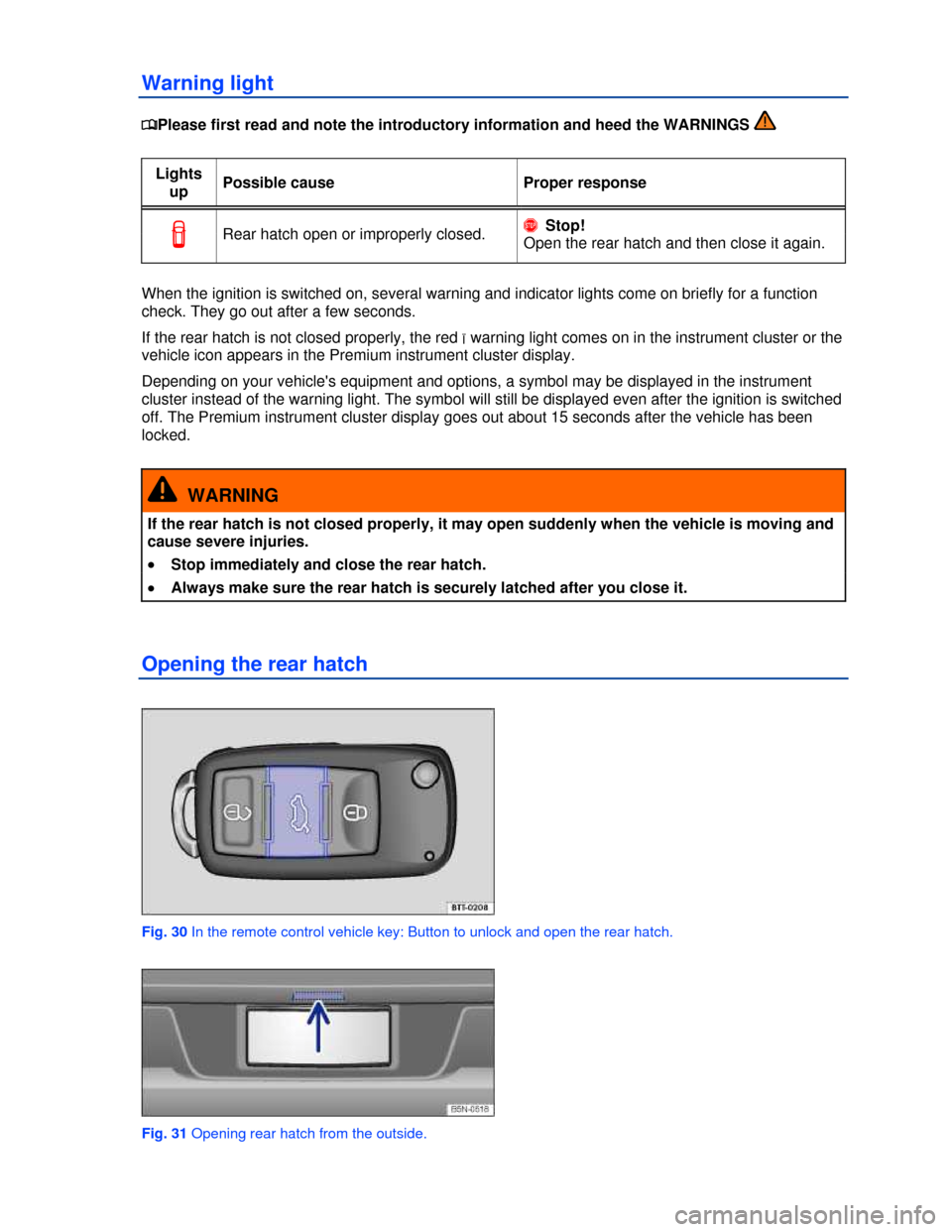

Warning light

WARNING
Always adjust seat, safety belts and head restraints properly before driving and make sure
that all passengers are properly restrained.
x Push the passenger seat as far back as possible. Always be sure that there are at least
10 inches (25 cm) between the front passenger's breastbone and the instrument panel.
x Always adjust the driver's seat and the steering wheel so that there are at least 10 inches
(25 cm) between your breastbone and the steering wheel.
x Adjust the driver's seat so that you can easily push the pedals all the way to the floor
while keeping your knee(s) slightly bent. The distance to the instrument panel in the knee
area must be at least 4 inches (10 cm).
x If these requirements cannot be met for physical reasons, contact an authorized Volkswa-
gen dealer or an authorized Volkswagen Service Facility to see whether adaptive equipment
is available.
x Always hold the steering wheel on the outside of the steering wheel rim with your hands
at the 9 o'clock and 3 o'clock positions to help reduce the risk of personal injury if the driv-
er's airbag inflates.
x Never hold the steering wheel at the 12 o'clock position or with your hands at other places
inside the steering wheel rim or on the steering wheel hub. Holding the steering wheel the
wrong way can cause serious injuries to the hands, arms, and head if the driver airbag in-
flates.
x Pointing the steering wheel toward your face decreases the ability of the driver's airbag to
help protect you in a collision.
x Never drive with backrests reclined or tilted back farther than necessary to drive comfort-
ably. The farther back the backrests are tilted, the greater the risk of injury caused by incor-
rect positioning of the safety belts and improper seating position.
x Never drive with the front seat passenger backrest tilted forward. If the front airbag dep-
loys, the front backrest can be forced backward and injure passengers on the rear seat.
x Sit as far back as possible from the steering wheel and the instrument panel.
x Always sit upright with your back against the backrest with the front seats properly ad-
justed. Never lean against or place any part of your body too close to the area where the air-
bags are located.
x Rear seat passengers who are not properly seated and restrained are more likely to be
seriously injured in a crash.
WARNING
Improper adjustment of the seats can cause accidents and severe injuries.
x Never adjust the seats while the vehicle is moving. Your seat may move unexpectedly and
you could lose control of the vehicle. In addition, you will not be in the correct seating posi-
tion while adjusting the seats.
x Adjust the front seat height, angle and longitudinal direction only if the seat adjustment
area is clear.
x The adjustment of the front seats must not be restricted by things in the footwell in front
or behind the seats.
Examples of improper seating positions

Function Action for seat heating ⇒fig.52
Switch on: Press the Aor ebutton. Seat heating is switched on
to maximum.
Adjusting heating
level:
Press the button Aor erepeatedly until the desired
heating level is set.
Switch off: Press the button Aor erepeatedly until all indicator
lights in the button are off.

Special seat heating features
The seat heating on the passenger side is switched off every time the ignition is switched off.
Seat heating must be switched on again each time the ignition is switched on.
On the driver side the seat heating will resume at the setting that was set when the ignition was
switched off. However, this feature only works if the key does not get pulled out of the ignition switch,
or, for vehicles with Keyless Access, the doors are not opened or the vehicle is not locked.
People suffering from a low level of perceived pain or a lowered awareness of pain as from medica-
tion, paralysis, or chronic illness (e.g. diabetes) should NEVER use the seat heating feature ⇒ .
The use of seat heating by persons with these conditions could result in burns to the back, buttocks,
and legs that may take a long time to heal and may never heal completely. If you have any of these
conditions, you should take regular breaks and get out of the vehicle, particularly on long trips. Consult
your doctor for advice regarding your specific condition.
WARNING
Certain medical conditions, such as paralysis and diabetes, and certain medications, can
increase the risk of serious burns when the seat heating feature is switched on.
x Vehicle occupants who have a low level of perceived pain or a lowered awareness of pain
can receive serious burns to the back, buttocks, and legs that take a long time to heal or may
never heal completely.
x Never use the seat heating feature if you or your passengers are at risk of being burned
because of a medical condition. Take regular breaks and get out of the vehicle, particularly
on long trips. Consult your doctor for advice regarding your specific condition.
x Never let exposed skin remain in contact with the seat upholstery when the seat heating is
being used.
WARNING
A wet seat can cause the seat heating to malfunction and increase the risk of serious burns.
x Always make sure the seats are dry before using the seat heating.
x Never sit on the seat with wet clothes.
x Never put damp or wet things including clothes on the seat.
x Never spill liquids on the seats.
NOTICE
x To help prevent damage to electrical and other parts in the seat, do not kneel on the front
seats or apply concentrated pressure to a small area of the seat or backrest.

x Push the head restraint all the way down
x Unlock the front passenger backrest in the direction of the arrow ⇒ fig. 54 (1).
x Fold the front passenger backrest forward into the horizontal position in the direction of the arrow
(2).
x The front passenger backrest must be securely latched in the folded down position.
Folding the front passenger backrest into place
x Make sure that nobody is near the hinges when folding the backrest back into place.
x Unlock the front passenger backrest to fold it back ⇒ fig. 55.
x Fold the front passenger backrest into the upright position.
x The front passenger backrest must be securely latched in the upright position.
WARNING
Improper folding and improper latching of the front passenger backrest can cause serious
personal injury.
x Never fold the front passenger backrest forward or back when the vehicle is moving.
x Always make sure that the PASSENGER AIR BAG OFF  light is on and stays on
whenever the backrest of the front passenger seat is folded forward.
x Always keep hands, fingers, feet and other body parts out of the way of the seat hinges
and the seat locking mechanism when folding the backrest forward and back.
x Floor mats and other objects can get caught in the front passenger backrest hinges. This
can cause the front passenger backrest to incorrectly latch when folded back into the upright
position.
x When folded back into place, the front passenger backrest must be securely latched in the
upright position. An improperly latched front passenger backrest can suddenly move and
cause serious personal injury.
WARNING
Open seat mountings and hinges of the folded front passenger backrest can cause severe
injuries in the event of a braking maneuver or accident.
x Do not let passengers or children occupy the front passenger seat when the front
passenger backrest is folded forward.
x When the front passenger backrest is folded down, only the outer seat of the rear bench
behind the driver seat can be occupied. This also applies to children in child safety seats.

WARNING
Damage to safety belts reduces their overall effectiveness and increases the risk of serious
personal injury and death whenever the vehicle is being used.
x Never let safety belts become damaged by being caught in the door or seat hardware.
x Torn or frayed safety belts can tear, and damaged safety belt hardware can break in an
accident.
x Inspect belts regularly for damage. If webbing, bindings, buckles, or retractors are
damaged, have the belts replaced immediately with the correct replacement belts approved
by Volkswagen for your vehicle, model, and model year.
x Safety belts that were subject to stress in an accident and stretched must be replaced with
a correct, new safety belt, preferably by an authorized Volkswagen dealer or authorized
Volkswagen Service Facility.
x Replacement after a crash may be necessary even if a safety belt shows no visible
damage. Anchorages that have been loaded must also be inspected.
x Damaged safety belts must be replaced; they cannot be repaired.
x Never try to repair a damaged safety belt yourself. Never remove or modify the safety belts
in any way.
x Have safety belts, bindings, retractors and buckles replaced by an authorized Volkswagen
dealer or authorized Volkswagen Service Facility.
x Always keep the belts clean. Dirty belts may not work correctly and can impair the
function of the inertia reel.
Warning light

Fig. 56 Warning light in the instrument cluster.
