2013 TOYOTA xB Owners Manual (in English)

273
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xB_OM_OM12G05U_(U)
■
Parking lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP 1
STEP 2

274 4-3. Do-it-yourself maintenance
Scion_xB_OM_OM12G05U_(U)
■Front side marker lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP 1
STEP 2

275
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xB_OM_OM12G05U_(U)
■
Stop/tail and rear side marker lights, rear turn signal lights
and back-up lights
Open the back door and remove
the cover.
To prevent damaging the vehicle,
wrap the flathead screwdriver
with a rag.
Turn the bulb base counterclock-
wise and remove the light bulb.
Stop/tail and rear side marker
light
Rear turn signal light
Back-up light
STEP 1
STEP 2

276 4-3. Do-it-yourself maintenance
Scion_xB_OM_OM12G05U_(U)
■License plate lights
Open the back door and remove
the trim board.
To prevent damaging the vehicle,
wrap the flathead screwdriver
with a rag.
Turn the bulb base counterclock-
wise and remove the light bulb.
STEP 1
STEP 2

277
4-3. Do-it-yourself maintenance
4
Maintenance and care
Scion_xB_OM_OM12G05U_(U)
■
LED light bulbs
The accessory lights, side turn signal lights and high mounted stoplight con-
sist of a number of LEDs. If any of the LEDs burn out, take your vehicle to
your Scion dealer to have the light replaced.
■ Condensation build-up on th e inside of the lens
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction. Contact your Scion dealer for more information in
the following situations:
● Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
CAUTION
■Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

278 4-3. Do-it-yourself maintenance
Scion_xB_OM_OM12G05U_(U)

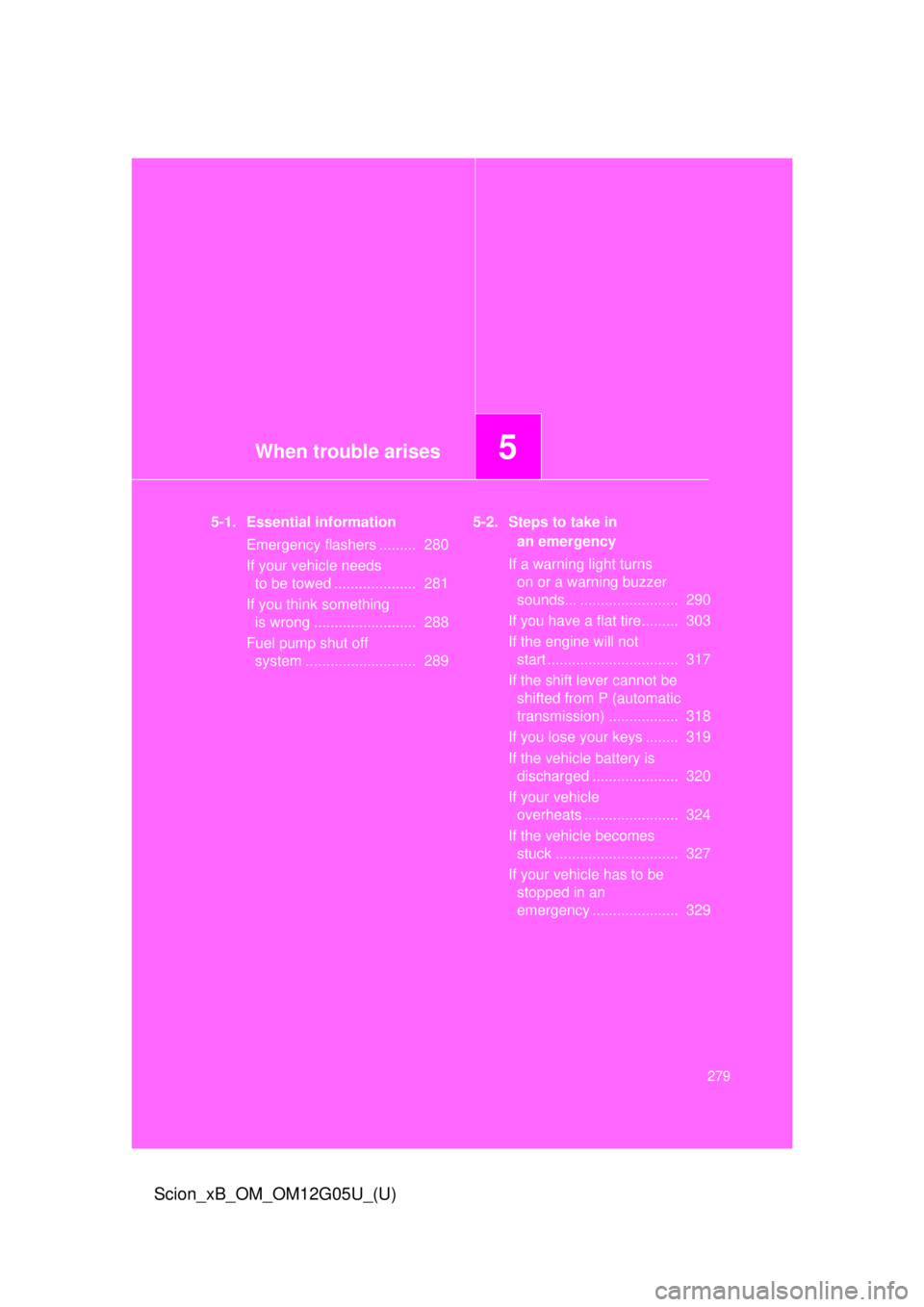

When trouble arises5
279
Scion_xB_OM_OM12G05U_(U)
5-1. Essential informationEmergency flashers ......... 280
If your vehicle needs to be towed .................... 281
If you think something is wrong ......................... 288
Fuel pump shut off system ........................... 289 5-2. Steps to take in
an emergency
If a warning light turns on or a warning buzzer
sounds... ........................ 290
If you have a flat tire......... 303
If the engine will not start ................................ 317
If the shift lever cannot be shifted from P (automatic
transmission) ................. 318
If you lose your keys ........ 319
If the vehicle battery is discharged ..................... 320
If your vehicle overheats ....................... 324
If the vehicle becomes stuck .............................. 327
If your vehicle has to be stopped in an
emergency ..................... 329

280
Scion_xB_OM_OM12G05U_(U)
5-1. Essential information
Emergency flashers
NOTICE
■To prevent battery discharge
Do not leave the emergency flashers on longer than necessary when the
engine is not running.
Use the emergency flashers if th e vehicle malfunctions or is
involved in an accident.
Press the switch to flash all
the turn signal lights. To turn
them off, press the switch
once again.
