2013 TOYOTA VENZA Owners Manual (in English)

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
15

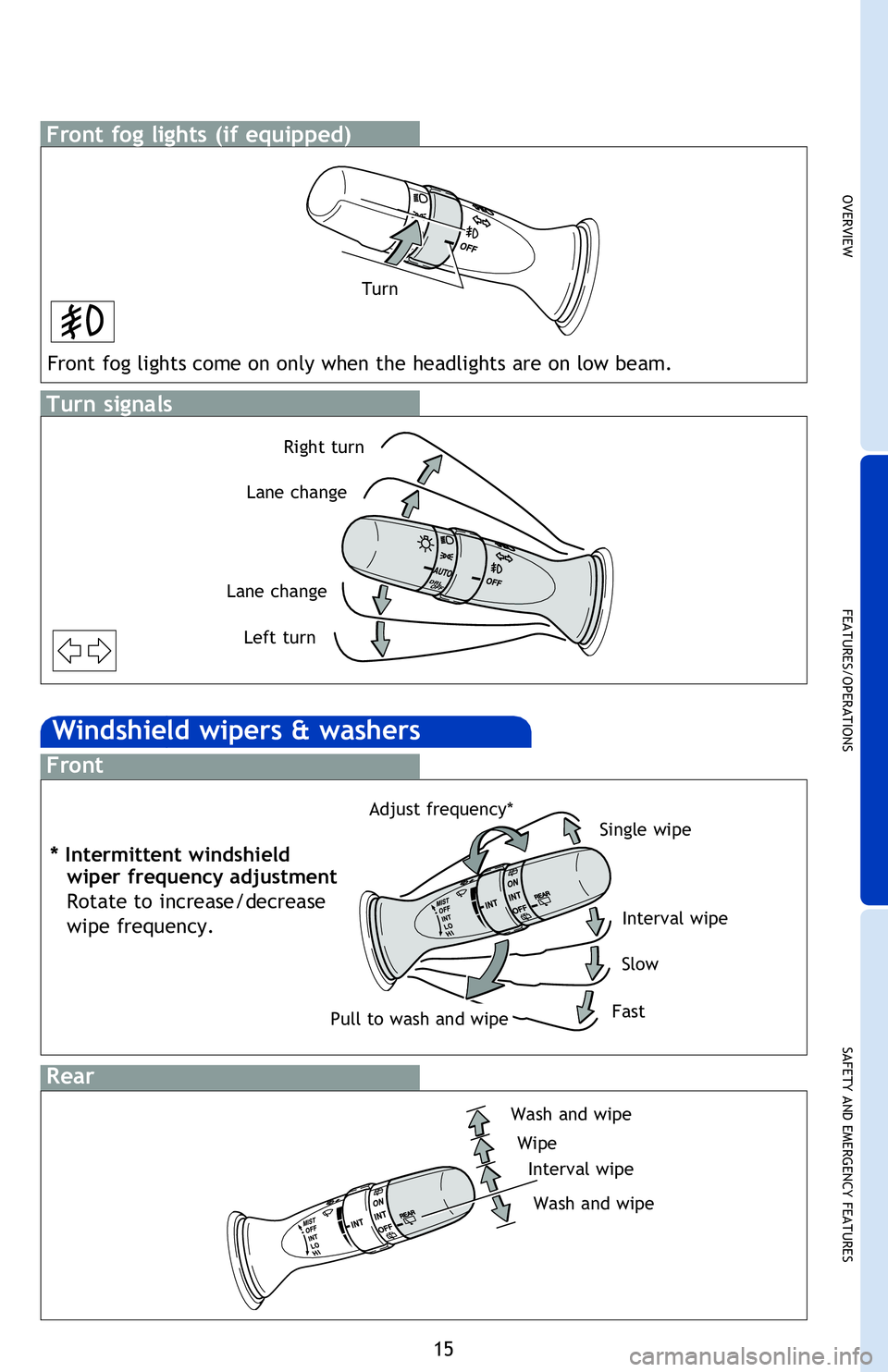

Turn signals
Front fog lights (if equipped)
Front fog lights come on only when the headlights are on low beam.
Right turn
Lane change
Lane change Left turn
Turn
-Daytime Running Light system (DRL) Automatically turns on the headlights at
a reduced intensity.
-Automatic light cut off system Automatically turns lights off after a delay of
30 seconds.
Windshield wipers & washers
Interval wipe
Single wipe
Slow
Fast
Front
Rear
Wash and wipe Wipe Interval wipe
Wash and wipe
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease
wipe frequency.
Adjust frequency*
Pull to wash and wipe
2013Venza.indd 155/10/12 8:34 PM

16
FEATURES/OPERATIONS
Air Conditioning/Heating
Push: Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air
intake and fan to adjust automatically.
Turn: Temperature selector (driver side)
Fan speed
Airflow vent
In “
” mode, use fresh air (“” indicator OFF) to reduce window
fogging. “
” mode uses fresh air only.
Push: Dual operation ON/OFF
Separate temperature setting or synchronize temperature setting for
driver and passenger.
Turn: Temperature selector (front passenger side)
Air Conditioning ON/OFF
Recirculate cabin air (fresh air when OFF)
Outside rearview mirror/Rear window defogger/Windshield wiper
de-icer
Windshield defogger
Climate control OFF
Seat heaters (if equipped)
Driver’s seatFront passenger’s seat
Turn
On
The Enhanced VSC OFF button is used to switch between modes related to the
TRAC and Enhanced VSC functions.
Refer to Section 2-4 of the Owner’s Manual for more information.
Enhanced VSC OFF button
Power outlets-12V DC
Instrument panel
NOTE: Designed for car accessories. The “ENGINE START STOP”/ignition switch must
be in the ACCESSORY or ON position to be used.
2013Venza.indd 165/10/12 8:35 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
17
Push: Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air
intake and fan to adjust automatically.
Turn: Temperature selector (driver side)
Fan speed
Airflow vent
In “
” mode, use fresh air (“” indicator OFF) to reduce window
fogging. “
” mode uses fresh air only.
Push: Dual operation ON/OFF
Separate temperature setting or synchronize temperature setting for

driver and passenger.
Turn: Temperature selector (front passenger side)
Air Conditioning ON/OFF
Recirculate cabin air (fresh air when OFF)
Outside rearview mirror/Rear window defogger/Windshield wiper
de-icer
Windshield defogger
Climate control OFF
Front passenger’s seat
The Enhanced VSC OFF button is used to switch between modes related to the
TRAC and Enhanced VSC functions.
Refer to Section 2-4 of the Owner’s Manual for more information.
Enhanced VSC
OFF button
Enhanced VSC OFF button
Power outlets-12V DC
Instrument panelInside center console
NOTE: Designed for car accessories. The “ENGINE START STOP”/ignition switch must
be in the ACCESSORY or ON position to be used.
Luggage compartment
2013Venza.indd 175/10/12 8:35 PM

18
FEATURES/OPERATIONS
Audio
“ ”
Use to search within the selected audio medium (radio, CD, iPod®, etc.).
“MODE”
Push to turn audio ON and to select an audio mode. Push and hold to mute/
unmute or pause/resume current operation.
USB/AUX port
Steering wheel switches
By inserting a mini plug into the USB/AUX port, you can listen to music from a
portable audio device through the vehicle’s speaker system while in USB/AUX mode.
Audio
Type 2 - additional function
Turn to
tune radio
stations
manually
or select
tracks or
files
Eject CD
Touch screen display
Push to
display
audio
screen
Seek station/
CD track
select
Push to turn
ON/OFF
Type 1
Premium
Display
Audio
system*
Push to pause
or resume
playing
* Refer to the “Display Audio System Owner’s Manual ” for instructions and more
information.
2013Venza.indd 185/10/12 8:37 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
19
“ ”
Use to search within the selected audio medium (radio, CD, iPod®, etc.).
“MODE”
Push to turn audio ON and to select an audio mode. Push and hold to mute/
unmute or pause/resume current operation.
vv
USB/AUX port
Steering wheel switches
Volume
control
By inserting a mini plug into the USB/AUX port, you can listen to music from a
portable audio device through the vehicle’s speaker system while in USB/AUX mode.
Turn to
tune radio
stations
manually
or select
tracks or
files
Eject CD
* Refer to the “Display Audio System Owner’s Manual ” for instructions and more
information.
2013Venza.indd 195/10/12 10:26 PM

20
FEATURES/OPERATIONS
Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Decrease speed
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc\
.
Refer to “Garage door opener,” Section 3-5 in the Owner’s Manual for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink® is a registered trademark of Johnson Controls, Inc.
Garage door opener (HomeLink®)*
(if equipped)
Cancel1
Resume2
Set
HAC helps prevent rolling backwards on an incline. To engage, push further down
on brake pedal while at a complete stop until a beep sounds and slip indicator
illuminates. HAC holds for approximately two seconds after releasing brake pedal.
Refer to the Owner’s Manual for more details.
Brake
pedal
Hill-start Assist Control (HAC)
2013Venza.indd 205/10/12 8:38 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
21
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Increase speed

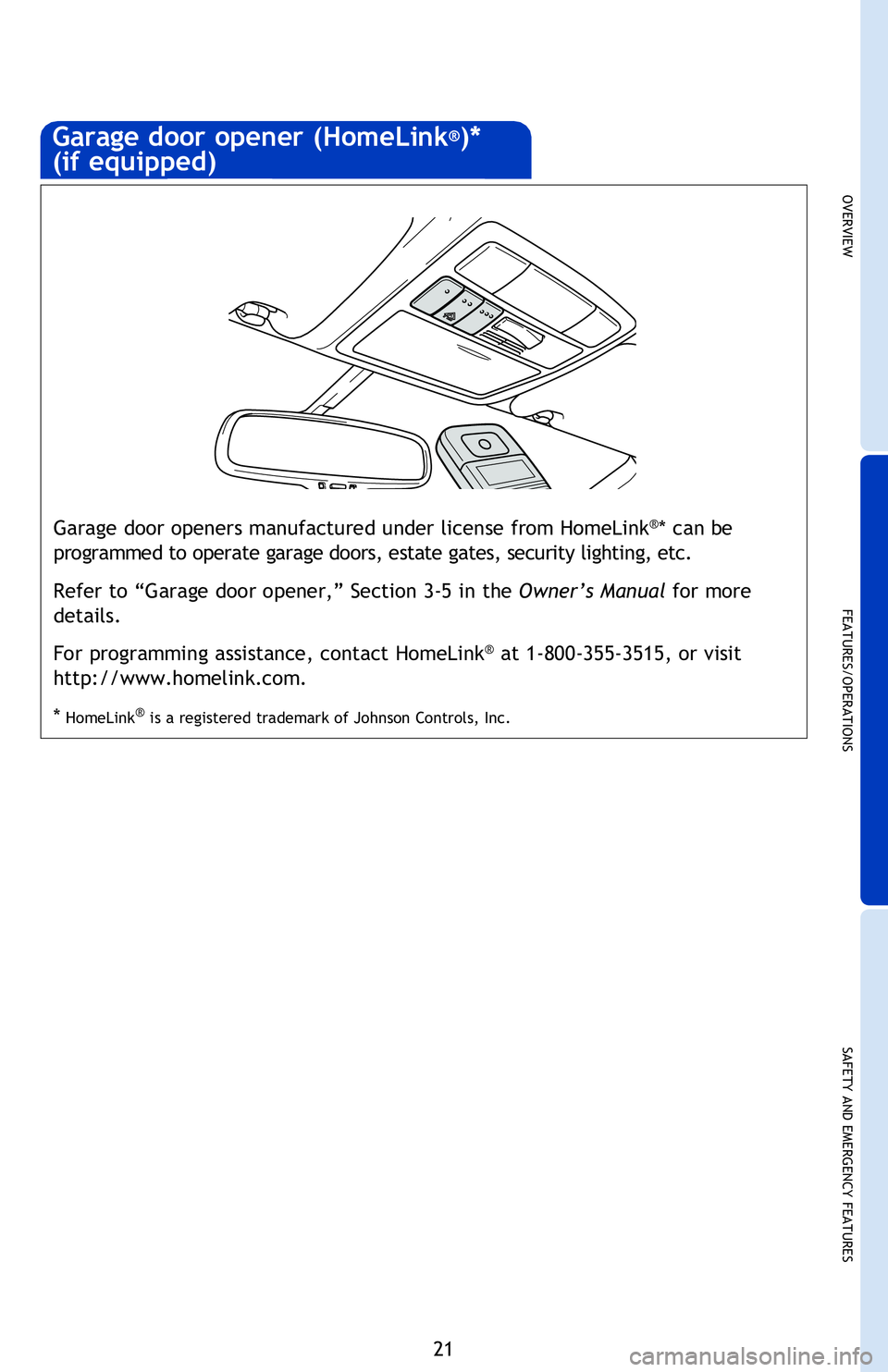

Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc\
.
Refer to “Garage door opener,” Section 3-5 in the Owner’s Manual for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
*
HomeLink® is a registered trademark of Johnson Controls, Inc.
Garage door opener (HomeLink®)*
(if equipped)
HAC helps prevent rolling backwards on an incline. To engage, push further down
on brake pedal while at a complete stop until a beep sounds and slip indicator
illuminates. HAC holds for approximately two seconds after releasing brake pedal.
Refer to the Owner’s Manual for more details.
2013Venza.indd 215/10/12 8:38 PM

22
FEATURES/OPERATIONS
Multi-Information Display (clock)
Push “INFO” or “INFO-CLOCK” to change information in the following:
(1) Average fuel economy (AVERAGE ECON)
(2) Current fuel economy (CURRENT ECON)
(3) Distance to empty (RANGE)
(4) Average speed (AVERAGE SPEED)
(5) Trip timer (TFT type only)
TFT type
LCD type
Setting the clock
TFT type (1) Press the “SETUP” button for the “Custom Settings” screen.
(2) Select “Clock” on the Display Settings screen, and press the “SELECT RESET”
button. (3) Press the “INFO” button to adjust the hours and the “SETUP” button
to adjust the minutes. (4) Press the “SELECT RESET” button to set the clock.
LCD type (1) Press and hold the “INFO-CLOCK” button until part of the display
begins to flash. (2) Press and hold the “RESET-H” button to adjust the hours and
the “US/M-M” button to adjust the minutes. (3) Press the “INFO-CLOCK” button
to complete the setting.
Customizable features
If your vehicle has a TFT type multi-information display, you will be able to
customize certain electronic features. Press the “SETUP” button while stopped to
access the “Custom Settings” screen.
Please see the Owner’s Manual for details.
Tilt and telescopic steering wheel
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Lock release lever
2013Venza.indd 225/10/12 8:38 PM
