2013 TOYOTA TUNDRA bluetooth

430
3-5. Using the hands-free phone system (for cellular phone)
Using the hands-free phone system
■Audio unit
Display
A message, name, phone
number, etc. is displayed.
Lower-case characters and
special characters, such as
an umlaut, cannot be dis-
played.
Displays information that is
too long to be displayed at
one time on the display
(press and hold)
Selects speed dials
Selects items such as menu
or number
Turn: Selects an item
Press: Inputs the selected
item
Bluetooth
® connection con-
dition and reception level
If “BT” is not displayed, the
hands-free phone system
cannot be used.

433
3-5. Using the hand
s-free phone system (for cellular phone)
3
Interior and exterior features
Register a phone name by either of the following methods.
a. Select “Record Name” by using , and say a name to
be registered.
b. Press the talk switch and say a name to be registered.
A voice guidance instruction to confirm the input is heard.
Select “Confirm” by using a voice command or .
Registration to the hands-free phone system only
Select “Phone Only” using a voice command or .
Registration to the hands-free phone system and Bluetooth
® audio
system at the same time
Select “Internal Audio (Int. Audio)” using a voice command or
.
Select “Confirm” by using a voice command or .
A passkey is displayed and heard, and a voice guidance instruction
for inputting the passkey into the cellular phone is heard. Input the passkey into the cellular phone.
Refer to the manual that comes with the cellular phone for the oper-
ation of the phone.
Guidance for registration completion is heard.

446
3-5. Using the hands-free phone system (for cellular phone)

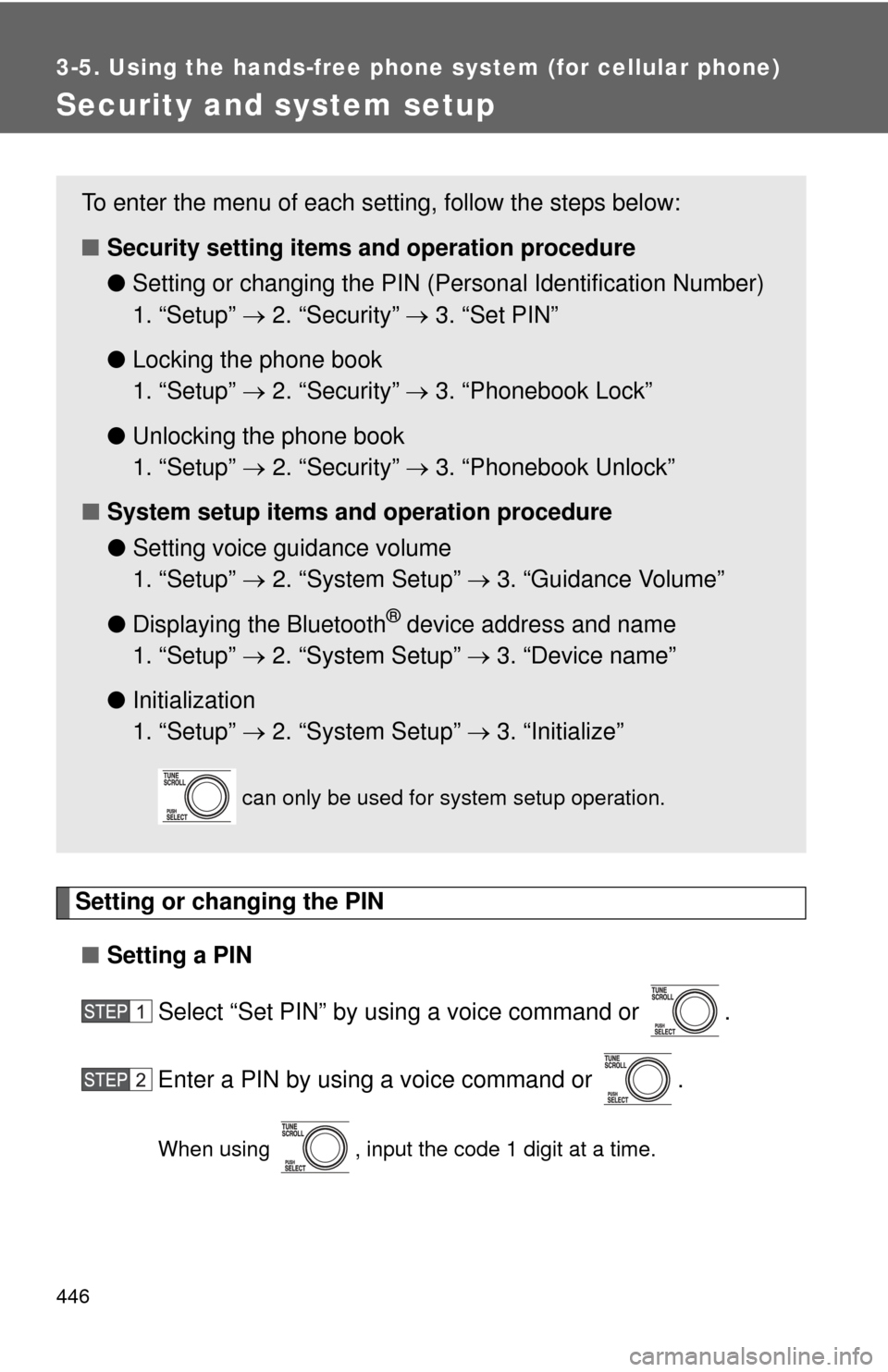

Security and system setup
Setting or changing the PIN■ Setting a PIN
Select “Set PIN” by using a voice command or .
Enter a PIN by using a voice command or .
When using , input the code 1 digit at a time.
To enter the menu of each setting, follow the steps below:
■Security setting items and operation procedure
● Setting or changing t he PIN (Personal Identification Number)
1. “Setup”  2. “Security”  3. “Set PIN”
● Locking the phone book
1. “Setup”  2. “Security”  3. “Phonebook Lock”
● Unlocking the phone book
1. “Setup”  2. “Security”  3. “Phonebook Unlock”
■ System setup items and operation procedure
●Setting voice guidance volume
1. “Setup”  2. “System Setup”  3. “Guidance Volume”
● Displaying the Bluetooth
® device address and name
1. “Setup”  2. “System Setup”  3. “Device name”
● Initialization
1. “Setup”  2. “System Setup”  3. “Initialize”
can only be used for system setup operation.

448 3-5. Using the hands-free phone system (for cellular phone)
Displaying the Bluetooth® device address and name
Select “Device Name” using .
Turn to display the Bluetooth
® device address and
name.
Select “Go Back” using to return to “System Setup”
Initialization
Select “Initialize” and then “Confirm” by using .
Select “Confirm” by using .
■Initialization
●The following data in the system can be initialized:
• Phone book
• Outgoing and incoming call history
• Speed dials
• Registered cellular phone data
• Security code
● Once the initialization has been completed, the data cannot be restored
to its original state.
■ When the phone book is locked
The following functions cannot be used:
●Dialing by inputting a name
● Speed dialing
● Dialing a number stored in the call history memory
● Using the phone book

735
Alphabetical index
Back-up lights
Replacing light bulbs ............ 596
Wattage ................................ 684
Back window Back window ........................ 101
Power back window.............. 102
Back window defogger ........... 317
Battery Charging system warning light .................................... 611
Checking .............................. 555
If the vehicle has
discharged battery ............. 650
Preparing and checking
before winter ...................... 268
Bluetooth
® audio..................... 377
Bluetooth® phone ................... 426
Bottle holders .......................... 481
Brakes Brake system warning
buzzer ................................ 611
Brake system warning light .................................... 611
Fluid...................................... 552
Parking brake ....................... 187
Brake assist ............................. 249
Break-in tips ............................ 169 Camper information .................720
Card holder ...............................467
Care
Exterior ..................................528
Interior ...................................531
Seat belts ..............................532
Cargo capacity .........................266
Cargo hooks .............................512
Cargo lamp Replacing light bulbs .............597
Switch....................................460
Wattage .................................684
CD changer CD .........................................332
MP3 .......................................341
WMA disc ..............................341
CD player ..................................332
Certification label .............276, 672
Chains .......................................269
Child restraint system
Booster seats, definition ........140
Booster seats, installation .....151
Convertible seats, definition .............................140
Convertible seats, installation ...........................151
Front passenger occupant classification system ........... 135
Infant seats, definition ...........140
Infant seats, installation.........151
Installing CRS with lower anchorages .........................144
Installing CRS with seat belts ....................................151
Installing CRS with top
tether straps ........155, 157, 161
BC
