2013 TOYOTA TUNDRA load capacity

571
4-3. Do-it-yourself maintenance
4
Maintenance and care

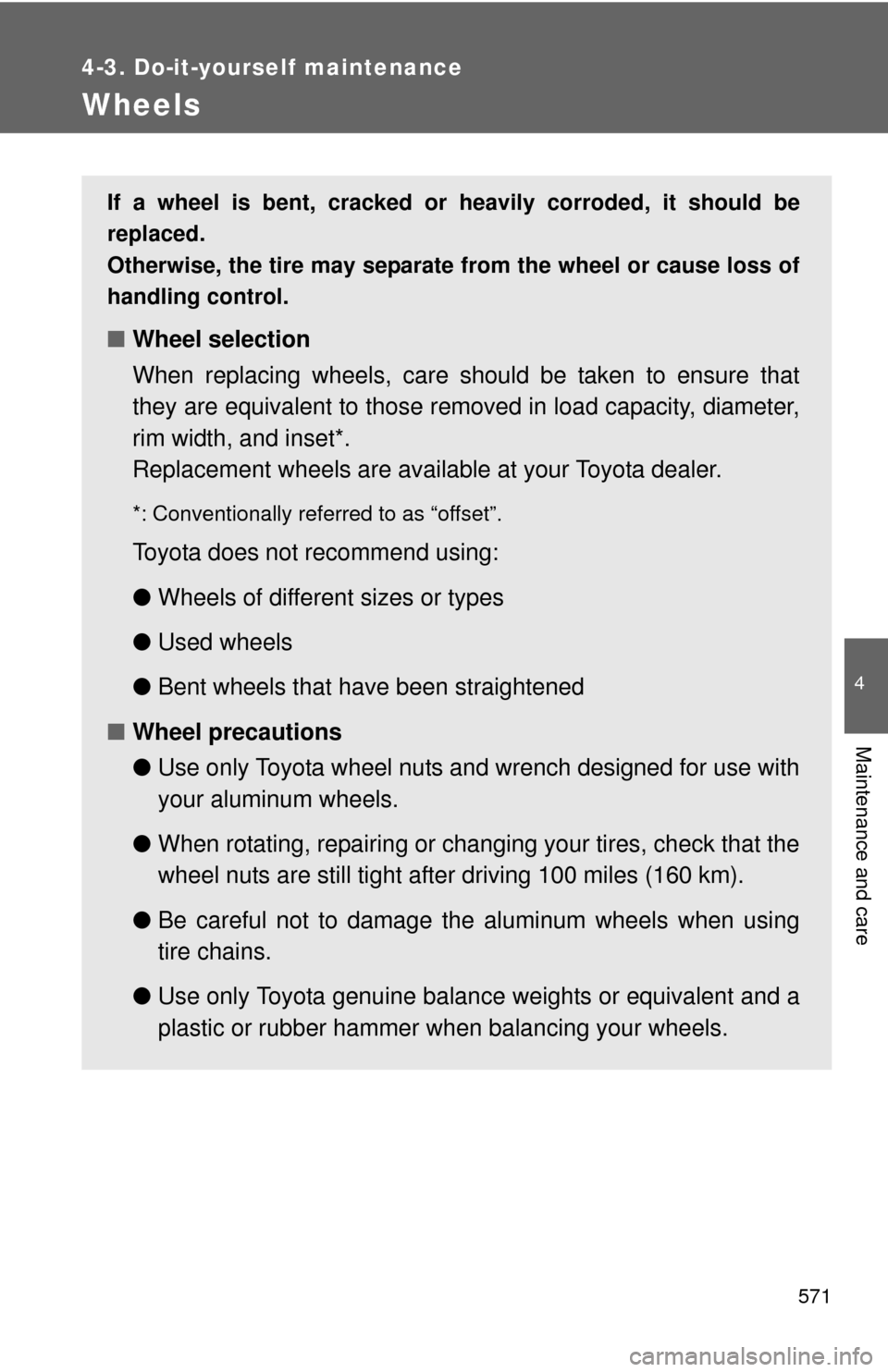

Wheels
If a wheel is bent, cracked or heavily corroded, it should be
replaced.
Otherwise, the tire may separate from the wheel or cause loss of
handling control.
■Wheel selection
When replacing wheels, care should be taken to ensure that
they are equivalent to those removed in load capacity, diameter,
rim width, and inset*.
Replacement wheels are available at your Toyota dealer.
*: Conventionally referred to as “offset”.
Toyota does not recommend using:
●Wheels of different sizes or types
● Used wheels
● Bent wheels that have been straightened
■ Wheel precautions
●Use only Toyota wheel nuts and wrench designed for use with
your aluminum wheels.
● When rotating, repairing or changing your tires, check that the
wheel nuts are still tight after driving 100 miles (160 km).
● Be careful not to damage the aluminum wheels when using
tire chains.
● Use only Toyota genuine balance weights or equivalent and a
plastic or rubber hammer when balancing your wheels.

695
6-1. Specifications
6
Vehicle specifications
Warning: The temperature grades for this tire are established for a
tire that is properly inflated and not overloaded.
Excessive speed, underinflation, or
excessive loading, either sepa-
rately or in combination, can caus e heat buildup and possible tire fail-
ure.

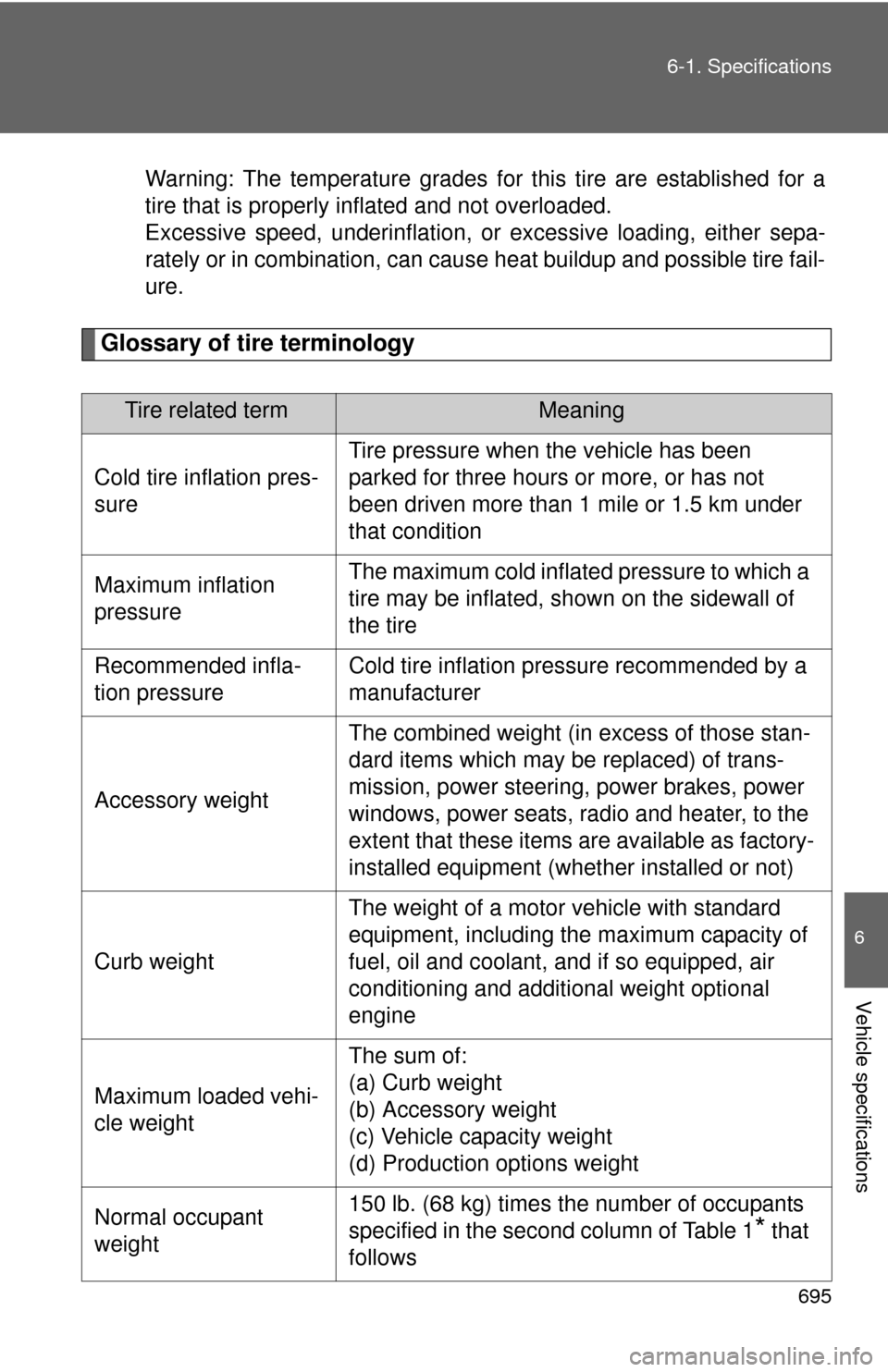

Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sure
Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressureThe maximum cold inflated pressure to which a
tire may be inflated, s hown on the sidewall of
the tire
Recommended infla-
tion pressureCold tire inflation pressure recommended by a
manufacturer
Accessory weight
The combined weight (in excess of those stan-
dard items which may be replaced) of trans-
mission, power steering, power brakes, power
windows, power seats, radio and heater, to the
extent that these items are available as factory-
installed equipment (whether installed or not)
Curb weight
The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded vehi-
cle weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant
weight150 lb. (68 kg) times the number of occupants
specified in the second column of Table 1
* that
follows

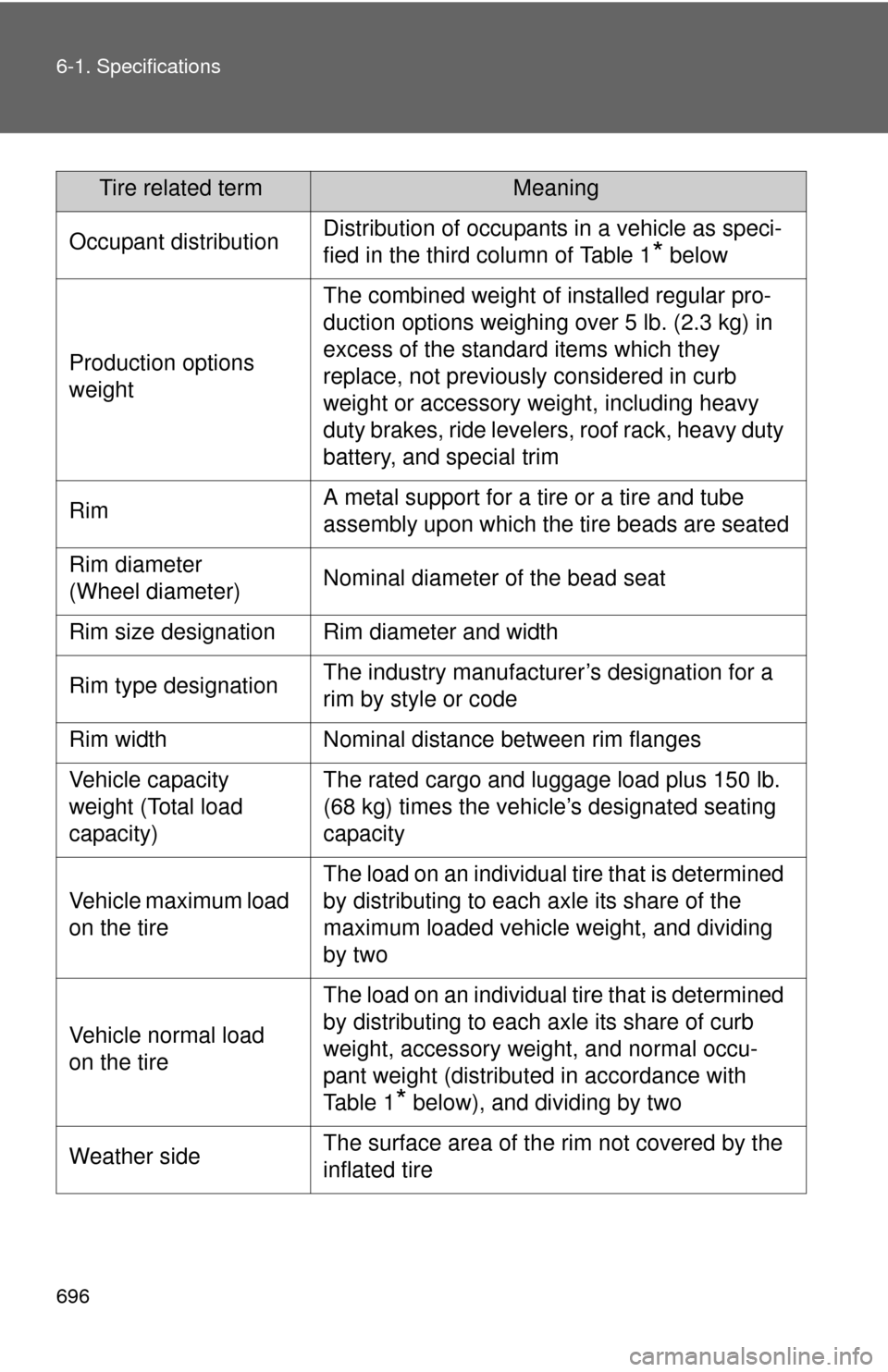

696 6-1. Specifications
Occupant distributionDistribution of occupants in a vehicle as speci-
fied in the third column of Table 1
* below
Production options
weight
The combined weight of installed regular pro-
duction options weighing over 5 lb. (2.3 kg) in
excess of the standard items which they
replace, not previously considered in curb
weight or accessory weight, including heavy
duty brakes, ride levelers, roof rack, heavy duty
battery, and special trim
RimA metal support for a tire or a tire and tube
assembly upon which the tire beads are seated
Rim diameter
(Wheel diameter)Nominal diameter of the bead seat
Rim size designationRim diameter and width
Rim type designationThe industry manufacturer’s designation for a
rim by style or code
Rim widthNominal distance between rim flanges
Vehicle capacity
weight (Total load
capacity)The rated cargo and luggage load plus 150 lb.
(68 kg) times the vehicle’s designated seating
capacity
Vehicle maximum load
on the tire
The load on an individual tire that is determined
by distributing to each axle its share of the
maximum loaded vehicle weight, and dividing
by two
Vehicle normal load
on the tire
The load on an individual tire that is determined
by distributing to each axle its share of curb
weight, accessory weight, and normal occu-
pant weight (distributed in accordance with
Ta b l e 1
* below), and dividing by two
Weather sideThe surface area of the rim not covered by the
inflated tire
Tire related termMeaning

700 6-1. Specifications

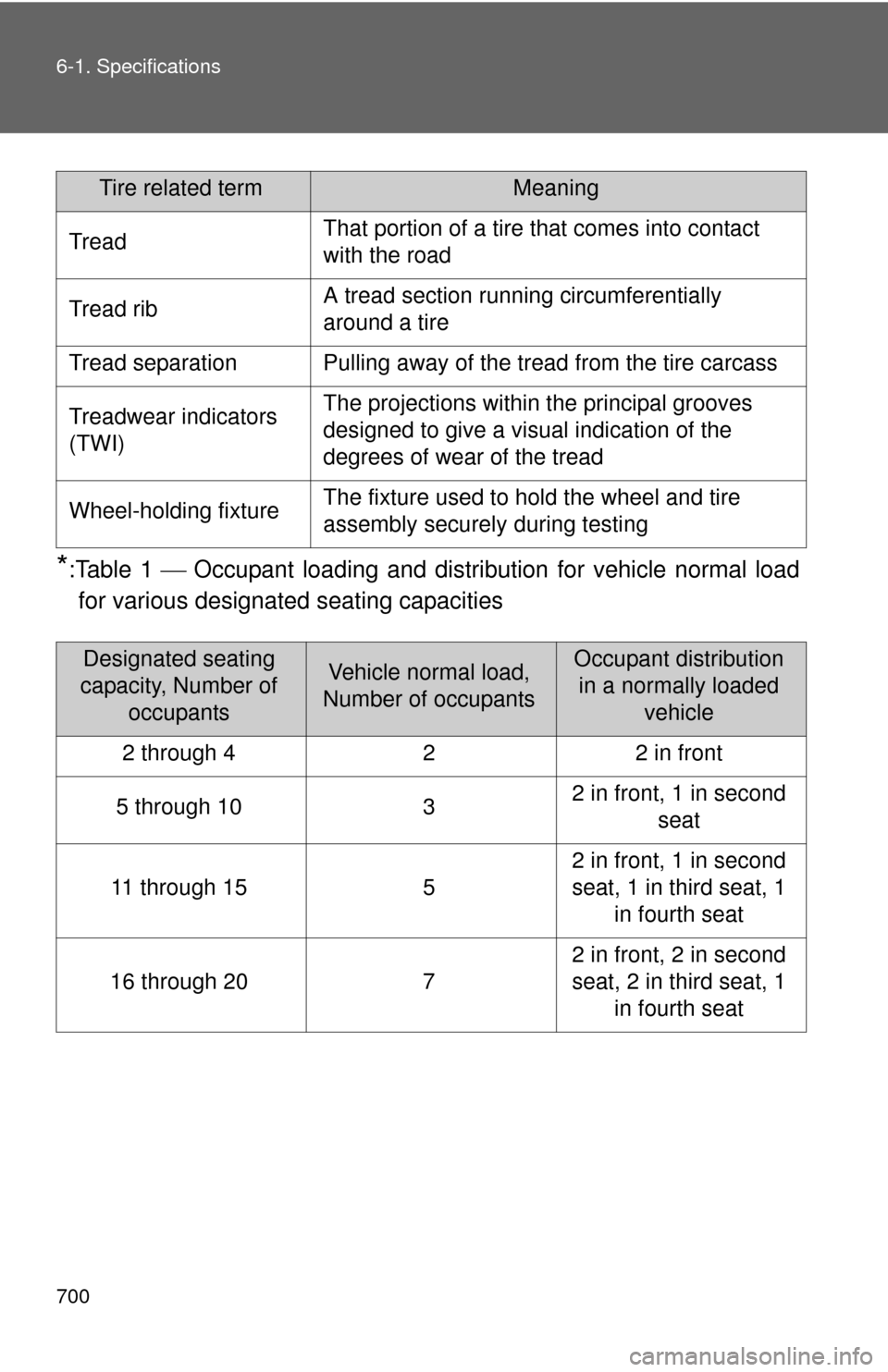

*:Table 1  Occupant loading and distri bution for vehicle normal load
for various designated seating capacities
TreadThat portion of a tire that comes into contact
with the road
Tread ribA tread section running circumferentially
around a tire
Tread separationPulling away of the tread from the tire carcass
Treadwear indicators
(TWI)The projections within the principal grooves
designed to give a visual indication of the
degrees of wear of the tread
Wheel-holding fixtureThe fixture used to hold the wheel and tire
assembly securely during testing
Designated seating
capacity, Number of occupants Vehicle normal load,
Number of occupantsOccupant distribution in a normally loaded vehicle
2 through 422 in front
5 through 1032 in front, 1 in second seat
11 through 155
2 in front, 1 in second
seat, 1 in third seat, 1 in fourth seat
16 through 207
2 in front, 2 in second
seat, 2 in third seat, 1 in fourth seat
Tire related termMeaning

740 Alphabetical index
License plate lightsReplacing light bulbs ............. 598
Switch.................................... 210
Wattage ................................. 684
Light bulbs
Replacing .............................. 590
Wattage ................................. 684
Lights
Automatic light off system ..... 214
Cargo lamp switch................. 460
Emergency flasher switch .................................. 602
Fog light switch ..................... 215
Hazard light switch ................602
Headlight switch .................... 210
Instrument panel light control dial .......................... 194
Interior light switch ................457
Outer foot lights ..................... 455
Personal light switch ............. 457
Replacing light bulbs ............. 590
Turn signal lever.................... 186
Vanity lights ........................... 489
Wattage ................................. 684
Load capacity ................... 266, 666
Lock steering column .............. 179
Luggage storage box....... 461, 485
Luggage compartment features................................... 511 Maintenance
Do-it-yourself
maintenance ....................... 540
General maintenance............ 536
Maintenance data ................. 662
Maintenance requirements ... 534
Reset the maintenance data..................................... 535
Vehicle exterior ..................... 528
Vehicle interior ...................... 531
Maintenance data..................... 535
Malfunction indicator lamp ..... 612
Manual air conditioning system .................................... 307
Manual headlight leveling dial .......................................... 212
Master warning light ........ 613, 622
Map holder................................ 470
Meter Accessory meter ................... 207
Instrument panel light
control ................................. 194
Meters ................................... 189
Mirrors Inside rear view mirror ............ 88
Side mirror heaters ....... 315, 317
Side mirrors............................. 91
Vanity mirrors ........................ 489
Moon roof ................................. 105
MP3 disc ................................... 341
Multi-information display .................................... 200LM

744 Alphabetical index
Tachometer............................... 189
TailgateRemoving the tailgate .............55
Tailgate ...................................54
Tail lights
Replacing light bulbs ............. 596
Switch.................................... 210
Wattage ................................. 684
Talk switch................................ 431
Telephone switch ..................... 431
Theft deterrent system Alarm ..................................... 117
Engine immobilizer system ... 115
Tire inflation pressure ............. 567
Tire information
Glossary ................................ 695
Size ....................................... 692
Tire identification number ...... 691
Uniform tire quality grading ................................ 693
Tires Chains ................................... 269
Checking ............................... 559
Identification number ............. 691
If you have a flat tire .............. 626
Inflation pressure........... 567, 682
Information ............................ 690
Inflation pressure sensor ....... 560
Replacing .............................. 626
Rotating tires ......................... 559
Size ....................................... 682
Snow tires ............................. 268
Tire pressure warning reset switch ......................... 560
Tire pressure warning
system ........................ 559, 613
Warning light ......................... 613 Tissue pocket ........................... 475
Tools ......................................... 626
Total load capacity .................. 266
TOW/HAUL switch ................... 184
Towing
Bumper towing ...................... 284
Dinghy towing ....................... 295
Emergency towing ................ 603
Fifth wheel trailer................... 282
Trailer towing ........................ 272
Traction control ....................... 249
TRAC ......................................... 249
Trip information ....................... 200
Trip meter ................................. 193
Turn signal lights
Replacing light bulbs ..... 593, 596
Switch ................................... 186
Wattage................................. 684T

745
Alphabetical index
Vanity lights
Vanity lights .......................... 489
Wattage ................................ 684
Vanity mirrors .......................... 489
Vehicle data recordings............ 37
Vehicle identification number................................... 672
Vehicle stability control .......... 249
VSC ........................................... 249
Warning buzzers
Brake system........................ 611
Key reminder .................. 53, 617
Open door .................... 613, 616
Seat belt reminder ........ 613, 616
Warning lights
ABS ...................................... 612
Airbag system....................... 612
Anti-lock brake system ......... 612
Automatic transmission fluid temperature ................ 612
Brake assist system ............. 612
Brake system........................ 611
Charging system .... .............. 611
Driver’s seat belt................... 613
Electronic engine control
system................................ 612
Engine oil pressure............... 611
Four-wheel drive system
warning buzzer................... 617
Front passenger occupant
classification system .......... 612
Front passenger’s seat belt ............................. 613 Low brake fluid ......................611
Low engine oil pressure ........611
Low fuel level ................613, 623
Low tire inflation
pressure ..............................613
Malfunction indicator lamp ....612
Master warning light ..............613
Open door .............................613
Power steering warning light .....................................612
Pretensioners ........................612
Seat belt reminder light .........613
SRS airbags ..........................612
Tire pressure warning light ....613
VSC/TRAC ............................612
Warning messages ..................622
Washer Checking ...............................557
Preparing and checking before winter .......................268
Switch....................................217
Washing and waxing ...............528
Weight Cargo capacity ......................266
Cargo weight rating ...............723
Gross axle weight rating........727
Gross vehicle weight rating ...................................727
Load limits .............................266
Towing capacity ....................669
Trailer Weight Rating ....277, 669
TWR ..............................277, 669
Vehicle capacity weight .........666
Weight ...........666, 669, 723, 727V
W
