1. Charging operation
PRIUS PHV_QG_OM47788U_(U)
■Confirm the following before charging
●The parking brake is applied.
●Lights such as the headlights, emergency flashers and interior
lights etc. are switched off.
If these light switches are turned ON, then these features will consume
electricity, and charging time will increase.
●The “POWER” switch is OFF.
■How to charge
Prepare the charging cable.
Insert the charging cable into the
outlet of the external power
source.
Make sure to hold the body of the
plug and insert it firmly into the
outlet.
Check that the power indicator of
the CCID (Charging Circuit Inter-
rupting Device) is illuminated.
In order to lessen the load on the
outlet and plug, hang the CCID
(Charging Circuit Interrupting
Device) on a hook etc. while the
plug is inserted.
STEP1
STEP2

8
PRIUS PHV_OM_OM47787U_(U)
Fuel filler door P. 174
Pictorial indexExterior
Fog lights∗ P. 298
Daytime running lights (for Canada)
and headlights
Parking lights
Front side marker lights
P. 292, 295
P. 292
P. 292
Hood P. 442
Windshield wipers P. 300Outside rear view mirrors
P. 169
Front turn signal lights P. 254
Daytime running lights
(for the U.S.A.) P. 295

80
1-2. Charging
PRIUS PHV_OM_OM47787U_(U)

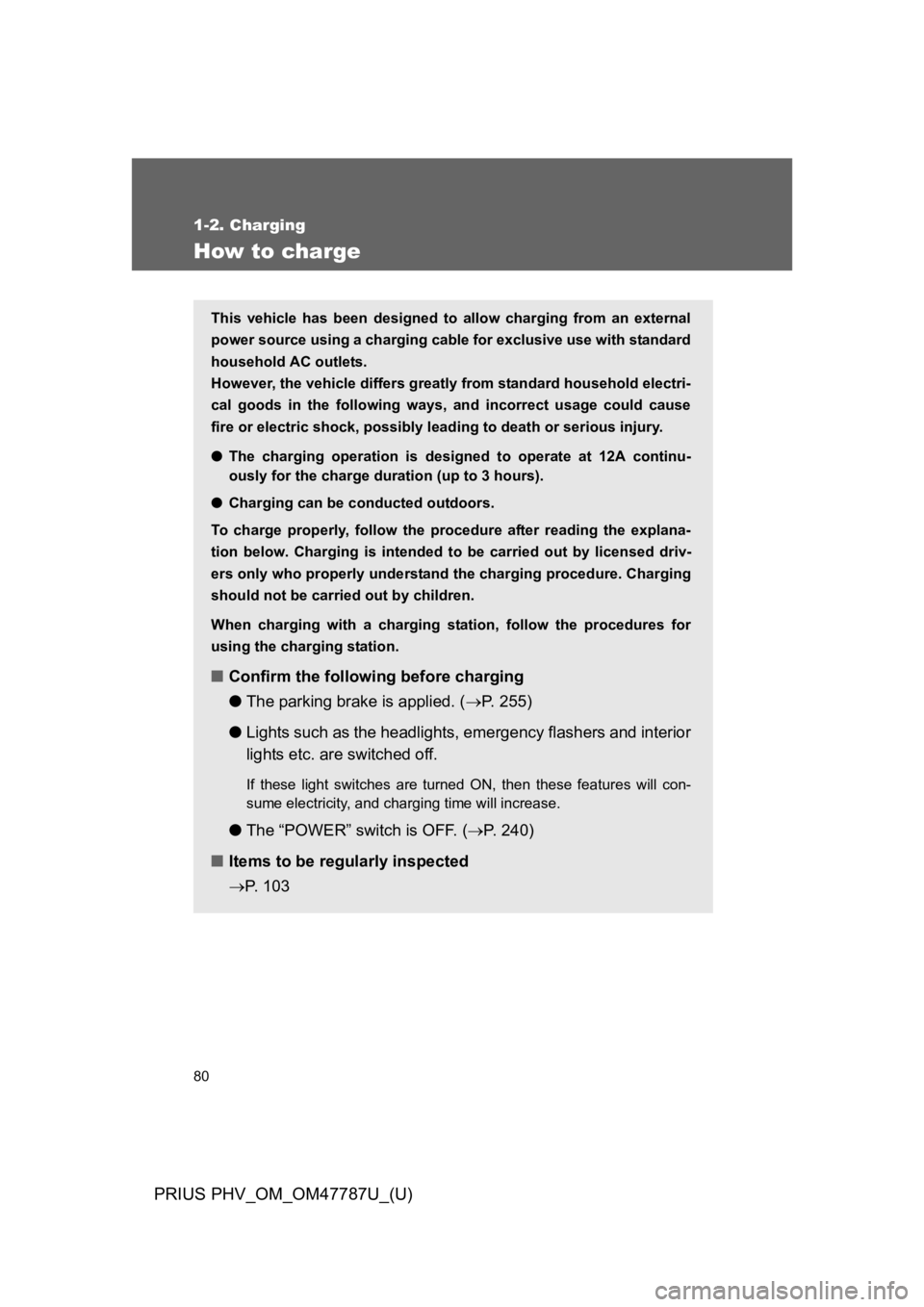

How to charge
This vehicle has been designed to allow charging from an external
power source using a charging cable for exclusive use with standard
household AC outlets.
However, the vehicle differs greatly from standard household electri-
cal goods in the following ways, and incorrect usage could cause
fire or electric shock, possibly leading to death or serious injury.
●The charging operation is designed to operate at 12A continu-
ously for the charge duration (up to 3 hours).
●Charging can be conducted outdoors.
To c h a r g e p r o p e r l y, f o l l o w t h e p rocedure after reading the explana-
tion below. Charging is intended to be carried out by licensed driv-
ers only who properly understand the charging procedure. Charging
should not be carried out by children.
When charging with a charging station, follow the procedures for
using the charging station.
■Confirm the following before charging
●The parking brake is applied. (→P. 2 5 5 )
●Lights such as the headlights, emergency flashers and interior
lights etc. are switched off.
If these light switches are turned ON, then these features will con-
sume electricity, and charging time will increase.
●The “POWER” switch is OFF. (→P. 2 4 0 )
■Items to be regularly inspected
→P. 1 0 3

166
1-5. Adjustable components (seats, mirrors, steering wheel)
PRIUS PHV_OM_OM47787U_(U)
Inside rear view mirror
Adjusting the height of rear view mirror
Adjust the height of the rear view
mirror by moving it up and down.
Anti-glare function
Manual anti-glare inside rear view mirror
Reflected light from the headlights of vehicles behind can be reduced
by operating the lever.
Normal position
Anti-glare position
The rear view mirror’s position can be adjusted to enable sufficient
confirmation of the rear view in accordance with the driver’s seating
posture.
ITI14P209

167
1-5. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
PRIUS PHV_OM_OM47787U_(U)
Auto anti-glare inside rear view mirror (without garage door
opener)
Responding to the level of brightness of the headlights of vehicles
behind, the reflected light is automatically reduced.
Changing automatic anti-glare
function mode
ON/OFF
When the automatic anti-glare
function is in ON mode, the indi-
cator illuminates.
The function will set to ON mode
each time the “POWER” switch is
turned to ON mode.
Pressing the button turns the
function to OFF mode. (The indi-
cator also turns off.)
Auto anti-glare inside rear view mirror (with garage door opener)
Responding to the level of brightness of the headlights of vehicles
behind, the reflected light is automatically reduced.
Changing automatic anti-glare
function mode
ON
OFF
When the automatic anti-glare
function is in ON mode, the indi-
cator illuminates.
The function will set to ON mode
each time the “POWER” switch is
turned to ON mode.
Turns the function to OFF mode,
the indicator turns off.
Indicator
Indicator

292
PRIUS PHV_OM_OM47787U_(U)
2-3. Operating the lights and windshield wipers

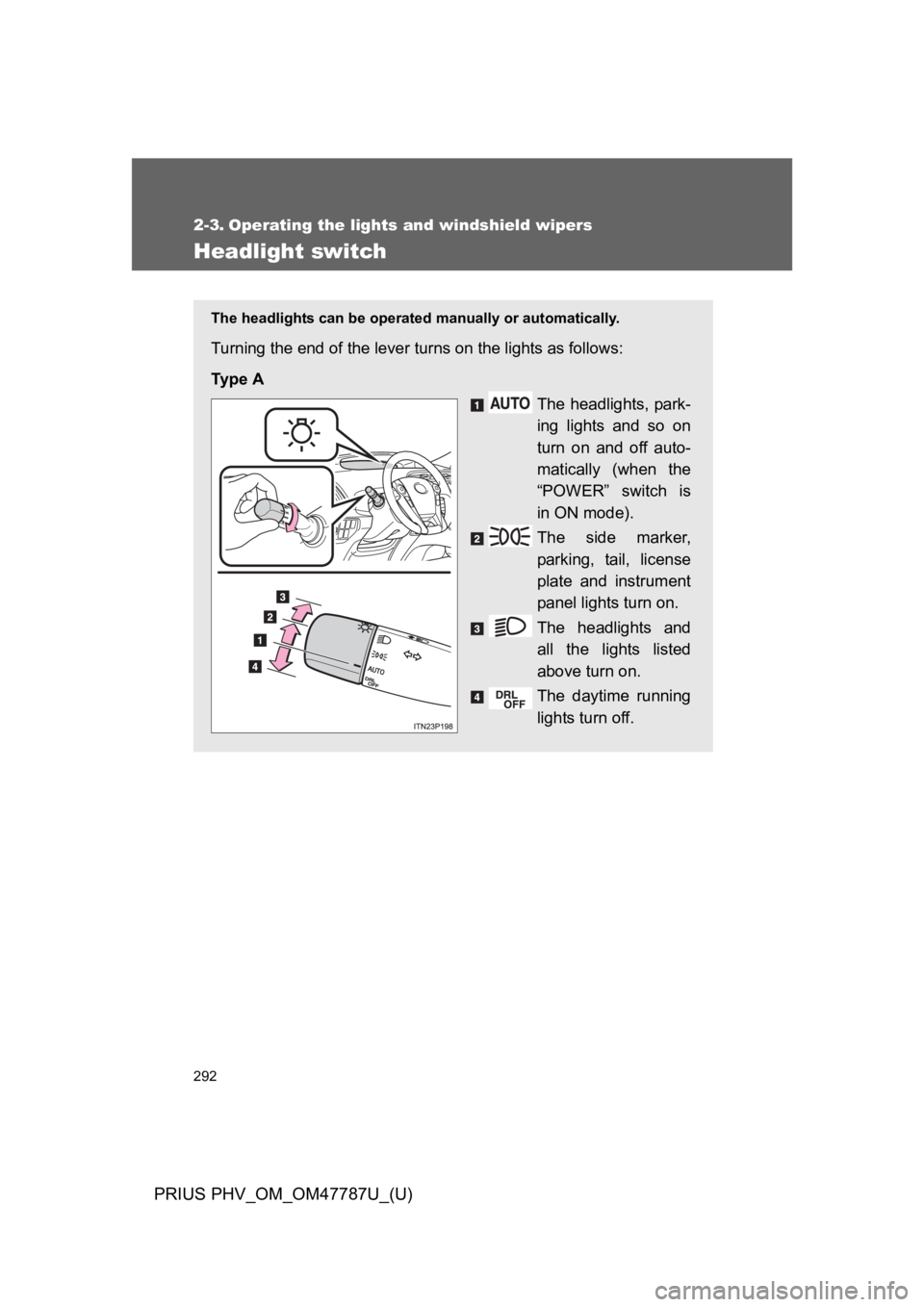

Headlight switch
The headlights can be operated manually or automatically.
Turning the end of the lever turns on the lights as follows:
Ty p e A
The headlights, park-
ing lights and so on
turn on and off auto-
matically (when the
“POWER” switch is
in ON mode).
The side marker,
parking, tail, license
plate and instrument
panel lights turn on.
The headlights and
all the lights listed
above turn on.
The daytime running
lights turn off.

293
2-3. Operating the lights and windshield wipers
PRIUS PHV_OM_OM47787U_(U)
2
When driving

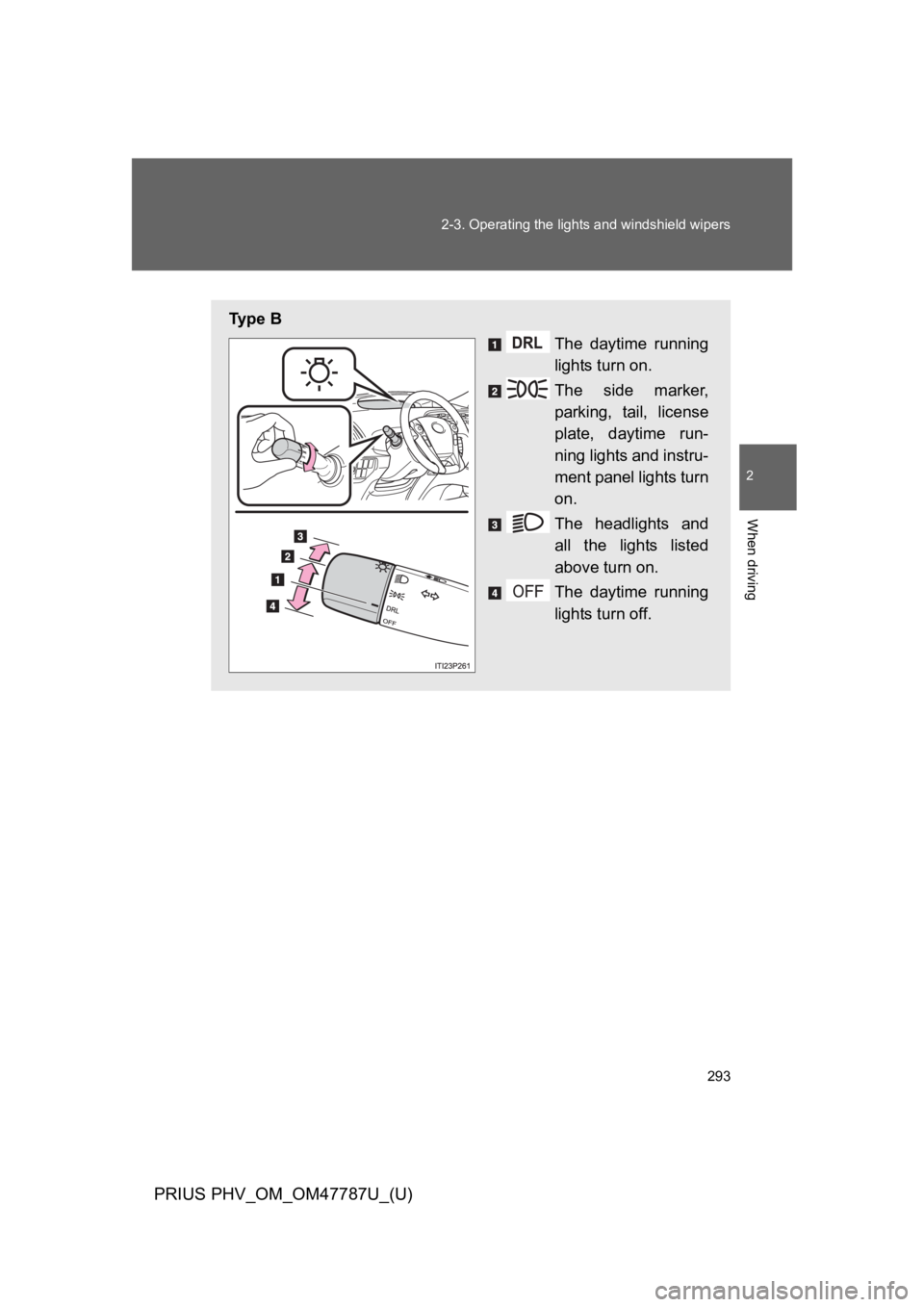

Ty p e B
The daytime running
lights turn on.
The side marker,
parking, tail, license
plate, daytime run-
ning lights and instru-
ment panel lights turn
on.
The headlights and
all the lights listed
above turn on.
The daytime running
lights turn off.

294
2-3. Operating the lights and windshield wipers
PRIUS PHV_OM_OM47787U_(U)

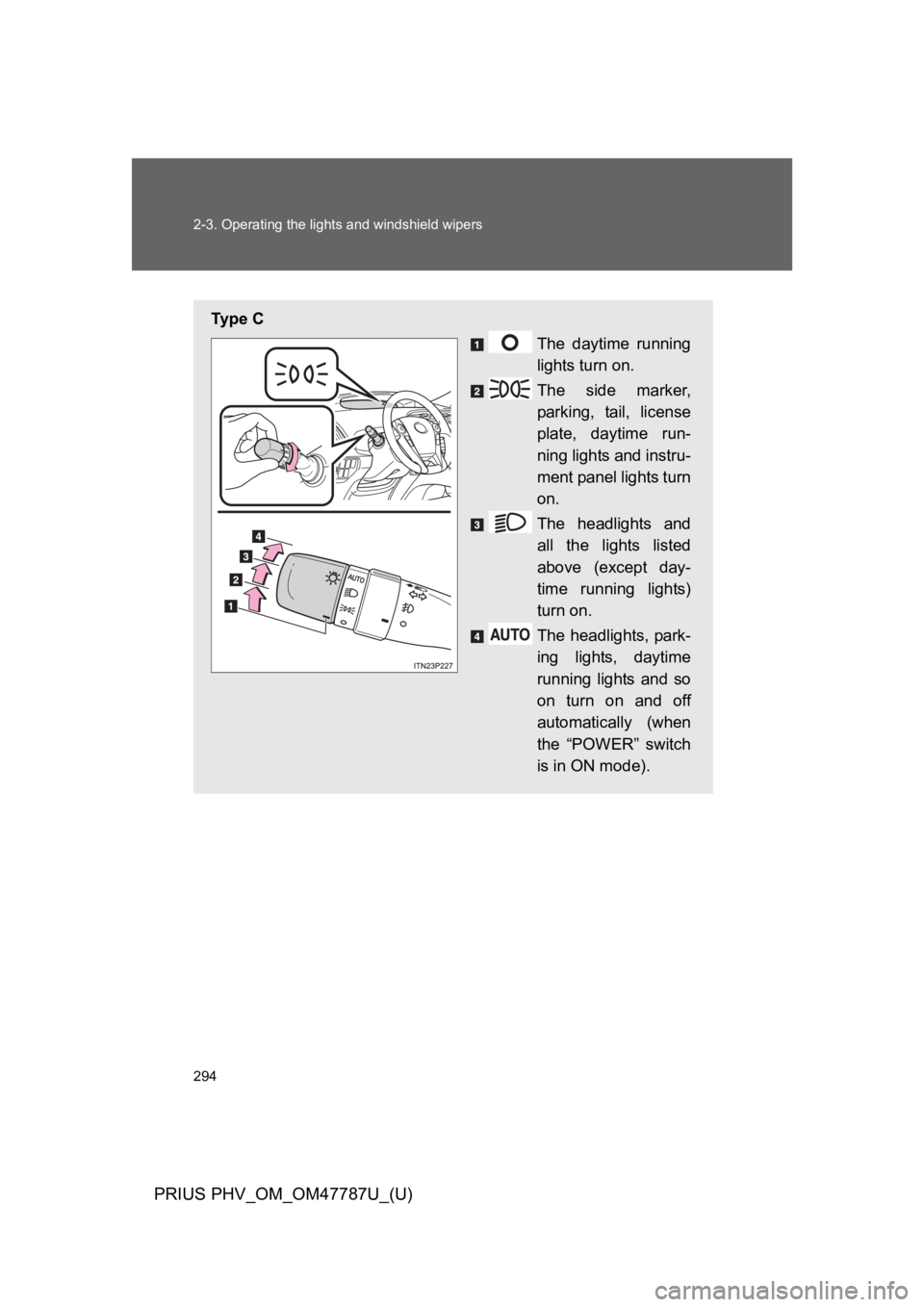

Ty p e C
The daytime running
lights turn on.
The side marker,
parking, tail, license
plate, daytime run-
ning lights and instru-
ment panel lights turn
on.
The headlights and
all the lights listed
above (except day-
time running lights)
turn on.
The headlights, park-
ing lights, daytime
running lights and so
on turn on and off
automatically (when
the “POWER” switch
is in ON mode).
