Page 500 of 684
500 4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47787U_(U)
FUSEAmpereCircuit
30 H-LP RH LO 15A Right-hand headlight (low beam)
31 PCU 10A Inverter and converter
32 IGCT NO.2 10A Hybrid system, P position control
system, power management sys-
tem, multiport fuel injection sys-
tem/sequential multiport fuel
injection system
33 MIR HTR 10A Outside rear view mirror defoggers
34 RAD NO.1 15A Audio system, navigation system
35 DOME 10ADoor courtesy lights, luggage
compartment light, personal light,
interior light, foot lights, vanity
lights, inside rear view mirror,
garage door opener
36 ECU-B 7.5ASmart key system, personal lights,
gauges and meters
37 H-LP LH HI 10A Left-hand headlight (high beam)
38 H-LP RH HI 10A Right-hand headlight (high beam)
39 EFI NO.2 10AMultiport fuel injection system/
sequential multiport fuel injection
system
40 IGCT NO.3 10A Cooling system
41 SPARE 30A Spare fuse
42 SPARE 10A Spare fuse
Page 502 of 684
502 4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47787U_(U)
■Left side instrument panel
FUSEAmpereCircuit
1 CIG 15A Power outlets
2 ECU-ACC 10AMultiplex communication system,
outside rear view mirrors, driver
support system, audio system,
navigation system
3 PWR OUTLET 15A Power outlets
4 SEAT HTR FR 10A Seat heater
5 SEAT HTR FL 10A Seat heater
6 DOOR NO.1 25A Power door lock system
7 PSB 30A Pre-Collision System
8 PWR SEAT FR 30A Front passenger’s seat
9 DBL LOCK 25A No circuit
10 FR FOG 7.5A Front fog lights
11 PWR SEAT FL 30A Driver’s seat
12 OBD 7.5A On-board diagnosis system
13 RR FOG 7.5A No circuit
ITO43P133
12
3 4
56 7
8
910
11 12
13
14 15
16 17
18 19
23 24 25
26
2728
29
30
20 21 22
Page 504 of 684
504 4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47787U_(U)
FUSEAmpereCircuit
25 RR WIP 20A Rear window wiper and washer
26 WIP 30A Windshield wipers
27 MET 7.5A Gauges and meters
28 IGN 10ABrake system, driver support sys-
tem, multiport fuel injection sys-
tem/sequential multiport fuel
injection system, SRS airbag sys-
tem, front passenger occupant
classification system (ECU and
sensors), power management sys-
tem, smart key system, front pas-
senger’s seat belt reminder light
29 PANEL 10AAir conditioning system, personal
light, transmission, P position
switch, navigation system, Remote
Air Conditioning System, headlight
cleaner, front passenger’s seat
belt reminder light, headlight level-
ing system, glove box light, clock,
audio system, MPH or km/h switch
30 TAIL 10AHeadlight leveling system, park-
ing lights, tail lights, license plate
lights, front fog lights, side marker
lights
Page 639 of 684

639
6
Vehicle specifications
PRIUS PHV_OM_OM47787U_(U)
6-2. Customization
Customizable features
Customizable featuresVehicles with a Display Audio system: Settings that can be
changed using the Display Audio system
(For further information on custom izing settings using the Display
Audio system, refer to the “Dis play Audio System Owner’s Man-
ual”.)
Vehicles with a navigation syst em: Settings that can be changed
using the navi gation system
(For further information on cust omizing settings using the naviga-
tion system, refer to the “Navig ation System Owner’s Manual”.)
Settings that can be chan ged by your Toyota dealer
Definition of symbols: O = Available, — = Not available
Your vehicle includes a variety of electronic features that can be per-
sonalized to suit your prefer ences. Programming these preferences
requires specialized equipment and may be performed by your
Toyota dealer.
Some function settings are changed simultaneously with other functions
being customized. Contact your Toyota dealer for further details.
Page 665 of 684

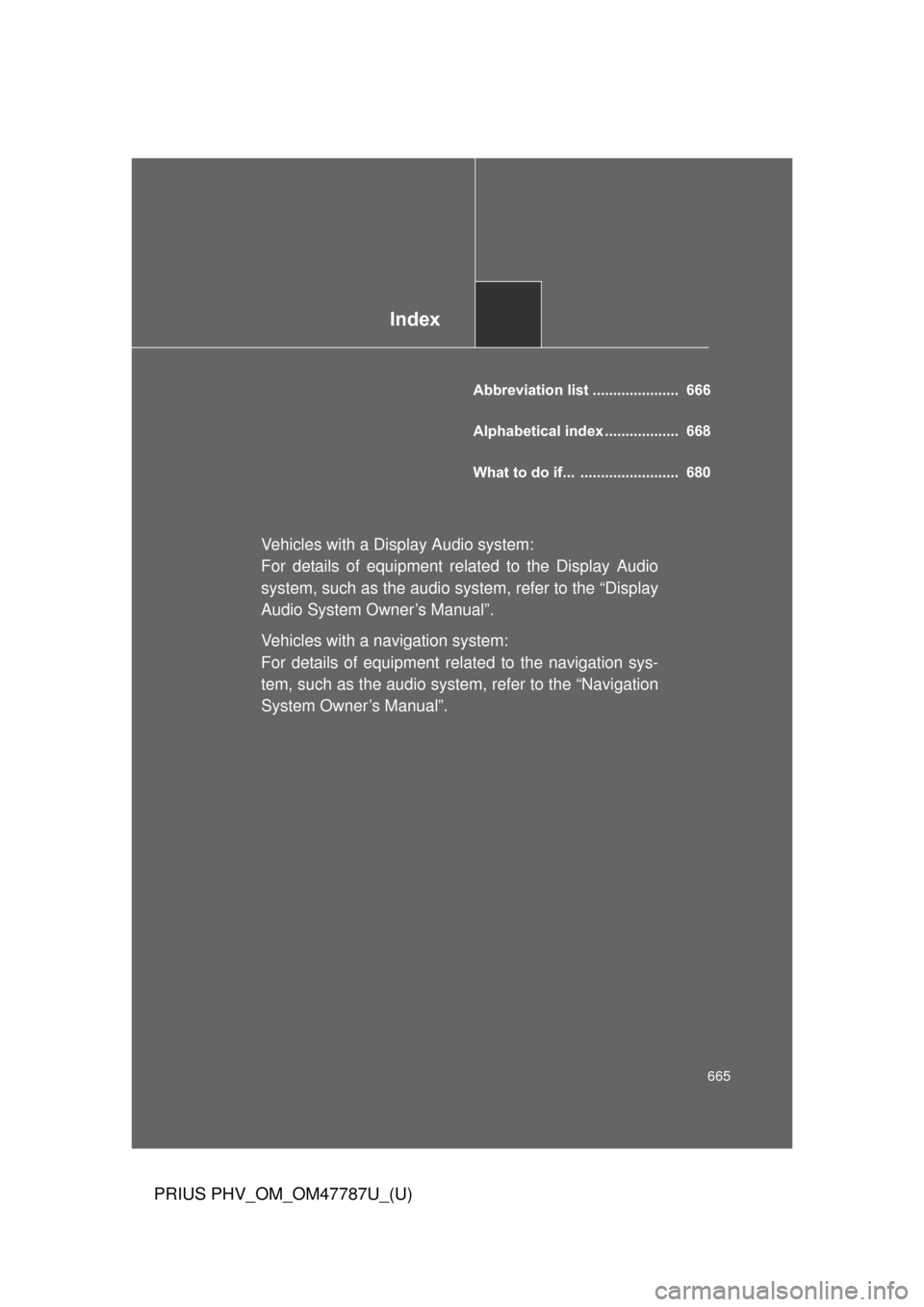

Index
665
PRIUS PHV_OM_OM47787U_(U)
Abbreviation list ..................... 666
Alphabetical index .................. 668
What to do if... ........................ 680
Vehicles with a Display Audio system:
For details of equipment related to the Display Audio
system, such as the audio system, refer to the “Display
Audio System Owner’s Manual”.
Vehicles with a navigation system:
For details of equipment related to the navigation sys-
tem, such as the audio system, refer to the “Navigation
System Owner’s Manual”.
Page 673 of 684

673
Alphabetical index
PRIUS PHV_OM_OM47787U_(U)
Garage door opener ................ 407
Gauges ..................................... 257
Glove boxes ............................. 386
Hands-free system
(for cellular phone)
*
Hazard lights Switch ................................... 524
Head restraints Adjustment .......................... 152
Headlight cleaner .................... 307
Headlights
Cleaner ................................. 307
Replacing light bulbs ............ 507
Switch ................................... 292
Wattage ................................ 620
Heaters
Automatic air conditioning system................................ 358
Seat heaters ......................... 397
Side mirrors .......................... 375
Hill-start assist control ........... 333
Hood ......................................... 442
Hooks Cargo.................................... 403
Horn .......................................... 256
Hybrid system Emergency shut off system .... 45
Energy monitor/consumption screen ............. 52
High voltage components ....... 44
Hybrid System Indicator ....... 268
Ignition switch ....................... 238
Monthly fuel consumption record ................................... 64
“POWER” switch .................. 238 I/M test.......................................438
Identification
Engine ...................................612
Vehicle ..................................611
Ignition switch ..........................238
Illuminated entry system .........382
Immobilizer system..................179
Indicator lights .........................262
Initialization Items to initialize....................647
Inside rear view mirror ............166
Instrument panel light control ....................................260
Interior lights Interior lights..................383, 384
Switch............................383, 384
Wattage .................................620
Jack Positioning a floor jack ..........445
Vehicle-equipped jack ...........448
Jack handle ..............................448
Keyless entry............................132
Keys Electronic key ........................105
If the electronic key does not
operate properly..................591
If you lose your keys .............590
Key number ...........................105
Keyless entry.........................132
Keys ......................................105
Mechanical key .....................105
“POWER” switch ...................238
Wireless remote
control key ..........................132
Knee airbag ..............................184
G
H
I
J
K
*: Refer to “Display Audio System Owner’s Manual” or “Navigation System Owner’s Manual”.
Page 674 of 684

674 Alphabetical index
PRIUS PHV_OM_OM47787U_(U)
Language .................................. 280
License plate lightsReplacing light bulbs ............. 507
Wattage .................................620
Light bulbs Replacing ..............................507
Wattage .................................620
Lights Emergency flasher switch ..... 524
Fog light switch ..................... 298
Foot lights..............................382
Hazard light switch ................524
Headlight switch .................... 292
Interior lights.................. 383, 384
Personal lights....................... 383
Replacing light bulbs ............. 507
Shift lever lighting .................. 382
Turn signal lever.................... 254
Turn signal light switch .......... 254
Vanity lights ...........................393
Wattage .................................620
Load capacity ...........................348
Luggage compartment light
Switch.................................... 141
Wattage .................................620
Luggage cover .........................404 Maintenance
Do-it-yourself maintenance ....................... 439
General maintenance............ 434
Maintenance data ................. 610
Maintenance requirements....................... 431
Maintenance data..................... 432
Meter Instrument panel light control ................................. 260
Meters ................................... 257
Speed unit select button ....... 259
Trip information display ......... 274
Micro dust and pollen filter ..... 362
Microphone
*............................ 415
Mirrors Inside rear view mirror .......... 166
Side mirror heater ................. 375
Side mirrors........................... 169
Vanity mirrors ........................ 393
MP3 disc
*
Multi-information display ........ 266
Navigation system
(refer to “Navigation
System Owner’s Manual”)
Noise from under vehicle .......... 22
LM
N
Page 675 of 684

675
Alphabetical index
PRIUS PHV_OM_OM47787U_(U)
Odometer ................................. 266
Oil
Engine oil.............................. 460
Opener Back door ............................. 140
Fuel filler door....................... 174
Hood ..................................... 442
Outside rear view mirrors Adjusting and folding ............ 169
Outside rear view mirror defogger switch .................... 375
Outside temperature
display ................................... 394
Overheating ............................. 600
Parking brake .......................... 255
Parking lights Switch ................................... 292
PCS ........................................... 335
Personal lights Switch ................................... 383
Wattage ................................ 620
Plug-in hybrid system Driving tips.............................. 67
EV driving range ..................... 58
EV mode................................. 35
EV/HV mode selection
switch ................................... 37
Features ................................. 32
How to charge ........................ 80
HV mode ................................ 36
Plug-in Hybrid Applications .... 70
Power outlets........................... 395
Power sources........................... 77
“POWER” switch ..................... 238
Power windows ....................... 171
Pre-collision system ............... 335 Radar cruise control
system ....................................312
Radiator ....................................466
Radio
*
Radio data system*
RDS*
Rear seats
Adjustment ............................149
Folding down .........................150
Rear turn signal lights Replacing light bulbs .............507
Wattage .................................620
Rear view mirror...............166, 169
Rear view monitor system
*
Rear window and outside rear view mirror
defoggers ...............................375
Rear window wiper and
washer ....................................304
Remote Air C onditioning
System ....................................371
Replacing
Electronic key battery ............493
Fuses ....................................495
Light bulbs .............................507
Tires ......................................448
Reporting safety defects for U.S. owners ............................650
O
P
R
*: Refer to “Display Audio System Owner’s Manual” or “Navigation System Owner’s Manual”.
