Page 225 of 640
225
2-2. Instrument cluster
PRIUS_OM_OM47791U_(U)
2
When driving

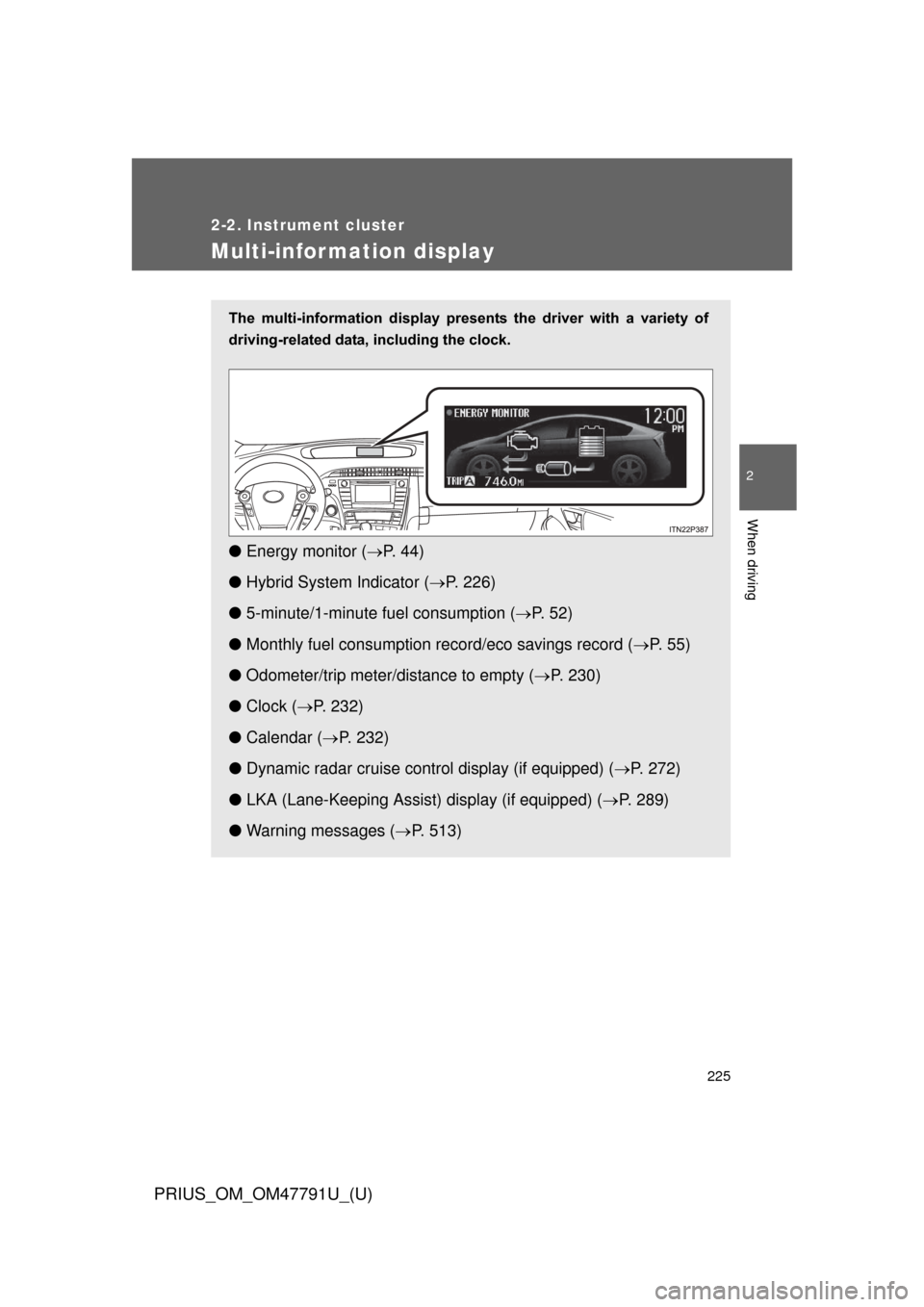

Multi-information display
The multi-information display presents the driver with a variety of
driving-related data, including the clock.
● Energy monitor ( P. 4 4 )
● Hybrid System Indicator ( P. 226)
● 5-minute/1-minute fu el consumption (P. 5 2 )
● Monthly fuel consumption record/eco savings record ( P. 5 5 )
● Odometer/trip meter/distance to empty ( P. 230)
● Clock ( P. 232)
● Calendar ( P. 232)
● Dynamic radar cruise control display (if equipped) ( P. 272)
● LKA (Lane-Keeping Assist) display (if equipped) (P. 289)
● Warning messages ( P. 513)
Page 226 of 640
226 2-2. Instrument cluster
PRIUS_OM_OM47791U_(U)
Switching the displayTo switch the display, press
“DISP” button.
On vehicles with touch tracer dis-
play, the steering switches opera-
tion status is displayed on the
instrument cluster for confirma-
tion purposes. (P. 217)
To switch the odometer, trip
meter and distance to empty,
press “TRIP” button.
Hybrid System Indicator
Hybrid System Indicator displays the hybrid system operating condi-
tion and provides Eco-friendly driving assistance in accordance with
the driving conditions and the acceleration.
Page 227 of 640
227
2-2. Instrument cluster
PRIUS_OM_OM47791U_(U)
2
When driving
■
Names and meaning of each icons
Hybrid battery (traction bat-
tery) status (P. 5 0 )
EV indicator
The EV indicator comes on when
driving the vehicle using only the
electric motor (traction motor).
Eco Driving Indicator Light
Turns on when the vehicle is
driven in Eco-friendly.
Hybrid System Indicator
Refer to “Reading Hybrid System
Indicator” below.
Average speed*
Average fuel consumption/eco
savings
*
Use the displayed average fuel
consumption as a reference.
*: The current amount since the trip meter was reset will be displayed.
These functions can be reset by
pressing and holding the “TRIP”
button.
The display can be switched
between average fuel consump-
tion/average speed and eco sav-
ings. ( P. 234)
Page 228 of 640
228 2-2. Instrument cluster
PRIUS_OM_OM47791U_(U)
■Reading Hybrid System Indicator
Charge area
Eco area
Power area
Hybrid Eco area
As shown below, the driving condit ions of the vehicle can be con-
firmed by checking the status of the indicator bar.
Page 229 of 640
229
2-2. Instrument cluster
PRIUS_OM_OM47791U_(U)
2
When driving
*1: The images are examples only, and may vary slightly from actual condi-
tions.
*2: The gasoline engine will automatically stop and restart under variousconditions.
Hybrid System Indicator*1
Charge area:
Shows regenerative charging.
(P. 34)
Hybrid Eco area:
Shows that gasoline engine
power is not being used very
often.
*2
Eco area:
Shows that the vehicle is
driven in Eco-friendly.
Power area:
Shows that the driving power
is more than the upper limit of
Eco driving (during full power
driving etc.).
Page 230 of 640
230 2-2. Instrument cluster
PRIUS_OM_OM47791U_(U)
Odometer/trip meter/distance to empty■ Switching the display
The display changes as follows
each time the “TRIP” button is
pressed. Also, if the button is
kept pressed down while the trip
meter is being displayed, the trip
meter will be reset to 0.
Page 231 of 640
231
2-2. Instrument cluster
PRIUS_OM_OM47791U_(U)
2
When driving
■
Display items
● Odometer
● Trip meter
● Distance to empty Displays the total distance the vehicle has been
driven.
Displays the distance the vehicle has been driven
since the meter was last reset. Trip meters A and
B can be used to record and display different dis-
tances independently.
Displays the estimate
d maximum distance that
can be driven with the quantity of fuel remaining.
• This distance is computed based on your average fuel consumption. As a result, the actual distance
that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the tank, the display may not be updated.
When refueling, turn the “POWER” switch off. If the
vehicle is refueled without turning the “POWER”
switch off, the display may not be updated.
Page 232 of 640
232 2-2. Instrument cluster
PRIUS_OM_OM47791U_(U)
ClockThe clock can be adjusted by pressing the buttons. Adjusts the hours.
Adjusts the minutes.
Rounds to the nearest hour.
*
*
: e.g. 1:00 to 1:29 1:00
1:30 to 1:59 2:00
Setting up the displays
Press the “DISP” button until the
“SETTINGS” screen appears.
Calendar will be displayed.
While the vehicle is stopped, press and hold the “DISP” button
until the screen changes.
The selected item will change each time the “DISP” button is
pressed.
STEP 1
STEP 2
