2013 TOYOTA LAND CRUISER Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
15
Lights & turn signals
Turn signals
Headlights
High beam flasher Low beam
Front fog lights
-Daytime Running Light system (DRL) Automatically turns on the headlights at a
reduced intensity.
-Automatic light cut off system Automatically turns lights off after a delay of 30
seconds.
Front fog lights come on only when the headlights are on low beam.
Right turn
Lane change
Lane change
Left turn High beam
Auto
Headlights
Parking lights
Tu r n

16
Window wipers & washers
FEATURES/OPERATIONS
Windows-Power
Up
Down
Driver side
Window lock
switch
Automatic operation Push the switch completely down or pull it completely up
and release to fully open or close. To stop window midway, lightly push the switch
in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Front
Rear
Wash and wipe
Wipe
Interval wipe
Wash and wipe
* Rain-sensing windshield wiper
Rotate to increase/decrease
sensor sensitivity.
Rain-sensing
Slow
FastPull to wash and wipe
Single wipe
Adjust sensor sensitivity*

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
17
Back door
Pull
Unlock
The back door can be locked and unlocked using the entry function, wireless
remote control or door lock switch.
Raise
Moonroof
Sliding operationTilting operation
OpenTilt
CloseClose
Recommended open position to
minimize wind noise. Push once to open partway;
again to open completely.
Mirrors-Side
Linked mirror function when reversingThe outside rearview mirrors
automatically angle downwards when vehicle is in reverse. Will only operate when
switch is in “L” or “R” position.Use switch to adjust mirror
angle while in ACCESSORY
or IGNITION ON mode.

18
FEATURES/OPERATIONS
Air Conditioning/Heating
Front Air Conditioning
Driver side temperature display
Airflow controls (touch to change air outlets)
Passenger side temperature display
Rear AC control button (touch to display rear AC control screen)
Fan speed
Air Conditioning ON/OFF
“4-ZONE” button (touch to set the temperatures independently for driver,
front passenger and rear seats)
Windshield wiper de-icer (if equipped)
Temperature controls (driver side)
CLIMATE (push to display AC control screen)
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air intake and
fan to adjust automatically.
Climate control OFF
Windshield airflow/defogger (fresh air only)
Outside rearview mirror/Rear window defogger
Micro dust and pollen removal mode ON/OFF
Rear Air Conditioning operation mode ON/OFF
Air intake control (switch between outside air and recirculated air mode)
Temperature controls (passenger side)
NOTE:For more information, refer to the “Navigation System Owner’s Manual.”

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
19
Rear Air Conditioning
Temperature selector (left side)
Temperature selector (right side)
Climate control OFF
Airflow vent
Fan speed
Automatic climate control ON
Seat heaters and ventilators
Front seats
Push knob to pop the controller out. Turn
clockwise for heater; counterclockwise
for airflow.
Push
Second seats
AUTO TEMP
OFFTEMP
HI
LO
OFF
HI
LO
OFF
HI
LO
OFF
HI
LOLeft
second seatRight
second seat
OFF
Blows air from the seat
Turns the seat heater on

20
FEATURES/OPERATIONS
Audio
USB port
Connecting a USB-compatible portable audio device or USB memory to the USB
port will enable you to listen to these devices through the vehicle’s speaker
system.
Push to
turn
ON/OFF
Eject disc Mute/PauseDisc slotTurn to search
selected
media (radio,
CD, DVD,
iPod
®, etc.) Display
audio
control
screenDisplay
audio
setup
screen
Function tabs:
Select media
mode
NOTE:For more information, refer to the “Navigation System Owner’s Manual.”
Seek station/
track/presets
or rewind/FF.

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
21“ ”
Use to search within the
selected audio medium
(radio, CD, iPod
®, etc.).
“MODE”
Push to turn audio ON and to
select an audio mode. Push and
hold to turn audio system OFF.
Steering wheel switches
MODE
Vo l u m e
control
Crawl control
Crawl control allows travel on extremely rough off-road surfaces at a fixed low
speed without pressing the accelerator or brake pedal.
Refer to the Owner’s Manualfor more details.
Speed selection switch
LoHi
Med
PushLo-MedMed-Hi
Speed modes
vv

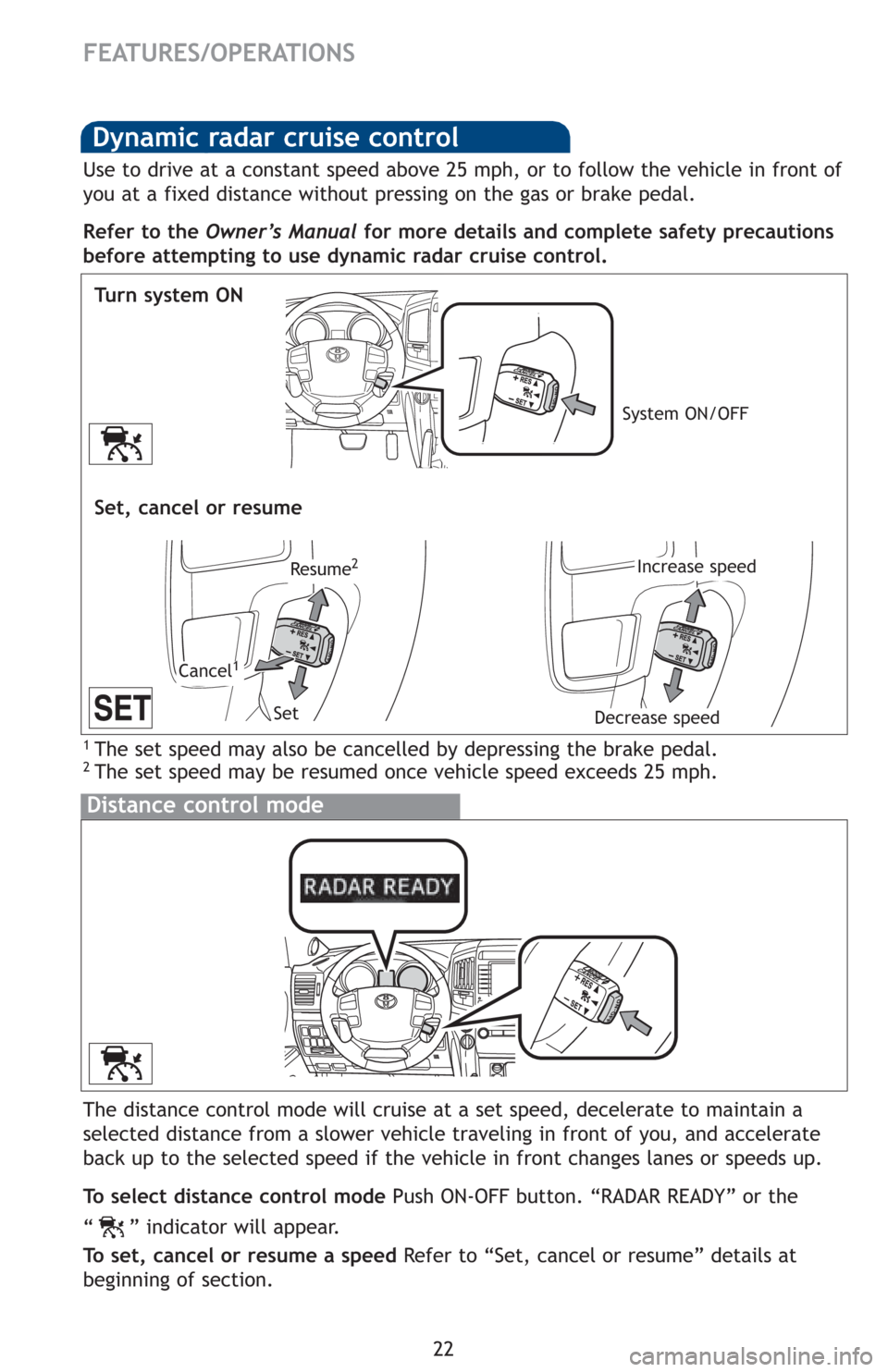

22
FEATURES/OPERATIONS
Dynamic radar cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
Set
Use to drive at a constant speed above 25 mph, or to follow the vehicle in front of
you at a fixed distance without pressing on the gas or brake pedal.
Refer to the Owner’s Manualfor more details and complete safety precautions
before attempting to use dynamic radar cruise control.
Distance control mode
The distance control mode will cruise at a set speed, decelerate to maintain a
selected distance from a slower vehicle traveling in front of you, and accelerate
back up to the selected speed if the vehicle in front changes lanes or speeds up.
To select distance control mode Push ON-OFF button. “RADAR READY” or the
“ ” indicator will appear.
To set, cancel or resume a speed Refer to “Set, cancel or resume” details at
beginning of section.
Turn system ON
Set, cancel or resume
