2013 TOYOTA LAND CRUISER navigation system

479
3-7. Other interior features
3
Interior features
LC200_OM_OM60F57U_(U)
Clock
■The clock is displayed when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
■When the battery is disconnected
The time display will automatically be set to 1:00.
With navigation system
Refer to “Navigation System Owner’s Manual”.
Without navigation system
The clock can be adjusted by pressing the buttons.
Adjust hours.
Adjust minutes.
Round the nearest hour.
*
*
:e.g. 1:00 to 1:291:00
1:30 to 1:592:00
2
1
3

480
3-7. Other interior features
LC200_OM_OM60F57U_(U)

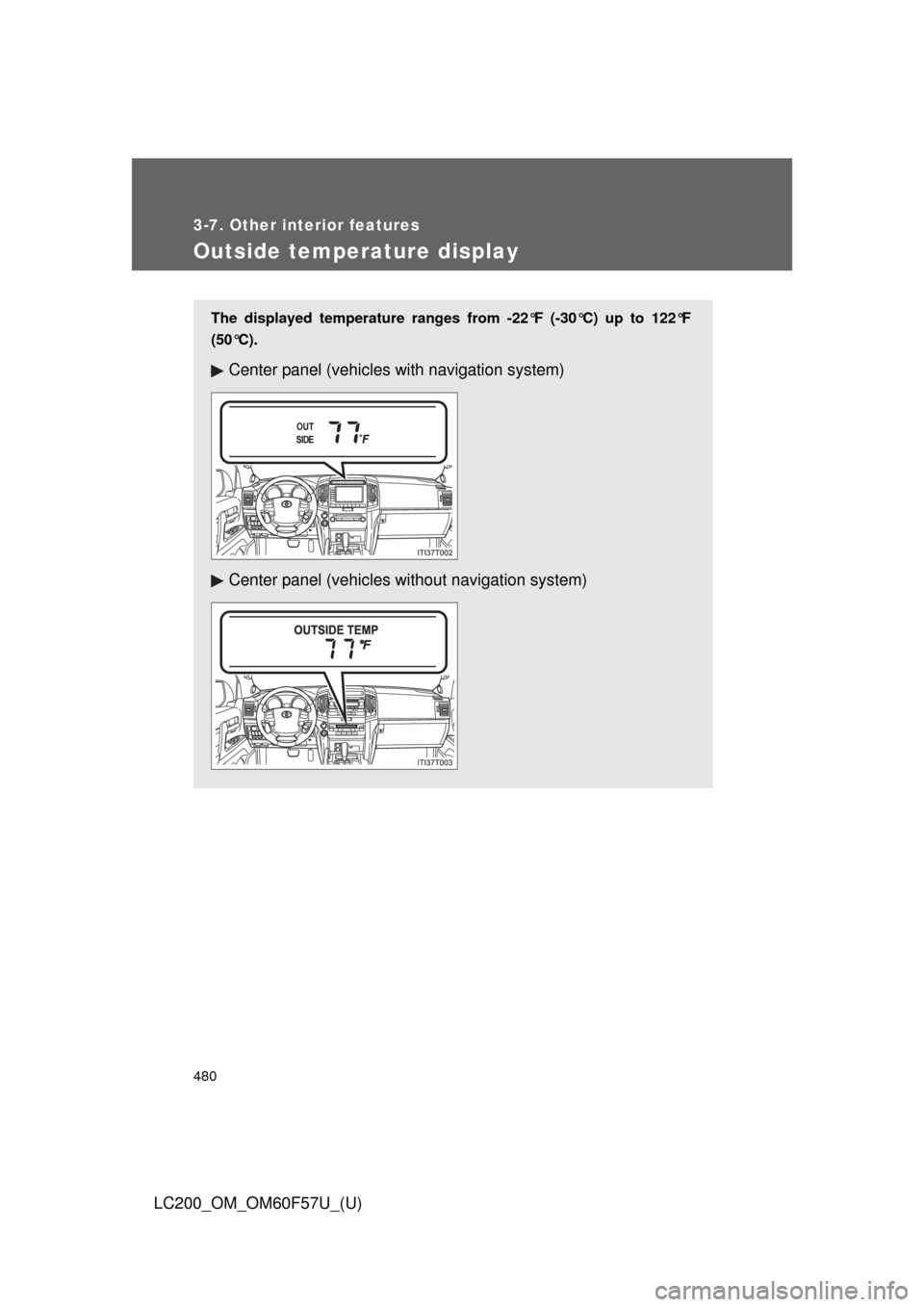

Outside temperature display
The displayed temperature ranges from -22°F (-30°C) up to 122°F
(50°C).
Center panel (vehicles with navigation system)
Center panel (vehicles without navigation system)

572 4-3. Do-it-yourself maintenance
LC200_OM_OM60F57U_(U)
40ECU-B25 ADriving position memory sys-
tem
41AMP 230 A
Audio system
42RSE7.5 A
Rear seat entertainment
43TOWING30 A
To w i n g
44DOOR NO.225 A
Main body ECU
45STR LOCK20 A
Steering lock system
46TURN-HAZ15 AMeter, front turn signal lights,
rear turn signal lights, towing
converter
47EFI MAIN220 A
Fuel pump
48ETCS10 A
EFI
49ALT-S5 A
IC-ALT
50AMP 130 A
Audio system
51RAD NO.110 ANavigation system, audio sys-
tem
52ECU-B15 ASmart key system, overhead
module, tilt and telescopic
steering, meter, cool box, gate-
way ECU, steering sensor
53DOME110 A
Illuminated entry system, clock
54HEAD LH15 A
Headlight high beam (left)
55HEAD LL15 A
Headlight low beam (left)
56INJ10 A
Injector, ignition system
57MET5 A
Meter
58IGN10 ACircuit open, SRS airbag sys-
tem, gateway ECU, occupant
detection system, smart key
system, ABS, VSC, steering
lock system, GBS
59DRL5 A
Daytime running light
60HEAD RH15 A
Headlight high beam (right)
FuseAmpereCircuit

610 5-2. Steps to take in an emergency
LC200_OM_OM60F57U_(U)
*1: Open door warning buzzer:
The open door warning buzzer sounds to alert one or more of the doors is
not fully closed (with the vehicle having reached a speed of 3 mph [5 km/h]).
*2: Driver’s seat belt buzzer:
The driver’s seat belt buzzer sounds to alert the driver that his or her seat
belt is not fastened. Once the engine switch is turned to IGNITION ON
mode, the buzzer sounds for 6 seconds. If the vehicle reaches a speed of
12 mph (20 km/h), the buzzer sounds once. If the seat belt is still unfastened
after 30 seconds, the buzzer will sound intermittently for 10 seconds. Then,
if the seat belt is still unfastened, the buzzer will sound in a different tone for
20 more seconds.
Front passenger’s seat belt buzzer:
The front passenger’s seat belt buzzer sounds to alert the front passenger
that his or her seat belt is not fastened. The buzzer sounds once if the vehi-
cle reaches a speed of 12 mph (20 km/h). If the seat belt is still unfastened
after 30 seconds, the buzzer will sound intermittently for 10 seconds. Then,
if the seat belt is still unfastened, the buzzer will sound in a different tone for
20 more seconds.
*3: Vehicles with navigation system
*4: Vehicles without navigation system
Warning lightWarning light/DetailsCorrection procedure
Low fuel level warning
light
Indicates that remaining
fuel is about 4.0 gal. (15.0
L, 3.3 Imp. gal.) or less.Refuel the vehicle.
Master warning light
A buzzer sounds and the
warning light comes on
and flashes to indicate that
the master warning system
has detected a malfunc-
tion.P. 617

692
LC200_OM_OM60F57U_(U)
6-2. Customization
Customizable features
Customizing vehicle features using the touch screen (vehicles
with navigation system)
Press “SETUP”.
Touch “Vehicle” on the “Setup” screen.
Touch “Vehicle Customization”.
Touch the setting to be changed.
Change each setting and touch
“Save”.
If “Save” is not touched before
switching to another screen, any
changes will be lost.
A message indicating that the settings are being saved will
appear.
Do not perform any other operations while this message is
displayed.
Your vehicle includes a variety of electronic features that can be per-
sonalized to your preferences.
Programming of these preferences can be performed by your Toyota
dealer.
For vehicles with the navigation system, it is also possible to cus-
tomize certain vehicle features yourself using the touch screen.
Some function settings are changed simultaneously with other functions
being customized. Contact your Toyota dealer for further details.
STEP1
STEP2
STEP3
STEP4
STEP5

693 6-2. Customization
6
Vehicle specifications
LC200_OM_OM60F57U_(U)
Customizable features
Vehicle customization settings can be changed at your Toyota dealer.
For vehicles with the navigation system, some settings can be
changed using the touch screen.
Settings that can be changed using the touch screen
Settings that can be changed using the vehicle switches
Settings that can be changed by your Toyota dealer
Definition of symbols: O= Available, — = Not available
ItemFunctionDefault
settingCustomized
setting
Smart key
system
(P. 32)Smart key
systemOn Off O — O
Smart door
unlockingDriver’s door All the doors O O O

699 6-2. Customization
6
Vehicle specifications
LC200_OM_OM60F57U_(U)
*1: The settings can be changed when the mechanical key linked operation of
the power window is set to ON.
*2: The settings can be changed when the wireless remote control linked oper-
ation of the power window is set to ON.
*3: The settings can be changed when the entry function linked operation of the
power window is set to ON.
■Vehicle customization
●If the smart key system is turned “OFF”, unlock door cannot be selected.
●If the doors are not opened after unlocking and are then automatically re-
locked, a signal will be given if “Operation signal (Emergency flashers)”
or “Operation signal (Buzzer)” are set to ON.
■When setting using the vehicle switches (vehicles with navigation sys-
tem)
When using the vehicle switches to set an item that can also be set using the
touch screen, the item displayed on the touch screen will not change imme-
diately.
If the “ENGINE START STOP” switch is first turned to OFF, the screen dis-
play will change once the “ENGINE START STOP” switch is turned to IGNI-
TION ON mode again.
■When customizing using the touch screen (vehicles with navigation
system)
Stop the vehicle in a safe place, apply the parking brake, and shift the shift
lever to “P”. Also, to prevent battery discharge, leave the engine running
while customizing the features.

Index
705
LC200_OM_OM60F57U_(U)
Abbreviation list ..................... 706
Alphabetical index .................. 708
What to do if... ........................ 718
For vehicles with a navigation system, refer to the
“Navigation System Owner’s Manual” for information
regarding the equipment listed below.
• Navigation system
• Air conditioning
• Climate control
• Audio/video system
• Rear view monitor system
• Hands-free system
