2013 TOYOTA HIGHLANDER rear entertainment

TABLE OF CONTENTSIndex
4
3-3. Using the Bluetooth®
audio system
Bluetooth
® audio system .... 357
Using the Bluetooth®
audio system .................... 360
Operating a Bluetooth
®
enabled portable player ... 365
Setting up a Bluetooth
®
enabled portable player ... 367
Bluetooth
® audio system
setup ................................ 372
3-4. Using the hands-free phone system
(for cellular phone)
Hands-free phone system (for cellular phone)
features ............................ 373
Using the hands-free phone system ................... 377
Making a phone call ........... 386
Setting a cellular phone...... 390
Security and system setup ................................ 395
Using the phone book ........ 399
3-5. Using the rear audio system
Rear seat entertainment system features ................ 406
Using the DVD player (DVD video)...................... 413
Using the DVD player (video CD) ........................ 422
Using the DVD player (audio CD/CD text) ........... 425
Using the DVD player (MP3 discs) ...................... 426
Using the video mode ........ 428 Changing the initial
setting ............................... 429
3-6. Using the interior lights Interior lights list.................. 436
• Personal/interior light main switch ....................... 437
• Personal/interior lights ...... 437
• Interior light ....................... 438
3-7. Using the storage features List of storage features ....... 439
• Glove box ......................... 440
• Console box ..................... 441
• Overhead console ............ 442
• Cup holders ...................... 443
• Bottle holders ................... 447
• Auxiliary boxes ................. 448
• Side table ......................... 450
3-8. Other interior features Sun visors ........................... 452
Vanity mirrors ..................... 453
Clock................................... 454
Conversation mirror ............ 455
Power outlets ...................... 456
Seat heaters ....................... 460
Armrests ............................. 462
Assist grips ......................... 463
Floor mat ............................ 464
Luggage compartment features ............................ 465
Garage door opener ........... 470
Compass ............................ 476

Interior features3
273
3-5. Using the rear audio system
Rear seat entertainment system features ............. 406
Using the DVD player (DVD video) ................... 413
Using the DVD player (video CD)...................... 422
Using the DVD player (audio CD/CD text) ........ 425
Using the DVD player (MP3 discs) .................... 426
Using the video mode ...... 428
Changing the initial setting ............................ 429
3-6. Using the interior lights Interior lights list ............... 436
• Personal/interior light
main switch .................... 437
• Personal/interior lights ... 437
• Interior light .................... 438 3-7. Using the storage features
List of storage features .... 439
• Glove box....................... 440
• Console box ................... 441
• Overhead console .......... 442
• Cup holders ................... 443
• Bottle holders ................. 447
• Auxiliary boxes ............... 448
• Side table ....................... 450
3-8. Other interior features Sun visors ........................ 452
Vanity mirrors ................... 453
Clock ................................ 454
Conversation mirror ......... 455
Power outlets ................... 456
Seat heaters..................... 460
Armrests........................... 462
Assist grips....................... 463
Floor mat .......................... 464
Luggage compartment features .......................... 465
Garage door opener......... 470
Compass .......................... 476

346 3-2. Using the audio system

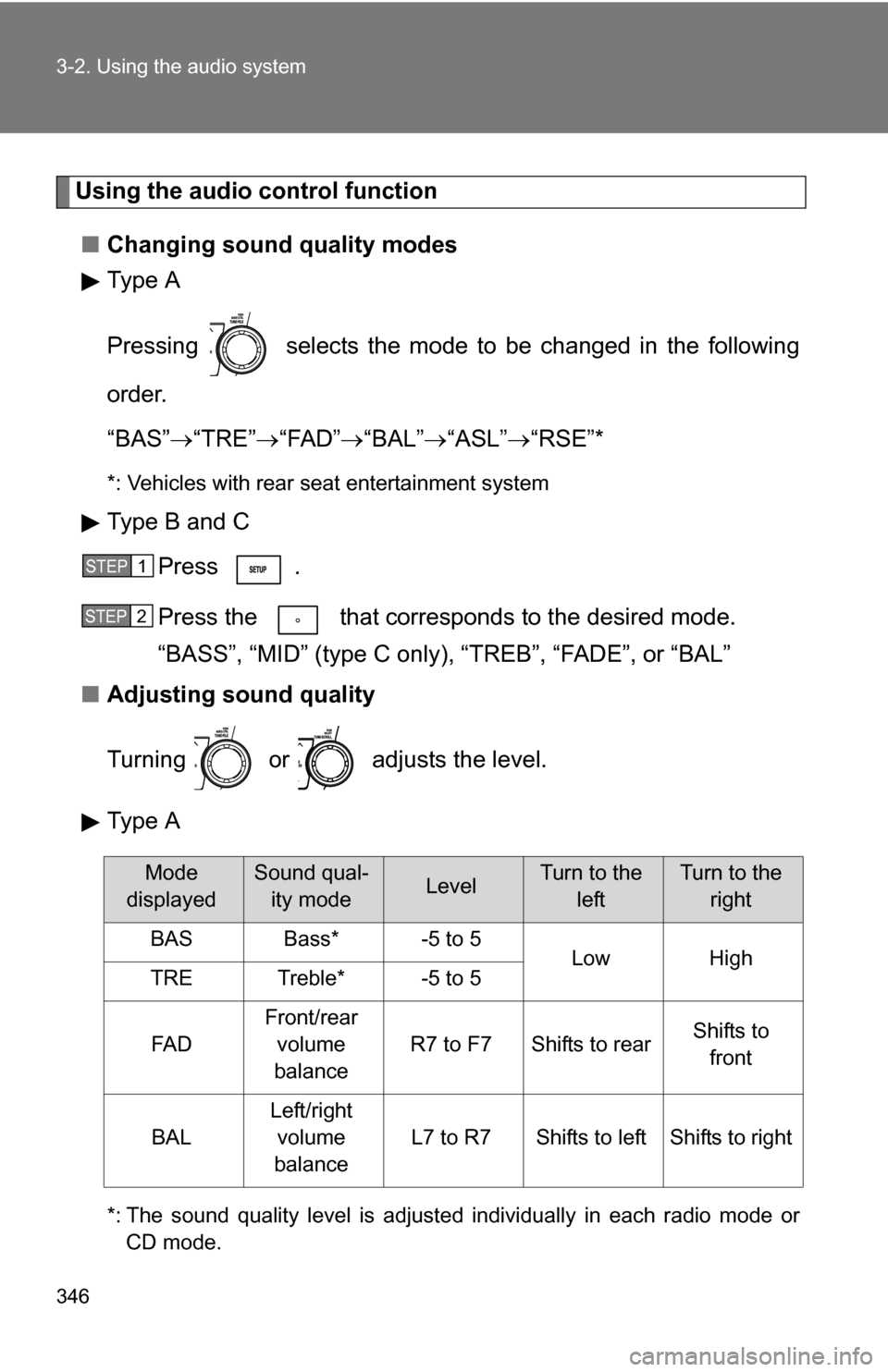

Using the audio control function■ Changing sound quality modes
Type A
Pressing selects the mode to be changed in the following
order.
“BAS” “TRE” “FAD” “BAL” “ASL” “RSE”*
*: Vehicles with rear seat entertainment system
Type B and C
Press .
Press the that corresponds to the desired mode.
“BASS”, “MID” (type C only), “TREB”, “FADE”, or “BAL”
■ Adjusting sound quality
Turning or adjusts the level.
Type A
*: The sound quality level is adjusted individually in each radio mode or
CD mode.
STEP1
STEP2
Mode
displayedSound qual- ity modeLevelTurn to the leftTurn to the right
BASBass*-5 to 5LowHighTRETreble*-5 to 5
FA D
Front/rear volume
balance
R7 to F7Shifts to rearShifts to front
BAL
Left/right volume
balance
L7 to R7Shifts to leftShifts to right

406
3-5. Using the rear audio system

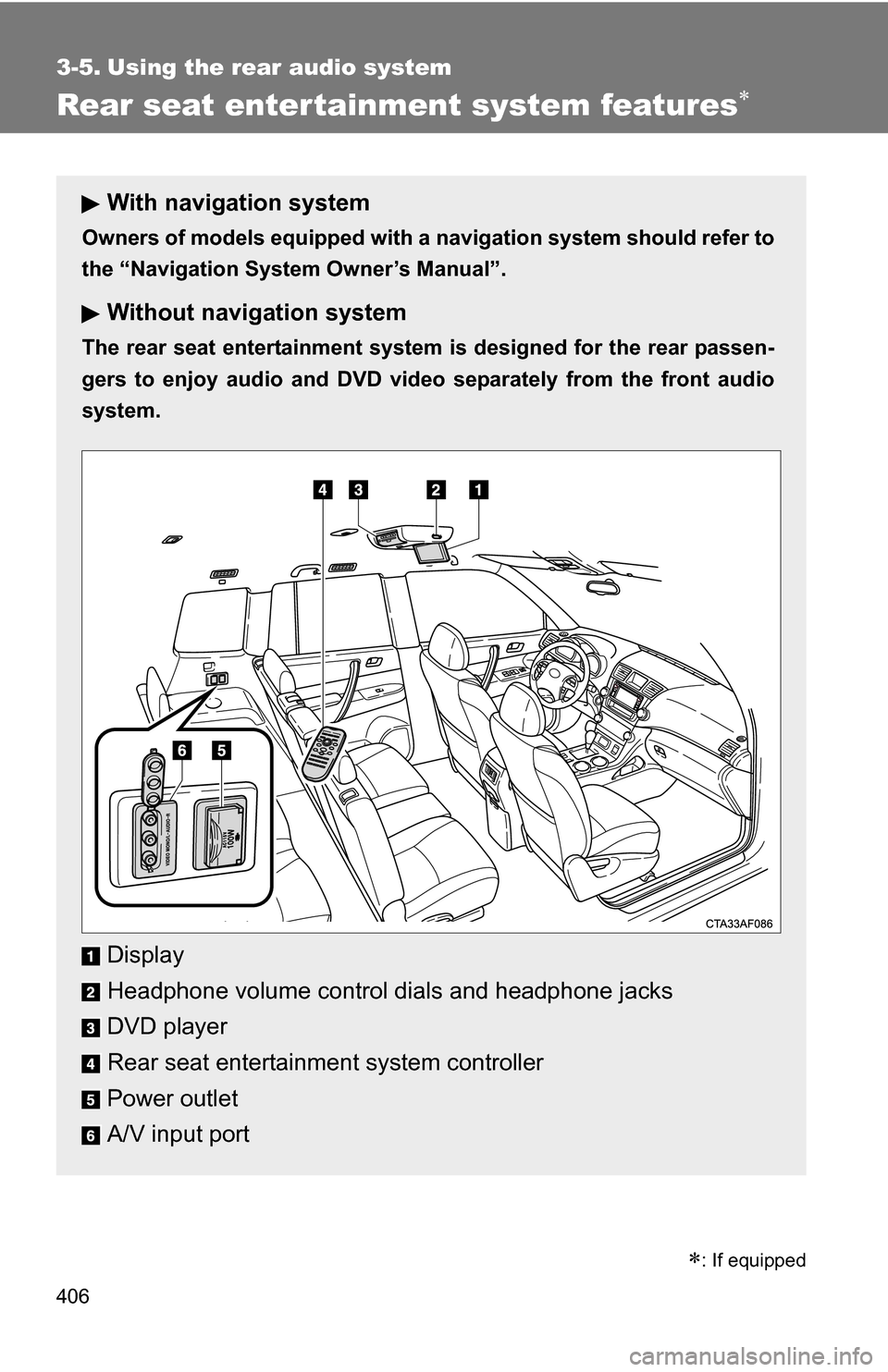

Rear seat entertainment system features
With navigation system
Owners of models equipped with a navigation system should refer to
the “Navigation System Owner’s Manual”.
Without navigation system
The rear seat entertainment system is designed for the rear passen-
gers to enjoy audio and DVD vide o separately from the front audio
system.
Display
Headphone volume control dials and headphone jacks
DVD player
Rear seat entertainment system controller
Power outlet
A/V input port

: If equipped

407
3-5. Using the rear audio system
3
Interior features

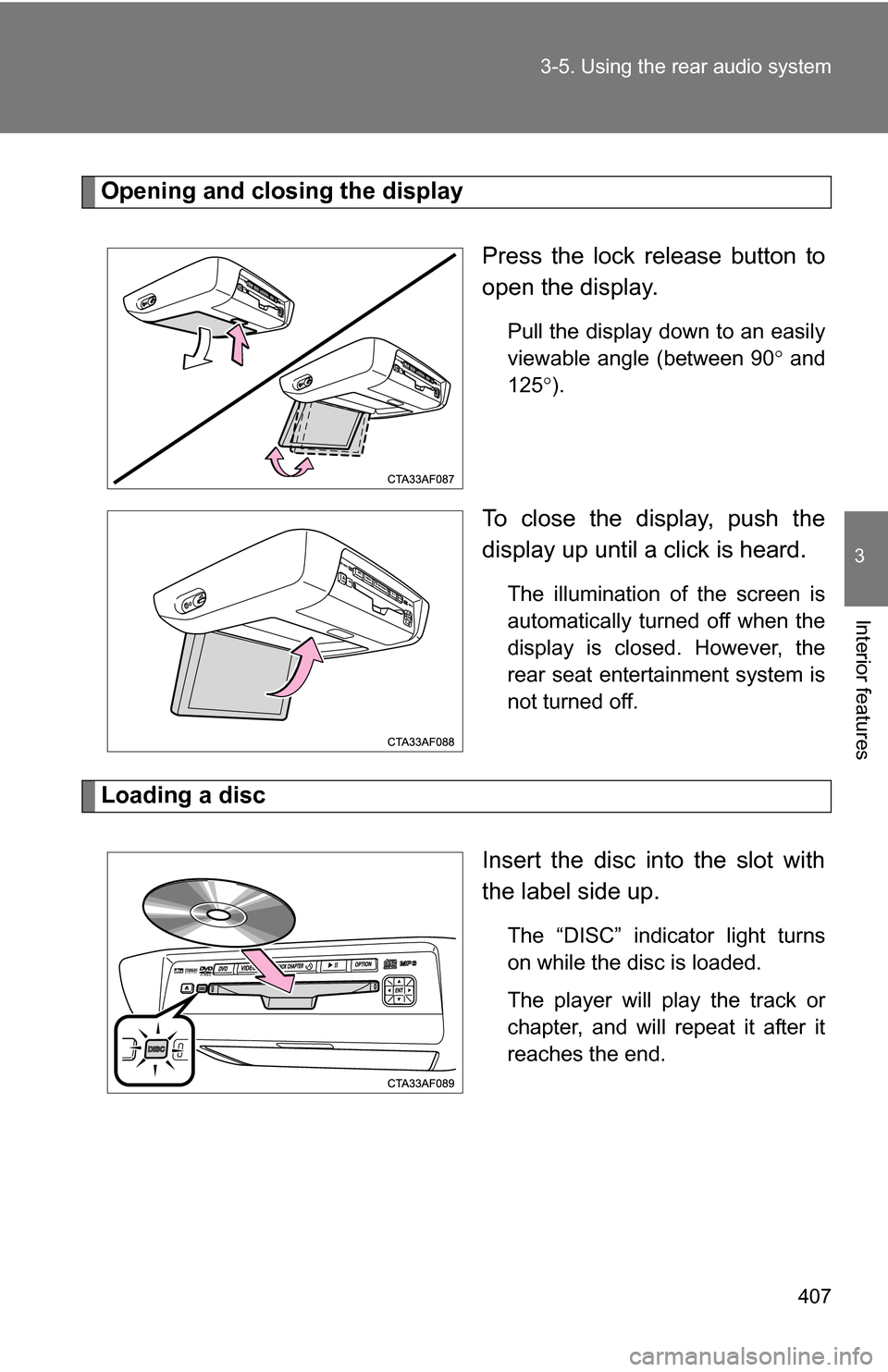

Opening and closing the display
Press the lock release button to
open the display.
Pull the display down to an easily
viewable angle (between 90 and
125 ).
To close the display, push the
display up until a click is heard.
The illumination of the screen is
automatically turned off when the
display is closed. However, the
rear seat entertainment system is
not turned off.
Loading a disc
Insert the disc into the slot with
the label side up.
The “DISC” indicator light turns
on while the disc is loaded.
The player will play the track or
chapter, and will repeat it after it
reaches the end.

410 3-5. Using the rear audio system

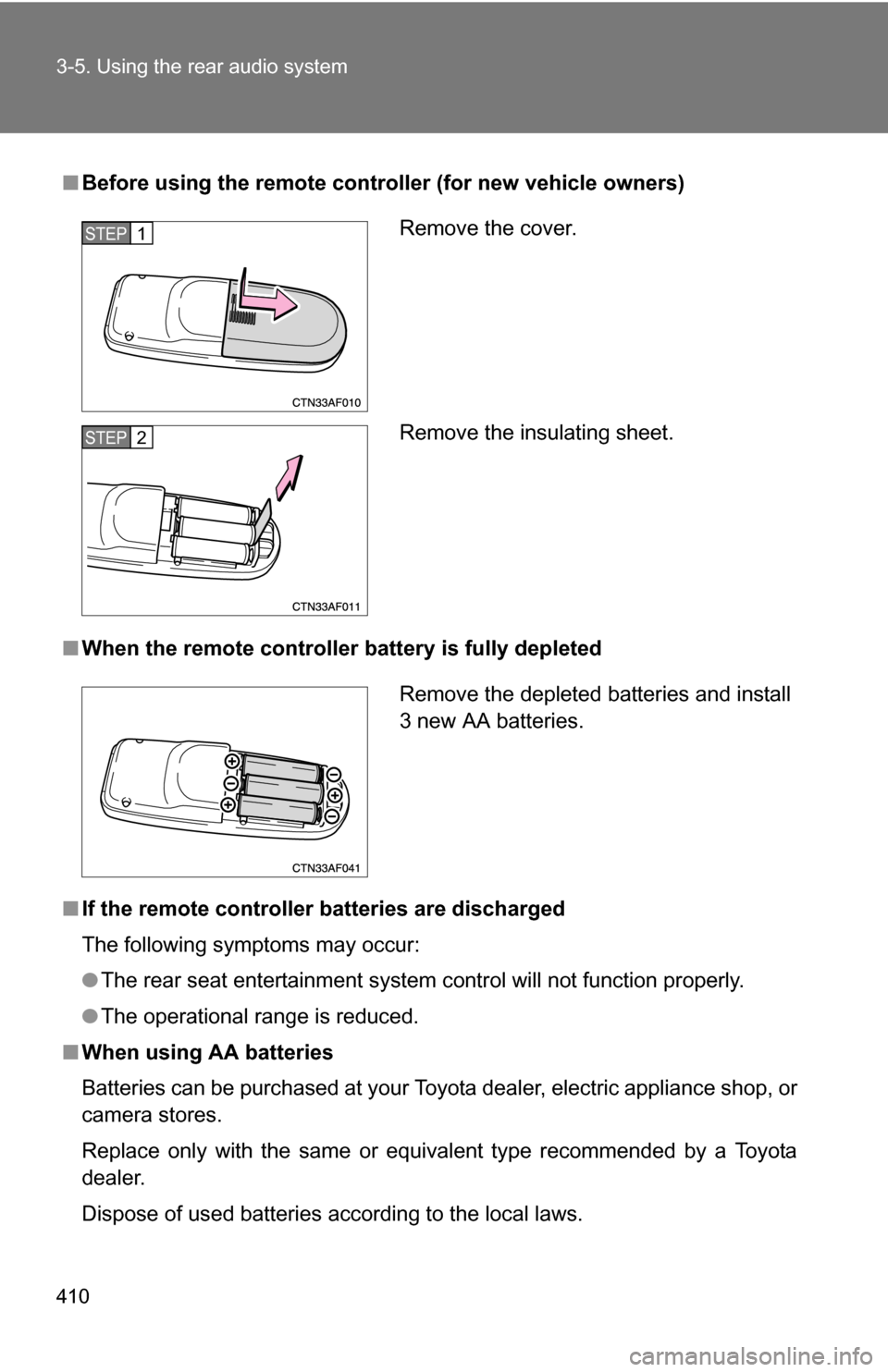

■Before using the remote controller (for new vehicle owners)
■ When the remote controller battery is fully depleted
■ If the remote controller batteries are discharged
The following symptoms may occur:
●The rear seat entertainment system control will not function properly.
● The operational range is reduced.
■ When using AA batteries
Batteries can be purchased at your Toyota dealer, electric appliance shop, or
camera stores.
Replace only with the same or equivalent type recommended by a Toyota
dealer.
Dispose of used batteries according to the local laws.
Remove the cover.
Remove the insulating sheet.STEP1
STEP2
Remove the depleted batteries and install
3 new AA batteries.

428
3-5. Using the rear audio system

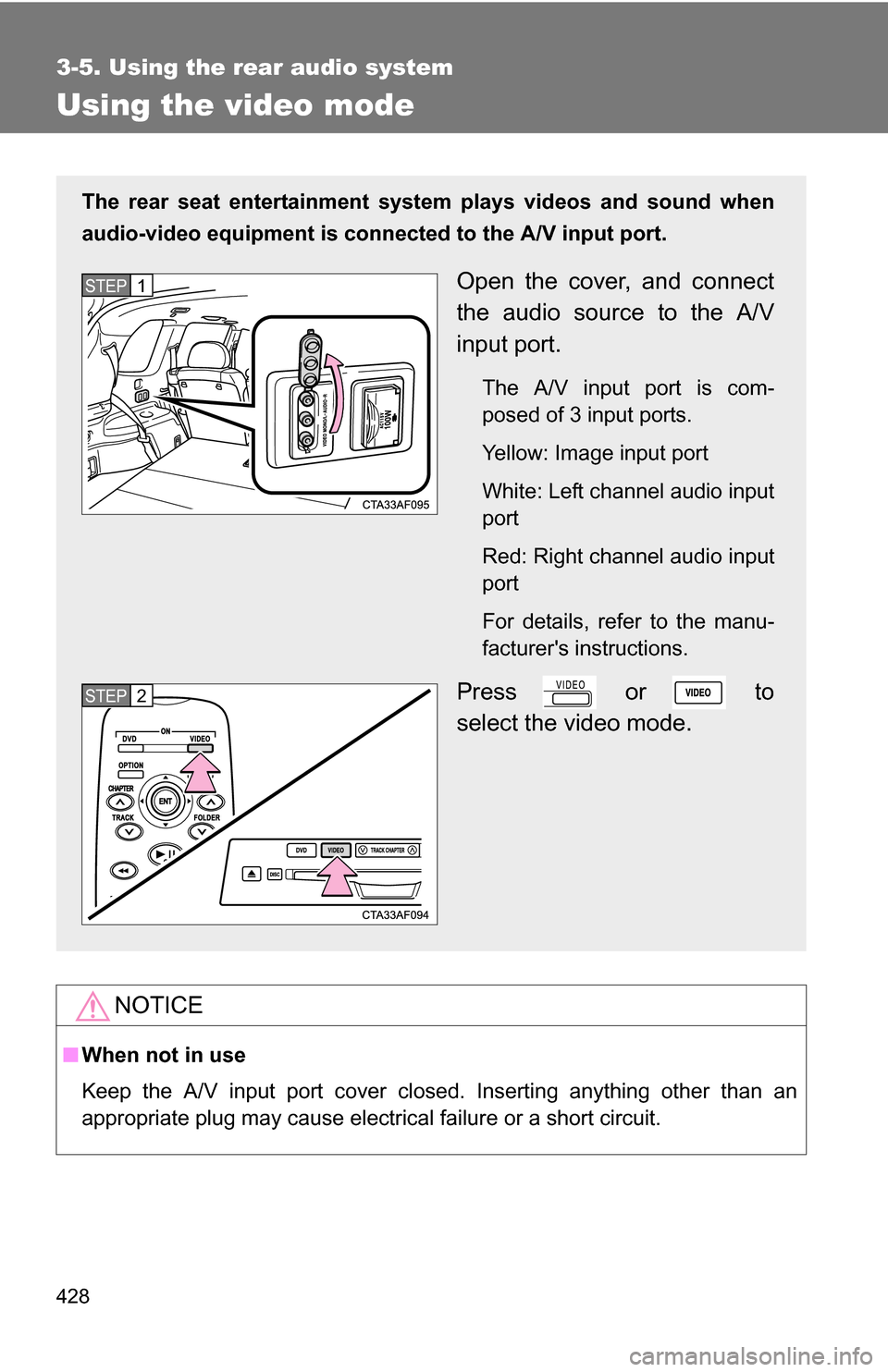

Using the video mode
NOTICE
■When not in use
Keep the A/V input port cover closed. Inserting anything other than an
appropriate plug may cause electrical failure or a short circuit.
The rear seat entertainment syst em plays videos and sound when
audio-video equipment is conn ected to the A/V input port.
Open the cover, and connect
the audio source to the A/V
input port.
The A/V input port is com-
posed of 3 input ports.
Yellow: Image input port
White: Left channel audio input
port
Red: Right channel audio input
port
For details, refer to the manu-
facturer's instructions.
Press  or  to
select the video mode.
STEP1
STEP2

457
3-8. Other interior features
3
Interior features

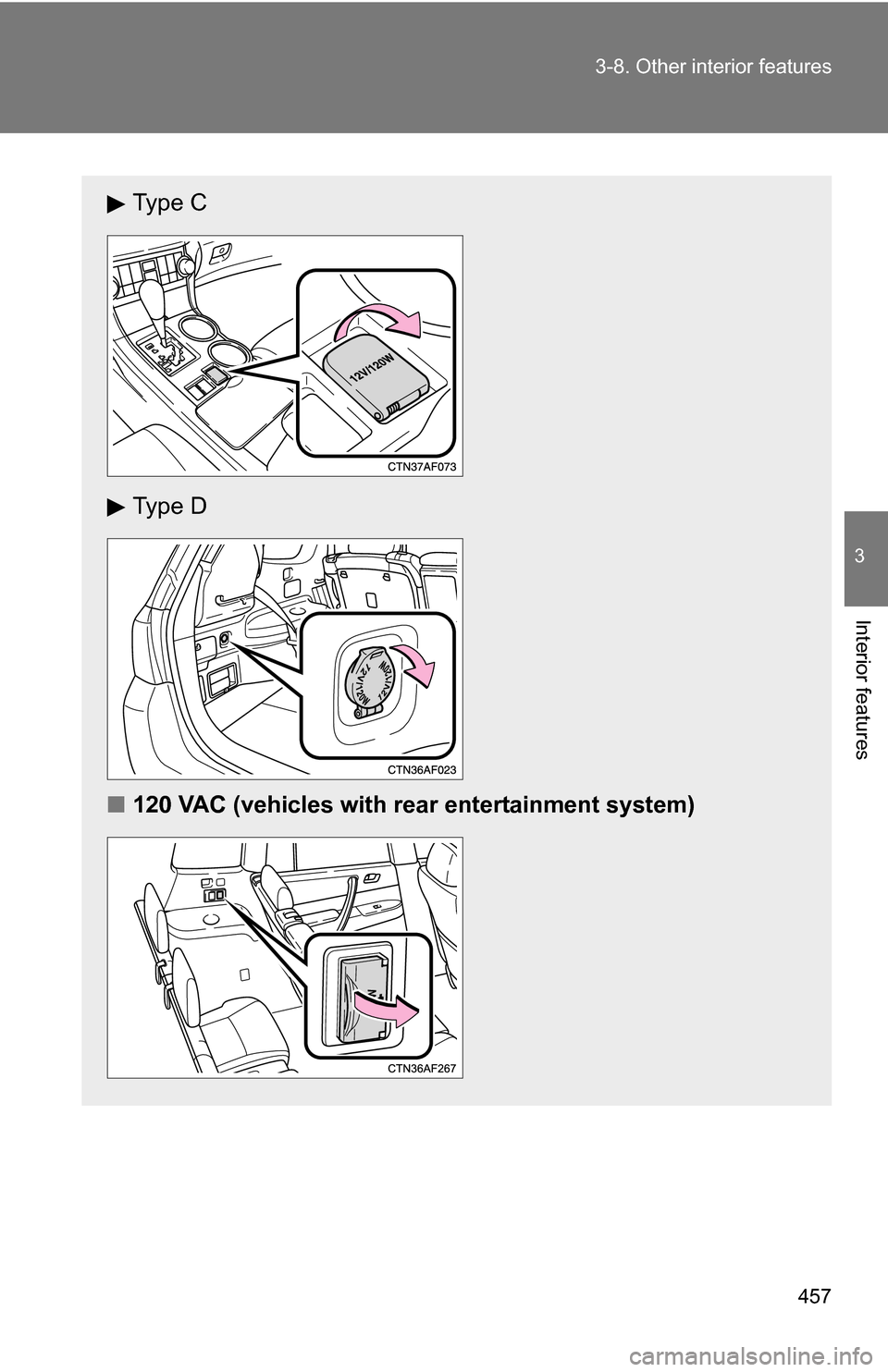

Ty p e C
Ty p e D
■ 120 VAC (vehicles with rear entertainment system)
