3-5. Using the rear audio system
3
Interior features
■

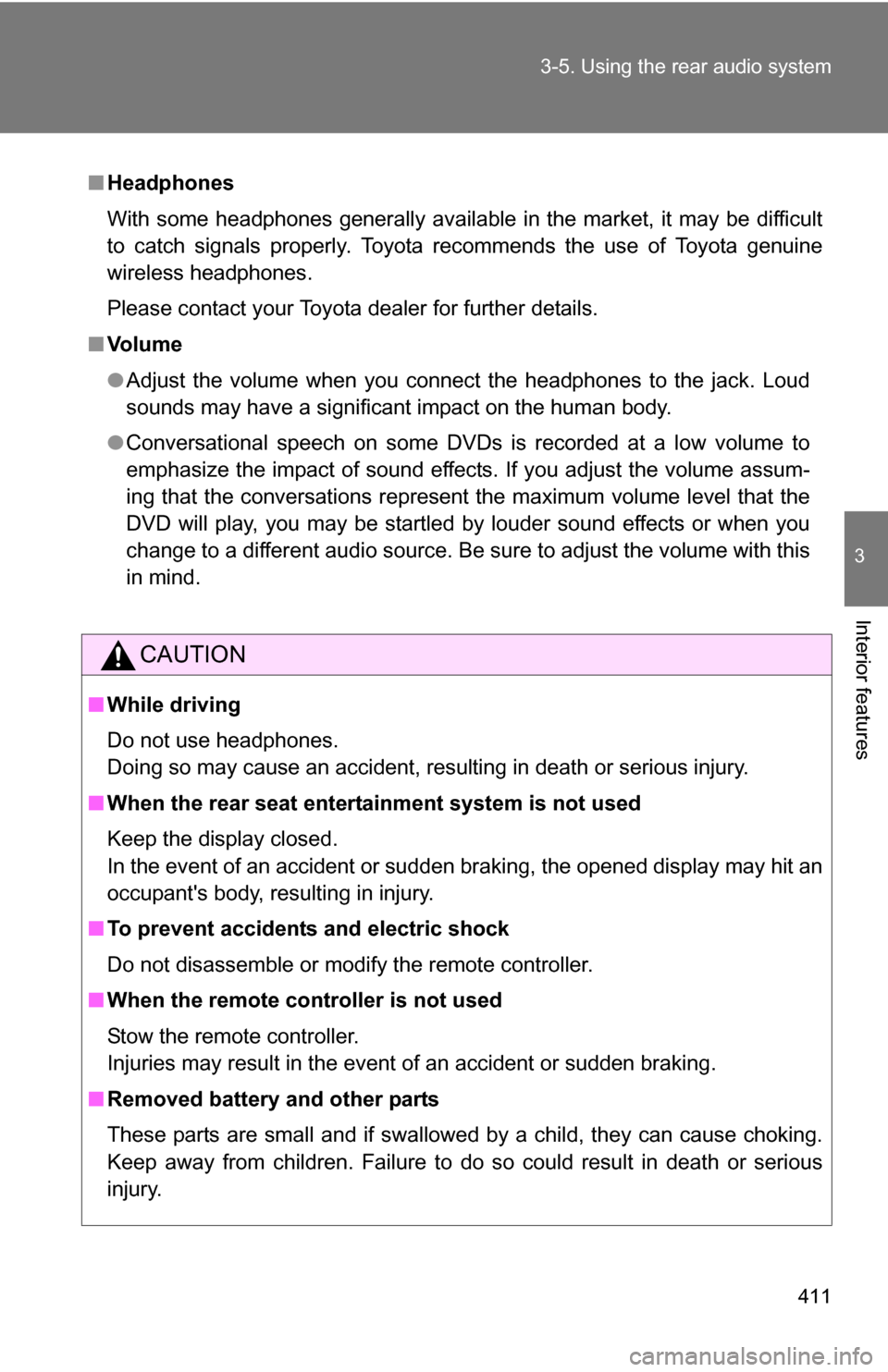

Headphones
With some headphones generally available in the market, it may be difficult
to catch signals properly. Toyota recommends the use of Toyota genuine
wireless headphones.
Please contact your Toyota dealer for further details.
■ Vo l u m e
●Adjust the volume when you connect the headphones to the jack. Loud
sounds may have a significant impact on the human body.
● Conversational speech on some DVDs is recorded at a low volume to
emphasize the impact of sound effects. If you adjust the volume assum-
ing that the conversations represent the maximum volume level that the
DVD will play, you may be startled by louder sound effects or when you
change to a different audio source. Be sure to adjust the volume with this
in mind.
CAUTION
■While driving
Do not use headphones.
Doing so may cause an accident, resulting in death or serious injury.
■ When the rear seat entert ainment system is not used
Keep the display closed.
In the event of an accident or sudden braking, the opened display may hit an
occupant's body, resulting in injury.
■ To prevent accidents and electric shock
Do not disassemble or modify the remote controller.
■ When the remote controller is not used
Stow the remote controller.
Injuries may result in the event of an accident or sudden braking.
■ Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.

472 3-8. Other interior features

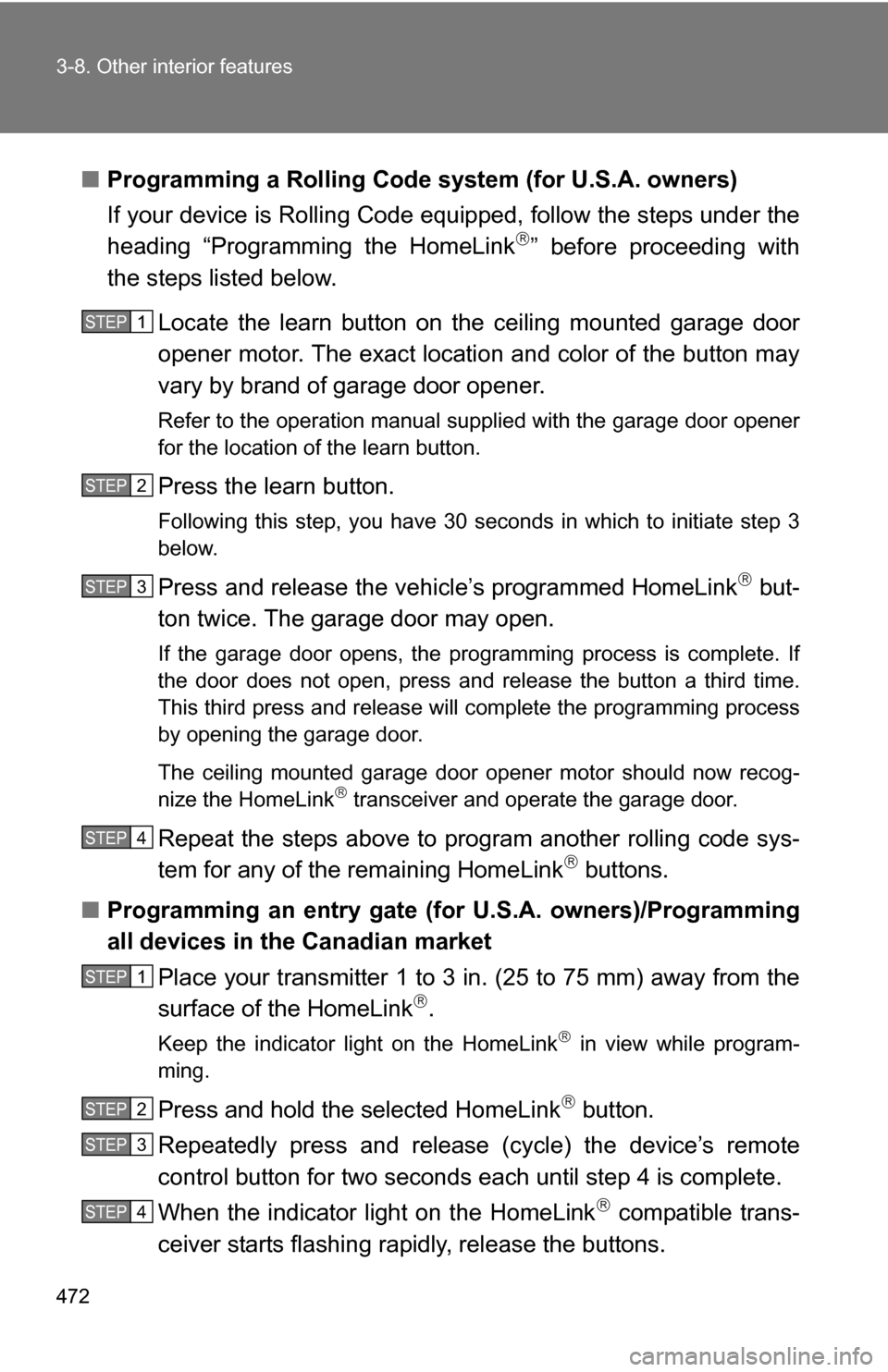

■Programming a Rolling Code sys tem (for U.S.A. owners)
If your device is Rolling Code equipped, follow the steps under the
heading “Programming the HomeLink
” before proceeding with
the steps listed below.
Locate the learn button on t he ceiling mounted garage door
opener motor. The exact location and color of the button may
vary by brand of garage door opener.
Refer to the operation manual supplied with the garage door opener
for the location of the learn button.
Press the learn button.
Following this step, you have 30 seconds in which to initiate step 3
below.
Press and release the vehicle’s programmed HomeLink but-
ton twice. The garage door may open.
If the garage door opens, the programming process is complete. If
the door does not open, press and release the button a third time.
This third press and release will complete the programming process
by opening the garage door.
The ceiling mounted garage door opener motor should now recog-
nize the HomeLink
 transceiver and operate the garage door.
Repeat the steps above to prog ram another rolling code sys-
tem for any of the remaining HomeLink buttons.
■ Programming an entry gate (f or U.S.A. owners)/Programming
all devices in the Canadian market
Place your transmitter 1 to 3 in. (25 to 75 mm) away from the
surface of the HomeLink
.
Keep the indicator light on the HomeLink in view while program-
ming.
Press and hold the selected HomeLink button.
Repeatedly press and release (cycle) the device’s remote
control button for two seconds each until step 4 is complete.
When the indicator light on the HomeLink
 compatible trans-
ceiver starts flashing rapidly, release the buttons.
STEP1
STEP2
STEP3
STEP4
STEP1
STEP2
STEP3
STEP4

547
4-3. Do-it-yourself maintenance
4
Maintenance and care
24 ST
30 A Starting system
25 CRT 10 ARear seat entertainment system,
audio system
26 RADIO NO.1 20 A Audio system
27 ECU-B NO.1 10 A Steering sensor, gauges and
meters, clock, main body ECU,
wireless remote control, smart key
system, power back door, multi-
information display, front passen-
ger occupant classification system
28 DOME 10 AVanity lights, personal lights, inte-
rior light, gauges and meters,
engine switch light, door courtesy
lights
29 TOWING 30 A Trailer lights
30 STR LOCK 20 A Steering lock system
31 EFI MAIN 25 AMultiport fuel injection system/
sequential multiport fuel injection
system, EFI NO.2, EFI NO.3
32 HAZ 15 A Turn signal lights
33 IG2 25 AINJ NO.1, INJ NO.2, IGN, GAUGE
NO.2
34 AMP 15 A Audio system
35 RR FOG 7.5 A No circuit
36 DEICER 15 A Windshield wiper de-icer
37 G/H 10 AGlass hatch, multiplex communica-
tion system, outer foot lights
38 ALT-S 7.5 A Charging system
39 AM2 7.5 A Multiplex communication system
40 H-LP LH HI 15 A Left-hand headlight (high beam)
41 H-LP RH HI 15 A Right-hand headlight (high beam)
FuseAmpereCircuit

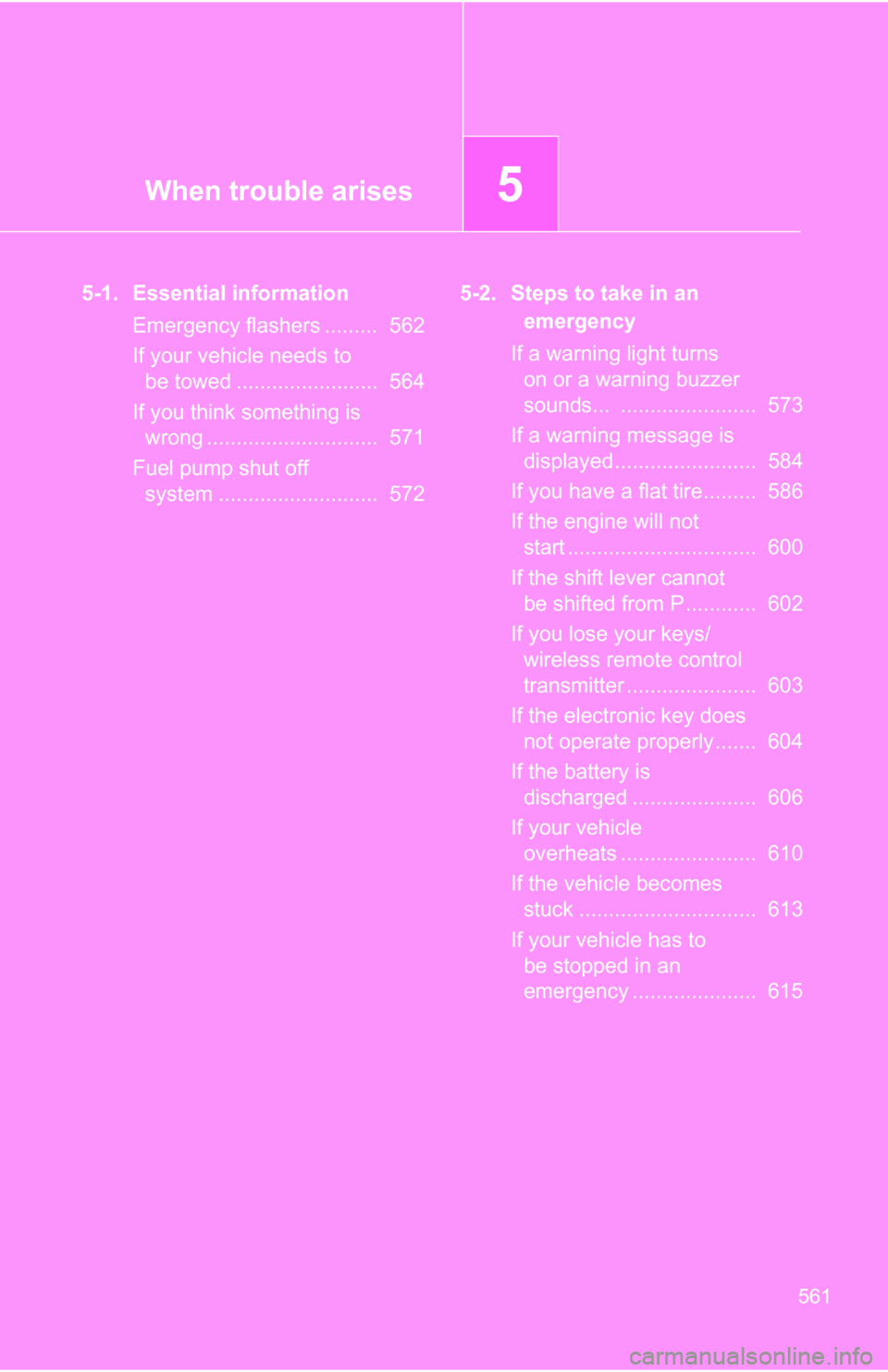

When trouble arises5
561
5-1. Essential informationEmergency flashers ......... 562
If your vehicle needs to be towed ........................ 564
If you think something is wrong ............................. 571
Fuel pump shut off system ........................... 572 5-2. Steps to take in an
emergency
If a warning light turns on or a warning buzzer
sounds... ....................... 573
If a warning message is displayed........................ 584
If you have a flat tire......... 586
If the engine will not start ................................ 600
If the shift lever cannot be shifted from P............ 602
If you lose your keys/ wireless remote control
transmitter ...................... 603
If the electronic key does not operate properly....... 604
If the battery is discharged ..................... 606
If your vehicle overheats ....................... 610
If the vehicle becomes stuck .............................. 613
If your vehicle has to be stopped in an
emergency ..................... 615

604
5-2. Steps to take in an emergency

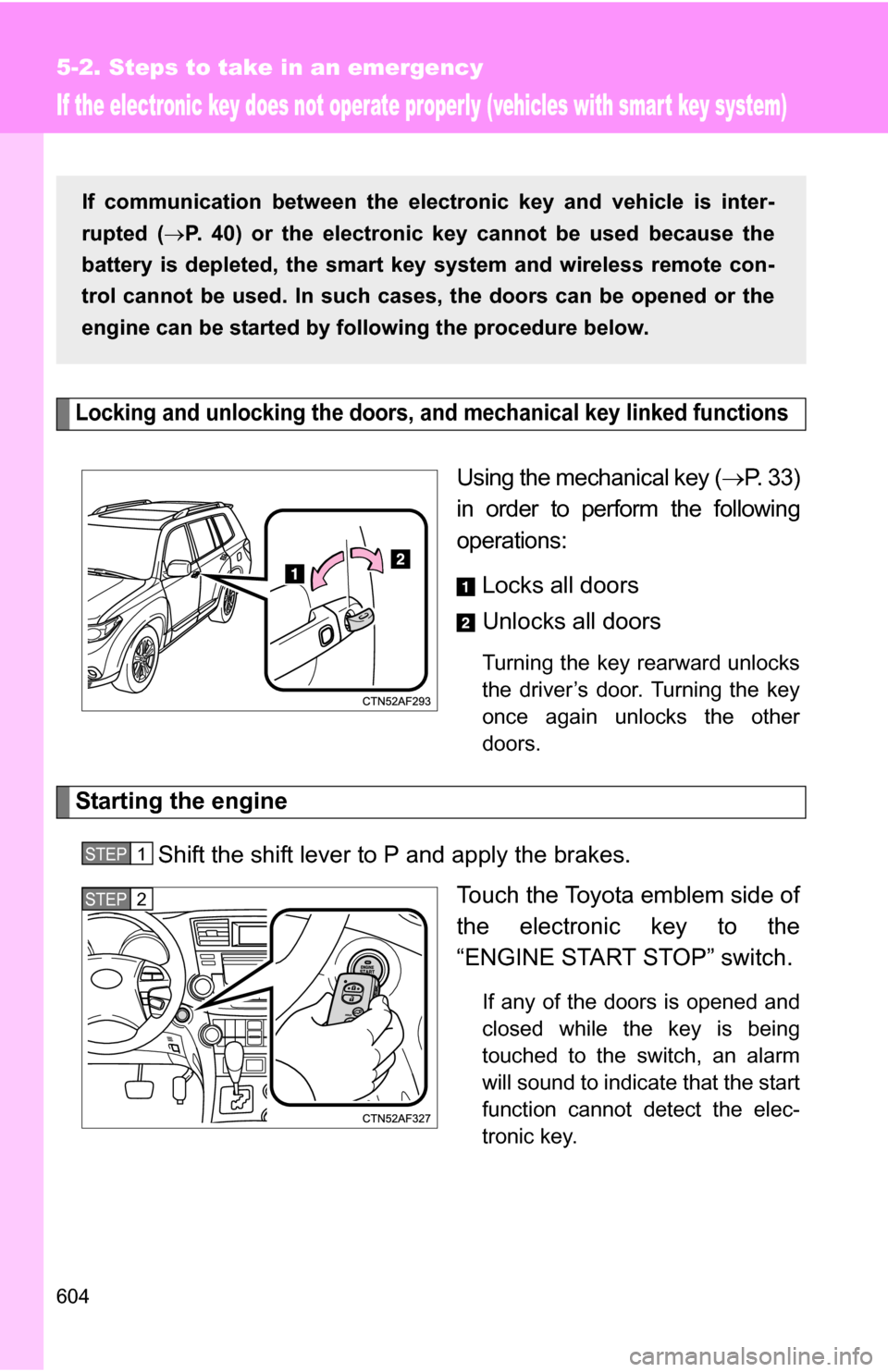

If the electronic key does not operate properly (vehicles with smart key system)
Locking and unlocking the doors, and mechanical key linked functions
Using the mechanical key (P. 33)
in order to perform the following
operations:
Locks all doors
Unlocks all doors
Turning the key rearward unlocks
the driver’s door. Turning the key
once again unlocks the other
doors.
Starting the engine
Shift the shift lever to P and apply the brakes. Touch the Toyota emblem side of
the electronic key to the
“ENGINE START STOP” switch.
If any of the doors is opened and
closed while the key is being
touched to the switch, an alarm
will sound to indicate that the start
function cannot detect the elec-
tronic key.
If communication between the electronic key and vehicle is inter-
rupted (P. 40) or the electronic key cannot be used because the
battery is depleted, the smart key system and wireless remote con-
trol cannot be used. In such cases, the doors can be opened or the
engine can be started by following the procedure below.
STEP1
STEP2

673
Alphabetical index
Electric power steering........... 227
Electronic key
If your electronic key battery is discharged .......... 604
Emergency flashers
Switch ................................... 562
Emergency, in case of If a warning message is
displayed ............................ 584
If the back door opener is inoperative ........................... 63
If the electronic key does not operate properly ........... 604
If the engine will not start...... 600
If the shift lever cannot be
shifted from P ..................... 602
If the vehicle has a
discharged battery ............. 606
If the warning buzzer sounds... ........................... 573
If the warning light turns on ....................................... 573
If you have a flat tire ............ 586
If you lose your keys/
wireless remote control
transmitter .......................... 603
If you think something is wrong ................................. 571
If your vehicle becomes
stuck................................... 613
If your vehicle has to be stopped in an
emergency ......................... 615
If your vehicle needs to be towed ................................. 564
If your vehicle overheats ...... 610 Engine
Compartment ........................505
Engine switch ................171, 175
Hood......................................499
How to start the
engine .........................171, 175
Identification number .............619
If the engine will not start ......600
Ignition switch................171, 175
Overheating...........................610
Engine compartment cover.....507
Engine coolant
Capacity ................................626
Checking ...............................512
Preparing and checking before winter .......................248
Engine coolan t temperature
gauge ......................................186
Engine immobilizer system.....113
Engine oil Capacity ................................622
Checking ...............................508
Preparing and checking before winter .......................248
Enhanced vehicle stability control ....................................227
Enhanced VSC .........................227
EPS ............................................227
Event data recorder ...................26E

678 Alphabetical index
Service reminder indicators .............................. 188
Shift lever Automatic transmission ......... 178
If the shift lever cannot be shifted from P................. 602
Shift lock system ..................... 602
Shopping bag hooks ............... 465
Side airbags.............................. 124
Side marker lights Replacing .............................. 553
Switch.................................... 203
Wattage ................................. 632
Side mirrors
Adjusting and folding ...............98
Side table .................................. 450
Smart key system Entry function ..........................35
Starting the engine ................171
Spare tire
Inflation pressure................... 630
Storage location .................... 586
Spark plug ................................ 627
Specifications........................... 618
Speech command switch ........ 378
Speedometer ............................ 186
Steering
Column lock release...... 173, 176 Steering wheel
Adjustment .............................. 94
Audio switches ...................... 351
Climate remote control switches .............................. 298
Stop lights Replacing light bulbs ............. 553
Wattage................................. 632
Storage feature ........................ 439
Storage precautions ................ 245
Stuck If your vehicle becomes stuck ................................... 613
Sun visors ................................ 452
Switch
Emergency flasher switch ..... 562
Engine switch ................ 171, 175
Fog light switch ..................... 210
Hazard light switch ................ 562
Ignition switch ............... 171, 175
Light switches ....................... 203
Power door lock switch ........... 55
Power window switch ............ 101
SNOW switch ........................ 179
Window lock switch ............... 101
Wiper and washer switch.......................... 212, 216

681

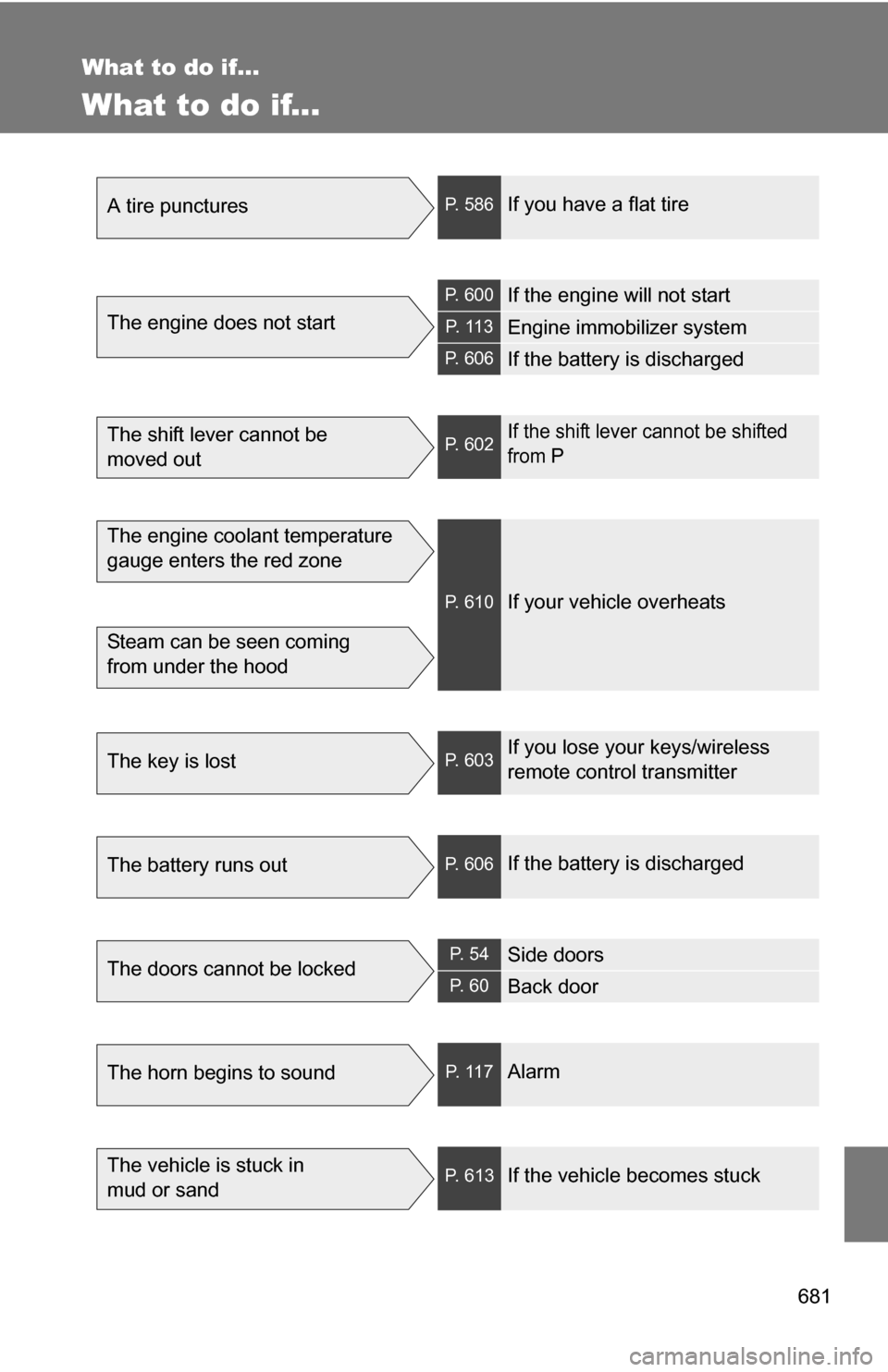

What to do if...
What to do if...
A tire puncturesP. 586If you have a flat tire
The engine does not start
P. 600If the engine will not start
P. 1 1 3Engine immobilizer system
P. 606If the battery is discharged
The shift lever cannot be
moved outP. 602If the shift lever cannot be shifted
from P
The engine coolant temperature
gauge enters the red zone
Steam can be seen coming
from under the hood
P. 610If your vehicle overheats
The key is lostP. 603If you lose your keys/wireless
remote control transmitter
The battery runs outP. 606If the battery is discharged
The doors cannot be lockedP. 5 4Side doors
P. 6 0Back door
The horn begins to soundP. 1 1 7Alarm
The vehicle is stuck in
mud or sandP. 613If the vehicle becomes stuck
