This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental operations
so you can locate and use the vehicle’s main equipment quickly
and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in your vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of your vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Camry
Hybrid.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of
Camry Hybrid operations. Every Camry Hybrid owner should
review the Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2013
Camry Hybrid
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
29
127615_2013CamryHV_CVR.indd 211/20/12 12:30 AM
Page 3 of 32
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
2013
Camry Hybrid
INDEX
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 9
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
1 6
Light control-Instrument panel 8
Smart Key system
1,2 7
Air Conditioning/Heating 20
Audio 18
Auto lock/unlock
2 11
Bottle holders 22
BSM (Blind Spot Monitor) 16
Clock 21
Cruise control 15
Cup holders 22
Garage door opener (HomeLink
®)3 15
Hill-start Assist Control (HAC) 16
Hybrid Synergy Drive System 10
iPod
®/USB/AUX port 19
Lights1 & turn signals 13
Moonroof 17
Multi-Information Display 17
Parking brake 12
Power outlets-12V DC 21
Seat adjustments-Front 14
Seat heaters 21
Seats-Folding rear seats 14
Seats-Head restraints 14
Steering lock release 11
Steering wheel switches 19
Tilt and telescopic steering wheel 12
Transmission 11
Windows-Power 12
Windshield wipers & washers 13
Door locks 23
Doors-Child safety locks 23
Floor mat installation 27
Seat belts 24
Seat belts-Shoulder belt anchor 24
Spare tire & tools 25
Star Safety System
TM 26-27
Trunk-Internal release 24
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3 HomeLink® is a registered trademark of Johnson Controls, Inc.
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY
FEATURES
127615_2013CamryHV.indd 111/19/12 11:04 PM
Page 4 of 32
2
OVERVIEW

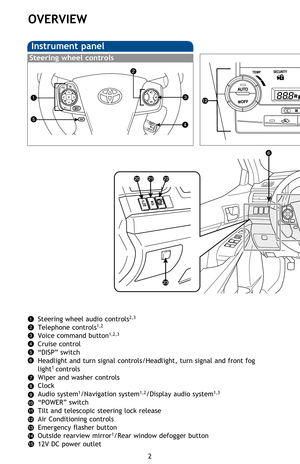

Instrument panel
Steering wheel audio controls2,3
Telephone controls1,2
Voice command button1,2,3
Cruise control
“DISP” switch
Headlight and turn signal controls/Headlight, turn signal and front fog
light
1 controls
Wiper and washer controls
Clock
Audio system
1/Navigation system1,2/Display audio system1,3
“POWER” switch
Tilt and telescopic steering lock release
Air Conditioning controls
Emergency flasher button
Outside rearview mirror
1/Rear window defogger button
12V DC power outlet
AUX or USB/AUX port
Seat heater controls1
“EV MODE” switch
“ECO MODE” switch
BSM (Blind Spot Monitor) main switch
1
VSC OFF switch
Headlight leveling dial1
Coin holder
1 If equipped2 For details, refer to the “Navigation System Owner’s Manual.”3 For details, refer to the “Display Audio System Owner’s Manual .”
NOTE: For vehicles equipped with Entune
TM, please consult the “Navigation
System With Entune Quick Reference Guide” or www.toyota.com/entune.
Steering wheel controls
127615_2013CamryHV.indd 211/19/12 11:05 PM
Page 5 of 32
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
3
AUX or USB/AUX port
Seat heater controls1
“EV MODE” switch
“ECO MODE” switch
BSM (Blind Spot Monitor) main switch
1
VSC OFF switch
Headlight leveling dial1
Coin holder
1 If equipped2 For details, refer to the “Navigation System Owner’s Manual.”3 For details, refer to the “Display Audio System Owner’s Manual .”
NOTE: For vehicles equipped with Entune
TM, please consult the “Navigation
System With Entune Quick Reference Guide” or www.toyota.com/entune.
127615_2013CamryHV.indd 311/19/12 11:05 PM
Page 6 of 32
4
OVERVIEW
Instrument cluster
Service indicators and reminders
Hybrid System indicator
Speedometer
Fuel gauge
Average fuel consumption meter
Current fuel consumption gauge
Display change button
Odometer/Trip meter display
Multi-Information Display
Engine coolant temperature display/Instrument panel light control display
Outside temperature display
Shift position display
Instrument panel light control button
2 If this light flashes, refer to “Cruise control,” Section 2-4, 2013 Owner’s Manual.1 If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
Indicator symbols
Brake system warning (red indicator)1
For details, refer to “Indicators and warning lights,” Section 2-2, 2013 Owner’s
Manual .
Brake system warning (yellow indicator)1
Charging system warning1
Driver/Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Electric power steering system warning
1
127615_2013CamryHV.indd 411/19/12 11:05 PM
Page 7 of 32
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
5
Service indicators and reminders
Hybrid System indicator
Speedometer
Fuel gauge
Average fuel consumption meter
Current fuel consumption gauge
Display change button
Odometer/Trip meter display
Multi-Information Display
Engine coolant temperature display/Instrument panel light control display
Outside temperature display
Shift position display
Instrument panel light control button
2 If this light flashes, refer to “Cruise control,” Section 2-4, 2013 Owner’s Manual.1 If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
For details, refer to “Indicators and warning lights,” Section 2-2, 2013 Owner’s
Manual .
SRS AIR BAG ON/OFF indicator
Headlight low/high beam indicator
Turn signal indicator
Slip indicator
1
Cruise control indicator2/Cruise control SET indicator2
Low Tire Pressure Warning1
Theft deterrent/Engine immobilizer system indicator
Open door warning
Airbag SRS warning1
EV indicator
Low engine oil pressure warning1
Malfunction/Check Engine indicator1
ECO MODE indicator
Low fuel level warning
Front fog light indicator
Master warning light
1
Anti-lock Brake System warning1
Traction Control OFF indicator1
Vehicle Stability Control OFF indicator1
Shift position indicator
Blind Spot Monitor warning/Blind Spot Monitor outside
rearview mirror indicators
High engine coolant temperature warning
READY indicator
EV drive mode indicator
127615_2013CamryHV.indd 511/19/12 11:05 PM
Page 8 of 32
6
OVERVIEW

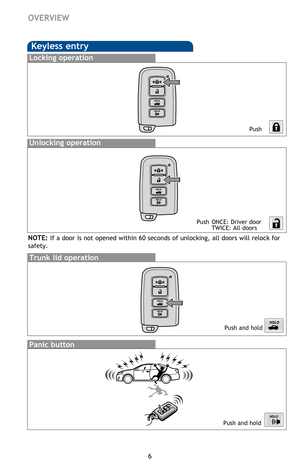

Keyless entry
Push
Push ONCE: Driver door
TWICE: All doors
Locking operation
Unlocking operation
Smart Key system
Start function
ACC
ON
OFF
NOTE: Gear shift lever must be in Park and brake pedal depressed.
Without depressing the brake pedal, pressing the “POWER” switch will change the
operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping front passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Power (without starting Hybrid System)
Trunk lid operation
Push and hold
Panic button
Push and hold
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
Trunk lock/unlock
Locking operation
Carry remote to lock
Front door lock
Carry remote to lock/unlock
127615_2013CamryHV.indd 611/19/12 11:05 PM
