2013 TOYOTA AURIS TOURING SPORTS warning

5077-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
7
When trouble arises
Once
The driver’s door
was opened and
closed with the
engine switch
turned off and
then the engine
switch was put in
ACCESSORY or
IGNITION ON
mode twice with-
out the engine
being started.
Press the
engine
switch
while
depress-
ing the
brake
pedal.
During an engine
starting proce-
dure in the event
that the electronic
key was not func-
tioning properly
(P. 5 5 2 ) , t h e
engine switch was
touched with the
electronic key.
Press the
engine
switch
while
depress-
ing the
brake
pedal
within 10
seconds of
the buzzer
sounding.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
(Flashes)
(Vehicles with a Multid-
rive)

5087-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
Once
The driver’s door
was opened and
closed with the
engine switch
turned off and
then the engine
switch was put in
ACCESSORY or
IGNITION ON
mode twice with-
out the engine
being started.
Press the
engine
switch
while
depress-
ing the
clutch
pedal.
During an engine
starting proce-
dure in the event
that the electronic
key was not func-
tioning properly
(P. 5 5 2 ) , t h e
engine switch was
touched with the
electronic key.
Press the
engine
switch
while
depress-
ing the
clutch
pedal
within 10
seconds of
the buzzer
sounding.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
(Flashes)
(Vehicles with manual
transmission)

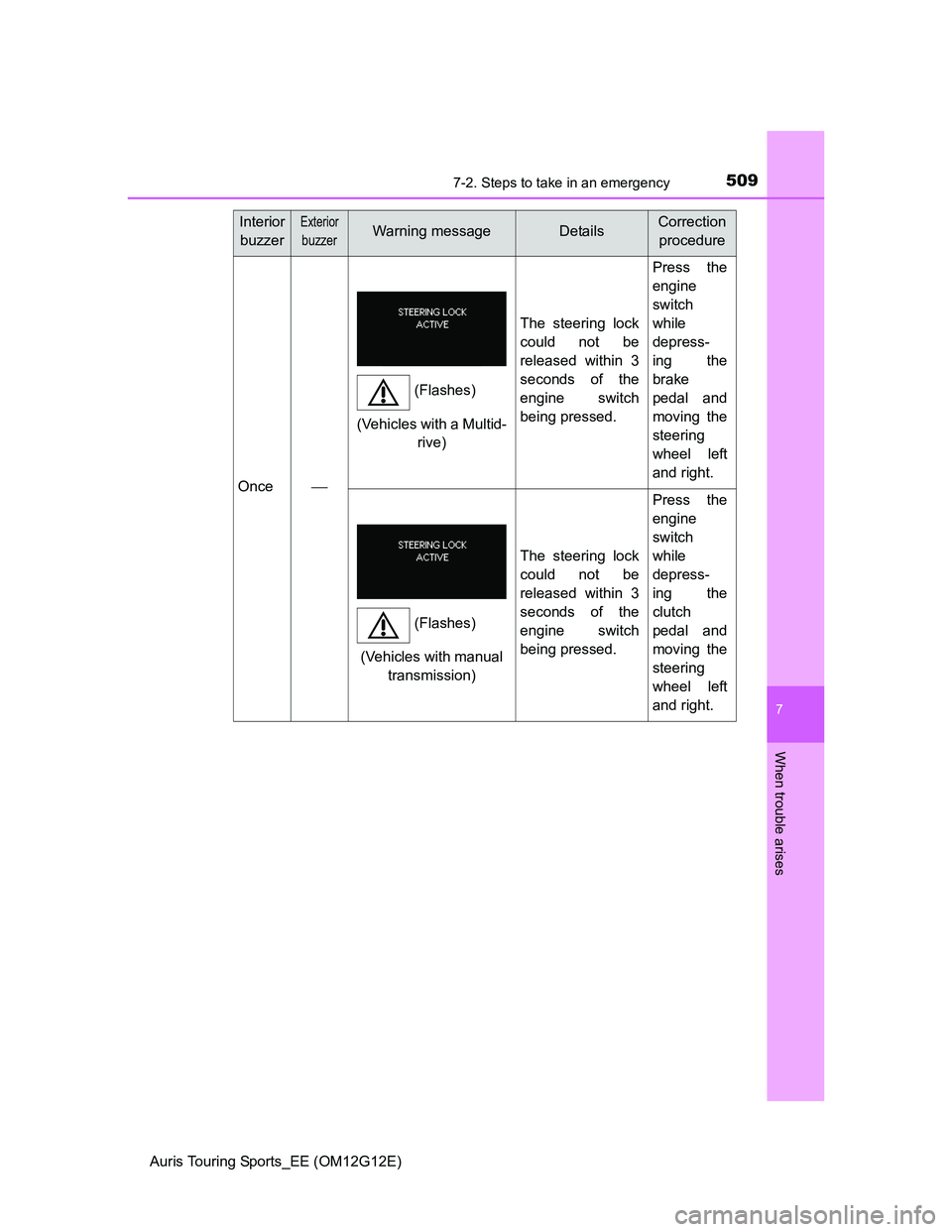

5097-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
7
When trouble arises
Once
The steering lock
could not be
released within 3
seconds of the
engine switch
being pressed.
Press the
engine
switch
while
depress-
ing the
brake
pedal and
moving the
steering
wheel left
and right.
The steering lock
could not be
released within 3
seconds of the
engine switch
being pressed.
Press the
engine
switch
while
depress-
ing the
clutch
pedal and
moving the
steering
wheel left
and right.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
(Flashes)
(Vehicles with a Multid-
rive)
(Flashes)
(Vehicles with manual
transmission)

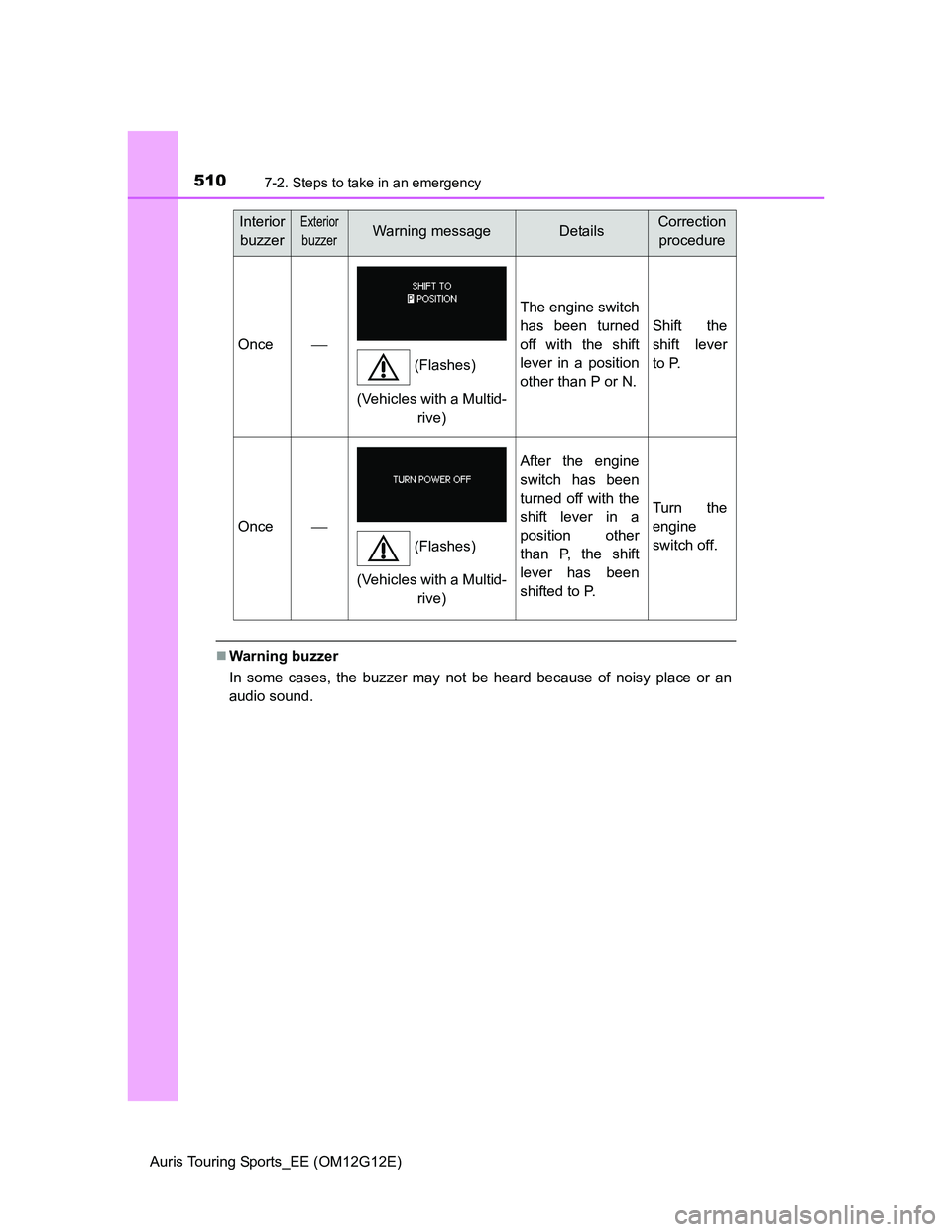

5107-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.
Once
The engine switch
has been turned
off with the shift
lever in a position
other than P or N.
Shift the
shift lever
to P.
Once
After the engine
switch has been
turned off with the
shift lever in a
position other
than P, the shift
lever has been
shifted to P.
Turn the
engine
switch off.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
(Flashes)
(Vehicles with a Multid-
rive)
(Flashes)
(Vehicles with a Multid-
rive)

5117-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
7
When trouble arises
Engine oil change reminder message comes on (diesel engine)
1ND-TV engine:
Replace the engine oil filter when the engine oil change reminder message
does not come on even if you have driven over 15000 km (9300 miles) after
the engine oil was changed.
There is a possibility that the “OIL MAINTENANCE REQUIRED” message
has been displayed when you have driven less than 15000 km (9300 miles)
based on a usage or driving condition.
1AD-FTV engine:
Replace the engine oil filter when the engine oil change reminder message
does not come on even if you have driven over 30000 km (18000 miles) after
the engine oil was changed.
There is a possibility that the “OIL MAINTENANCE REQUIRED” message
has been displayed when you have driven less than 30000 km (18000 miles)
based on a usage or driving condition.
CAUTION
When driving to clean the DPF catalytic converter (diesel engine)
When driving, pay sufficient attention to weather, road conditions, terrain
and traffic conditions, and be sure to observe traffic laws and/or regulations.
Failure to do so may cause an unexpected accident, resulting in death or
serious injury.
NOTICE
When the DPF system warning message comes on (diesel engine)
If the DPF system warning message is left on without performing cleaning,
after an additional 100 to 300 km (62 to 187 miles), the malfunction indicator
lamp may come on. If this happens, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional immediately.
If the fuel filter warning message comes on (diesel engine)
Never drive the vehicle with the warning message is shown. Continued driv-
ing with water accumulated in the fuel filter will damage the fuel injection
pump.

5467-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
CAUTION
When fixing the flat tire
After inflation of the tire has completed, the sealant may splatter when the
hose is disconnected or some air is let out of the tire.
Follow the operation procedure to repair the tire. If the procedures not fol-
lowed, the sealant may spray out.
Keep back from the tire while it is being repaired, as there is a chance of it
bursting while the repair operation is being performed. If you notice any
cracks or deformation of the tire, turn off the compressor switch and stop
the repair operation immediately.
The repair kit may overheat if operated for a long period of time. Do not
operate the repair kit continuously for more than 40 minutes.
Parts of the repair kit become hot during operation. Be careful when han-
dling the repair kit during and after operation. Do not touch the metal part
around the connecting area between the bottle and compressor. It will be
extremely hot.
Do not attach the vehicle speed warning sticker to an area other than the
one indicated. If the sticker is attached to an area where an SRS airbag is
located, such as the pad of the steering wheel, it may prevent the SRS air-
bag from operating properly.
Driving to spread the liquid sealant evenly
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in a loss of vehicle control and cause death or
serious injury.
Drive the vehicle carefully at a low speed. Be especially careful when turn-
ing and cornering.
If the vehicle does not drive straight or you feel a pull through the steering
wheel, stop the vehicle and check the following.
• Tire condition. The tire may have separated from the wheel.
• Tire inflation pressure. If the tire inflation pressure is 130 kPa (1.3
kgf/cm
2 or bar, 19 psi) or less, the tire may be severely damaged.

5617-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
7
When trouble arises
Vehicles without a multi-information display: The high engine cool-
ant temperature warning light (P. 480) comes on or a loss of
engine power is experienced. (For example, the vehicle speed
does not increase.)
Vehicles with a multi-information display: The engine coolant tem-
perature gauge (P. 95) enters the red zone or a loss of engine
power is experienced. (For example, the vehicle speed does not
increase.)
Steam comes out from under the hood.
Stop the vehicle in a safe place and turn off the air conditioning sys-
tem, and then stop the engine.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the engine has cooled
down sufficiently, inspect the
hoses and radiator core (radia-
tor) for any leaks.
Radiator
Cooling fan
If a large amount of coolant
leaks, immediately contact any
authorized Toyota dealer or
repairer, or another duly quali-
fied and equipped professional.
If your vehicle overheats
The following may indicate that your vehicle is overheating.
Correction procedures
1
2
3
1
2

598What to do if... (Troubleshooting)
Auris Touring Sports_EE (OM12G12E)
The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts?
(P. 483)
The brake system warning light is on
Is the parking brake released? (P. 212)
Depending on the situation, other types of warning buzzer may also
sound. (P. 479, 492)

Did anyone inside the vehicle open a door during setting the
alarm?
The sensor detects it and the alarm sounds. (P. 79)
Vehicles without a smart entry & start system
To stop the alarm, turn the engine switch to the “ON” position or start
the engine.
Vehicles with a smart entry & start system
To stop the alarm, turn the engine switch to IGNITION ON mode or start
the engine.
A warning buzzer sounds during driving
An alarm is activated and the horn sounds
(vehicles with an alarm)
