2013 TOYOTA AURIS TOURING SPORTS warning

4917-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
7
When trouble arises

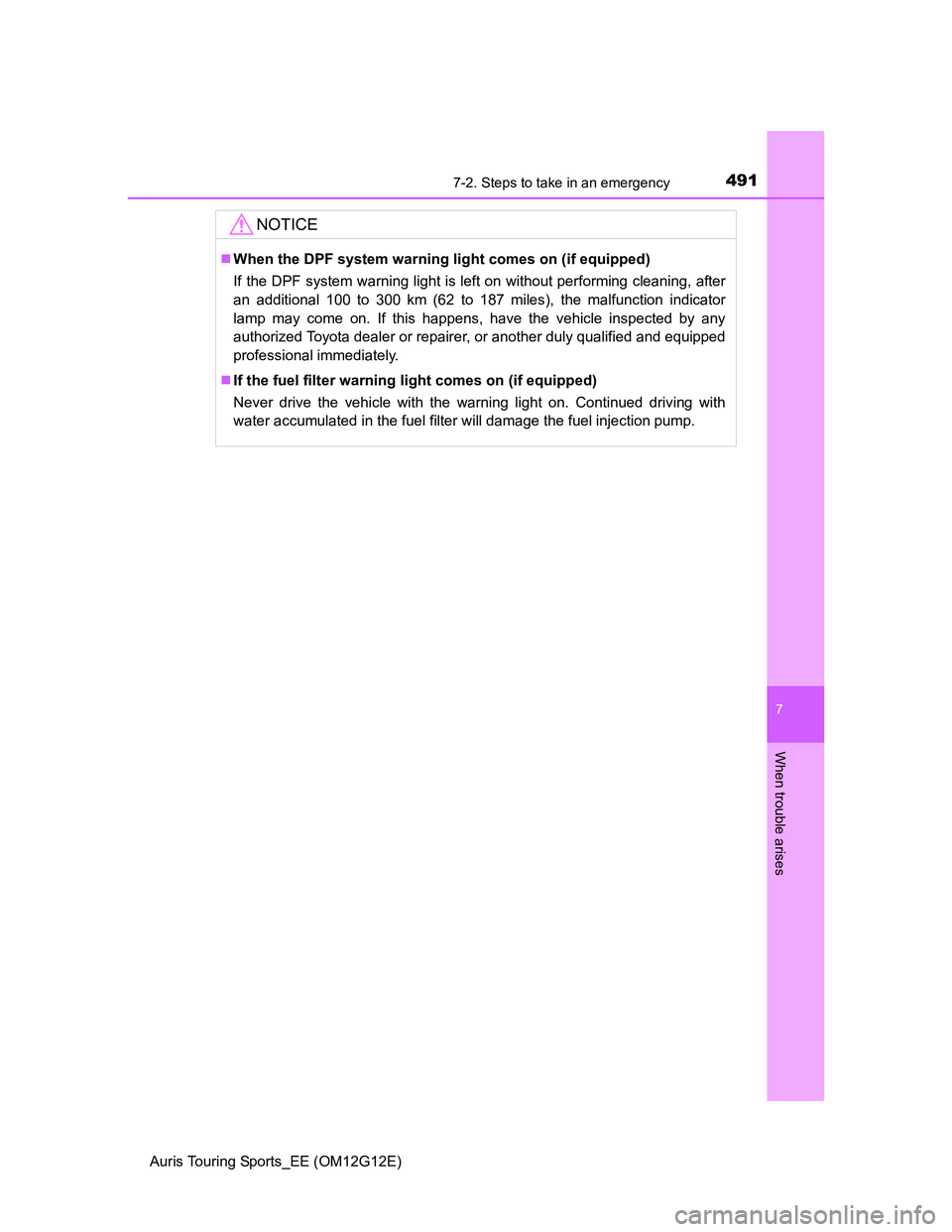

NOTICE
When the DPF system warning light comes on (if equipped)
If the DPF system warning light is left on without performing cleaning, after
an additional 100 to 300 km (62 to 187 miles), the malfunction indicator
lamp may come on. If this happens, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional immediately.
If the fuel filter warning light comes on (if equipped)
Never drive the vehicle with the warning light on. Continued driving with
water accumulated in the fuel filter will damage the fuel injection pump.

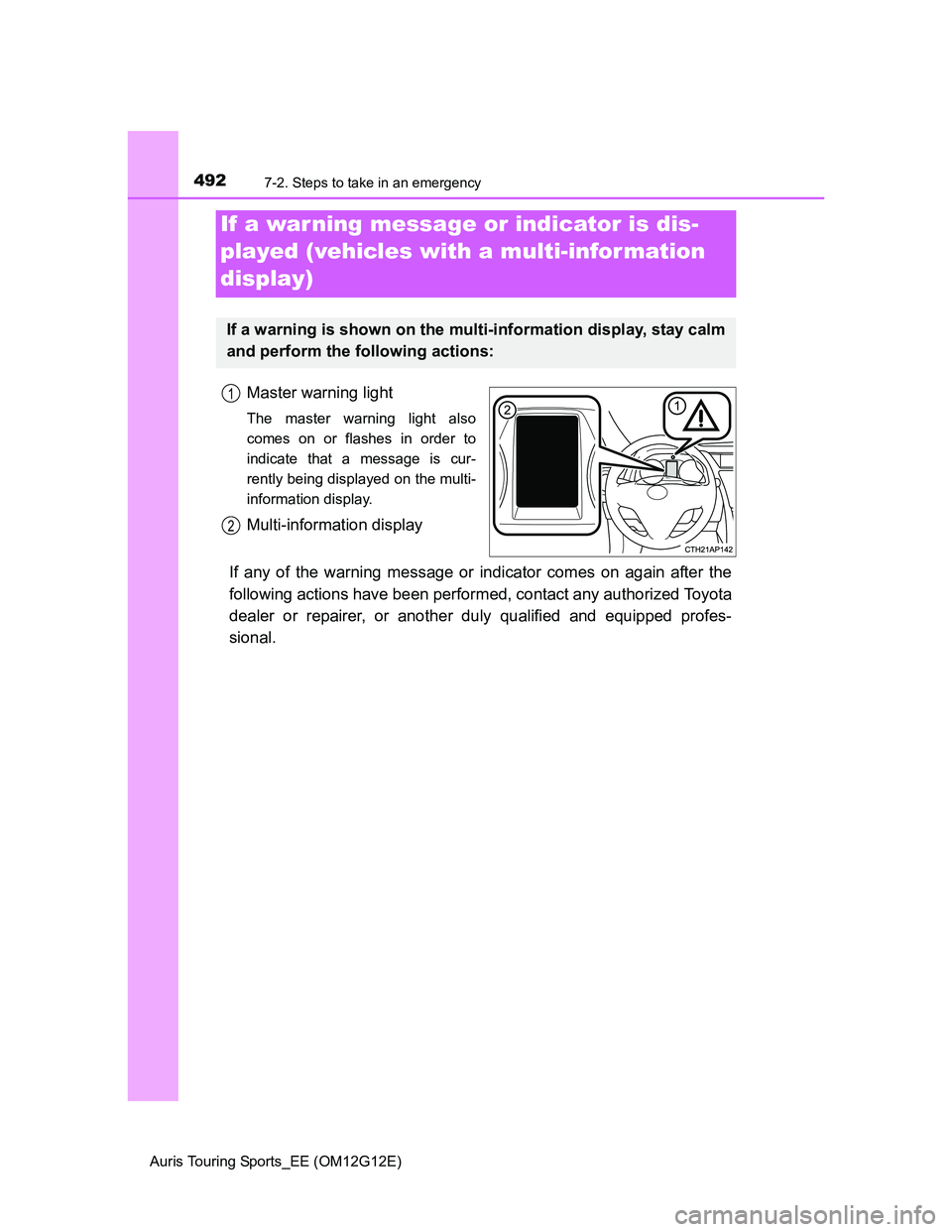

4927-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the multi-
information display.
Multi-information display
If any of the warning message or indicator comes on again after the
following actions have been performed, contact any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
If a warning message or indicator is dis-
played (vehicles with a multi-information
display)
If a warning is shown on the multi-information display, stay calm
and perform the following actions:
1
2

4937-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
7
When trouble arises
The following warning indicates the possibility of damage to the vehi-
cle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
Stop the vehicle immediately.
Warning message/indi-
catorDetails
Indicates abnormal engine oil pressure
The warning light may come on if the engine oil
pressure is too low.
Indicates a malfunction in the vehicle’s charging
system.

4947-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
A buzzer sounds and a warning message/indicator is shown on the
multi-information display. Failure to investigate the cause of the fol-
lowing warnings may lead to the system operating abnormally and
possibly cause an accident. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped
professional.
Have the vehicle inspected immediately.
Warning message/indi-
catorDetails
Indicates a malfunction in the cruise control sys-
tem
• Press the “ON-OFF” button once to deacti-
vate the system, and then press the button
again to reactivate the system.
• A buzzer also sounds.
Indicates a malfunction in the Automatic High
Beam system
A buzzer also sounds.
(if equipped)
(if equipped)

4957-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
7
When trouble arises
Indicates a malfunction in the smart entry & start
system
A buzzer also sounds.
Indicates that the speed limiter system is mal-
functioning.
A buzzer also sounds.
Indicates a malfunction in the Toyota parking
assist-sensor
• The malfunctioning assist-sensor is flashing.
• A buzzer also sounds.
Warning message/indi-
catorDetails
(Flashes)
(if equipped)
(if equipped)
(if equipped)

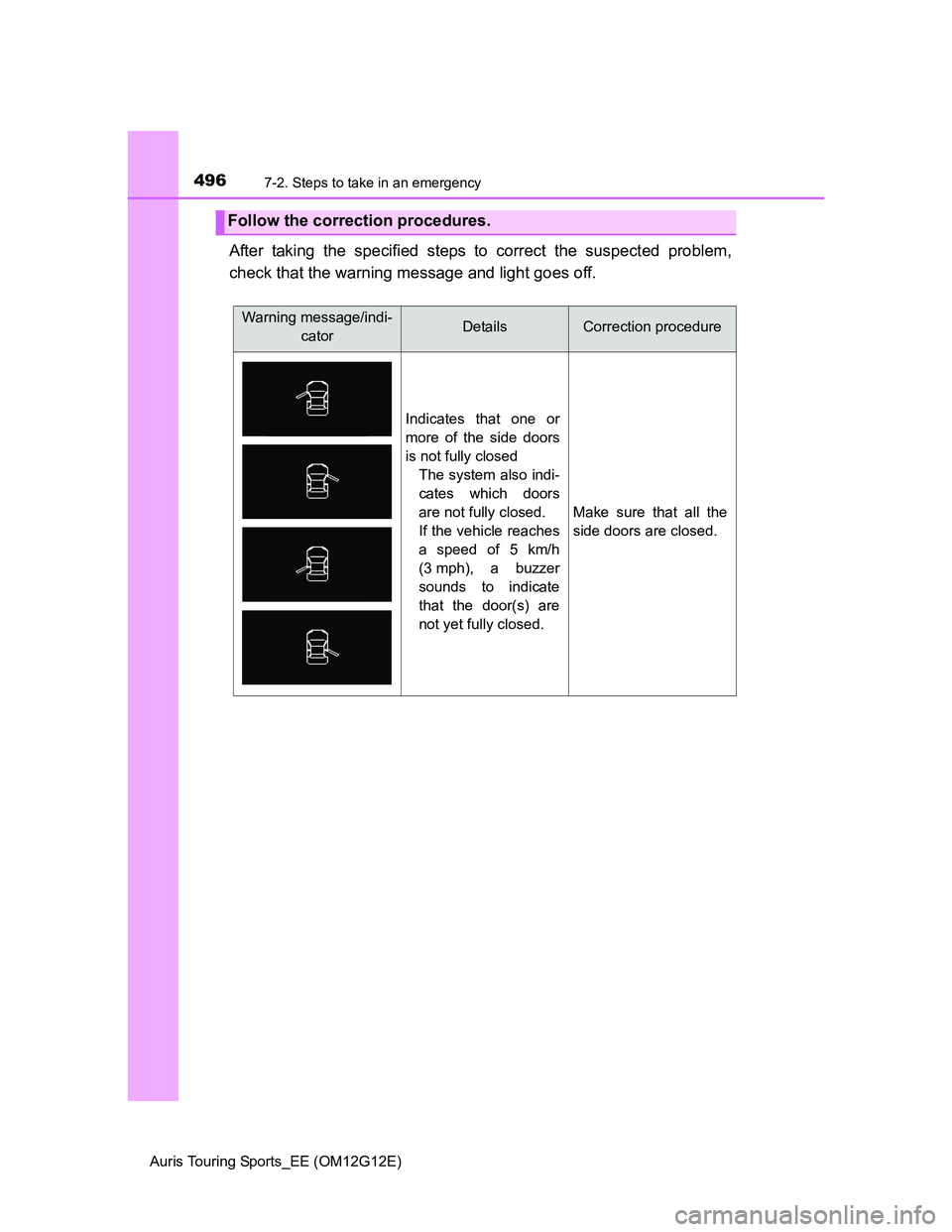

4967-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
After taking the specified steps to correct the suspected problem,
check that the warning message and light goes off.
Follow the correction procedures.
Warning message/indi-
catorDetailsCorrection procedure
Indicates that one or
more of the side doors
is not fully closed
The system also indi-
cates which doors
are not fully closed.
If the vehicle reaches
a speed of 5 km/h
(3 mph), a buzzer
sounds to indicate
that the door(s) are
not yet fully closed.
Make sure that all the
side doors are closed.

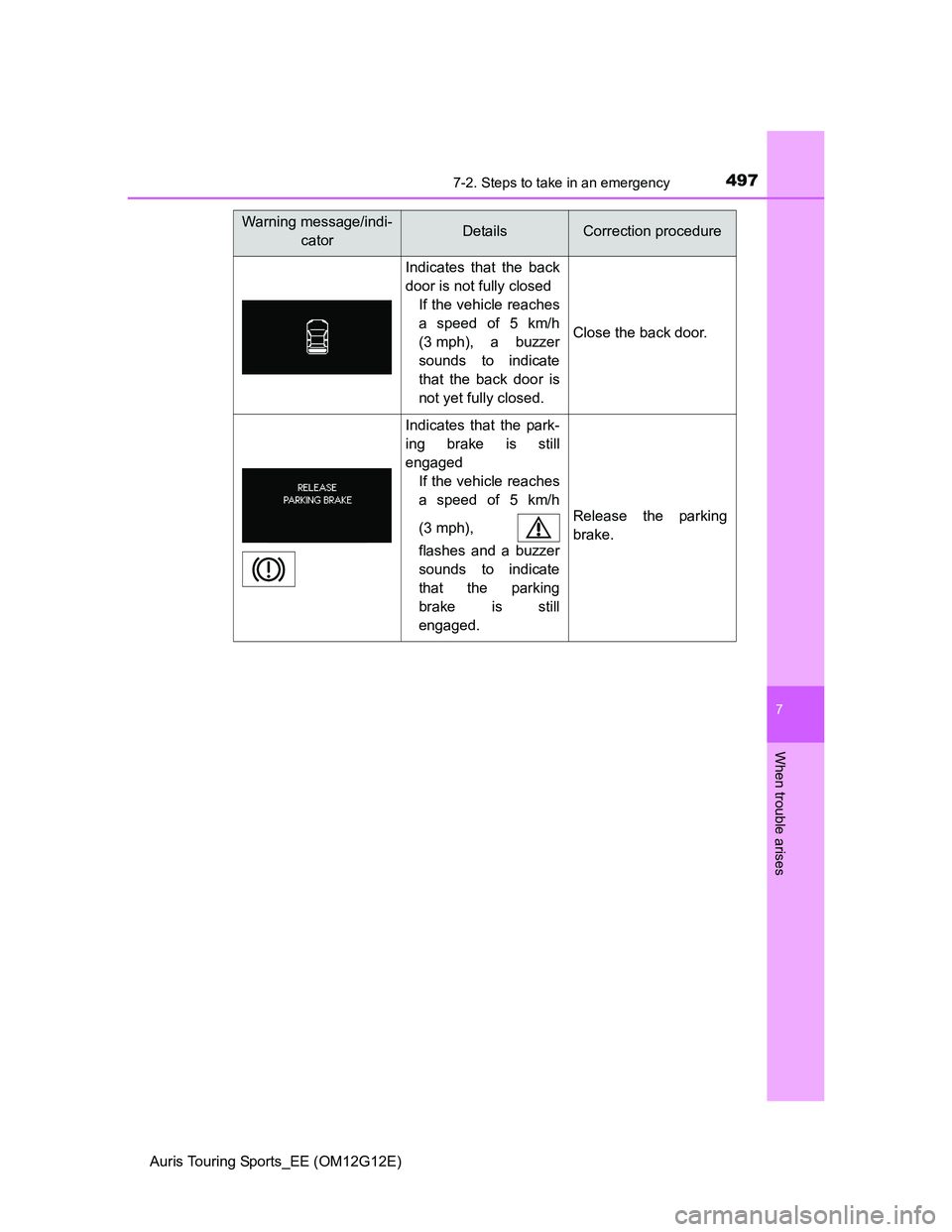

4977-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
7
When trouble arises
Indicates that the back
door is not fully closed
If the vehicle reaches
a speed of 5 km/h
(3 mph), a buzzer
sounds to indicate
that the back door is
not yet fully closed.
Close the back door.
Indicates that the park-
ing brake is still
engaged
If the vehicle reaches
a speed of 5 km/h
(3 mph),
flashes and a buzzer
sounds to indicate
that the parking
brake is still
engaged.
Release the parking
brake.
Warning message/indi-
catorDetailsCorrection procedure

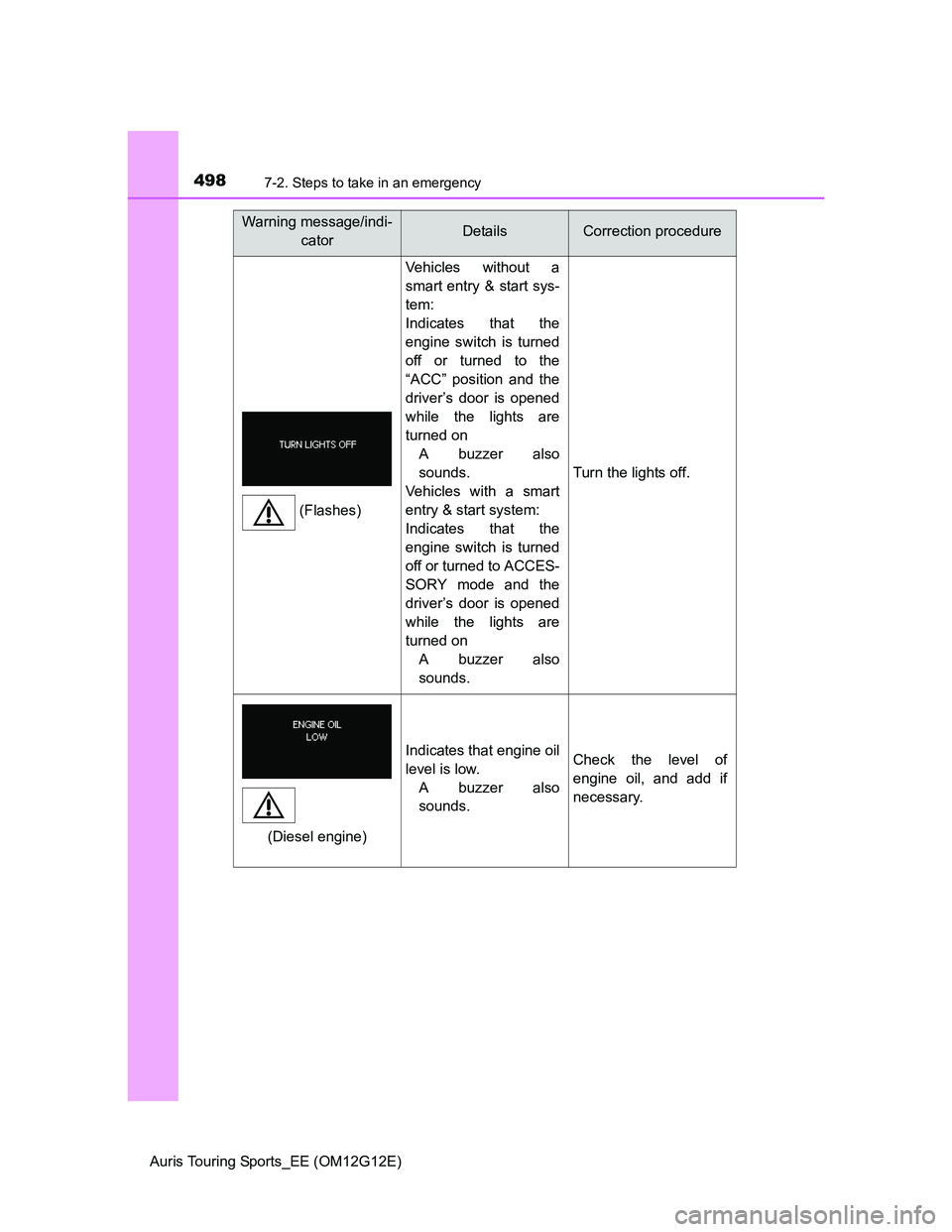

4987-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
Vehicles without a
smart entry & start sys-
tem:
Indicates that the
engine switch is turned
off or turned to the
“ACC” position and the
driver’s door is opened
while the lights are
turned on
A buzzer also
sounds.
Vehicles with a smart
entry & start system:
Indicates that the
engine switch is turned
off or turned to ACCES-
SORY mode and the
driver’s door is opened
while the lights are
turned on
A buzzer also
sounds.
Turn the lights off.
Indicates that engine oil
level is low.
A buzzer also
sounds.Check the level of
engine oil, and add if
necessary.
Warning message/indi-
catorDetailsCorrection procedure
(Flashes)
(Diesel engine)
