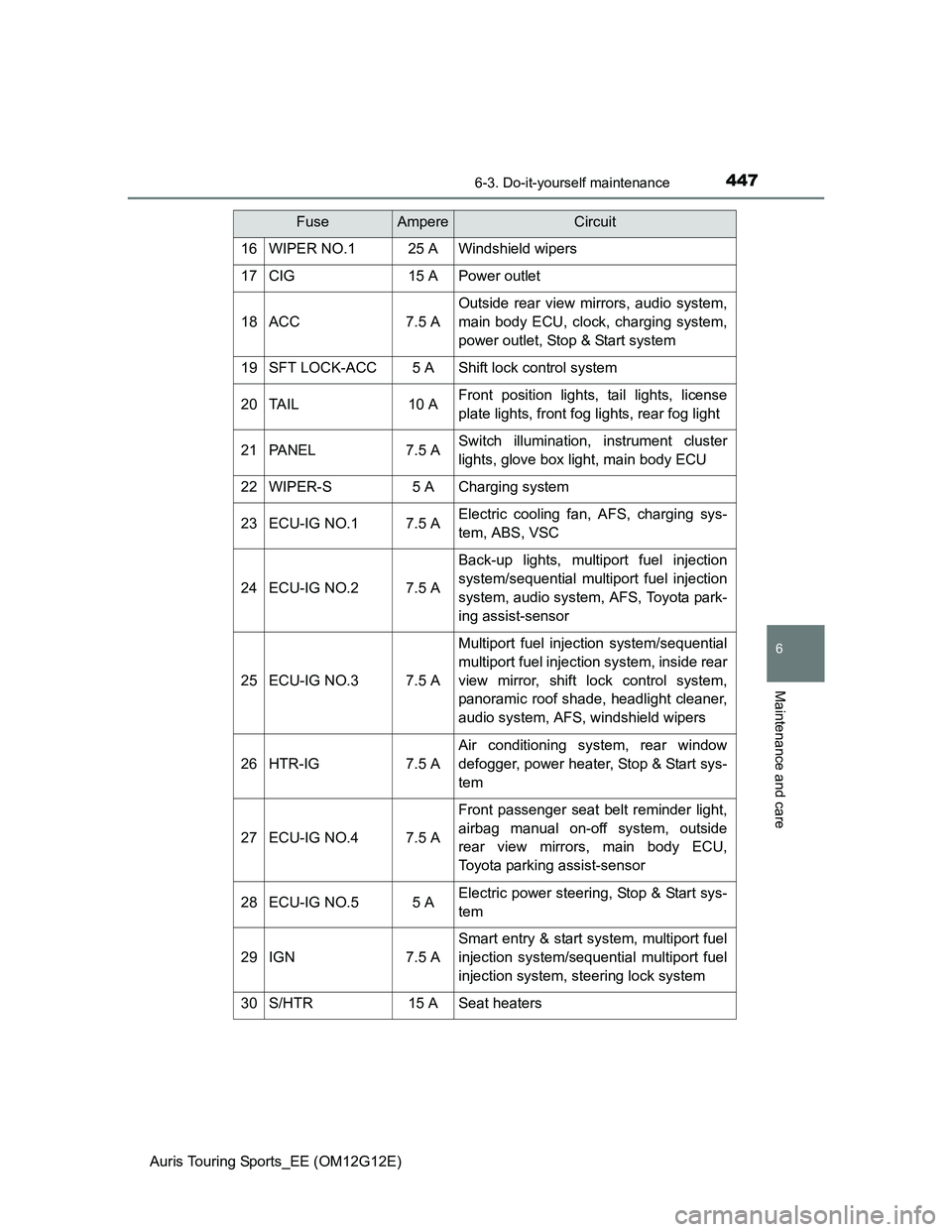

2013 TOYOTA AURIS TOURING SPORTS sensor

4476-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)
6
Maintenance and care
16WIPER NO.125 AWindshield wipers
17CIG15 APower outlet
18ACC7.5 A
Outside rear view mirrors, audio system,
main body ECU, clock, charging system,
power outlet, Stop & Start system
19SFT LOCK-ACC5 AShift lock control system
20TA I L10 AFront position lights, tail lights, license
plate lights, front fog lights, rear fog light
21PA N E L7.5 ASwitch illumination, instrument cluster
lights, glove box light, main body ECU
22WIPER-S5 ACharging system
23ECU-IG NO.17.5 AElectric cooling fan, AFS, charging sys-
tem, ABS, VSC
24ECU-IG NO.27.5 A
Back-up lights, multiport fuel injection
system/sequential multiport fuel injection
system, audio system, AFS, Toyota park-
ing assist-sensor
25ECU-IG NO.37.5 A
Multiport fuel injection system/sequential
multiport fuel injection system, inside rear
view mirror, shift lock control system,
panoramic roof shade, headlight cleaner,
audio system, AFS, windshield wipers
26HTR-IG7.5 A
Air conditioning system, rear window
defogger, power heater, Stop & Start sys-
tem
27ECU-IG NO.47.5 A
Front passenger seat belt reminder light,
airbag manual on-off system, outside
rear view mirrors, main body ECU,
Toyota parking assist-sensor
28ECU-IG NO.55 AElectric power steering, Stop & Start sys-
tem
29IGN7.5 A
Smart entry & start system, multiport fuel
injection system/sequential multiport fuel
injection system, steering lock system
30S/HTR15 ASeat heaters
FuseAmpereCircuit

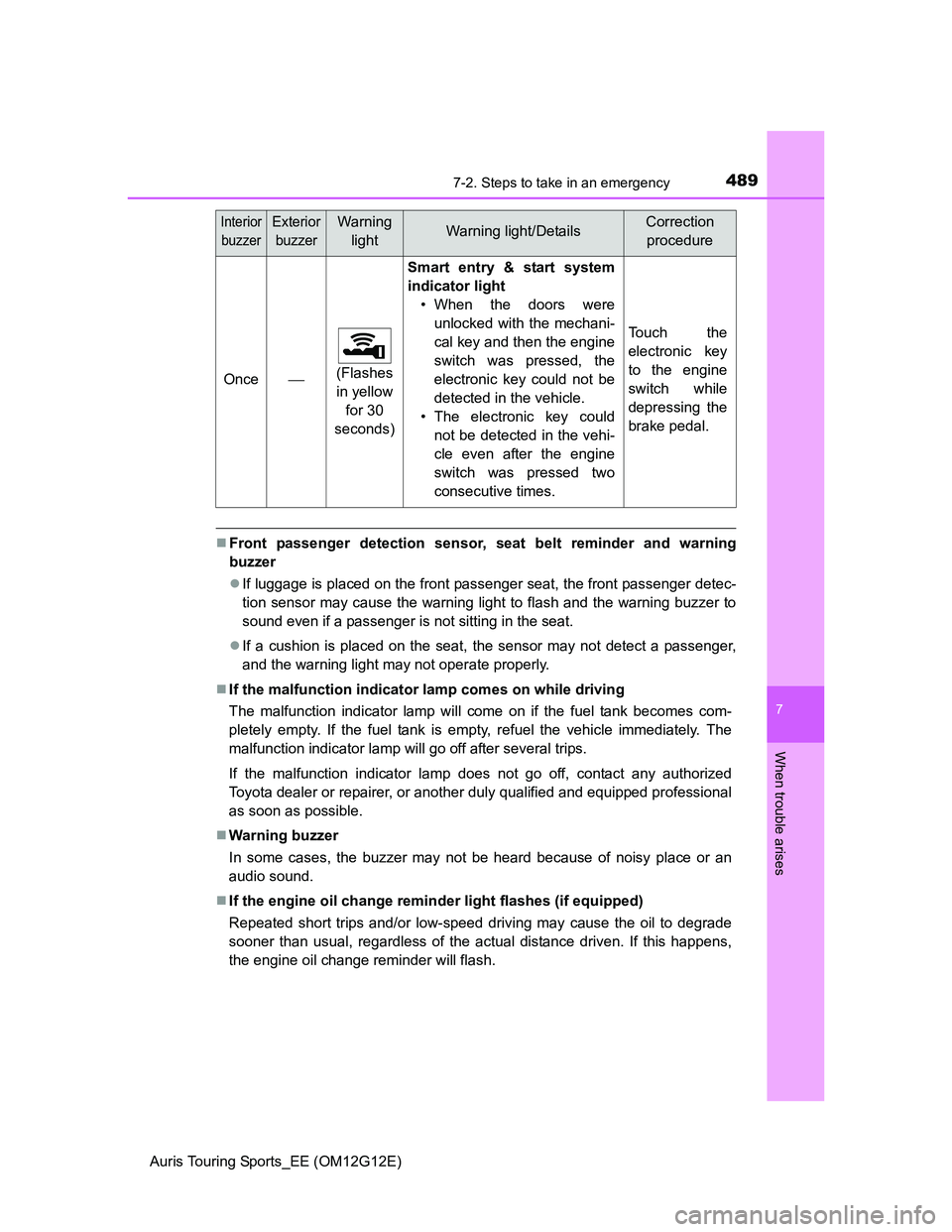

4897-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
7
When trouble arises
Front passenger detection sensor, seat belt reminder and warning
buzzer
If luggage is placed on the front passenger seat, the front passenger detec-
tion sensor may cause the warning light to flash and the warning buzzer to
sound even if a passenger is not sitting in the seat.
If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.
If the malfunction indicator lamp comes on while driving
The malfunction indicator lamp will come on if the fuel tank becomes com-
pletely empty. If the fuel tank is empty, refuel the vehicle immediately. The
malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional
as soon as possible.
Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.
If the engine oil change reminder light flashes (if equipped)
Repeated short trips and/or low-speed driving may cause the oil to degrade
sooner than usual, regardless of the actual distance driven. If this happens,
the engine oil change reminder will flash.
Once(Flashes
in yellow
for 30
seconds)
Smart entry & start system
indicator light
• When the doors were
unlocked with the mechani-
cal key and then the engine
switch was pressed, the
electronic key could not be
detected in the vehicle.
• The electronic key could
not be detected in the vehi-
cle even after the engine
switch was pressed two
consecutive times.
Touch the
electronic key
to the engine
switch while
depressing the
brake pedal.
Interior
buzzerExterior
buzzerWarning
lightWarning light/DetailsCorrection
procedure

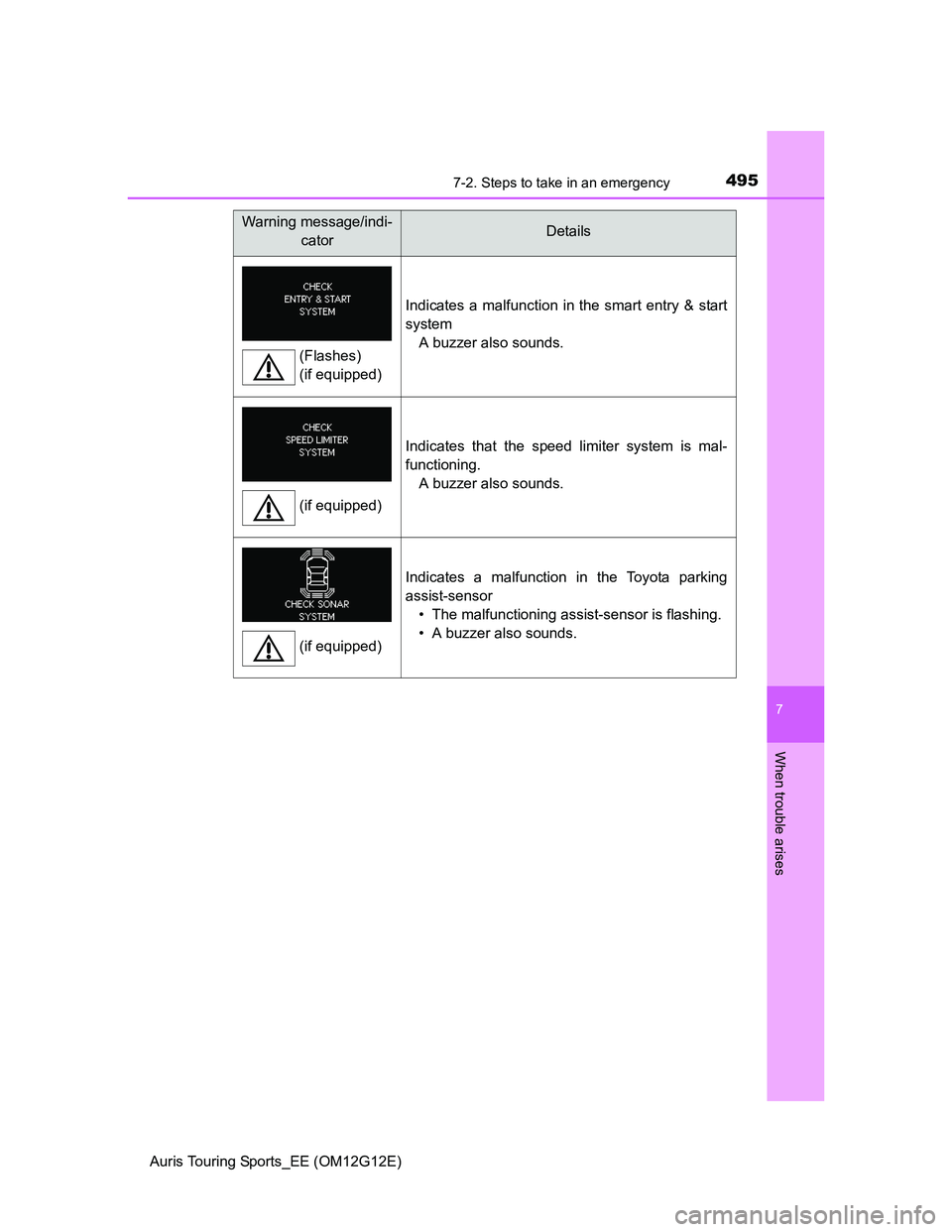

4957-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
7
When trouble arises
Indicates a malfunction in the smart entry & start
system
A buzzer also sounds.
Indicates that the speed limiter system is mal-
functioning.
A buzzer also sounds.
Indicates a malfunction in the Toyota parking
assist-sensor
• The malfunctioning assist-sensor is flashing.
• A buzzer also sounds.
Warning message/indi-
catorDetails
(Flashes)
(if equipped)
(if equipped)
(if equipped)

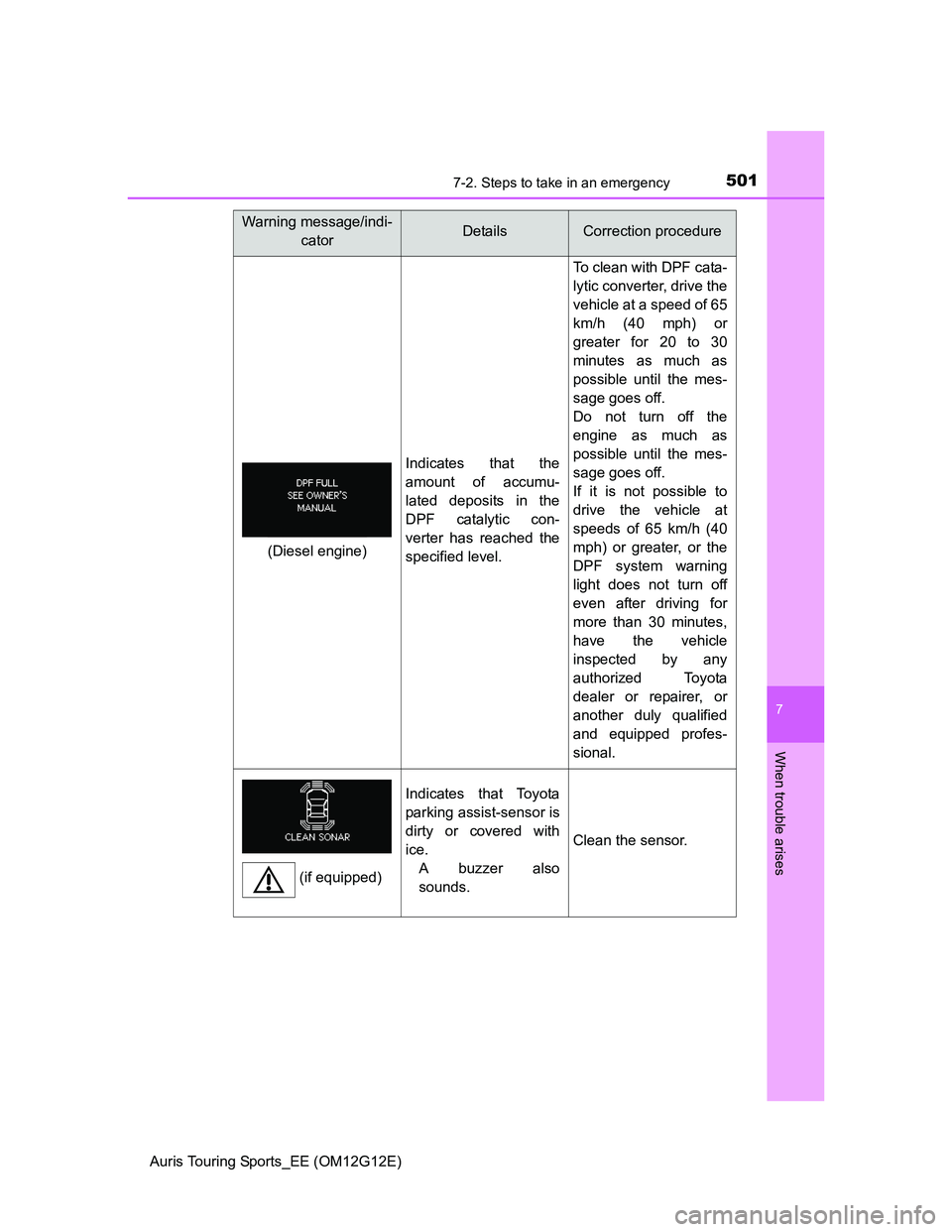

5017-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
7
When trouble arises
Indicates that the
amount of accumu-
lated deposits in the
DPF catalytic con-
verter has reached the
specified level.
To clean with DPF cata-
lytic converter, drive the
vehicle at a speed of 65
km/h (40 mph) or
greater for 20 to 30
minutes as much as
possible until the mes-
sage goes off.
Do not turn off the
engine as much as
possible until the mes-
sage goes off.
If it is not possible to
drive the vehicle at
speeds of 65 km/h (40
mph) or greater, or the
DPF system warning
light does not turn off
even after driving for
more than 30 minutes,
have the vehicle
inspected by any
authorized Toyota
dealer or repairer, or
another duly qualified
and equipped profes-
sional.
Indicates that Toyota
parking assist-sensor is
dirty or covered with
ice.
A buzzer also
sounds.
Clean the sensor.
Warning message/indi-
catorDetailsCorrection procedure
(Diesel engine)
(if equipped)

5908-2. Customization
Auris Touring Sports_EE (OM12G12E)
Automatic
light control
system
*1
(P. 214)
Adjust the sensitivity of
the ambient light sensorLevel 3Level 1 to
5OO
Headlights
(P. 214)Time elapsed before
headlights automatically
turn off30
seconds
60
seconds
—O90
seconds
120
seconds
Automatic
High
Beam
*1
(P. 220)
Automatic High Beam sys-
temOnOff—O
Turn signal
lever
(P. 211)
The number of times the
turn signal lights flash
automatically when the
turn signal lever is moved
to the first position during
a lane change
(After flashing the turn sig-
nal lights when turning left
or right while this function
is off and the turn signal
lever is moved to the first
position in direction of the
flashing light, the turn sig-
nal lights can be selected
to be flashing or off.)
3
5
—O
7
Off
(The turn
signal
lights will
be off if the
turn signal
lever is
moved to
the first
position in
direction of
flashing
light.)
ItemFunctionDefault
settingCustom-
ized setting12

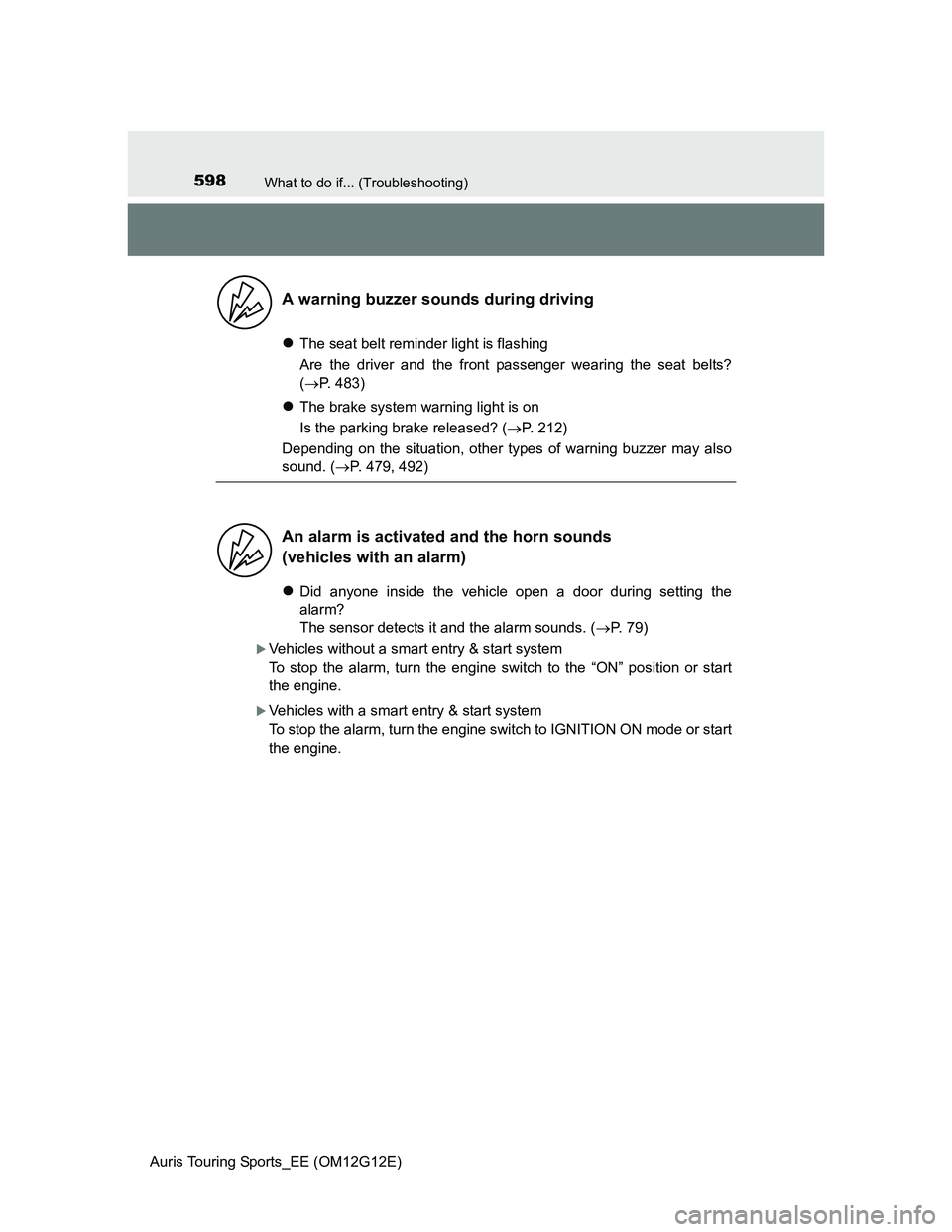

598What to do if... (Troubleshooting)
Auris Touring Sports_EE (OM12G12E)
The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts?
(P. 483)
The brake system warning light is on
Is the parking brake released? (P. 212)
Depending on the situation, other types of warning buzzer may also
sound. (P. 479, 492)

Did anyone inside the vehicle open a door during setting the
alarm?
The sensor detects it and the alarm sounds. (P. 79)
Vehicles without a smart entry & start system
To stop the alarm, turn the engine switch to the “ON” position or start
the engine.
Vehicles with a smart entry & start system
To stop the alarm, turn the engine switch to IGNITION ON mode or start
the engine.
A warning buzzer sounds during driving
An alarm is activated and the horn sounds
(vehicles with an alarm)

609Alphabetical index
Auris Touring Sports_EE (OM12G12E)
Odometer .............................. 92, 97
Oil
Engine oil .............................. 575
Manual transaxle oil .............. 581
Opener
Back door .............................. 144
Fuel filler door ....................... 234
Hood ..................................... 401
Outside rear view mirrors ....... 158
Adjusting and folding............. 158
Outside rear view mirror
defoggers............................ 308
Outside temperature
display .................................... 375
Overheating, Engine ................ 561Paddle shift switches .............. 205
Panoramic roof shade ............. 385
Parking assist sensors ........... 244
Parking brake ........................... 212
Operation .............................. 212
Parking brake engaged
warning buzzer ........... 479, 497
Parking brake engaged
warning message ............... 497
Partition net.............................. 369
Personal lights ......................... 353
Power heater ............................ 306
Power outlets ........................... 378
Power steering ......................... 270
Warning light ......................... 481
Power windows........................ 161
Jam protection function......... 162
Operation .............................. 161
Window lock switch............... 161
OP

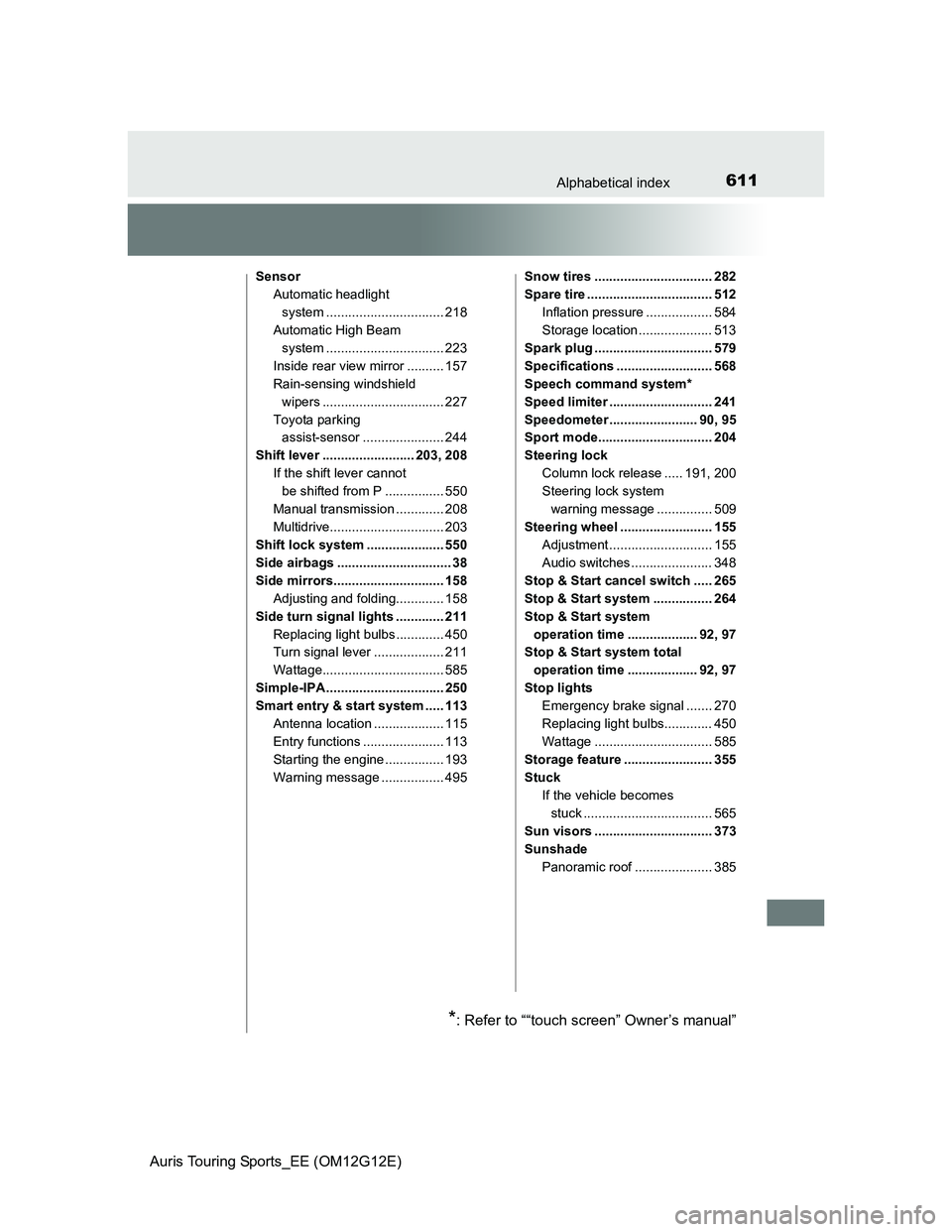

611Alphabetical index
Auris Touring Sports_EE (OM12G12E)
Sensor
Automatic headlight
system ................................ 218
Automatic High Beam
system ................................ 223
Inside rear view mirror .......... 157
Rain-sensing windshield
wipers ................................. 227
Toyota parking
assist-sensor ...................... 244
Shift lever ......................... 203, 208
If the shift lever cannot
be shifted from P ................ 550
Manual transmission ............. 208
Multidrive............................... 203
Shift lock system ..................... 550
Side airbags ............................... 38
Side mirrors.............................. 158
Adjusting and folding............. 158
Side turn signal lights ............. 211
Replacing light bulbs ............. 450
Turn signal lever ................... 211
Wattage................................. 585
Simple-IPA ................................ 250
Smart entry & start system ..... 113
Antenna location ................... 115
Entry functions ...................... 113
Starting the engine ................ 193
Warning message ................. 495Snow tires ................................ 282
Spare tire .................................. 512
Inflation pressure .................. 584
Storage location .................... 513
Spark plug ................................ 579
Specifications .......................... 568
Speech command system*
Speed limiter ............................ 241
Speedometer ........................ 90, 95
Sport mode............................... 204
Steering lock
Column lock release ..... 191, 200
Steering lock system
warning message ............... 509
Steering wheel ......................... 155
Adjustment ............................ 155
Audio switches ...................... 348
Stop & Start cancel switch ..... 265
Stop & Start system ................ 264
Stop & Start system
operation time ................... 92, 97
Stop & Start system total
operation time ................... 92, 97
Stop lights
Emergency brake signal ....... 270
Replacing light bulbs............. 450
Wattage ................................ 585
Storage feature ........................ 355
Stuck
If the vehicle becomes
stuck ................................... 565
Sun visors ................................ 373
Sunshade
Panoramic roof ..................... 385
*: Refer to ““touch screen” Owner’s manual”
