2234-3. Operating the lights and wipers
Auris Touring Sports_EE (OM12G12E)
4
Driving
CAUTION
Limitations of the Automatic High Beam
Do not rely on the Automatic High Beam. Always drive safely, taking care to
observe your surroundings and turning high beam on or off manually if nec-
essary.
NOTICE
Notes when using the Automatic High Beam system
Do not touch the camera sensor.
Do not subject the inside rear view mirror or the camera sensor to a strong
impact.
Do not disassemble the camera sensor.
Do not spill liquid onto the inside rear view mirror or the camera sensor.
Do not apply window tinting or stickers to the camera sensor or the area of
windshield near the camera sensor.
Do not place items on the dashboard. There is a possibility that the cam-
era sensor will mistake items reflected in the windshield for streetlights,
the headlights of other vehicles, etc.
Do not install a parking tag or any other accessories near or around the
inside rear view mirror and the camera sensor.
Do not overload the vehicle.
Do not modify the vehicle.
Do not replace windshield with non-genuine windshield.
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Observe the following to ensure that the
Automatic High Beam functions correctly.

283
5Interior features
Auris Touring Sports_EE (OM12G12E)5-1. Using the air conditioning
system and defogger
Heater system ................... 284
Automatic air conditioning
system (without dual
operation) ........................ 289
Automatic air conditioning
system (with dual
operation) ........................ 298
Power heater ..................... 306
Rear window and
outside rear view
mirror defoggers .............. 308
5-2. Using the audio system
Audio system types ........... 310
Using the radio .................. 314
Using the CD player .......... 318
Playing back MP3 and
WMA discs....................... 323
Operating an iPod.............. 329
Operating a USB
memory............................ 338
Optimal use of the audio
system ............................. 345
Using the AUX port ............ 347
Using the steering wheel
audio switches ................. 3485-3. Using the interior lights
Interior lights list ................. 351
• Interior lights .................. 352
• Vanity lights ................... 352
• Personal lights ............... 353
5-4. Using the storage features
List of storage features ...... 355
• Glove box ...................... 356
• Console box .................. 356
• Bottle holders ................ 357
• Cup holders ................... 358
• Auxiliary boxes .............. 360
Luggage compartment
features............................ 361
5-5. Other interior features
Sun visors and vanity
mirrors ............................. 373
Clock .................................. 374
Outside temperature
display ............................. 375
Portable ashtray................. 377
Power outlets ..................... 378
Seat heaters ...................... 380
Armrest .............................. 382
Coat hooks......................... 383
Assist grips ........................ 384
Panoramic roof shade........ 385

3085-1. Using the air conditioning system and defogger
Auris Touring Sports_EE (OM12G12E)
Turns the defoggers on/off
The defoggers will automatically
turn off the operation time. The
operation time is between 15 min-
utes and 1 hour depending on the
ambient temperature and vehicle
speed.

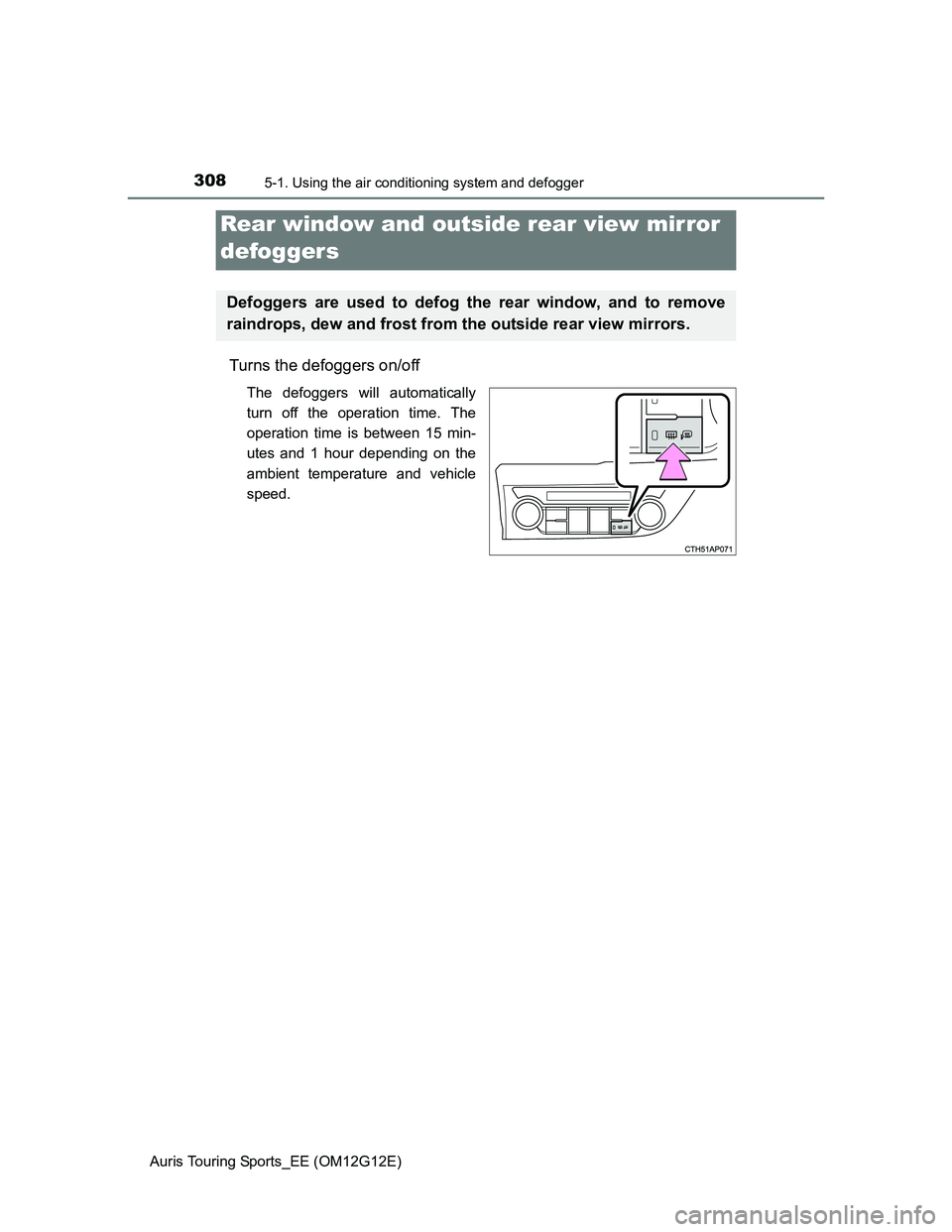

Rear window and outside rear view mirror
defoggers
Defoggers are used to defog the rear window, and to remove
raindrops, dew and frost from the outside rear view mirrors.

3095-1. Using the air conditioning system and defogger
Auris Touring Sports_EE (OM12G12E)
5
Interior features

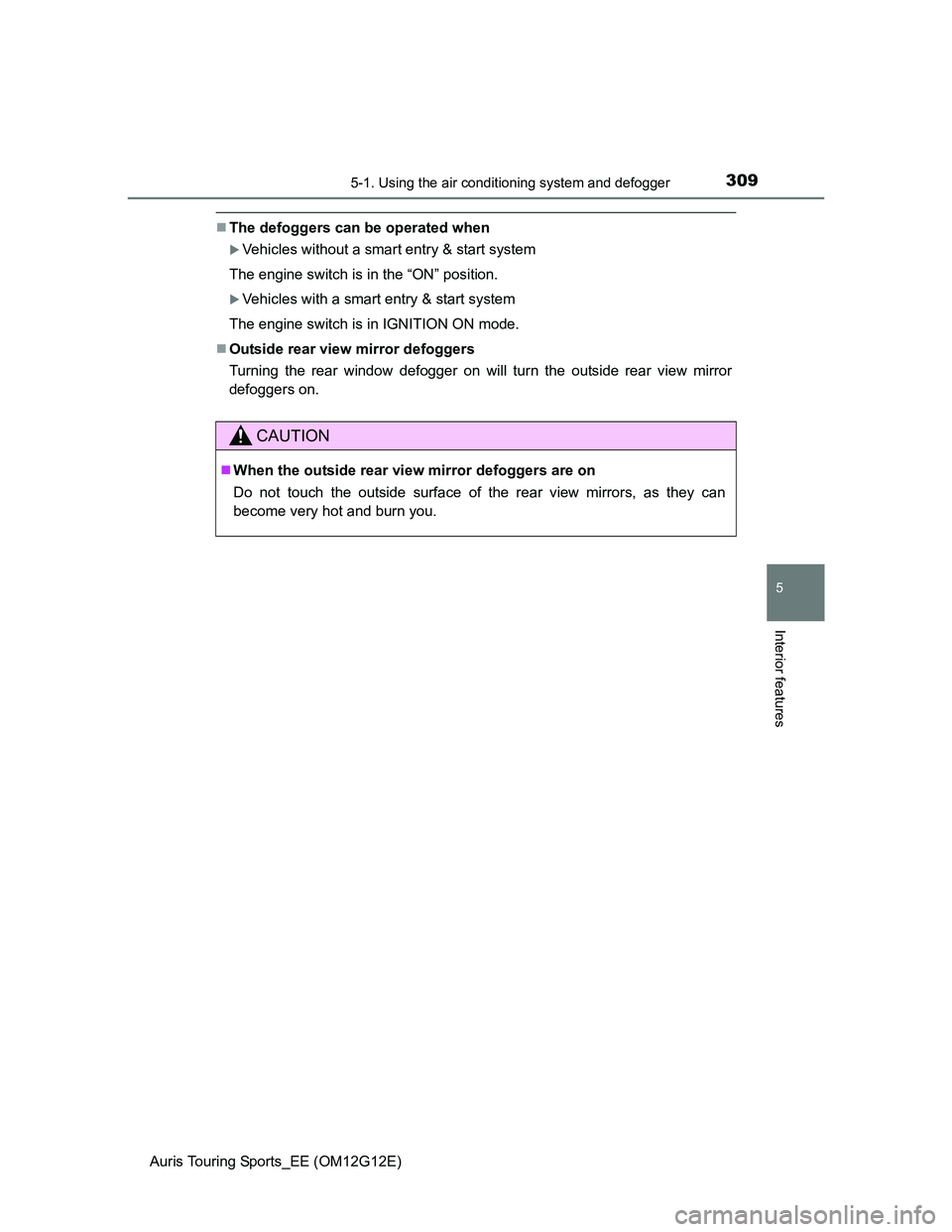

The defoggers can be operated when
