2013 TOYOTA AURIS TOURING SPORTS audio

3175-2. Using the audio system
Auris Touring Sports_EE (OM12G12E)
5
Interior features

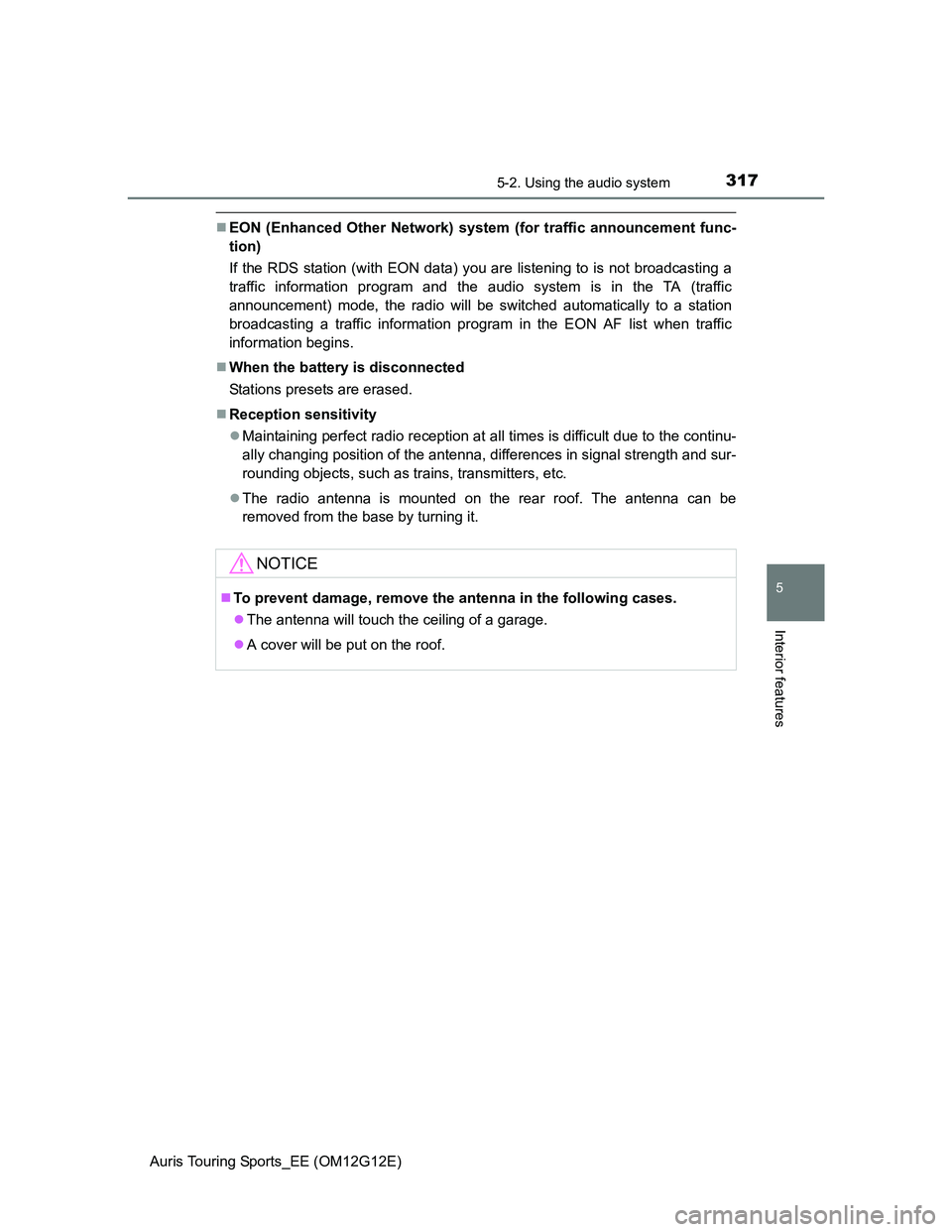

EON (Enhanced Other Network) system (for traffic announcement func-
tion)
If the RDS station (with EON data) you are listening to is not broadcasting a
traffic information program and the audio system is in the TA (traffic
announcement) mode, the radio will be switched automatically to a station
broadcasting a traffic information program in the EON AF list when traffic
information begins.
When the battery is disconnected
Stations presets are erased.
Reception sensitivity
Maintaining perfect radio reception at all times is difficult due to the continu-
ally changing position of the antenna, differences in signal strength and sur-
rounding objects, such as trains, transmitters, etc.
The radio antenna is mounted on the rear roof. The antenna can be
removed from the base by turning it.
NOTICE
To prevent damage, remove the antenna in the following cases.
The antenna will touch the ceiling of a garage.
A cover will be put on the roof.

3185-2. Using the audio system
Auris Touring Sports_EE (OM12G12E)

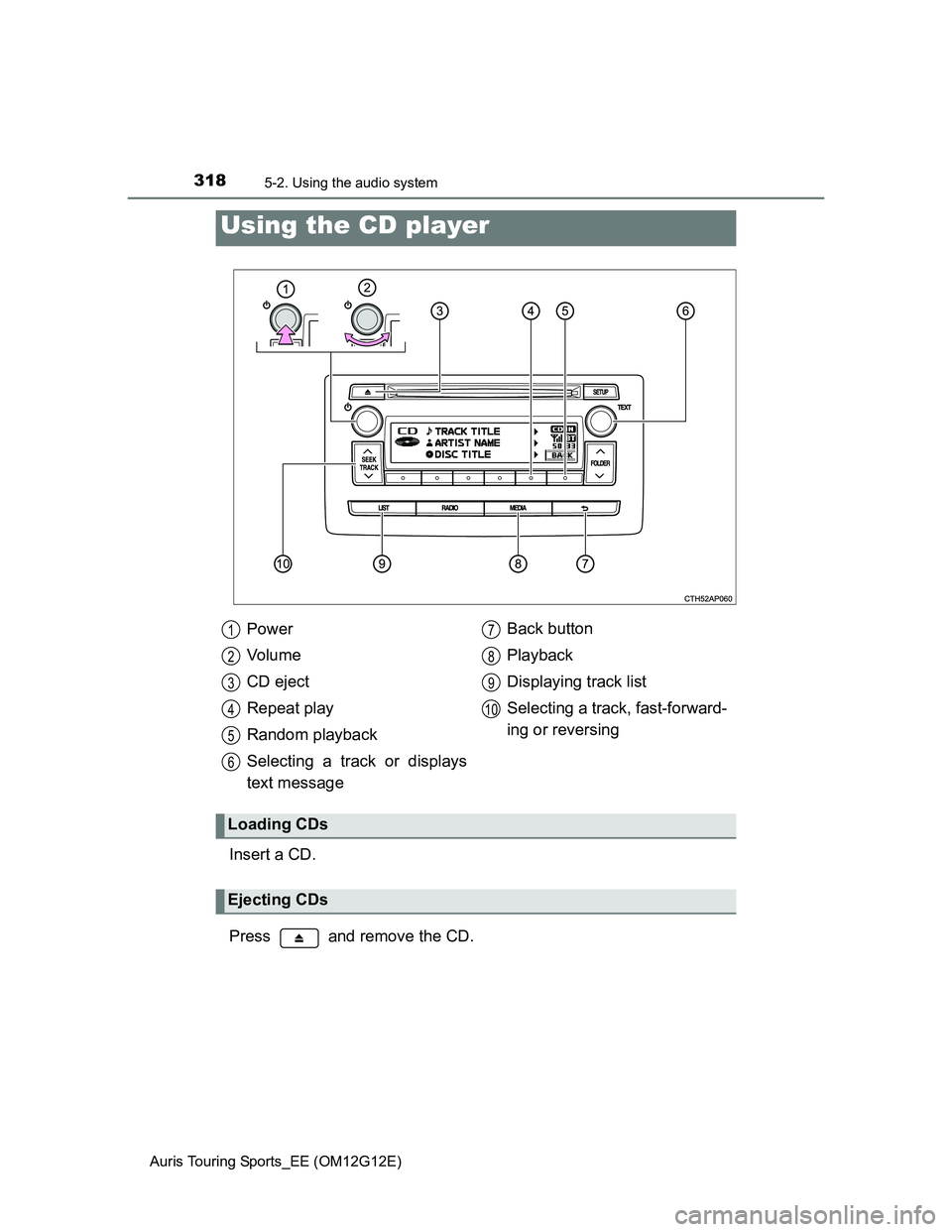

Insert a CD.
Press and remove the CD.
Using the CD player
Power
Vo l u m e
CD eject
Repeat play
Random playback
Selecting a track or displays
text messageBack button
Playback
Displaying track list
Selecting a track, fast-forward-
ing or reversing
Loading CDs
Ejecting CDs
1
2
3
4
5
6
7
8
9
10

3195-2. Using the audio system
Auris Touring Sports_EE (OM12G12E)
5
Interior features
Turn or press “” to move up or “” to move down using
until the desired track number is displayed.
Press .
The track list will be displayed.
Turn and press to select a track.
To return to the previous display, press or .
To fast-forward or reverse, press and hold “” or “” on .
Press (RPT).
The current track is played repeatedly until (RPT) is pressed again.
Press (RDM).
Tracks are played in a random order until (RDM) is pressed again.
Press .
Track name, Artist name and CD title are shown on the display.
To return to the previous display, press or .
Selecting a track
Selecting a track from a track list
Fast-forwarding and reversing tracks
Repeat play
Random playback
Switching the display
1
2

3205-2. Using the audio system
Auris Touring Sports_EE (OM12G12E)

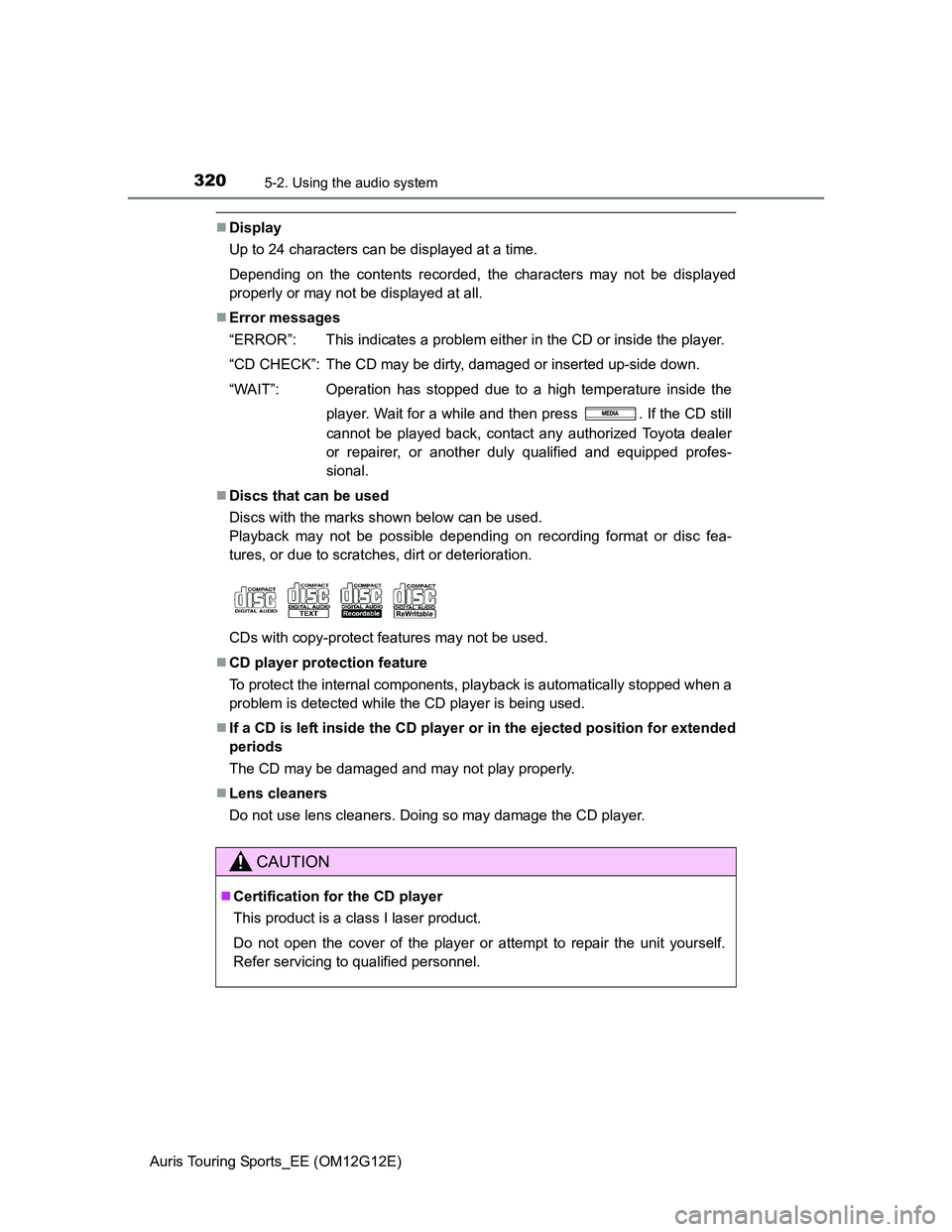

Display
Up to 24 characters can be displayed at a time.
Depending on the contents recorded, the characters may not be displayed
properly or may not be displayed at all.
Error messages
“ERROR”: This indicates a problem either in the CD or inside the player.
“CD CHECK”: The CD may be dirty, damaged or inserted up-side down.
“WAIT”: Operation has stopped due to a high temperature inside the
player. Wait for a while and then press . If the CD still
cannot be played back, contact any authorized Toyota dealer
or repairer, or another duly qualified and equipped profes-
sional.
Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CDs with copy-protect features may not be used.
CD player protection feature
To protect the internal components, playback is automatically stopped when a
problem is detected while the CD player is being used.
If a CD is left inside the CD player or in the ejected position for extended
periods
The CD may be damaged and may not play properly.
Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
CAUTION
Certification for the CD player
This product is a class I laser product.
Do not open the cover of the player or attempt to repair the unit yourself.
Refer servicing to qualified personnel.

3215-2. Using the audio system
Auris Touring Sports_EE (OM12G12E)
5
Interior features

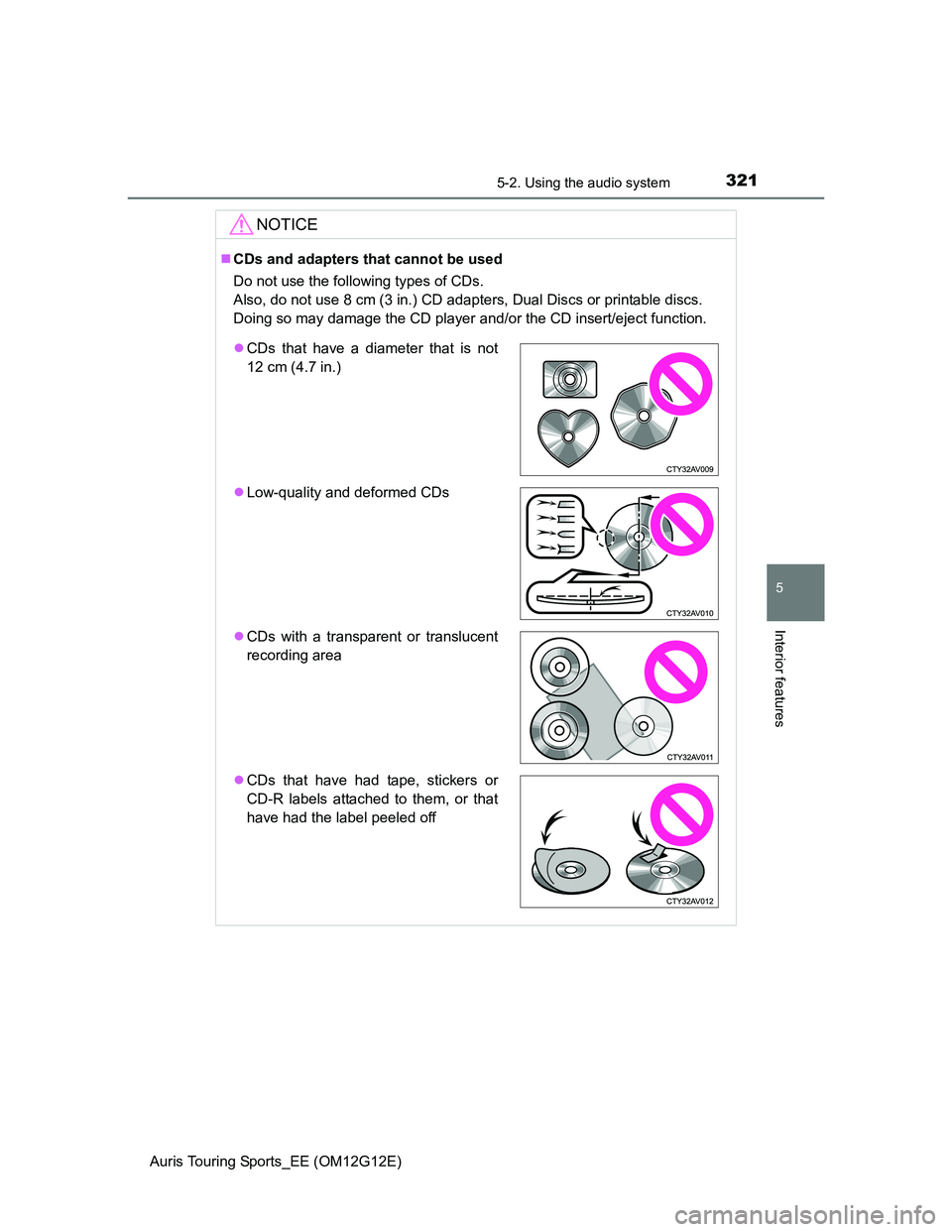

NOTICE
CDs and adapters that cannot be used
Do not use the following types of CDs.
Also, do not use 8 cm (3 in.) CD adapters, Dual Discs or printable discs.
Doing so may damage the CD player and/or the CD insert/eject function.
CDs that have a diameter that is not
12 cm (4.7 in.)
Low-quality and deformed CDs
CDs with a transparent or translucent
recording area
CDs that have had tape, stickers or
CD-R labels attached to them, or that
have had the label peeled off

3225-2. Using the audio system
Auris Touring Sports_EE (OM12G12E)

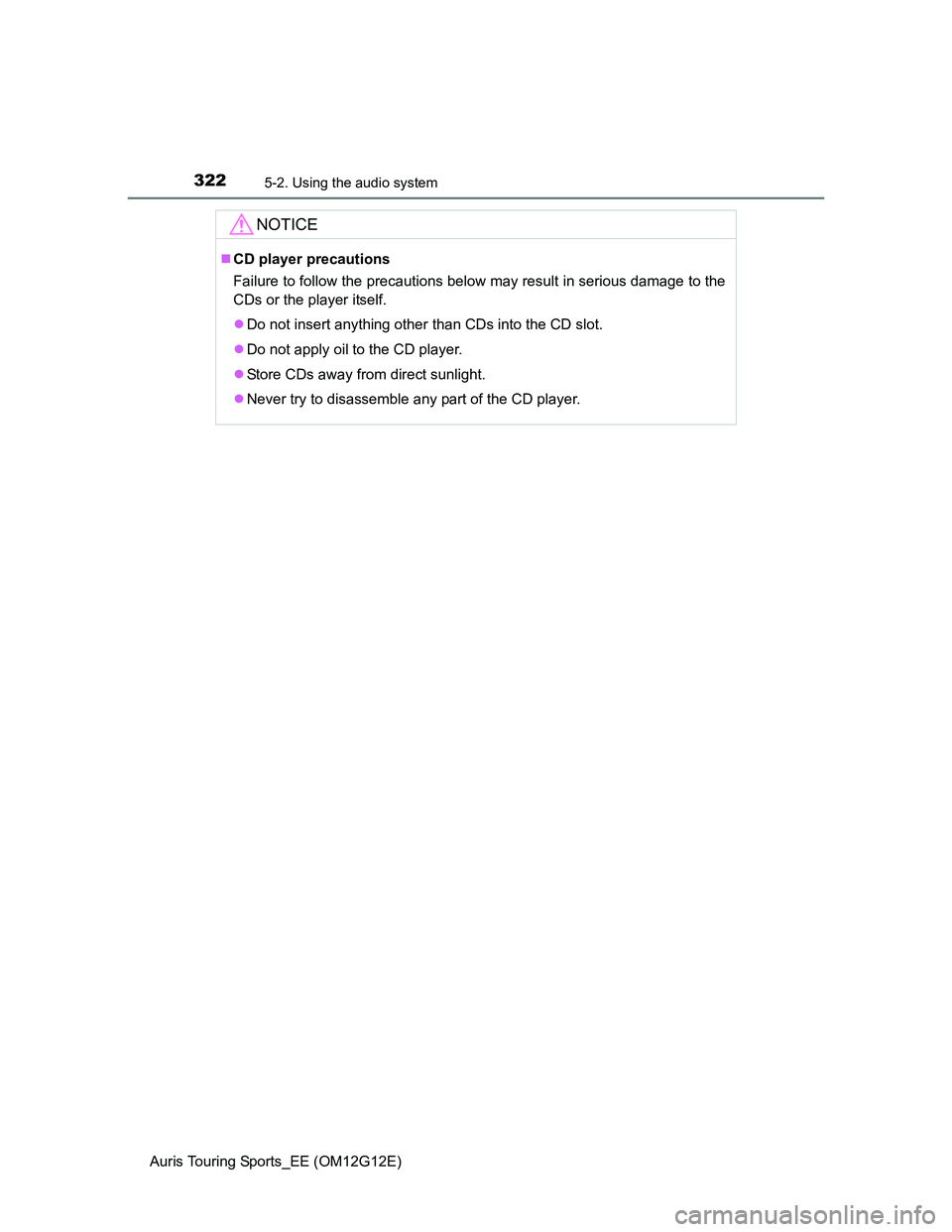

NOTICE
CD player precautions
Failure to follow the precautions below may result in serious damage to the
CDs or the player itself.
Do not insert anything other than CDs into the CD slot.
Do not apply oil to the CD player.
Store CDs away from direct sunlight.
Never try to disassemble any part of the CD player.

3235-2. Using the audio system
Auris Touring Sports_EE (OM12G12E)
5
Interior features
P. 3 1 8

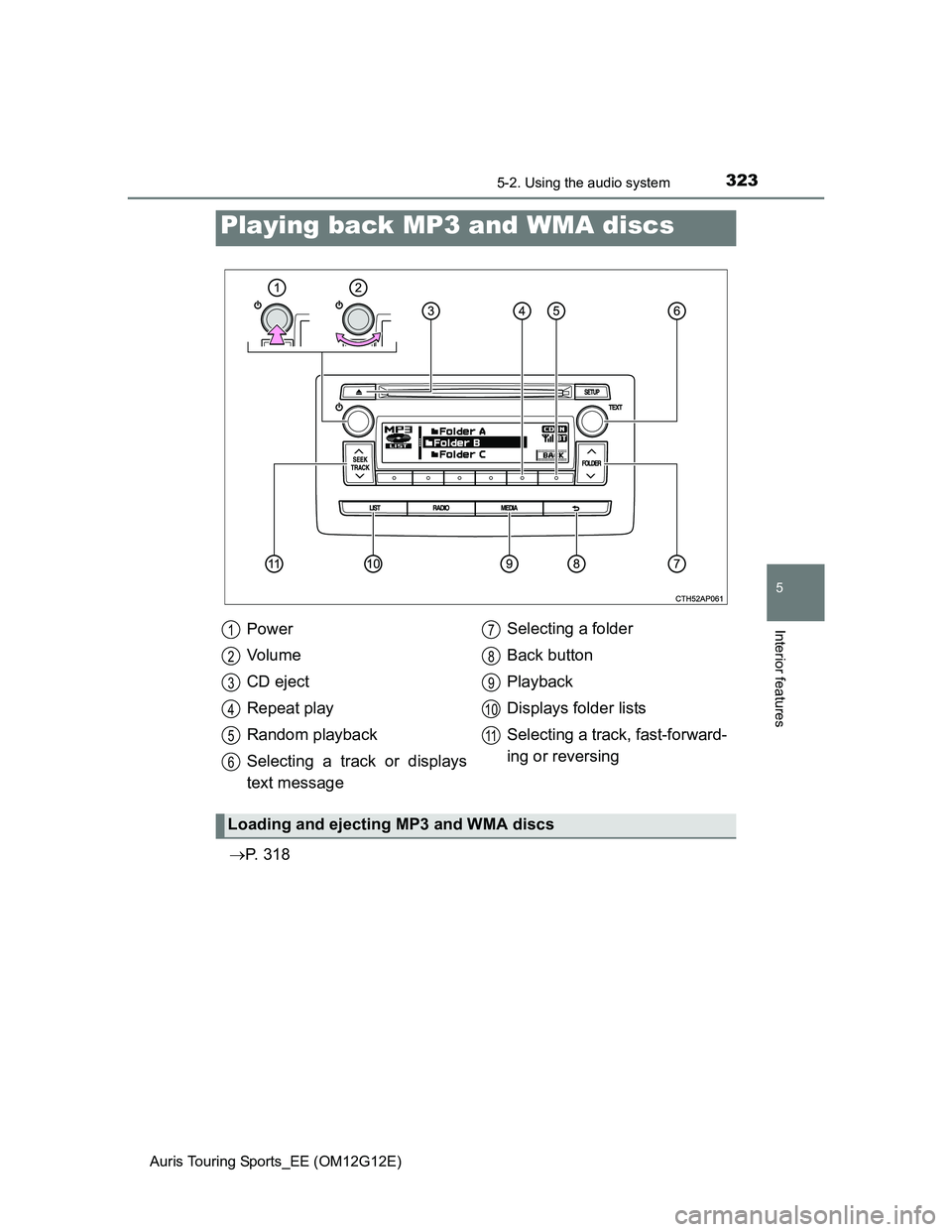

Playing back MP3 and WMA discs
Power
Vo l u m e
CD eject
Repeat play
Random playback
Selecting a track or displays
text messageSelecting a folder
Back button
Playback
Displays folder lists
Selecting a track, fast-forward-
ing or reversing
Loading and ejecting MP3 and WMA discs
1
2
3
4
5
6
7
8
9
10
11

3245-2. Using the audio system
Auris Touring Sports_EE (OM12G12E)

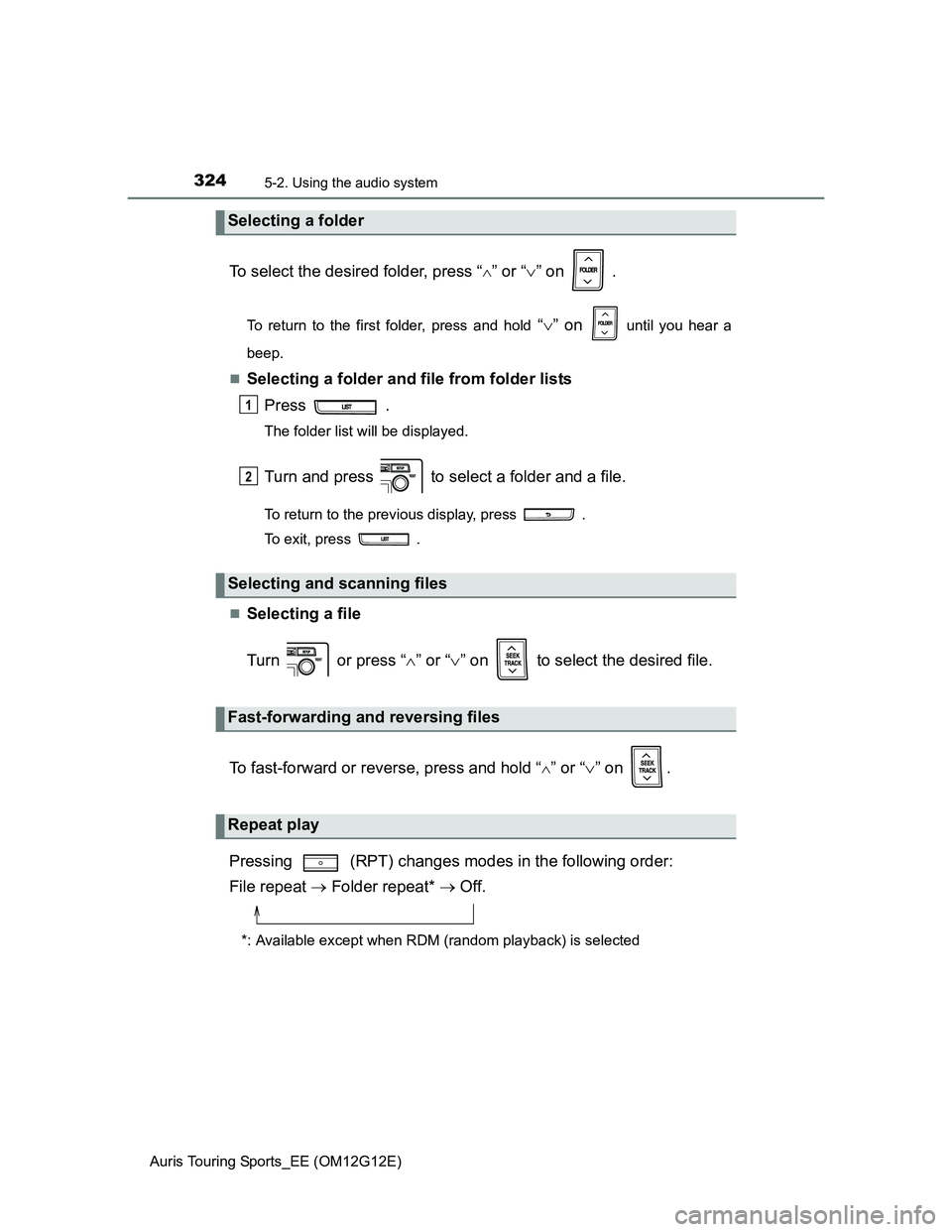

To select the desired folder, press “” or “” on .
To return to the first folder, press and hold “” on until you hear a
beep.

Selecting a folder and file from folder lists
Press .
The folder list will be displayed.
Turn and press to select a folder and a file.
To return to the previous display, press .
To exit, press .

Selecting a file
Turn or press “” or “” on to select the desired file.
To fast-forward or reverse, press and hold “
” or “” on .
Pressing (RPT) changes modes in the following order:
File repeat  Folder repeat*  Off.
*: Available except when RDM (random playback) is selected
Selecting a folder
Selecting and scanning files
Fast-forwarding and reversing files
Repeat play
1
2
