2013 TOYOTA AURIS HYBRID child restraint

TABLE OF CONTENTS2
UK_AURIS/AURIS_HV_EE (OM12F76E)For your information .......................8
Reading this manual.....................12
How to search ..............................13
Pictorial index ...............................14
1-1. For safe use
Before driving.......................38
For safety drive ....................40
Seat belts .............................42
SRS airbags.........................46
Airbag manual on-off
system ...............................56
Safety information for
children ..............................58
Child restraint systems ........59
Installing child restraints ......68
Exhaust gas precautions .....78
1-2. Hybrid system
Hybrid system features ........80
Hybrid system
precautions ........................84
1-3. Theft deterrent system
Engine immobilizer system
(except hybrid model) ........91
Immobilizer system
(hybrid model)....................99
Alarm .................................103
Double locking system .......1112. Instrument cluster
Warning lights and
indicators......................... 114
Meter (drive monitor
display)............................ 121
Meter (multi-information
display)............................ 125
ECO Driving Indicator ....... 137
Energy monitor/
consumption screen ........ 141
3-1. Key information
Keys .................................. 146
3-2. Opening, closing and
locking the doors
Smart entry & start
system............................. 149
Push button start ............... 174
Wireless remote control .... 189
Side doors ......................... 198
Back door .......................... 202
3-3. Adjusting the seats
Front seats ........................ 206
Rear seats ......................... 208
Head restraints .................. 211
1For safety and security
2Instrument cluster
3Operation of each compo-
nent

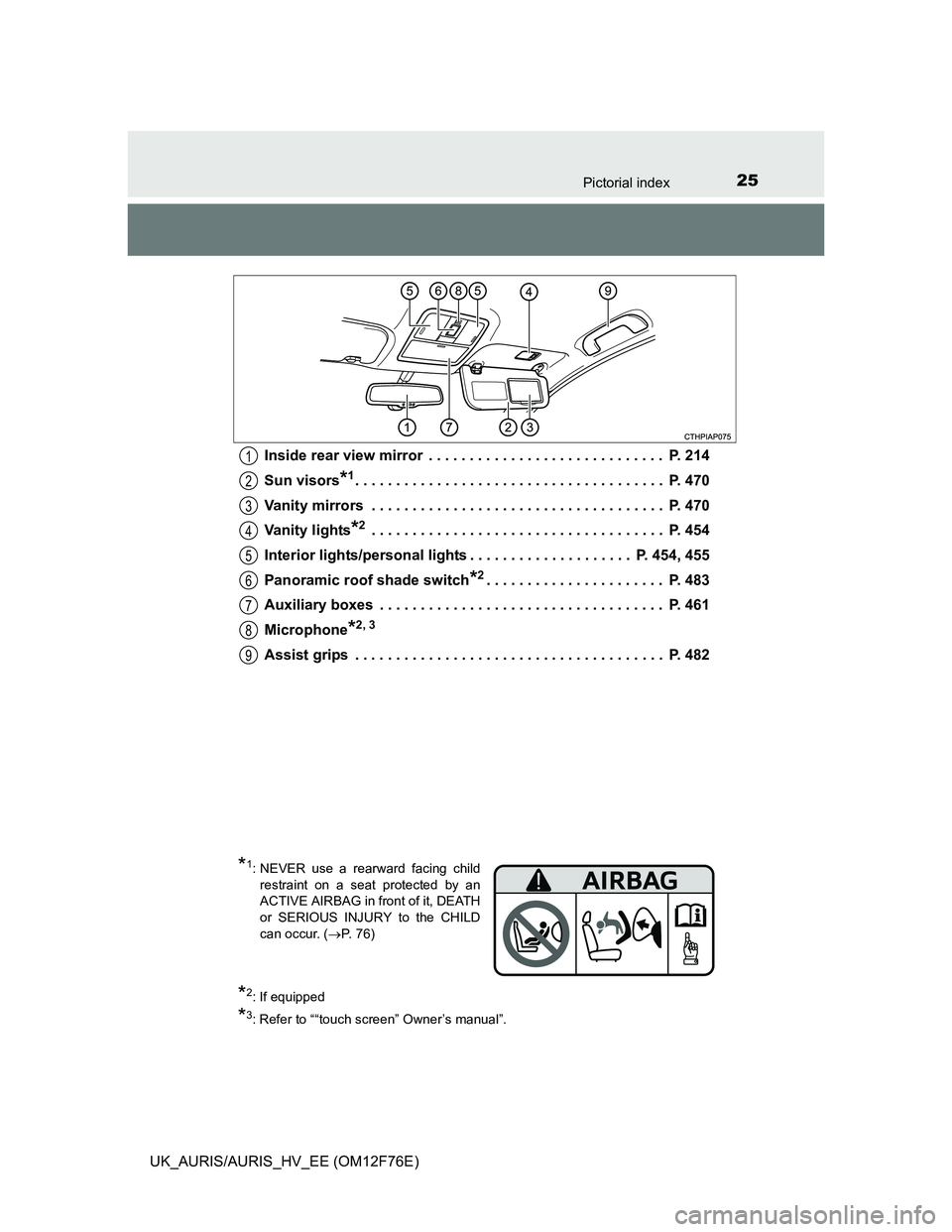

25Pictorial index
UK_AURIS/AURIS_HV_EE (OM12F76E)Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 214
Sun visors
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 470
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 470
Vanity lights
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 454
Interior lights/personal lights . . . . . . . . . . . . . . . . . . . . P. 454, 455
Panoramic roof shade switch
*2. . . . . . . . . . . . . . . . . . . . . . P. 483
Auxiliary boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 461
Microphone
*2, 3
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 482
1
2
3
4
5
6
7
8
9
*1: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD
can occur. (P. 7 6 )
*2: If equipped
*3: Refer to ““touch screen” Owner’s manual”.

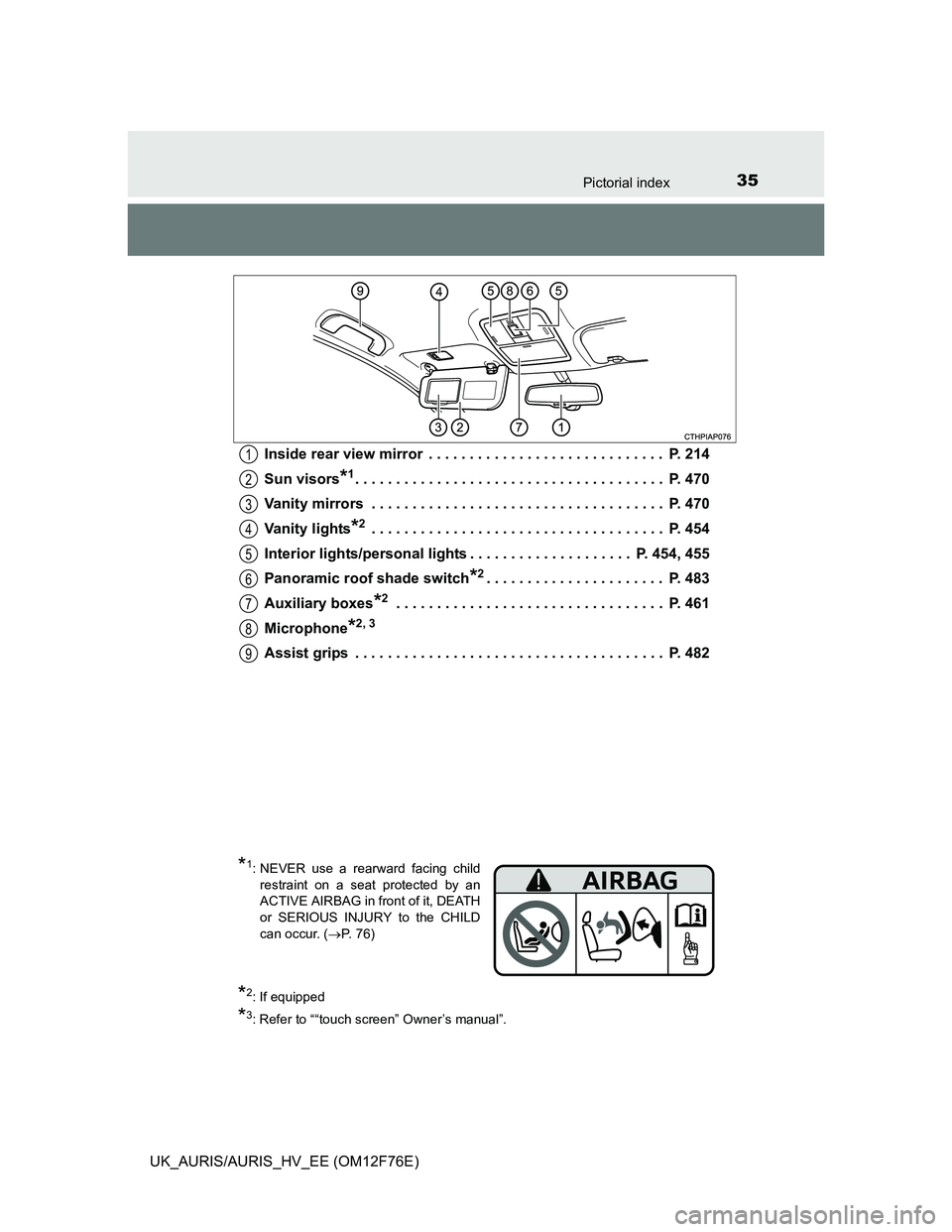

35Pictorial index
UK_AURIS/AURIS_HV_EE (OM12F76E)Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 214
Sun visors
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 470
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 470
Vanity lights
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 454
Interior lights/personal lights . . . . . . . . . . . . . . . . . . . . P. 454, 455
Panoramic roof shade switch
*2. . . . . . . . . . . . . . . . . . . . . . P. 483
Auxiliary boxes
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 461
Microphone
*2, 3
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 482
1
2
3
4
5
6
7
8
9
*1: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD
can occur. (P. 7 6 )
*2: If equipped
*3: Refer to ““touch screen” Owner’s manual”.

37
1For safety and security
UK_AURIS/AURIS_HV_EE (OM12F76E)1-1. For safe use
Before driving....................... 38
For safety drive .................... 40
Seat belts ............................. 42
SRS airbags......................... 46
Airbag manual on-off
system ............................... 56
Safety information for
children .............................. 58
Child restraint systems ........ 59
Installing child restraints ...... 68
Exhaust gas precautions ..... 78
1-2. Hybrid system
Hybrid system features ....... 80
Hybrid system
precautions ....................... 84
1-3. Theft deterrent system
Engine immobilizer system
(except hybrid model) ........ 91
Immobilizer system
(hybrid model).................... 99
Alarm ................................. 103
Double locking system ....... 111

401-1. For safe use
UK_AURIS/AURIS_HV_EE (OM12F76E)
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (P. 206)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. (P. 206)
Lock the head restraint in place
with the center of the head
restraint closest to the top of
your ears. (P. 211)
Wear the seat belt correctly.
(P. 42)
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. (P. 4 2 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
(P. 59)

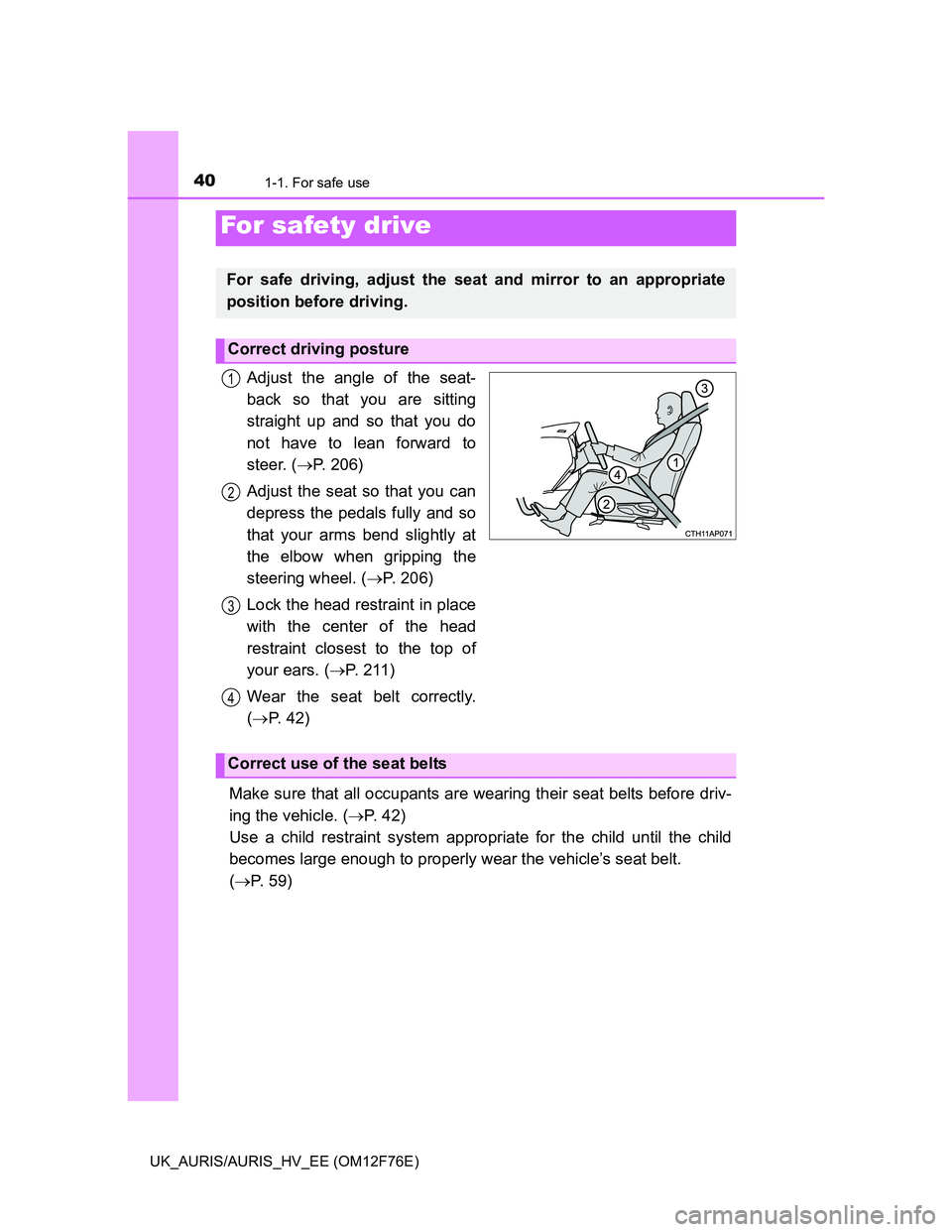

For safety drive
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
3
4
Correct use of the seat belts

431-1. For safe use
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12F76E)

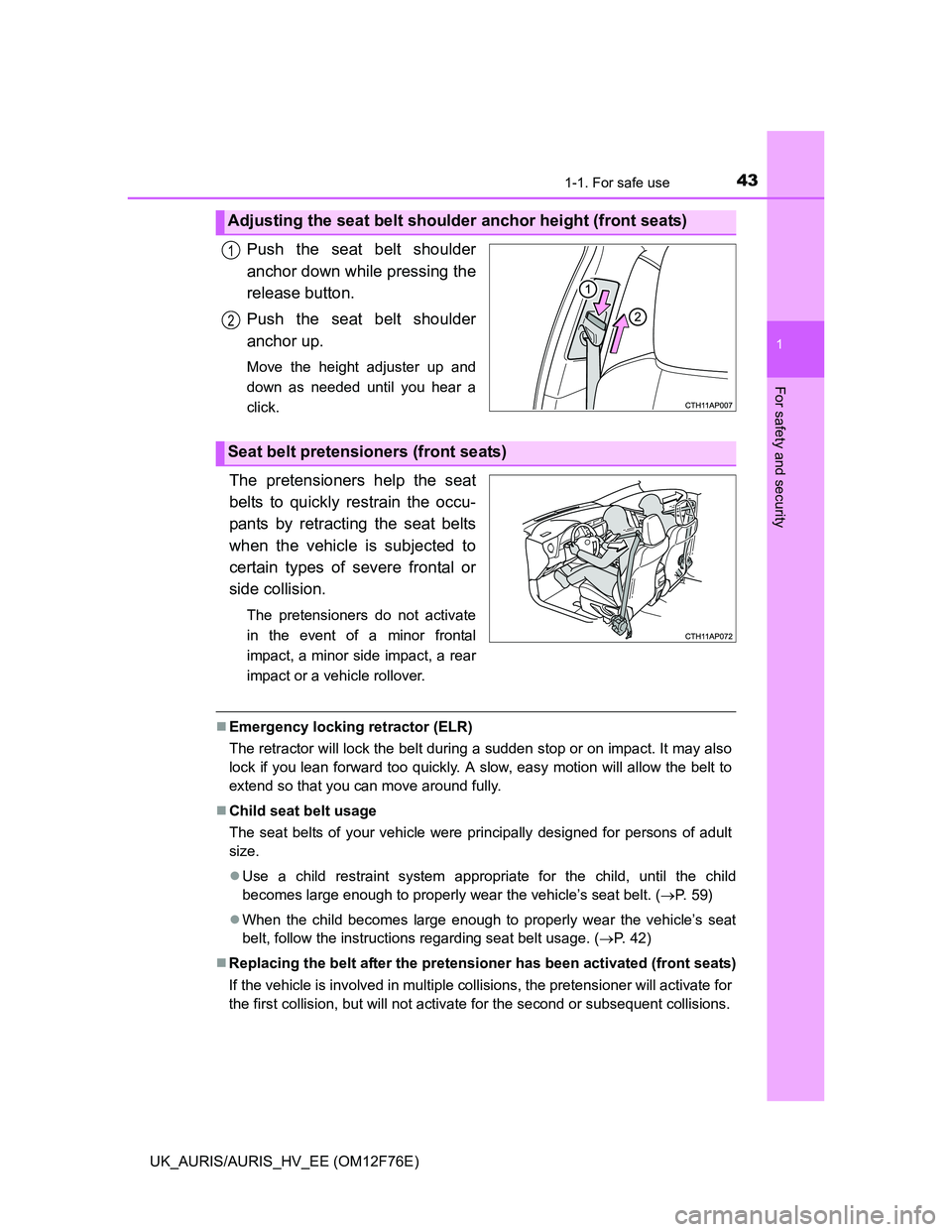

Push the seat belt shoulder
anchor down while pressing the
release button.
Push the seat belt shoulder
anchor up.
Move the height adjuster up and
down as needed until you hear a
click.
The pretensioners help the seat
belts to quickly restrain the occu-
pants by retracting the seat belts
when the vehicle is subjected to
certain types of severe frontal or
side collision.
The pretensioners do not activate
in the event of a minor frontal
impact, a minor side impact, a rear
impact or a vehicle rollover.
Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult
size.
Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle’s seat belt. (P. 59)
When the child becomes large enough to properly wear the vehicle’s seat
belt, follow the instructions regarding seat belt usage. (P. 42)
Replacing the belt after the pretensioner has been activated (front seats)
If the vehicle is involved in multiple collisions, the pretensioner will activate for
the first collision, but will not activate for the second or subsequent collisions.
Adjusting the seat belt shoulder anchor height (front seats)
1
2
Seat belt pretensioners (front seats)

441-1. For safe use

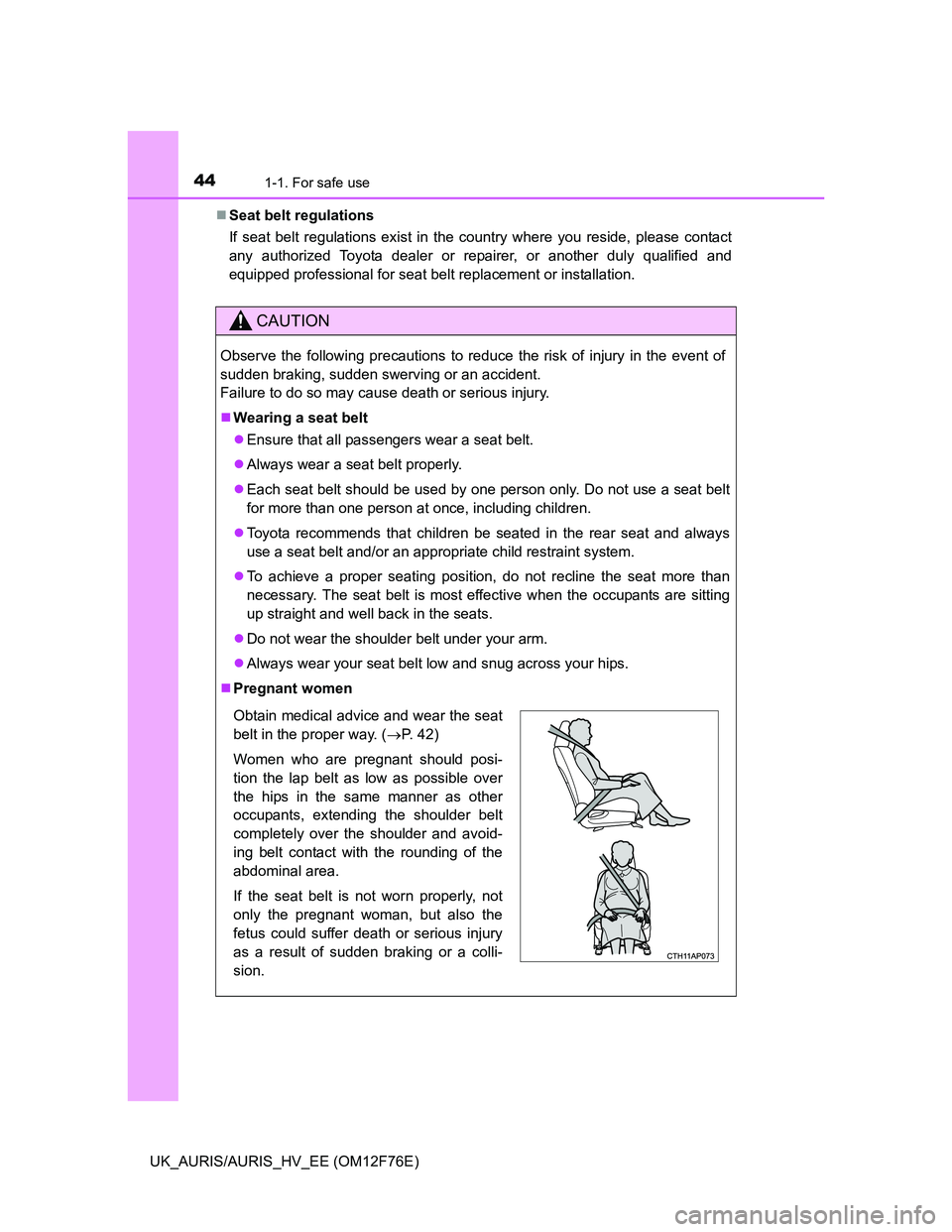

UK_AURIS/AURIS_HV_EE (OM12F76E)Seat belt regulations
If seat belt regulations exist in the country where you reside, please contact
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for seat belt replacement or installation.
CAUTION
Observe the following precautions to reduce the risk of injury in the event of
sudden braking, sudden swerving or an accident.
Failure to do so may cause death or serious injury.
Wearing a seat belt
Ensure that all passengers wear a seat belt.
Always wear a seat belt properly.
Each seat belt should be used by one person only. Do not use a seat belt
for more than one person at once, including children.
Toyota recommends that children be seated in the rear seat and always
use a seat belt and/or an appropriate child restraint system.
To achieve a proper seating position, do not recline the seat more than
necessary. The seat belt is most effective when the occupants are sitting
up straight and well back in the seats.
Do not wear the shoulder belt under your arm.
Always wear your seat belt low and snug across your hips.
Pregnant women
Obtain medical advice and wear the seat
belt in the proper way. (P. 42)
Women who are pregnant should posi-
tion the lap belt as low as possible over
the hips in the same manner as other
occupants, extending the shoulder belt
completely over the shoulder and avoid-
ing belt contact with the rounding of the
abdominal area.
If the seat belt is not worn properly, not
only the pregnant woman, but also the
fetus could suffer death or serious injury
as a result of sudden braking or a colli-
sion.

481-1. For safe use
UK_AURIS/AURIS_HV_EE (OM12F76E)

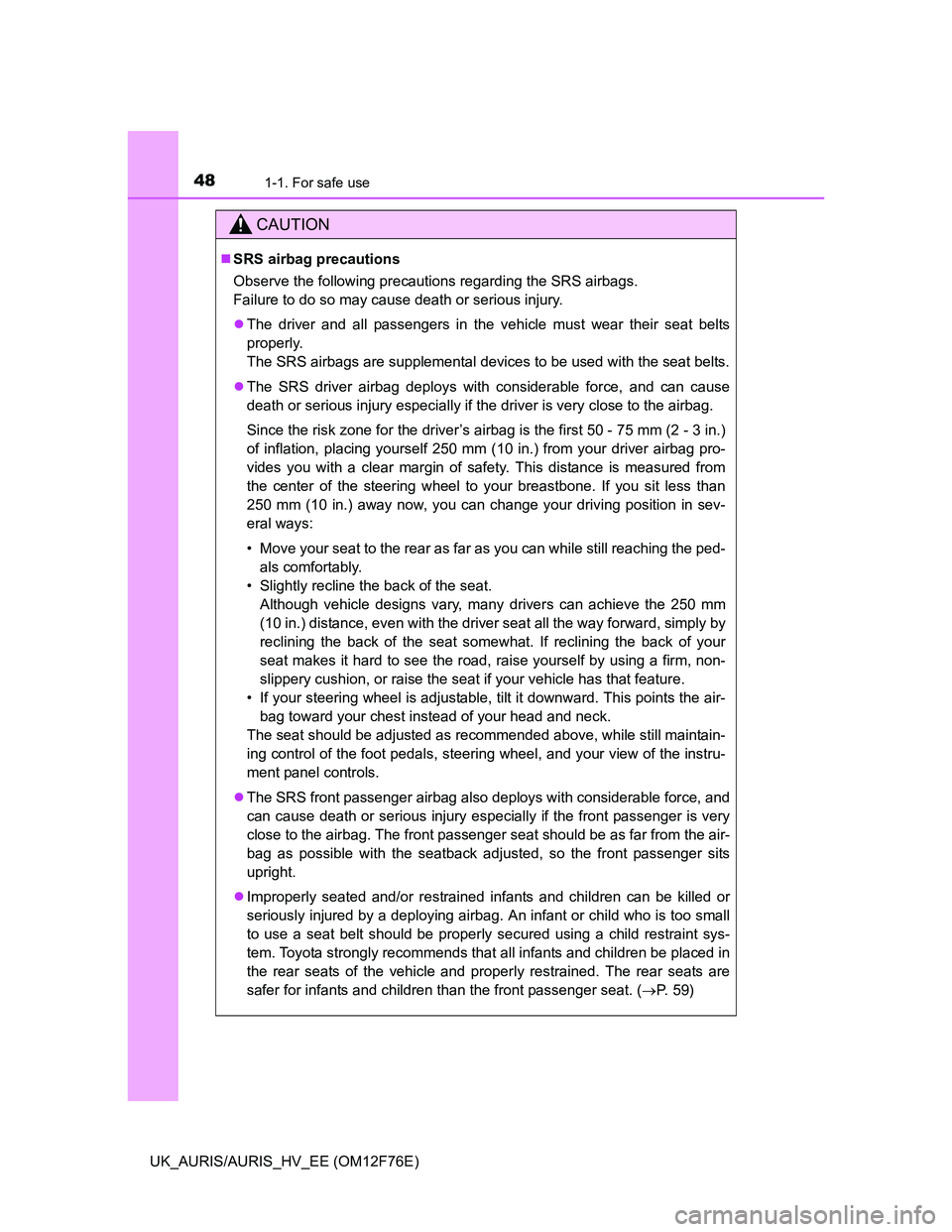

CAUTION
SRS airbag precautions
Observe the following precautions regarding the SRS airbags.
Failure to do so may cause death or serious injury.
The driver and all passengers in the vehicle must wear their seat belts
properly.
The SRS airbags are supplemental devices to be used with the seat belts.
The SRS driver airbag deploys with considerable force, and can cause
death or serious injury especially if the driver is very close to the airbag.
Since the risk zone for the driver’s airbag is the first 50 - 75 mm (2 - 3 in.)
of inflation, placing yourself 250 mm (10 in.) from your driver airbag pro-
vides you with a clear margin of safety. This distance is measured from
the center of the steering wheel to your breastbone. If you sit less than
250 mm (10 in.) away now, you can change your driving position in sev-
eral ways:
• Move your seat to the rear as far as you can while still reaching the ped-
als comfortably.
• Slightly recline the back of the seat.
Although vehicle designs vary, many drivers can achieve the 250 mm
(10 in.) distance, even with the driver seat all the way forward, simply by
reclining the back of the seat somewhat. If reclining the back of your
seat makes it hard to see the road, raise yourself by using a firm, non-
slippery cushion, or raise the seat if your vehicle has that feature.
• If your steering wheel is adjustable, tilt it downward. This points the air-
bag toward your chest instead of your head and neck.
The seat should be adjusted as recommended above, while still maintain-
ing control of the foot pedals, steering wheel, and your view of the instru-
ment panel controls.
The SRS front passenger airbag also deploys with considerable force, and
can cause death or serious injury especially if the front passenger is very
close to the airbag. The front passenger seat should be as far from the air-
bag as possible with the seatback adjusted, so the front passenger sits
upright.
Improperly seated and/or restrained infants and children can be killed or
seriously injured by a deploying airbag. An infant or child who is too small
to use a seat belt should be properly secured using a child restraint sys-
tem. Toyota strongly recommends that all infants and children be placed in
the rear seats of the vehicle and properly restrained. The rear seats are
safer for infants and children than the front passenger seat. (P. 59)
