UK_AURIS/AURIS_HV_EE (OM12F76E)6-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ..........486
Cleaning and protecting
the vehicle interior ...........490
6-2. Maintenance
Maintenance
requirements....................493
6-3. Do-it-yourself
maintenance
Do-it-yourself service
precautions ......................496
Hood ..................................500
Positioning a floor jack .......502
Engine compartment..........504
12-volt battery ....................526
Tires ...................................531
Tire inflation pressure ........534
Wheels ...............................536
Air conditioning filter ..........538
Wireless remote control/
electronic key battery.......540
Checking and replacing
fuses ................................543
Light bulbs .........................5677-1. Essential information
Emergency flashers .......... 584
If your vehicle has to
be stopped in an
emergency ...................... 585
7-2. Steps to take in an
emergency
If your vehicle needs to
be towed ......................... 587
If you think something is
wrong .............................. 595
Fuel pump shut off
system............................. 596
If a warning light turns
on or a warning buzzer
sounds ............................ 597
If a warning message is
displayed ......................... 612
If you have a flat tire
(vehicles with a
spare tire) ........................ 640
If you have a flat tire
(vehicles with an
emergency tire
puncture repair kit) .......... 653
If the engine will not
start ................................. 678
If the hybrid system will
not start ........................... 680
If the shift lever cannot
be shifted from P
(vehicles with a
Multidrive) ....................... 682
If the shift lever cannot
be shifted (vehicles with
a multi-mode manual
transmission)................... 683
6Maintenance and care7When trouble arises

15Pictorial index
UK_AURIS/AURIS_HV_EE (OM12F76E)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 322
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 380
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . P. 488
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 328
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 328
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 719
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 531
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 730
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 380
Checking/rotation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 531
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 640
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 500
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 500
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 721
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 700
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 308
Front position lights/daytime running lights . . . . . . . . . . . P. 308
Front fog lights
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 320
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 305
Stop/tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 308
Hill-start assist control
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 374
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 308
Rear fog light
*4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 320
Back-up light
*3
Shifting the shift lever to R. . . . . . . . . . . . . . . . P. 284, 289, 294, 297
Rear view monitor system camera
*1, 5
Rear fog light*3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 320
Back-up light
*4
Shifting the shift lever to R. . . . . . . . . . . . . . . . P. 284, 289, 294, 297
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 567, Watts: P. 734)
*1: If equipped
*2: Vehicles with a multi-information display
*3: Left-hand drive vehicles
*4: Right-hand drive vehicles
*5: Refer to ““touch screen” Owner’s manual”.
8
9
10
11
12
13
14
15
16

391-1. For safe use
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12F76E)
CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to an accident, or leading to death
or a serious injury.
When installing the driver’s floor mat
Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
Only use floor mats designed for the driver’s seat.
Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
Do not use two or more floor mats on top of each other.
Do not place the floor mat bottom-side up or upside-down.
Before driving
Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
Except hybrid model: With the engine
stopped and the shift lever in P (Multid-
rive) or N (multi-mode manual and man-
ual transmissions), fully depress each
pedal to the floor to make sure it does
not interfere with the floor mat.
Hybrid model: With the hybrid system
stopped and the shift position in P, fully
depress each pedal to the floor to make
sure it does not interfere with the floor
mat.

1041-3. Theft deterrent system
UK_AURIS/AURIS_HV_EE (OM12F76E)
Do one of the following to deactivate or stop the alarm:
Unlock the doors using the entry function (if equipped) or wireless
remote control.
Except hybrid model: Start the engine. (The alarm will be deacti-
vated or stopped after a few seconds.)
Hybrid model: Start the hybrid system. (The alarm will be deacti-
vated or stopped after a few seconds.)
System maintenance
The vehicle has a maintenance-free type alarm system.
Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:
Nobody is in the vehicle.
The windows are closed before the alarm is set.
No valuables or other personal items are left in the vehicle.
Deactivating or stopping the alarm

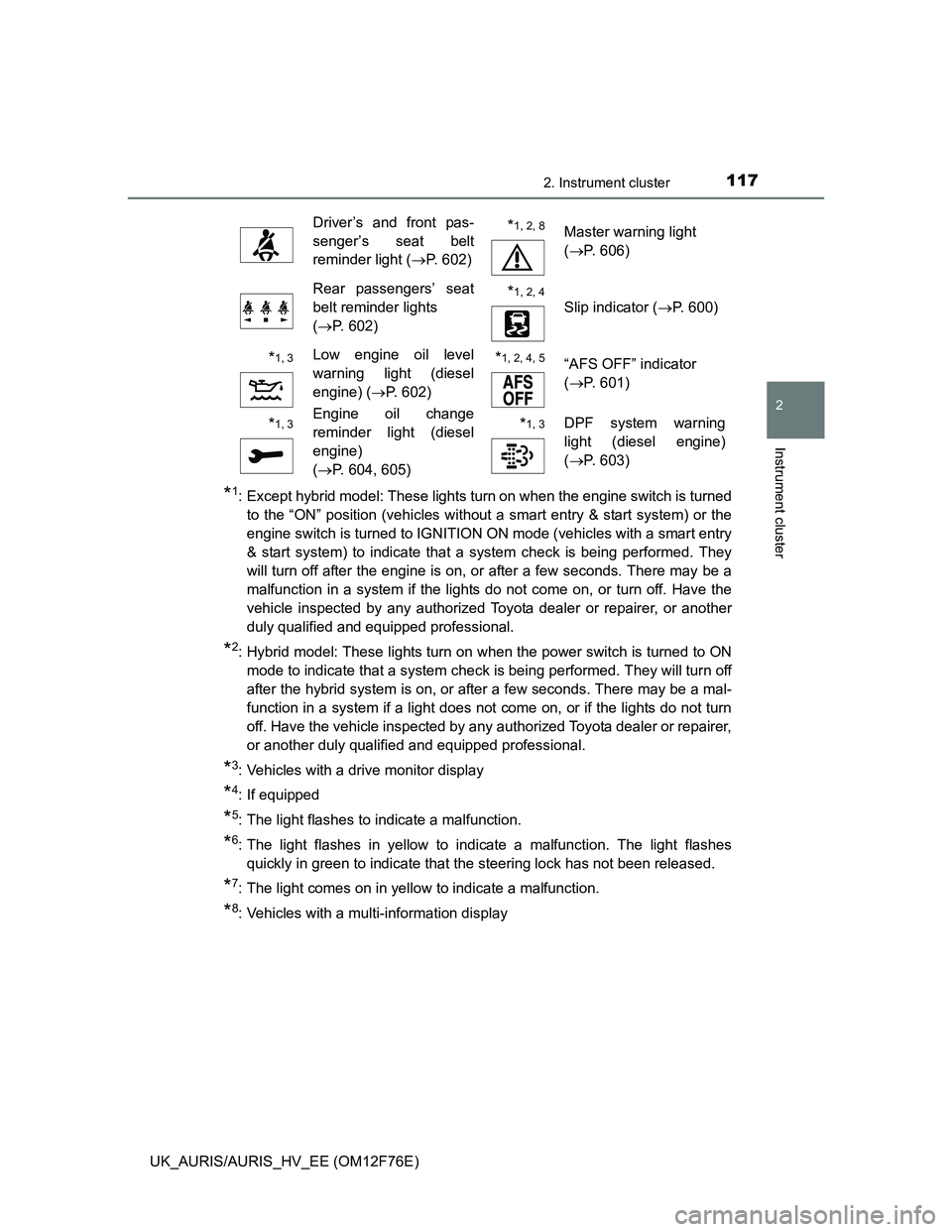

1172. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)
2
Instrument cluster
*1: Except hybrid model: These lights turn on when the engine switch is turned
to the “ON” position (vehicles without a smart entry & start system) or the
engine switch is turned to IGNITION ON mode (vehicles with a smart entry
& start system) to indicate that a system check is being performed. They
will turn off after the engine is on, or after a few seconds. There may be a
malfunction in a system if the lights do not come on, or turn off. Have the
vehicle inspected by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
*2: Hybrid model: These lights turn on when the power switch is turned to ON
mode to indicate that a system check is being performed. They will turn off
after the hybrid system is on, or after a few seconds. There may be a mal-
function in a system if a light does not come on, or if the lights do not turn
off. Have the vehicle inspected by any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional.
*3: Vehicles with a drive monitor display
*4: If equipped
*5: The light flashes to indicate a malfunction.
*6: The light flashes in yellow to indicate a malfunction. The light flashes
quickly in green to indicate that the steering lock has not been released.
*7: The light comes on in yellow to indicate a malfunction.
*8: Vehicles with a multi-information display
Driver’s and front pas-
senger’s seat belt
reminder light (P. 602)*1, 2, 8Master warning light
(P. 606)
Rear passengers’ seat
belt reminder lights
(P. 602)*1, 2, 4
Slip indicator (P. 600)
*1, 3Low engine oil level
warning light (diesel
engine) (P. 602)*1, 2, 4, 5 “AFS OFF” indicator
(P. 601)
*1, 3Engine oil change
reminder light (diesel
engine)
(P. 604, 605)*1, 3DPF system warning
light (diesel engine)
(P. 603)

1192. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)
2
Instrument cluster
*1: If equipped
*2: Except hybrid model: These lights turn on when the engine switch is turned
to the “ON” position (vehicles without a smart entry & start system) or the
engine switch is turned to IGNITION ON mode (vehicles with a smart entry
& start system) to indicate that a system check is being performed. They
will turn off after the engine is on, or after a few seconds. There may be a
malfunction in a system if the lights do not come on, or turn off. Have the
vehicle inspected by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
*3: Hybrid model: These lights turn on when the power switch is turned to ON
mode to indicate that a system check is being performed. They will turn off
after the hybrid system is on, or after a few seconds. There may be a mal-
function in a system if a light does not come on, or if the lights do not turn
off. Have the vehicle inspected by any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional.
*4: The light flashes to indicate that the system is operating.
*5: The light does not turn on when the system is disabled.
*6: Vehicles with a MultidriveAirbag manual on-off
indicator (P. 56)“ECO MODE” indicator
(hybrid model)
(P. 300)
*2, 5, 6Eco Driving Indicator
Light (P. 137)EV drive mode indicator
(hybrid model)
(P. 282)
Security indicator
(P. 91, 103)“READY” indicator
(hybrid model)
(P. 276)
Tail light indicator (hybrid
model) (P. 308)Shift position indicators
(hybrid model)
(P. 297)

1402. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)
CAUTION
The display at low temperatures
Allow the interior of the vehicle to warm up before using the display. At
extremely low temperatures, the display monitor may respond slowly, and
display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
To prevent damage to the engine and its components
Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
The engine may be overheating in the following situations. Immediately
stop the vehicle in a safe place, and check the engine after it has cooled
down completely. (P. 700, 703)
Drive monitor display: When the high engine coolant temperature warning
light comes on.
Multi-information display: When the indicator needle of the engine coolant
temperature gauge enters the red zone (except hybrid model), or the
engine coolant temperature warning message is shown on the multi-infor-
mation display (hybrid model).

224
UK_AURIS/AURIS_HV_EE (OM12F76E)
4-1. Before driving
P. 262, 266, 276
Multidrive and hybrid transmission
Except hybrid model: With the brake pedal depressed, shift the shift
lever to D. (P. 284)
Hybrid model: With the brake pedal depressed, shift the shift posi-
tion to D. (P. 297)
Check that the shift position indicator shows D.
Release the parking brake. (P. 306)
Gradually release the brake pedal and gently depress the accelera-
tor pedal to accelerate the vehicle.
Multi-mode manual transmission
With the brake pedal depressed, shift the shift lever to E or M.
(P. 289)
When shifting the shift lever to E: Make sure that the display of the gear
position indicator shows E.
When shifting the shift lever to M: Make sure that the display of the gear
position indicator shows 1.
Release the parking brake. (P. 306)
Gradually release the brake pedal and gently depress the accelera-
tor pedal to accelerate the vehicle.
Driving the vehicle
The following procedures should be observed to ensure safe
driving:
Starting the engine (except hybrid model) or hybrid system
(hybrid model)
Driving
1
2
3
1
2
3
