821-2. Hybrid system
UK_AURIS/AURIS_HV_EE (OM12F76E)
Regenerative braking
In the following situations, kinetic energy is converted to electric energy and
deceleration force can be obtained in conjunction with the recharging of the
hybrid battery (traction battery).
The accelerator pedal is released while driving with the shift position in D or
B.
The brake pedal is depressed while driving with the shift position in D or B.
EV indicator
Conditions in which the gasoline engine may not stop
The gasoline engine starts and stops automatically. However, it may not stop
automatically in the following conditions:
During gasoline engine warm-up
During hybrid battery (traction battery) charging
When the temperature of the hybrid battery (traction battery) is high or low
When the heater is switched on
Charging the hybrid battery (traction battery)
As the gasoline engine charges the hybrid battery (traction battery), the bat-
tery does not need to be charged from an outside source. However, if the
vehicle is left parked for a long time the hybrid battery will slowly discharge.
For this reason, be sure to drive the vehicle at least once every few months
for at least 30 minutes or 16 km (10 miles). If the hybrid battery becomes
fully discharged and you are unable to jump-start the vehicle with the 12-volt
battery, contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
If the shift position is in N, the hybrid battery (traction battery) will not be
charged. Always shift the shift position in P when the vehicle is stopped.
When driving in heavy traffic, operate the vehicle with the shift position in D
or B to avoid discharging the hybrid battery (traction battery).
Charging the 12-volt battery
P. 692 The EV indicator will be displayed on the
multi-information display when the vehicle
is driven using only the electric motor
(traction motor) or the gasoline engine is
stopped.

1061-3. Theft deterrent system

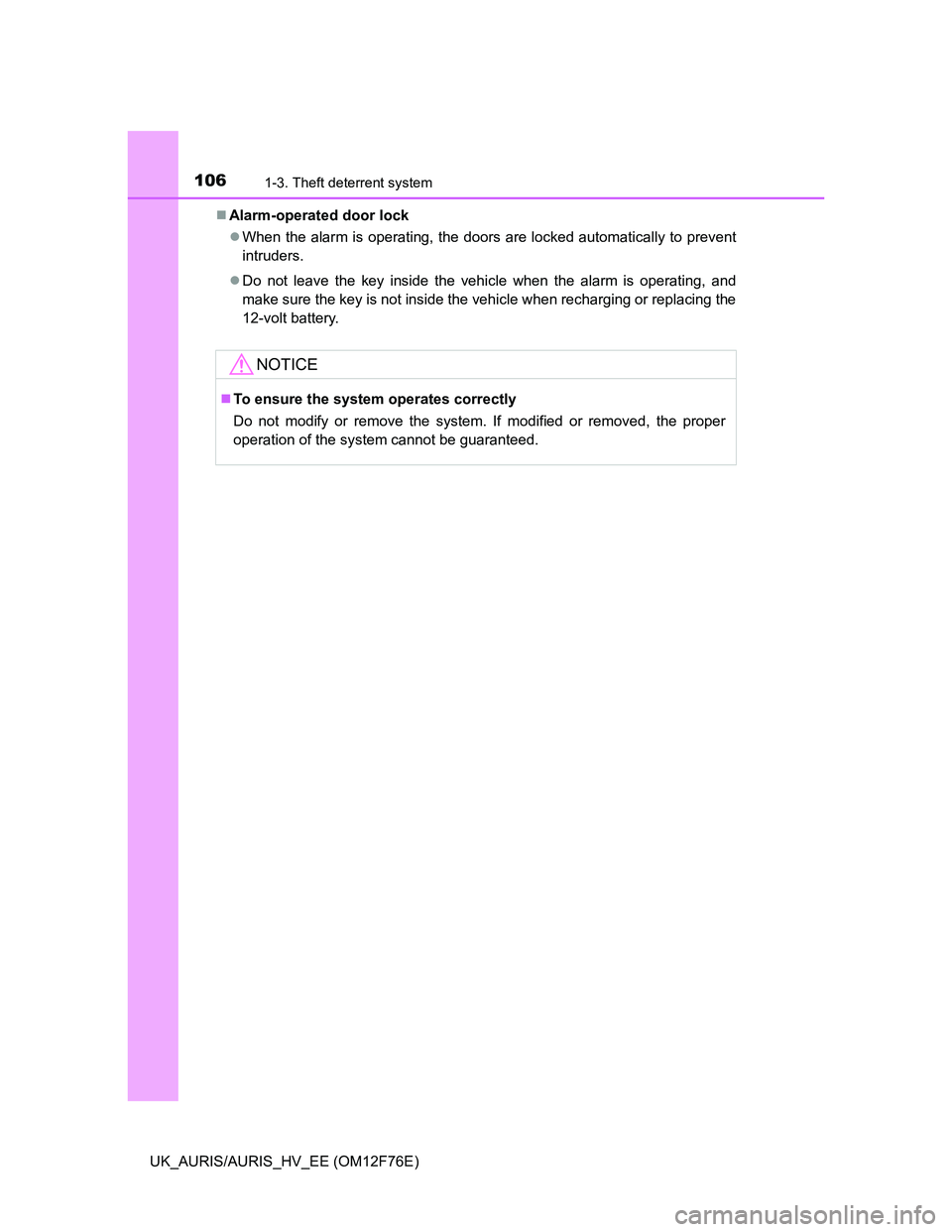

UK_AURIS/AURIS_HV_EE (OM12F76E)Alarm-operated door lock
When the alarm is operating, the doors are locked automatically to prevent
intruders.
Do not leave the key inside the vehicle when the alarm is operating, and
make sure the key is not inside the vehicle when recharging or replacing the
12-volt battery.
NOTICE
To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

1162. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1, 2
(Red)
Brake system warning
light (P. 597)*1, 2Electric power steering
system warning light
(P. 600)
*2
(Yellow)
Brake system warning
light (hybrid model)
(P. 601)*4, 7
(Yellow)
Automatic High Beam
indicator light (P. 601)
*1, 3
Charging system warn-
ing light (P. 598)*4, 7
(Yellow)
Cruise control indicator
light (P. 601)
*1, 3
Low engine oil pressure
warning light (P. 598)*4, 7
(Yellow)
Speed limiter indicator
light (P. 601)
*1, 3High engine coolant
temperature warning
light (P. 598)*4, 5Stop & Start cancel indi-
cator (P. 600)
*1Multi-mode manual
transmission warning
light (vehicles with a
multi-mode manual
transmission) (P. 598)*4, 6
(Yellow)
Smart entry & start sys-
tem indicator light
(P. 601)
*1, 2Malfunction indicator
lamp (P. 600)*1, 3Fuel filter warning light
(diesel engine)
(P. 601)
*1, 2SRS warning light
(P. 600)*3Open door warning light
(P. 602)
*1, 2ABS warning light
(P. 600)Low fuel level warning
light (P. 602)

1272. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)
2
Instrument cluster

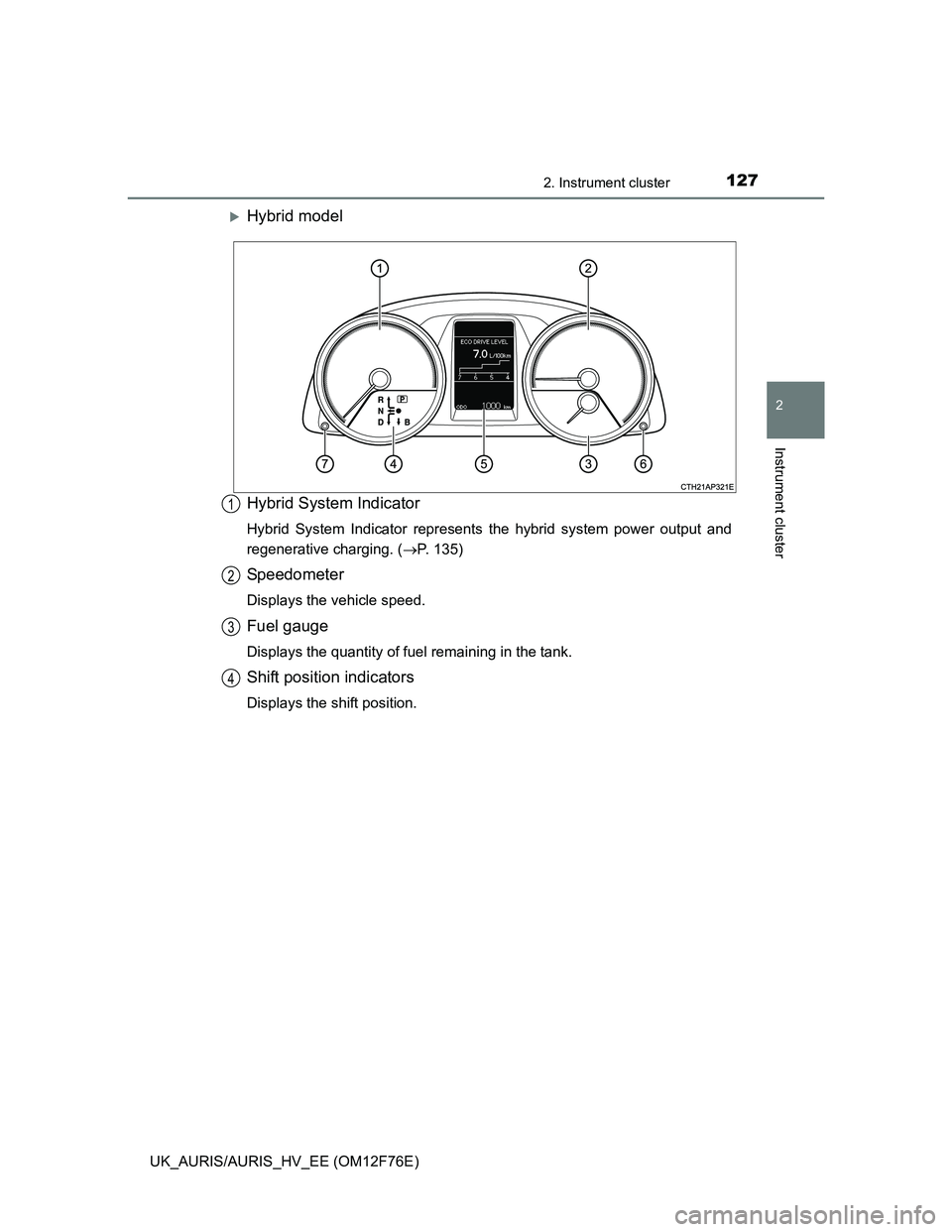

Hybrid model
Hybrid System Indicator
Hybrid System Indicator represents the hybrid system power output and
regenerative charging. (P. 135)
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Shift position indicators
Displays the shift position.
1
2
3
4

1352. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)
2
Instrument cluster
Hybrid System Indicator (hybrid model)
By keeping the indicator needle within Eco area, more Eco-friendly driving
can be achieved.
Charge area indicates regeneration* status. Regenerated energy will be
used to charge the battery.
*: When used in this manual, “regeneration” refers to the conversion of
energy created by the movement of the vehicle into electrical energy.
The meters and display illuminate when
Except hybrid model (vehicles without a smart entry & start system)
The engine switch is in the “ON” position.
Except hybrid model (vehicles with a smart entry & start system)
The engine switch is in IGNITION ON mode.
Hybrid model
The power switch is in ON mode. Charge area
Shows regenerative charging.
Hybrid Eco area
Shows that the vehicle is driven in a
condition that promotes frequent motor-
only operation. (When the vehicle is
operating low driving load, such as
when driving slowly, using hybrid Eco
area leads Eco-friendly driving.)
Eco area
Shows that the vehicle is being driven in
an Eco-friendly manner.
Power area
Shows the driving power is more than
the upper limit of Eco driving.
1
2
3
4

1422. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12F76E)

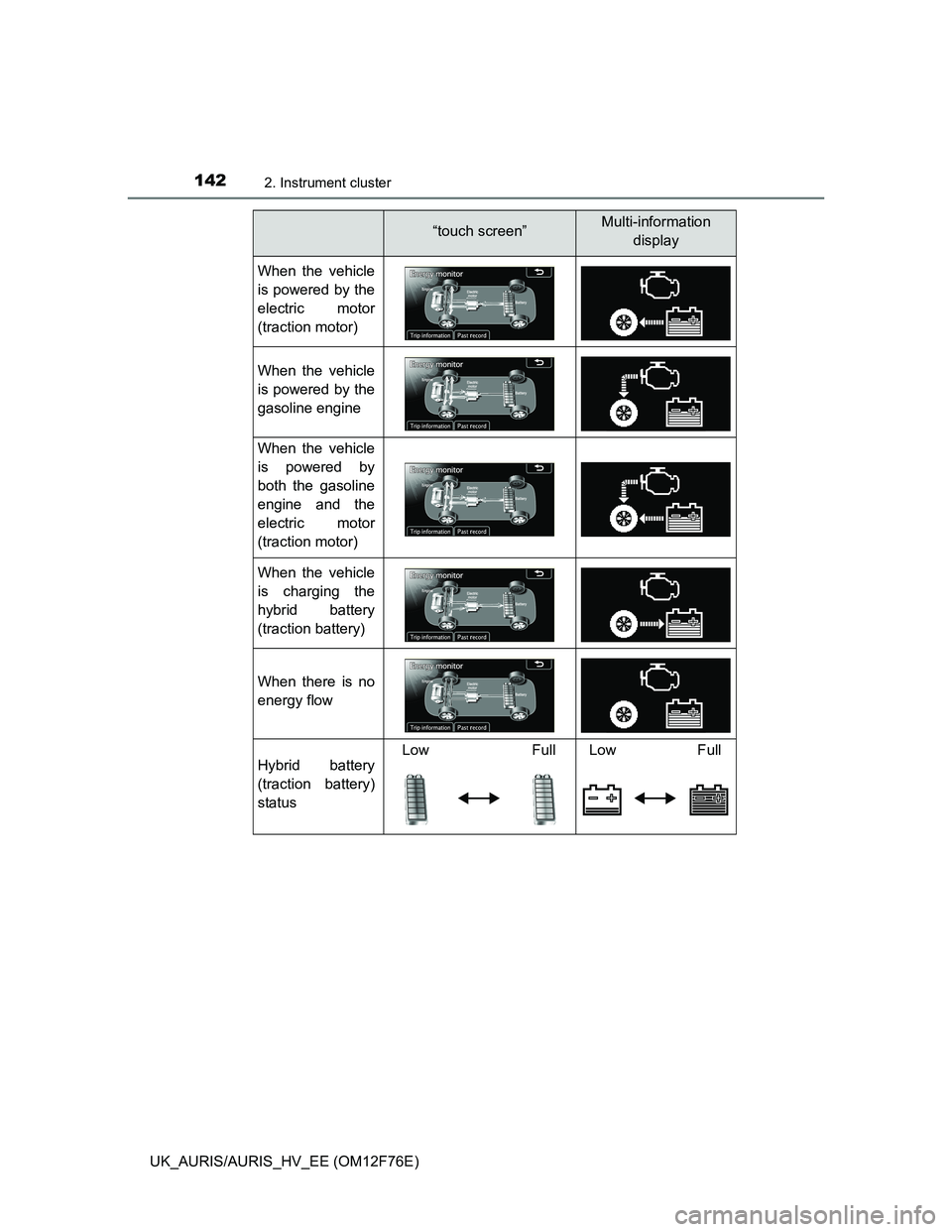

“touch screen”Multi-information
display
When the vehicle
is powered by the
electric motor
(traction motor)
When the vehicle
is powered by the
gasoline engine
When the vehicle
is powered by
both the gasoline
engine and the
electric motor
(traction motor)
When the vehicle
is charging the
hybrid battery
(traction battery)
When there is no
energy flow
Hybrid battery
(traction battery)
statusLow Full Low Full

1603-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12F76E)Electronic key battery depletion
The standard battery life is 1 to 2 years.
Except hybrid model: If the battery becomes low, an alarm will sound in the
cabin when the engine stops. (P. 607, 625)
Hybrid model: If the battery becomes low, an alarm will sound in the cabin
when the hybrid system stops. (P. 625)
As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. (P. 540)
• The smart entry & start system or the wireless remote control does not
operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
To avoid serious deterioration, do not leave the electronic key within 1 m (3
ft.) of the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers
When the electronic key battery is fully depleted
P. 540
Customization
Settings (e. g. smart entry & start system) can be changed.
(Customizable features: P. 737)
If the smart entry & start system has been deactivated in a customized
setting
Locking and unlocking the doors:
Use the wireless remote control or mechanical key. (P. 189, 684)
Except hybrid model: Starting the engine and changing engine switch
modes: P. 685
Hybrid model: Starting the hybrid system and changing power switch
modes: P. 686
Except hybrid model: Stopping the engine: P. 268
Hybrid model: Stopping the hybrid system: P. 277

1783-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12F76E)Electronic key battery depletion
The standard battery life is 1 to 2 years.
If the battery becomes low, an alarm will sound in the cabin when the hybrid
system stops. (P. 625)
As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. (P. 540)
• The push button start or the wireless remote control does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
To avoid serious deterioration, do not leave the electronic key within 1 m (3
ft.) of the following electrical appliances that produce a magnetic field.
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers
To operate the system properly
Make sure to carry the electronic key when operating the system.
Depending on the position and holding condition of the electronic key, the key
may not be detected correctly and the system may not operate properly.
Alarms and warning messages
P. 625
If the push button start does not operate properly
Starting the hybrid system: P. 276
When the electronic key battery is fully depleted
P. 540
Customization that can be configured at any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional
It is possible to deactivate the push button start.
(Customizable features P. 737)
If the push button start has been deactivated in a customized setting
Starting the hybrid system and changing power switch modes: P. 6 8 6
Stopping the hybrid system: P. 277
