2013 SKODA YETI width

Switching on the low beam
Switch on the front fog lamp » page 51
Switching on the rear fog light » page 51
Headlight beam control 
Turning the rotary switch B
» Fig. 25 from position  to  gradually activates the
headlight beam control, thereby shortening the beam of light.
The positions of the width of illumination correspond approximately to the fol-
lowing car load.
Front seats occupied, boot empty
All seats occupied, boot empty
All seats occupied, boot loaded
Driver seat occupied, boot loaded
WARNINGAlways adjust the headlight beam to satisfy the following conditions.■The vehicle does not dazzle other road users, especially oncoming vehicles.■
The beam range is sufficient for safe driving.
Note
■ We recommend you adjust the headlight beam when the low beam is switched
on.■
The Bi-Xenon bulbs adapt automatically to the load and driving state of the ve-
hicle when the ignition is switched on and when driving. Vehicles that are equip- ped with Bi-Xenon headlights do not have a manual headlight range adjustment
control.
■
The light switch is in position  or  and the ignition is turned off, the low
beam is switched off automatically and the status light is lit. The side light goes out after the ignition key is removed.

Daylight running lights (DAY LIGHT)
First read and observe the introductory information and safety warn-
ings
on page 47.
The daytime running lights (the only function) provides the lighting of the front
vehicle range.

The daytime running lights are switched on automatically if the following condi-
tions are met:
The light switch A
is in position  or  » Fig. 25 on page 47.
The ignition is switched on.
The parking aid is activated.
Deactivating the function
›
Switch off the ignition.
›
Pull the turning signal and main beam lever towards the steering wheel, push
down and hold in this position.
›
Switch on the ignition.
›
Hold the lever in this position for at least 3 seconds after the ignition is switch-
ed on.
Activating the function
›
Switch off the ignition.
›
Pull the turning signal and main beam lever towards the steering wheel, push it
up and hold it in this position.
›
Switch on the ignition.
›
Hold the lever in this position for at least 3 seconds after the ignition is switch-
ed on.
On vehicles with MAXI DOT display, the function can be enabled or disabled in the menu item Dayl. dri. light » page 29 , Settings .
Note
When the daytime running light is switched on, the side lights (neither at the
front or rear) and the number plate lights are not lit.48Using the system

Adjusting, installing and removing the headrests.Fig. 46
Head restraint: Move up / move down
First read and observe the introductory information and safety warn-
ings
on page 66.
Setting the height
›
If you want to move the headrest up, then hold this sideways with both hands
and slide as desired in the direction of arrow
1
» Fig. 46 .
›
To move the head restraint downwards, press and hold the safety button in the
direction of arrow
2
with one hand and press the head restraint in the direc-
tion of arrow
3
with the other hand.
Removing/installing
›
Pull the head restraint out of the seat backrest as far as the stop.
›
Press the locking button in the direction of the arrow
2
» Fig. 46 and pull the
head restraint out.
›
To re-insert the head restraint, push it far enough down into the seat backrest until the locking button clicks into place.

Rear centre head restraintsFig. 47
Rear seats: middle head re-
straint
First read and observe the introductory information and safety warn-
ings on page 66.
Applies to vehicles using the TOP TETHER system.
Removing/installing
›
Pull the head restraint out of the seat backrest as far as the stop.
›
Press the locking button in the direction of the arrow
1
» Fig. 47 while simulta-
neously pressing the locking button into the opening in the direction of the ar- row
2
using a flat screwdriver with a maximum width of 5 mm, and pull out the
head restraint.
›
To re-insert the head restraint, push it far enough down into the seat backrest until the locking button clicks into place.

Rear seats
 Introduction
This chapter contains information on the following subjects:
Setting theSetting the seats in the longitudinal direction
68
Setting the tilt of the seat backrests
68
Fold downseat backrest and seat fold down completely
68
Unlocking and removing seats
69
Adjusting seats in crosswise direction
70
Folding seats back into the initial position
70
67Seats and useful equipment

This chapter contains information on the following subjects:
Orientation lines and monitored area142
Switching on/off
143
Optical Parking Assistant (hereinafter only as a system) supports the driver when
parking and manoeuvring.
The display of factory-installed navigation system shows the area behind the ve- hicle along with orientation lines » Fig. 121 on page 142 .
The area behind the vehicle is monitored by a camera » Fig. 120 .
The system only operates if the ignition is switched on. More information about displaying and operating in the Display » Operating in-
structions for the navigation system .
WARNING■
The system can not replace the driver's attention. Careless or uncontrolled
use of the system can cause accidents and serious injuries.■
Adjust the speed and driving style to the current visibility, weather, road and
traffic conditions.
■
Make sure that the camera lens is not dirty or covered, otherwise the sys-
tem function can be significantly impaired. For information on clean-
ing » page 191 , Camera lens
■
The camera lens distorts and enlarges the field of view of the difference in
eye sight. Objects are displayed deformed.
CAUTION
■ The system can be used only if tailgate is fully closed.■Some items, such as thin columns, chain link fences or lattice may not be repre-
sented adequately in terms of display resolution.■
It is only a two-dimensional display. Therefore, protruding objects or roadway
depressions, for example, may not be recognised due to lack of space depth.
■
In a crash or damage the vehicle's rear camera can possibly deviate from the
correct position. If this is the case, have the sensor checked by a specialist ga-
rage.
CAUTIONWe recommend that you do not use the system in the following situations.■The display is poor, such as when visibility is poor or in the event of a dirty lens.■
The rear of the vehicle is heavily loaded (the area displayed behind the vehicle is
too short).
CAUTION
The objects shown in the display can be closer or even further away than they ap-
pear. This is especially the case in the following situations.■
When driving from a horizontal surface into a slope or a depression.
■
When driving from a slope or a depression onto a horizontal surface.


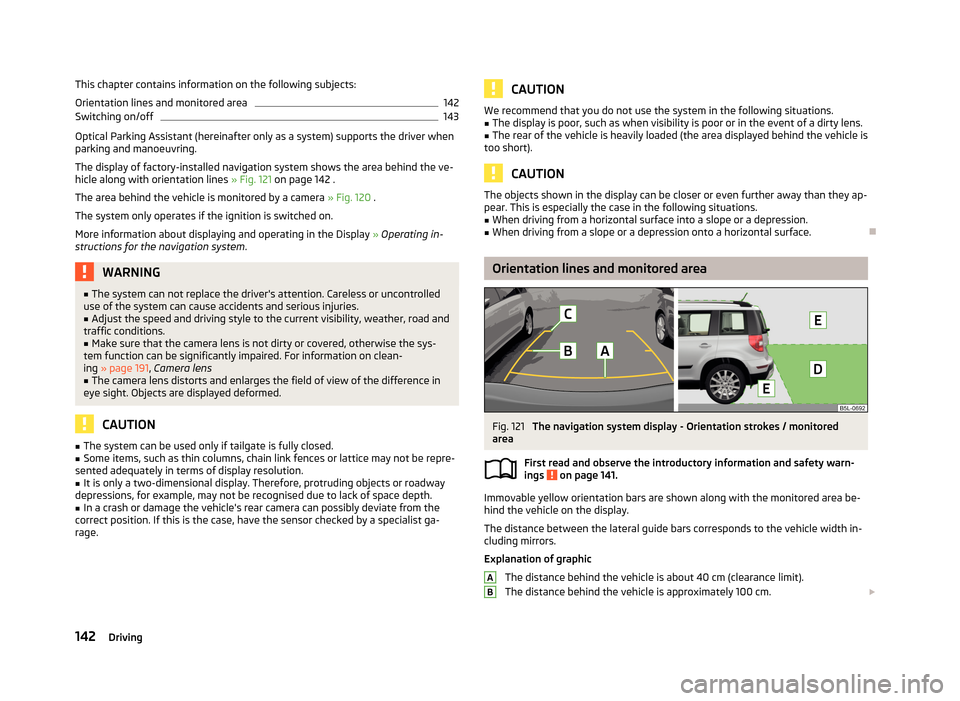

Orientation lines and monitored area
Fig. 121
The navigation system display - Orientation strokes / monitored
area
First read and observe the introductory information and safety warn-
ings
on page 141.
Immovable yellow orientation bars are shown along with the monitored area be-
hind the vehicle on the display.
The distance between the lateral guide bars corresponds to the vehicle width in-
cluding mirrors.
Explanation of graphic The distance behind the vehicle is about 40 cm (clearance limit).The distance behind the vehicle is approximately 100 cm. 
AB142Driving

Always check the inflation pressure when the tyres are cold. Do not reduce the
higher pressure of warm tyres.
With greater additional load, adjust the tyre inflation pressure accordingly.
Driving style
Fast cornering, sharp acceleration and braking increase the wear of your tyres.
Balancing wheels
The wheels of a new vehicle are balanced. When driving, however, there are a
range of factors that may result in an imbalance. This may become apparent by a
“vibration” in the steering.
Have the wheels rebalanced after replacing the tyres.
Wheel alignment errors
Incorrect wheel alignment at the front or rear leads to excess wear of the tyres.
Tyre damage
Drive over kerbs and other such obstacles slowly and perpendicularly wherever
possible in order to avoid damage to tyres and wheel trims.
We recommend checking your tyres and wheel rims for damage (punctures, cuts,
splits and bulges, etc.) on a regular basis. Remove foreign bodies (e.g. small
stones) from the tyre tread immediately.
Replacing wheels
If significantly greater wear is present on the front tyres, we recommend replac-
ing the front wheels with the rear wheels as shown in the diagram » Fig. 166. You
will then obtain approximately the same life for all the tyres.
We recommend that you swap the tyres every 10,000 km in order to achieve even
wear on all tyres and to ensure optimal service life for the tyres.
Storing tyres
Identify disassembled tyres so that the previous direction of rotation can be
maintained if the tyres are reassembled.
Always store wheels or tyres in a cool, dry place that is as dark as possible. Tyres
which are not fixed to a wheel trim should be stored upright.
Wear indicators
The base of the tread of the tyres has 1.6 mm high wear indicators installed. These wear indicators are located multiple times depending on the make and are evenly spaced around the circumference of the tyre » Fig. 165 - 
. Markings on
the walls of the tyres through the letters “TWI”, triangular symbols or other sym- bols identify the position of the wear indicators.Tyre age
Tyres age and lose their original characteristics, even if they are not being used.
Therefore, we recommend not using summer or winter tyres older than 6 or 4 years old respectively.
New tyres
First read and observe the introductory information and safety warn-
ings
on page 212.
Only use radial tyres of the same type, size (rolling circumference) and tread pat-
tern on one axle on all four wheels.
The tyre/wheel combinations which are approved for your vehicle are indicated in
your vehicle documents.
Where possible, replace tyres by axle. Always fit the tyres with the deeper tread
depth to the front wheels.
Explanation of tyre markings
225/50R 17 91 T
What this means is:
CaptionMeaning225Tyre width in mm » Fig. 165 on page 213 - 50Height/width ratio in % » Fig. 165 on page 213 - RCode letter for the type of tyre – Radial » Fig. 165 on page 213 - 17Diameter of wheel in inches » Fig. 165 on page 213 - 91Load index » TSpeed symbol »
The date of manufacture is stated on the tyre wall (possibly on the inside). e.g.
DOT ... 10 13...
means, for example, that the tyre was manufactured in the 10th week of 2013.
Load index
This indicates the maximum permissible load for each individual tyre. 580 kg
615 kg
630 kg 
899192214General Maintenance

The operating weight also contains the weight of the driver (75 kg), the weight of
the operating fluids, the tool kit, and a fuel tank filled to 90 % capacity.
It is possible to calculate the approximate loading capacity from the difference
between the permissible total weight and the operating weight »
.
The payload consists of the following components. › The weight of the rider.
› The weight of all luggage and other loads.
› The weight of the roof, including the roof rack system.
› The weight of the equipment that are excluded from the operating weight.
› The trailer nose weight with trailer (max. 80 kg and 85 kg 1)
).
Fuel consumption and CO 2 emissions according to ECE regulations and EU
directives
The measurement of the intra-urban cycle begins with a cold start of the engine.
Afterwards urban driving is simulated.
In the extra-urban driving cycle, the vehicle is accelerated and decelerated in all
gears, corresponding to daily routine driving conditions. The driving speed varies
between 0 and 120 km/h.
The calculation of the combined fuel consumption considers a weighting of about 37 % for the intra-urban cycle and 63 % for the extra-urban cycle.
WARNINGDo not exceed the specified maximum permissible weights – risk of accident
and damage!
Note
■ If required, you can find out the precise weight of your vehicle at a specialist ga-
rage.■
The fuel consumption and emission values have been determined in accordance
with rules and under conditions set out by legal or technical requirements for de-
termining operational and technical data for motor vehicles.
■
Depending on the range of equipment, style of driving, traffic situation, weather
influences and vehicle condition, consumption values may deviate from the indi-
cated values.

Dimensions
First read and observe the introductory information given on page 244.
Vehicle dimensions (mm)
SpecificationYetiYeti OutdoorLength42224222Width17931793Width including exterior mirror19561956
Height
1.2 ltr/77 kW TSI167116911.6 ltr/77 kW TDI CR16711671Other engines16911691
Clearance
1.2 ltr/77 kW TSI1551801.6 ltr/77 kW TDI CR155155Other engines180180Wheel base25782578Track gauge front/rear1541/15371541/1537


1)
Applies to vehicles 4x4 with the 2.0 l/103 kW TDI CR and 2.0 L/125 kW TDI CR engine. In multi-purpose
vehicles (AF) for vehicles with the 2.0 L/125 kW TDI CR engine and automatic transmission is.
245Technical data
