WARNING■When the warning light  illuminates, immediately reduce the speed and
avoid sudden steering and brake manoeuvres. Stop the vehicle as soon as
possible and inspect the tyres and their inflation pressure.■
Under certain circumstances (e.g. sporty style of driving, wintry or unpaved
roads) the warning light  can be delayed or does not light up at all.
CAUTION
■
The tyre control display does therefore not replace the regular tyre inflation
pressure control, as the system cannot detect an even loss of pressure.■
The system cannot warn in case of very rapid tyre inflation pressure loss, e.g. in
case of sudden tyre damage. In this case carefully bring the vehicle to a standstill
without sudden steering movements or sharp braking.
■
To ensure a proper functioning of the tyre control display, it is necessary to re-
peat the basic setting every 10000 km or once a year.

Spare wheel
Fig. 168
Boot: Spare wheel
First read and observe the introductory information and safety warn-
ings on page 212.
The spare wheel is located in a well under the floor covering in the boot and is
fixed in place with a securing bolt » Fig. 168.
Take out wheel
›
Open the boot lid.
›
Lift up the floor in the luggage compartment.
›
Remove the box with the tool kit.
›
Unscrew the bolt » Fig. 168 in an anti-cloockwise direction.
›Remove the wheel.
Store wheel away›
Place the wheel into the spare wheel well with the wheel rim pointing down- ward.
›
Screw the securing bolt » Fig. 168 in a clockwise direction until the wheel is se-
curely attached.
›
Replace the box with the tool kit.
›
Fold back the floor in the luggage compartment.
›
Shut the boot lid.
Fit a wheel in the appropriate dimensions and design as soon as possible.
If the dimensions or design of the spare wheel differ from the tyres fitted to the
vehicle (e.g. winter tyres or low-profile tyres), it must only be used briefly in the
event of a puncture and if an appropriately cautious style of driving is adop-
ted »
.
Temporary spare wheel
A warning label is displayed on the rim of the temporary spare wheel.
Please note the following if you intend to use the temporary spare wheel. › The warning label must not be covered after installing the wheel.
› Be particularly observant when driving.
› The inflation pressure for the temporary spare wheel is identical to the maxi-
mum inflation pressure for the standard tyres.
› Only use this temporary spare wheel to reach the nearest specialist garage, as it
is not intended for long-term use.
› The tyre inflation pressure of the spare wheel R 16 is 420 kPa.
WARNING■
Never drive with more than one spare wheel mounted!■Never use the temporary spare wheel if it is damaged.■
If the dimensions or design of the temporary spare wheel differ from the fit-
ted tyres, never drive faster than 80 km/h (or 50 mph).
■
Avoid accelerating at full throttle, sharp braking and fast cornering.
CAUTION
Observe instructions on the warning sign of the emergency wheel.
216General Maintenance

Technical data
Technical data
Vehicle data
Introduction
This chapter contains information on the following subjects:
Vehicle identification data
244
Dimensions
245
angle and gradeability
246
Vehicle-specific details per engine type
247
The details given in the vehicle's technical documentation always take prece-
dence over the details in the Owner's Manual.
The listed performance values were determined without performance-reducing
equipment, e.g. air conditioning system.

Vehicle identification data
Fig. 206
Vehicle data sticker/type plate
First read and observe the introductory information given on page 244.
Vehicle data sticker
The vehicle data sticker » Fig. 206 -  is located underneath the floor covering in
the boot.
The vehicle data sticker contains the following data: Vehicle identification number (VIN)
Vehicle type
Gearbox code/paint number/interior equipment/engine output/engine code Partial vehicle description
Operating weight (in kg) Fuel consumption (in ltr/100 km) - intra-urban/extra-urban/combined
CO 2 emission levels - combined (in g/km)
The indicated positions
5
,
6
and
7
on the vehicle data sticker are only valid for
some countries.
Type plate
The type plate » Fig. 206 - 
is located at the bottom of the B-pillar on the driv-
er's side.
The type plate lists the following weights: Maximum permissible gross weight
Maximum permissible towed weight (towing vehicle and trailer)
Maximum permissible front axle load
Maximum permissible rear axle load
Vehicle identification number (VIN)
The vehicle identification number - VIN (vehicle body number) is stamped into the
engine compartment on the right hand suspension strut dome. This number is al-so located on a sign on the lower left hand edge below the windscreen (together
with a VIN bar code).
Engine number
The engine number (three-digit identifier and serial number) is stamped on the
engine block.
Operating weight
The specified operating weight is for orientation purposes only. This value repre- sents the minimum operating weight without additional weight-increasing equip-
ment such as air conditioning system, spare wheel, or trailer hitch. 

1234567891011244Technical data

The operating weight also contains the weight of the driver (75 kg), the weight of
the operating fluids, the tool kit, and a fuel tank filled to 90 % capacity.
It is possible to calculate the approximate loading capacity from the difference
between the permissible total weight and the operating weight »
.
The payload consists of the following components. › The weight of the rider.
› The weight of all luggage and other loads.
› The weight of the roof, including the roof rack system.
› The weight of the equipment that are excluded from the operating weight.
› The trailer nose weight with trailer (max. 80 kg and 85 kg 1)
).
Fuel consumption and CO 2 emissions according to ECE regulations and EU
directives
The measurement of the intra-urban cycle begins with a cold start of the engine.
Afterwards urban driving is simulated.
In the extra-urban driving cycle, the vehicle is accelerated and decelerated in all
gears, corresponding to daily routine driving conditions. The driving speed varies
between 0 and 120 km/h.
The calculation of the combined fuel consumption considers a weighting of about 37 % for the intra-urban cycle and 63 % for the extra-urban cycle.
WARNINGDo not exceed the specified maximum permissible weights – risk of accident
and damage!
Note
■ If required, you can find out the precise weight of your vehicle at a specialist ga-
rage.■
The fuel consumption and emission values have been determined in accordance
with rules and under conditions set out by legal or technical requirements for de-
termining operational and technical data for motor vehicles.
■
Depending on the range of equipment, style of driving, traffic situation, weather
influences and vehicle condition, consumption values may deviate from the indi-
cated values.

Dimensions
First read and observe the introductory information given on page 244.
Vehicle dimensions (mm)
SpecificationYetiYeti OutdoorLength42224222Width17931793Width including exterior mirror19561956
Height
1.2 ltr/77 kW TSI167116911.6 ltr/77 kW TDI CR16711671Other engines16911691
Clearance
1.2 ltr/77 kW TSI1551801.6 ltr/77 kW TDI CR155155Other engines180180Wheel base25782578Track gauge front/rear1541/15371541/1537


1)
Applies to vehicles 4x4 with the 2.0 l/103 kW TDI CR and 2.0 L/125 kW TDI CR engine. In multi-purpose
vehicles (AF) for vehicles with the 2.0 L/125 kW TDI CR engine and automatic transmission is.
245Technical data

Temporary spare wheel216
the rear seats fold down seat backrest and fold seat fully for- ward
68
Tiptronic127
Tools220
TOP TETHER181
Towing228
Towing a trailer152
Towing device Description
152
Drawbar load152
Use and care156
Towing eye front
229
Rear229
Towing protection40
Traction Control System (TCS)137
Trailer152, 156
13-pin power socket157
driving with a trailer157
loading156
Safety eye157
Trailer stabilisation158
Transport Luggage compartment
81
Roof rack system90
Transporting children safely177
TSA158
Turn signal49
Turn signal system Warning light
21
Two-way radio systems100
Type plate244
Tyre inflation pressure Warning light
21
Tyre load-bearing capacity see Wheels
214
Tyre pressure monitor Setting
215
Tyre repairCheck pressure226
Preparations225
Sealing and inflating the tyre226
Tyres212
Inflation pressure213
New214
See Wheels214
Sizes213
Tyre wear indicator213
U
Underbody protection
192
Unleaded petrol135
Unlocking Individual settings
36
KESSY35
Key33
Remote control34
Vehicle key33
Unlocking and locking32
Useful equipment 12-volt power outlet
75
Ashtray74
Car park ticket holder71
Cigarette lighter74
Clothes hook79
Cupholders73
Removable ski bag81
Storage compartment under the front armrest76
Using the information system23
Using the selector lever127
Using the variable loading floor with a spare wheel
90
V
Variable loading floor
88
Removing and fitting carrier rails89
Variable loading floor with spare wheel Removable storage box87
Vehicle battery Automatic load deactivation
210
charging209
Checking the battery electrolyte level209
Cover208
Operation in winter209
Replacing210
Safety instructions207
Vehicle care182
Alcantara194
Artificial leather194
Cloths194
Vehicle Condition See Auto Check Control
13
Vehicle data sticker244
Vehicle dimensions245
Vehicle key Locking
33
Unlocking33
Vehicle tool kit220
vest holder for reflective vest
219
Visibility55
Visors see Sun visors
55
W
Warning at excessive speeds
28
Warning lights14
warning messages Diesel particulate filter
20
Warning symbols see Warning lights
14
Warning triangle219
Warranty5
259Index

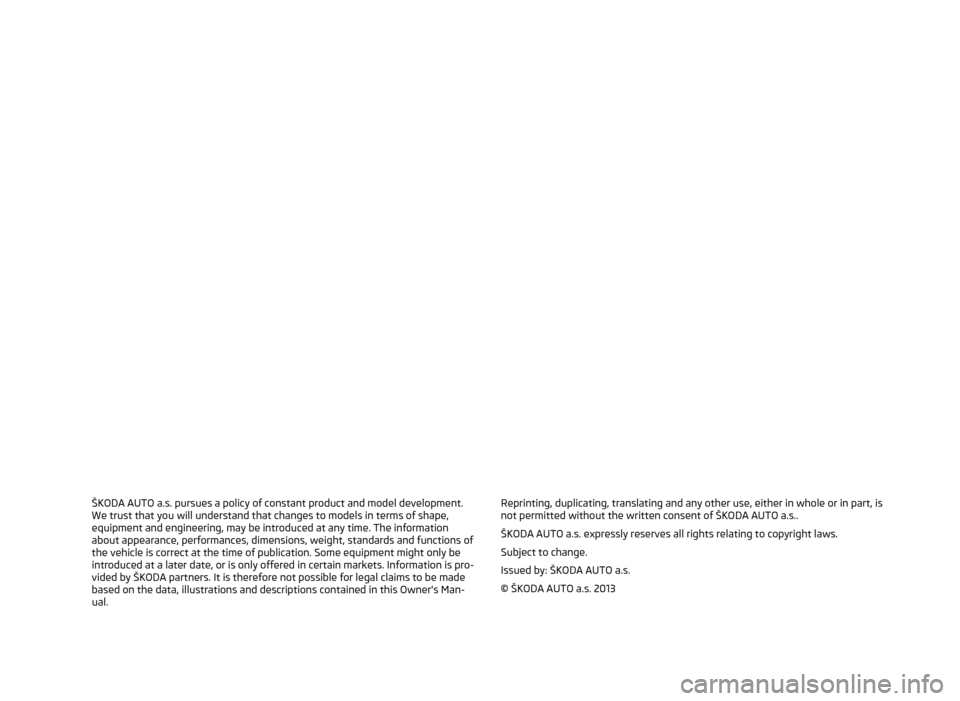

ŠKODA AUTO a.s. pursues a policy of constant product and model development.We trust that you will understand that changes to models in terms of shape,equipment and engineering, may be introduced at any time. The informationabout appearance, performances, dimensions, weight, standards and functions ofthe vehicle is correct at the time of publication. Some equipment might only be
introduced at a later date, or is only offered in certain markets. Information is pro- vided by ŠKODA partners. It is therefore not possible for legal claims to be madebased on the data, illustrations and descriptions contained in this Owner's Man-
ual.Reprinting, duplicating, translating and any other use, either in whole or in part, is
not permitted without the written consent of ŠKODA AUTO a.s..
ŠKODA AUTO a.s. expressly reserves all rights relating to copyright laws.
Subject to change.
Issued by: ŠKODA AUTO a.s.
© ŠKODA AUTO a.s. 2013
