Page 132 of 176

SKODA CITIGO 2013 1.G Owners Manual ›Take the bonnet support out of its holder 3
» Fig. 104 in the direction if the
arrow and secure the opened bonnet by inserting the end of the support in the
opening 4
designed for it.
Closing
�

Page 135 of 176

SKODA CITIGO 2013 1.G Owners Manual Coolant
Introduction
This chapter contains information on the following subjects:
Capacity
132
Checking the coolant level
132
Replenishing
133
The coolant consists of water with coolant additive. T

Coolant
Introduction
This chapter contains information on the following subjects:
Capacity
132
Checking the coolant level
132
Replenishing
133
The coolant consists of water with coolant additive. This mixture guarantees anti- freeze protection, protects the cooling/heater system against corrosion and pre-
vents lime formation.
Vehicles exported to countries with a mild climate are already factory-filled with
a coolant which offers antifreeze protection down to about -25 ℃. In these coun-
tries, the concentration of coolant additive should be at least 40%.
Vehicles exported to countries with a cold climate are already factory-filled with a
coolant which offers antifreeze protection down to about -35 °C. In these coun-
tries, the concentration of coolant additive should be at least 50%.
If a higher concentration of antifreeze is required for climatic reasons, the con-centration of coolant additive can be increased up to a maximum of 60% (anti-
freeze protection down to approx. -40 °C).
When refilling, only use the antifreeze with the title given on the coolant expan-
sion tank » Fig. 108 on page 132.
WARNING■
The engine compartment of your car is a hazardous area. The following
warning instructions must be followed at all times when working in the en-
gine compartment » page 127.■
Do not continue your journey if for some reason it is not possible  to top
up the coolant under the prevailing conditions! Switch off the engine and seek
assistance from a specialist garage.
CAUTION
■ The concentration of coolant additive in the coolant must never be under 40%.■Over 60% of coolant additive in the coolant reduces the antifreeze protection
and cooling effect.■ A coolant additive that does not comply with the correct specifications can sig-
nificantly reduce the corrosion protection.■
Any faults resulting from corrosion may cause a loss of coolant and can conse-
quently result in major engine damage!
■
Do not fill the coolant above the mark
A
» Fig. 108 on page 132.
■
If a fault causes the engine to overheat, we recommend visiting a specialist ga-
rage, as otherwise serious engine damage may occur.

Capacity
First read and observe the introductory information and safety warn-
ings
on page 132.
Coolant capacity (in litres)
Petrol enginesFilling level1.0 ltr./44 kW MPI4.21.0 ltr./55 kW MPI4.21.0 l/50 kW - CNG4.2

Checking the coolant level
Fig. 108
Engine compartment: Coolant
expansion reservoir
First read and observe the introductory information and safety warn-
ings on page 132.
The coolant expansion bottle is located in the engine compartment.
›
Switch off the engine.
›
Open the bonnet » page 128. 
132General Maintenance

Page 136 of 176

SKODA CITIGO 2013 1.G Owners Manual ›Check the level of coolant in the coolant expansion bottle
» Fig. 108. The cool-
ant level when the engine is cold must lie between the “MIN” and “MAX” mark-
ings. The level may also rise

›Check the level of coolant in the coolant expansion bottle
» Fig. 108. The cool-
ant level when the engine is cold must lie between the “MIN” and “MAX” mark-
ings. The level may also rise slightly above the “MAX” marking when the engine is warm.
If the coolant level in the coolant expansion tank is too low, this is indicated by
the warning light  lighting up in the instrument cluster » page 18,  Coolant .
We still recommend inspecting the coolant level directly at the reservoir from
time to time.
Loss of coolant
A loss of coolant is first and foremost an indication of a leak in the system. Do
not merely top up the coolant. Have the cooling system checked by a specialist
garage.

Replenishing
First read and observe the introductory information and safety warn-
ings
on page 132.
Only top up with new coolant.
›
Switch off the engine.
›
Allow the engine to cool.
›
Place a cloth over the cap of the coolant expansion tank and unscrew the cap carefully .
›
Replenish the coolant.
›
Turn the cap until it clicks into place.
Do not use an alternative additive if the specified coolant is not available in an emergency. In this case, use just water and have the correct mixing ratio of water
and coolant additive restored by a specialist garage as soon as possible.

Brake fluid
 Introduction
This chapter contains information on the following subjects:
Checking the brake fluid level
133
Changing
134WARNING■ The engine compartment of your car is a hazardous area. The following
warning instructions must be followed at all times when working in the en-
gine compartment » page 127.■
If the fluid level has dropped below the MIN marking » Fig. 108 on page 132,
 do not continue your journey - there is the risk of an accident! Seek help
from a specialist garage.
■
Do not use used brake fluid - the function of the brake system may be im-
paired – risk of accident!
CAUTION
Brake fluid damages the paintwork of the vehicle.
Note
The brake fluid is changed as part of a compulsory inspection service.
Checking the brake fluid level
Fig. 109
Engine compartment: Brake fluid
reservoir
First read and observe the introductory information and safety warn-
ings on page 133.
The brake fluid reservoir is located in the engine compartment.
›
Switch off the engine.
›
Open the bonnet.
›
Check the level of brake fluid in the reservoir » Fig. 109.
The level must be between the “MIN” and “MAX” markings. 
133Inspecting and replenishing

Page 158 of 176

SKODA CITIGO 2013 1.G Owners Manual Replacing fuses›Press the button 1 » Fig. 124 .›
Push the lid in the direction of the arrow.
›2
Remove the bracket.
›
Place the bracket on the respective fuse and pull this out.
›
Insert

Page 167 of 176

SKODA CITIGO 2013 1.G Owners Manual Index
Numbers and Symbols
12-volt power socket
52
A
Abroad Driving abroad
79
Unleaded petrol79
ABS81
Warning light19
Accessories110
Adjusting Exterior mirrors
41
Interior mirror40
Seat43
Steering whee

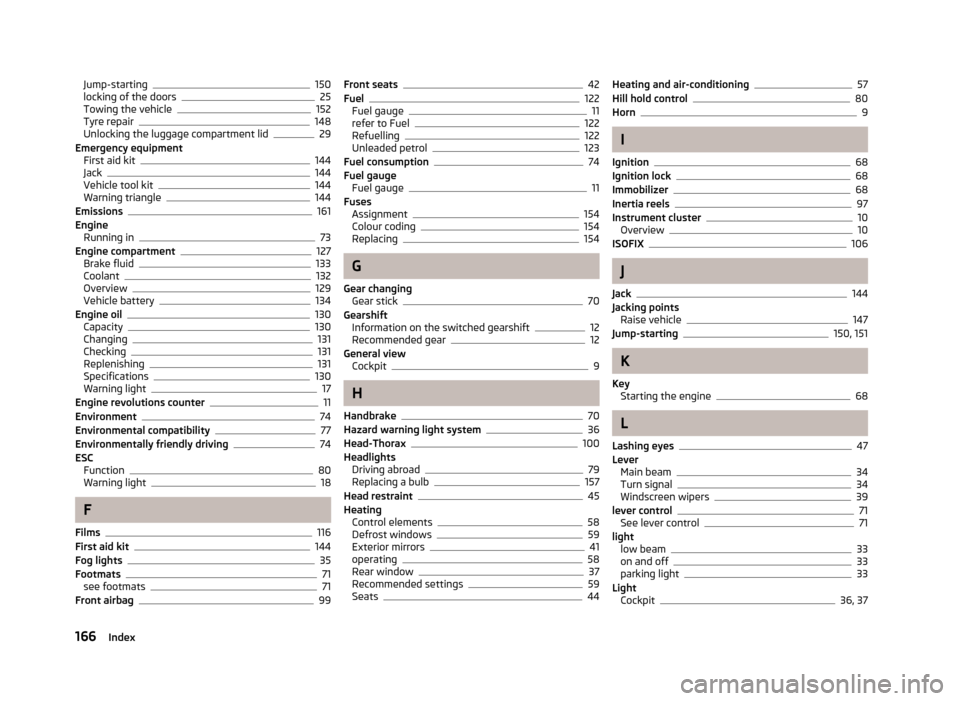

Page 169 of 176

SKODA CITIGO 2013 1.G Owners Manual Jump-starting150
locking of the doors25
Towing the vehicle152
Tyre repair148
Unlocking the luggage compartment lid29
Emergency equipment First aid kit
144
Jack144
Vehicle tool kit144
Warning triangle1

Page 171 of 176

SKODA CITIGO 2013 1.G Owners Manual R
Radiator fan
129
Raise vehicle147
Rear-view mirror Exterior mirrors
41
Rear fog light35
Rear mirror40
Interior mirror40
Rear seats45
Folding forward45
Rear window heating37
Rear windows Closing
31
O

R
Radiator fan
129
Raise vehicle147
Rear-view mirror Exterior mirrors
41
Rear fog light35
Rear mirror40
Interior mirror40
Rear seats45
Folding forward45
Rear window heating37
Rear windows Closing
31
Opening31
Recirculated air mode61
Recommended gear12
Refuelling122
Fuel122
Regulation Headlight beam
34
Remote control27
locking28
Synchronisation process28
unlocking28
Remote control key Replacing the battery
23
Repairs and technical alterations110
Replace vehicle battery
137
Replace vehicle battery
137
Replacing Bulb for the fog light
158
Bulb for the licence plate light159
Bulb for the side turn signal lights158
Bulbs157
Bulbs in the tail light159
Fuses154
Fuses in the dash panel156
Fuses in the engine compartment156
Windscreen wiper blade40
Windscreen wiper blades39
Replenishing Coolant
133
Engine oil131
Windscreen washer fluid129
Roof rack mounting points
50
Roof rack system Roof load
50
Running-in The first 1500 km
73
Running in Brake pads
74
Engine73
Tyres74
S
Safe securing system
26
Safety90
Child safety103
Child safety seats103
Correct seated position91
Head restraints45
ISOFIX106
TOP TETHER107
Safety belt Warning light
21
Saving electrical energy74
Seals Taking care of your vehicle
116
Seat Adjusting
43
Seat belts94
Belt tensioners97
Cleaning121
fastening and unfastening96
Inertia reels97
The physical principle of a frontal collision95
Warning light17
Seats Folding forwards
45
Head restraints45
Heating44
Seats and stowing42
Service111
Service display12
Service intervals108
Setting Air conditioning system
61
Heating59
Setting the clock Clock
14
Shifting gears Driving and saving energy
75
Side airbag100
Sliding/tilting roof31
Closing31
Opening and tilting31
Operation31
Snow chains143
Spare wheel141
Speedometer11
Speed symbol See Wheels
141
Spoiler112
START-STOP85
Manually activating/deactivating the system86
Operating conditions of the system85
Starting/shutting down the engine85
Starting and stopping the engine with the key67
Starting engine Jump-starting
150
Starting the engine Jump-starting
151
Key68
168Index
