2013 Seat Ibiza ST window

191
Vehicle maintenance and cleaning
If possible, use a de-icing spray to remove ice. If you use an ice scraper,
push it in one direction only without swinging it.
Use window cleaner or a silicone remover to clean rubber, oil, grease and
silicone deposits off.
Wax deposits can be removed with a special cleaner available in your Tech-
nical Services. Wax deposits on the windscreen could cause the wiper
blades to judder. Adding a window cleaner that dissolves wax to the wind-
screen washer fluid prevents wiper blades from juddering, but wax deposits
are not removed.
CAUTION
● Never use warm or hot water to remove snow and ice from windows and
mirrors. This could cause the glass to crack!
● The heating element for the rear window is located on the inner side of
the window. To prevent damage, do not put stickers over the heating ele-
ments on the inside of the window. 
Cleaning windscreen wiper blades
Clean wiper blades improve visibility.
1. Use a soft cloth to remove dust and dirt from the windscreen wiper blades.
2. Use window cleaner to clean the windscreen wiper blades. Use a sponge or a cloth to remove stubborn dirt. Rubber seals maintenance
If rubber seals are well looked after, they will not freeze so
quickly.
1. Use a soft cloth to remove dust and dirt from the rubber seals.
2. Apply a specialist care product to the rubber seals.
The rubber strips on the doors, windows, bonnet and rear lid will remain
pliable and last longer if they are treated with a suitable care product (for
example silicone spray).
Caring for rubber seals will also prevent premature ageing and leaks. The
doors will be easier to open. If rubber seals are well looked after, they will
not freeze so quickly in winter. 
Door lock cylinders
The door lock cylinders can freeze up in winter.
To de-ice the lock cylinders you should only use spray with lubricating and
anti-corrosive properties. 
Cleaning chrome parts
1. Clean chrome parts with a damp cloth.
2. Polish chrome parts with a soft, dry cloth. If this does not provide satisfying results, use a specialist chrome cleaning
product. Chrome cleaning products will remove stains from the surface. 
Safety FirstOperating instructionsPractical TipsTechnical Specifications

217
Checking and refilling levels
To change the blades it is necessary to change the rest position of
the wipers to the service position.
Do not change the windscreen wipers when out of the service posi-
tion, as it could cause paint to flake off the bonnet due to friction
with the windscreen wiper arm.
Service position (For changing wiper blades)
– Ensure that the wiper blades are not frozen.
– Turn ignition on and off and then (before approx. 9 sec.) move
the windscreen wiper lever to the intermittent wipe position.
The windscreen wipers will move to the service position
⇒ Fig. 140.
Removing the wiper blade
– Lift the windscreen wiper arm.
– Press on the securing tab ⇒ Fig. 141.
– Extract the wiper blade from the wiper arm.
Fitting the wiper blade
– Insert the wiper blade onto the windscreen wiper arm until it
clicks into place.
– Place the windscreen wiper arms to their initial position.
If the windscreen wipers smear , they should be replaced if they are dam-
aged, or cleaned if they are soiled.
If this does not produce the desired results, the setting angle of the wind-
screen wiper arms might be incorrect. They should be checked by a special-
ised workshop and corrected if necessary.
WARNING
Do not drive unless you have good visibility through all windows!
● Clean the windscreen wiper blades and all windows regularly.
● The wiper blades should be changed once or twice a year.
CAUTION
● Damaged or dirty windscreen wipers could scratch the windscreen.
● Never use fuel, nail varnish remover, paint thinner or similar products to
clean the windows. This could damage the windscreen wiper blades.
● Never move the windscreen wiper or windscreen wiper arm manually.
This could cause damage.
● To avoid damage to the bonnet and the windscreen wiper arms, the lat-
ter should only be lifted off the windscreen when in service position.
Note
● The windscreen wiper arms can be moved to the service position only
when the bonnet is properly closed.
● You can also use the service position, for example, if you want to fix a
cover over the windscreen in the winter to keep it clear of ice. 
Safety FirstOperating instructionsPractical TipsTechnical Specifications

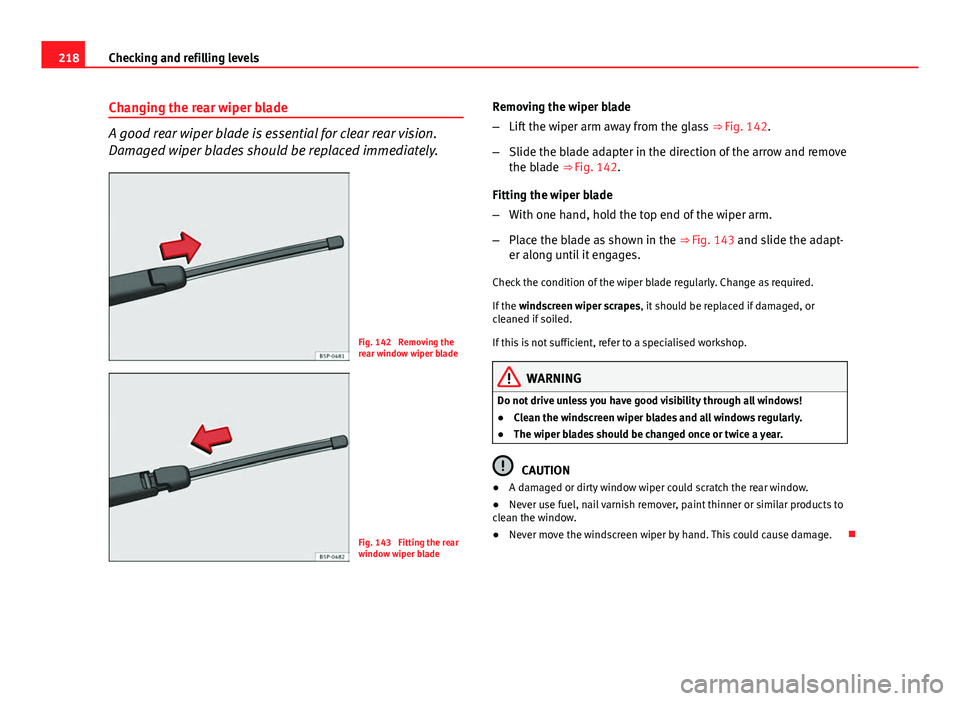

218Checking and refilling levels
Changing the rear wiper blade
A good rear wiper blade is essential for clear rear vision.
Damaged wiper blades should be replaced immediately.
Fig. 142 Removing the
rear window wiper blade
Fig. 143 Fitting the rear
window wiper blade Removing the wiper blade
–
Lift the wiper arm away from the glass ⇒ Fig. 142.
– Slide the blade adapter in the direction of the arrow and remove
the blade ⇒ Fig. 142.
Fitting the wiper blade
– With one hand, hold the top end of the wiper arm.
– Place the blade as shown in the ⇒ Fig. 143 and slide the adapt-
er along until it engages.
Check the condition of the wiper blade regularly. Change as required.
If the windscreen wiper scrapes, it should be replaced if damaged, or
cleaned if soiled.
If this is not sufficient, refer to a specialised workshop.
WARNING
Do not drive unless you have good visibility through all windows!
● Clean the windscreen wiper blades and all windows regularly.
● The wiper blades should be changed once or twice a year.
CAUTION
● A damaged or dirty window wiper could scratch the rear window.
● Never use fuel, nail varnish remover, paint thinner or similar products to
clean the window.
● Never move the windscreen wiper by hand. This could cause damage. 

221
Checking and refilling levels
WARNING (Continued)
● Fires, sparks, open flames and smoking are prohibited. When han-
dling cables and electrical equipment, avoid causing sparks and electro-
static charge. Never short the battery terminals. High-energy sparks can
cause injury.
● A highly explosive mixture of gases is released when the battery is
under charge. The batteries should be charged in a well-ventilated room
only.
● Keep children away from acid and batteries.
● Before working on the electrical system, you must switch off the en-
gine, the ignition and all consumers. The negative cable on the battery
must be disconnected. When a light bulb is changed, you need only
switch off the light.
● Deactivate the anti-theft alarm by unlocking the vehicle before you
disconnect the battery! The alarm will otherwise be triggered.
● When disconnecting the battery from the vehicle on-board network,
disconnect first the negative cable and then the positive cable.
● Switch off all electrical consumers before reconnecting the battery.
Reconnect first the positive cable and then the negative cable. Never re-
verse the polarity of the connections. This could cause an electrical fire.
● Never charge a frozen battery, or one which has thawed. This could
result in explosions and chemical burns. Always replace a battery which
has frozen. A flat battery can also freeze at temperatures close to 0 °C
(+32 °F).
● Ensure that the vent hose is always connected to the battery.
● Never use a defective battery. This could cause an explosion. Replace
a damaged battery immediately.
● For vehicles with the battery in the luggage compartment: Check that
the battery gas ventilation hose is securely attached.CAUTION
● Never disconnect the battery if the ignition is switched on or if the en-
gine is running. This could damage the electrical system or electronic com-
ponents.
● Do not expose the battery to direct sunlight over a long period of time,
as the intense ultraviolet radiation can damage the battery housing.
● If the vehicle is left standing in cold conditions for a long period, protect
the battery from freezing. If it freezes it will be damaged. 
Checking the electrolyte level
The electrolyte level should be checked regularly in high-
mileage vehicles, in hot countries and in older batteries. – Open the engine bonnet and the battery cover ⇒ 
in Safety in-
structions on working in the engine compartment on page 207
⇒ 
in Warnings on handling the battery on page 220. For vehi-
cles with the battery under the spare wheel, open the rear lid
and lift the floor covering. The battery is located next to the
spare wheel.
– Check the colour display in the "magic eye" on the top of the
battery.
– If there are air bubbles in the window, tap the window gently
until they disperse.
The position of the battery is shown in the corresponding engine compart-
ment diagram ⇒ page 267. The location of the battery in the luggage com-
partment can be seen in ⇒ Fig. 195.
The “magic eye” indicator, located on the top of the battery changes colour,
depending on the charge state and electrolyte level of the battery. 
Safety FirstOperating instructionsPractical TipsTechnical Specifications

258If and when
itself of the vehicle with the flat battery. However, connect it to
a point as far as possible from the battery A
.
6. Position the leads in such a way that they cannot come into contact with any moving parts in the engine compartment.
Starting
7. Start the engine of the vehicle with the boosting battery and let it run at idling speed.
8. Start the engine of the vehicle with the flat battery and wait two or three minutes until the engine is “running”.
Removing the jump leads
9. Before you remove the jump leads, switch off the dipped beam headlights (if they are switched on).
10.Turn on the heater blower and heated rear window in the vehi- cle with the flat battery. This helps minimise voltage peaks
which are generated when the leads are disconnected.
11.When the engine is running, disconnect the leads in reverse or- der to the details given above.
Connect the battery clamps so they have good metal-to-metal contact with
the battery terminals.
If the engine fails to start, switch off the starter after about 10 seconds and
try again after about half a minute.WARNING
● Please note the safety warnings referring to working in the engine
compartment ⇒ page 206, Working in the engine compartment.
● The battery providing assistance must have the same voltage as the
flat battery (12V) and approximately the same capacity (see imprint on
battery). Failure to comply could result in an explosion.
● Never use jump leads when one of the batteries is frozen. Danger of
explosion! Even after the battery has thawed, battery acid could leak and
cause chemical burns. If a battery freezes, it should be replaced.
● Keep sparks, flames and lighted cigarettes away from batteries, dan-
ger of explosion. Failure to comply could result in an explosion.
● Observe the instructions provided by the manufacturer of the jump
leads.
● Do not connect the negative cable from the other vehicle directly to
the negative terminal of the flat battery. The gas emitted from the battery
could be ignited by sparks. Danger of explosion.
● Do not attach the negative cable from the other vehicle to parts of the
fuel system or to the brake line.
● The non-insulated parts of the battery clamps must not be allowed to
touch. The jump lead attached to the positive battery terminal must not
touch metal parts of the vehicle, this can cause a short circuit.
● Position the leads in such a way that they cannot come into contact
with any moving parts in the engine compartment.
● Do not lean on the batteries. This could result in chemical burns.
Note
The vehicles must not touch each other, otherwise electricity could flow as
soon as the positive terminals are connected. 

Central lock buttonLocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . 82 Automatic speed-dependent locking . . . . . 84
Locking system for involuntary unlocking . 84
Selective unlocking system . . . . . . . . . . . . . 83
Unlocking system . . . . . . . . . . . . . . . . . . . . . 84
Cetane number . . . . . . . . . . . . . . . . . . . . . . . . . 205
Changing bulbs interior light and reading light . . . . . . . . . 255
Changing bulbs on tail lights . . . . . . . . . 250, 251
Changing gear see Manual gearbox . . . . . . . . . . . . . . . . . . 156
Changing gear in tiptronic mode . . . . . . . . . . 160
Changing rear lights on the rear lid . . . . . . . . . . . . . . . . . . . . . . . 253
on the wing . . . . . . . . . . . . . . . . . . . . . . . . . 251
Changing single headlight bulbs Turn signal bulb . . . . . . . . . . . . . . . . . . . . . 241
Changing the AFS headlight bulbs Xenon lights . . . . . . . . . . . . . . . . . . . . . . . . 247
Changing the bulbs AFS headlight bulbs . . . . . . . . . . . . . . . . . . 247
fog light bulbs . . . . . . . . . . . . . . . . . . . . . . 248
luggage compartment light . . . . . . . . . . . . 256
number plate light . . . . . . . . . . . . . . . . . . . 255
Side turn signal lights . . . . . . . . . . . . . . . . 254
Changing the main headlight bulb turn signal lights . . . . . . . . . . . . . . . . . . . . 245
Changing the main headlight bulbs turn signal lights . . . . . . . . . . . . . . . . . . . . 247 Changing the single headlight bulbs
Dipped/main beam . . . . . . . . . . . . . . . . . . 242
Side light . . . . . . . . . . . . . . . . . . . . . . . . . . 242
Changing windscreen wiper blades . . . . . . . . 216
Chassis number . . . . . . . . . . . . . . . . . . . . . . . . 264
Checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Checking battery electrolyte level . . . . . . . . . . 221
Checking engine oil level . . . . . . . . . . . . . . . . . 211
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Child seat Categorisation in groups . . . . . . . . . . . . . . . 45
Group 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Group 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Group 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Groups 0 and 0+ . . . . . . . . . . . . . . . . . . . . . . 45
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . 43
Securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . 49
on the front passenger seat . . . . . . . . . . . . . 31
Top Tether system . . . . . . . . . . . . . . . . . . . . 50
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . 129
Cleaning alloy wheel rims . . . . . . . . . . . . . . . . 192
Cleaning chrome . . . . . . . . . . . . . . . . . . . . . . . 191
Cleaning engine compartment . . . . . . . . . . . . 193
Cleaning steel wheel rims . . . . . . . . . . . . . . . . 192
Cleaning windows . . . . . . . . . . . . . . . . . . . . . . 190
Climatronic automatic mode . . . . . . . . . . . . . . . . . . . . . 144
controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
General notes . . . . . . . . . . . . . . . . . . . . . . . 145
manual mode . . . . . . . . . . . . . . . . . . . . . . . 144 Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Cloth seat covers cleaning . . . . . . . . . . . . . . . . 194
Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Coming Home function . . . . . . . . . . . . . . . . . . 105
Compartment for on-board documentation . . 125
Control
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . 115
control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Control lighting . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Controls Electric windows . . . . . . . . . . . . . . . . . . . . . . 96
Convenience closing Sliding/tilting sunroof . . . . . . . . . . . . . . . . 100
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Convenience opening Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . 213, 214
Coolant level . . . . . . . . . . . . . . . . . . . . . . . . . . . 214 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 75
Coolant loss . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Coolant temperature control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 75
Safety instructions . . . . . . . . . . . . . . . . . . . . 76
Correct adjustment of front head restraints . . . 13
Correct sitting position front passenger . . . . . . . . . . . . . . . . . . . . . . 11
Incorrect sitting position . . . . . . . . . . . . . . . 14
passenger . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cruise control Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 73
Cruise control system . . . . . . . . . . . . . . . . . . . . 171
284 Index

Environmental tipAvoiding pollution . . . . . . . . . . . . . . . . . . . 201
ESC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72, 176 see also Electronic Stability Control . . . . . 148
Exhaust gas purification system . . . . . . . . . . . 180
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 190
External aerial . . . . . . . . . . . . . . . . . . . . . . . . . . 197
F
Fabric trim cleaning . . . . . . . . . . . . . . . . . . . . . 194
Fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Fire extinguisher . . . . . . . . . . . . . . . . . . . . . . . . 132
First-aid kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Fog lights bulb . . . . . . . . . . . . . . . . . . . . . . . . . 248
Fog lights with cornering function . . . . . . . . . 105
Footwell lights . . . . . . . . . . . . . . . . . . . . . . . . . 110
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . 37
Front ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Front drink holder . . . . . . . . . . . . . . . . . . . . . . . 127
Front interior light . . . . . . . . . . . . . . . . . . . . . . 109
Front parking aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Front passenger airbag deactivation . . . . . . . . 41
Front reading light . . . . . . . . . . . . . . . . . . . . . . 109 Front seat adjustment
Lumbar support . . . . . . . . . . . . . . . . . . . . . 120
Fuel Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Fuel consumption . . . . . . . . . . . . . . . . . . . 182, 264
Fuel level Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Fuel reserve . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Fuel tank see Fuel reserve . . . . . . . . . . . . . . . . . . . . . . 74
Fuel Tank Opening the fuel tank flap . . . . . . . . . . . . . 200
Fuel: save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237 Fuse box . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Identifying blown fuses . . . . . . . . . . . . . . . 239
Identifying by colours . . . . . . . . . . . . . . . . 238
Preparation before replacing . . . . . . . . . . . 239
Replacement . . . . . . . . . . . . . . . . . . . . . . . . 239
G
Gear-change indicator . . . . . . . . . . . . . . . . . . . 163
Gear shift pattern . . . . . . . . . . . . . . . . . . . . . . . 156
General overview of the engine compartment 267
Glove compartment . . . . . . . . . . . . . . . . . . . . . 125
Glove compartment light . . . . . . . . . . . . . . . . . 110
Glow plug system . . . . . . . . . . . . . . . . . . . . . . . 151 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 70 H
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 165
Hazard warning lights . . . . . . . . . . . . . . . . . . . 106
HBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Headlight flashers . . . . . . . . . . . . . . . . . . . . . . 108
Headlight range control . . . . . . . . . . . . . . . . . . 103
Headlights Driving abroad . . . . . . . . . . . . . . . . . . . . . . 184
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Headlight washer . . . . . . . . . . . . . . . . . . . . 113
Head restraints Adjusting . . . . . . . . . . . . . . . . . . . . . . 118, 119
Adjustment of the head restraint angle . . 119
Removing . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Heated exterior mirrors . . . . . . . . . . . . . . . . . . 115
Heated front seats . . . . . . . . . . . . . . . . . . . . . . 121
Heated rear window Heating element wires . . . . . . . . . . . . . . . . 191
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Heating system . . . . . . . . . . . . . . . . . . . . . . . . . 138
High pressure cleaners . . . . . . . . . . . . . . . . . . 189
Hill driving assistant . . . . . . . . . . . . . . . . . . . . 166
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
How to jump start description . . . . . . . . . . . . . 257
Hydraulic Brake Assist Automatic hazard warning lights activa-tion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
286 Index

I
Identification plate . . . . . . . . . . . . . . . . . . . . . . 263
Ignition key . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Information in the multifunction display Memory displays . . . . . . . . . . . . . . . . . . . . . 61
Instrument and switch lighting . . . . . . . . . . . . 103
Instrument lighting . . . . . . . . . . . . . . . . . . . . . . 55
Instrument panel Service interval display . . . . . . . . . . . . . . . . 63
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Interior rear vision mirror . . . . . . . . . . . . . . . . . 114
Interval wipe, windscreen . . . . . . . . . . . . . . . . 111
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
J Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . 256
Jump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
K
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
L
Leather cleaning . . . . . . . . . . . . . . . . . . . . . . . . 194
Leaving Home function . . . . . . . . . . . . . . . . . . 105
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101 Load compartment in the luggage compart-
ment
see Loading the luggage compartment . . . 16
Loading the luggage compartment . . . . . . . . . . 16
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
LPG . . . . . . . . . . . . . . . . . . . . . . . . . . 58, 152, 202
LPG system Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Filler neck adapter . . . . . . . . . . . . . . . . . . . 203
Level indicator . . . . . . . . . . . . . . . . . . . . . . . 58
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Luggage compartment . . . . . . . . . . . . . . . . . . . 132 Fastening rings . . . . . . . . . . . . . . . . . . . . . . 133
Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Luggage net . . . . . . . . . . . . . . . . . . . . . . . . 134
see also Loading the luggage compartment . .16
Luggage compartment light . . . . . . . . . . 110, 256
M
Main beam . . . . . . . . . . . . . . . . . . . . . . . . 101, 108
Main beam headlights control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 75
Maintenance Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Maintenance and cleaning . . . . . . . . . . . . . . . 187
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . 156
Manual heating . . . . . . . . . . . . . . . . . . . . . . . . 138 controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137 Manual heating system
Defrosting the windscreen . . . . . . . . . . . . . 138
Demisting the windscreen and side win-dows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
MFI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Mirrors Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . 115
Interior rear vision mirror . . . . . . . . . . . . . . 114
vanity mirror . . . . . . . . . . . . . . . . . . . . . . . . 110
Mobile phone . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Multifunction display . . . . . . . . . . . . . . . . . . . . . 61
N
Number of seats . . . . . . . . . . . . . . . . . . . . . . . . . 19
O
Observations . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Octane number . . . . . . . . . . . . . . . . . . . . . . . . . 205
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . 210
One-touch opening and closing Electric windows . . . . . . . . . . . . . . . . . . . . . . 97
Opening and locking . . . . . . . . . . . . . . . . . . . . . 93
Operation when a fault occurs panoramic/tilting sunroof . . . . . . . . . . . . . 100
Outside temperature display . . . . . . . . . . . . . . . 60
Outside temperature indicator . . . . . . . . . . . . . 62
287
Index
