Cockpit
Warning and indicator lamps General description
The warning and indicator lamps indicate a number of dif-
ferent functions and possible faults.
Fig. 45 Instrument panel with warning and indicator lamps
Exhaust emission control system⇒ page 68
Airbag system⇒ page 68
Tyre pressure too low⇒ page 69
Cruise speed (Cruise control)⇒ page 69
Trailer turn signals⇒ page 69
Anti-lock brake system (ABS)⇒ page 70
Seat belt warning⇒ page 70
If it stays lit: ASR switched off⇒ page 71
⇒ page 71
⇒ page 173
Left turn signals⇒ page 71

If flashing: the Electronic Stability Control
(ESC) is working or the ASR is working
If the following remain lit: ESC or ASR
faulty⇒ page 71
⇒ page 71
⇒ page 173
Alternator⇒ page 72
Main beam headlights⇒ page 72
Handbrake on⇒ page 72
⇒ page 79
Engine management (alternative to )⇒ page 72
Glow plug system (alternative to )⇒ page 72
Fault in brake system⇒ page 73
Right turn signals⇒ page 71 
Safety FirstOperating instructionsPractical TipsTechnical Specifications

72Cockpit
Alternator 
The warning lamp signals a fault in the alternator or in the
vehicle's electrical system.
The control lamp  lights up when the ignition is switched on. It should
switch off after the engine has started.
The alternator is disconnected at very low temperatures and when the en-
gine is cold in order to facilitate starting.
Depending on the external temperature, the warning lamp  might remain
on for up to 5 seconds after the engine has been started. This does not
therefore indicate a fault.
If the warning lamp  lights up when you are driving, you can normally
continue as far as the nearest specialised workshop. However, given that
the battery will be running down, any electrical consumption not absolutely
vital should be switched off.
CAUTION
If the coolant warning lamp  in the instrument panel lights up as well as
the alternator waning lamp while driving ⇒  page 81, stop the vehicle im-
mediately and switch off the engine. In this case the coolant pump is no
longer working, and there is a risk of engine damage. 
Main beam headlights 
The indicator lamp  lights up when the main beams are on or when the
headlight flasher is operated.
For further information on the main beam headlights, see ⇒  page 124.Handbrake 
This lamp lights up when the handbrake is applied.
If you drive faster than 5 km/h (4 mph) with the handbrake on, the following
message will appear on the instrument panel display 1)
: HANDBRAKE ON. You
will also hear an acoustic warning signal ⇒ page 79.
Engine management 
This warning lamp monitors the engine management sys-
tem for petrol engines.
The control lamp  (Electronic Power Control) lights up while the function
is being checked.
Note
If the warning lamp lights up while the vehicle is moving, this indicates a
fault in the engine management system. The vehicle must be taken immedi-
ately to a specialised workshop to have the engine serviced. 
Glow plug system 
The control lamp lights up while the glow plugs are preheat-
ing the diesel engine. The control lamp  lights up while the glow plugs are preheating. When
the indicator lamp goes out the engine should be started straight away. 
1)
Depending on the version of the model.

81
Cockpit
WARNING
● Before opening the bonnet and checking the brake fluid level, ob-
serve the warning information in ⇒ page 235, Work in the engine com-
partment.
● If the brake fluid level in the reservoir is too low, this could result in
an accident. Do not drive on! Obtain technical assistance.
● If the brake warning lamp lights up together with the ABS warning
lamp, this can mean that there is a fault in the ABS control function. As a
result, the rear wheels can lock relatively easily when braking. Under cer-
tain circumstances, the rear of the vehicle could suddenly sway from side
to side, with the subsequent danger of skidding. Drive carefully to the
nearest specialised workshop and have the fault repaired.

Fault in the cooling system 
Faults in the cooling system must be repaired immediately.
If the  symbol flashes in the display, this means that either the
coolant temperature is too high or the coolant level is too low. The
following message will appear in the display together with the
symbol:
Switch off engine and check coolant level
– Stop the vehicle.
– Switch the ignition off.
– Check the coolant level ⇒ page 241.
– Add more coolant if necessary ⇒ page 242.
– Wait for the symbol to go out before driving on. –
Obtain professional assistance if necessary.
If the coolant level is correct, the overheating may be caused by a malfunc-
tion of the radiator fan.
If the alternator warning lamp lights up as well ⇒ page 72, it is possible that
the drive belt has broken.
CAUTION
Do not drive on if the symbol  has come on to indicate a fault in the cool-
ing system, otherwise there is a risk of engine damage. 
Engine oil pressure too low 
If the engine oil pressure is too low the fault must be re-
paired immediately.
If the  symbol flashes in the display, the oil pressure is too low.
The following message will appear in the display together with the
symbol:
Switch off engine, check oil level
– Stop the vehicle.
– Switch the ignition off.
– Check the engine oil level ⇒ page 239.
– Obtain professional assistance if necessary.
Engine oil level too low
If the engine oil level is too low, add more oil ⇒ page 240.

Safety FirstOperating instructionsPractical TipsTechnical Specifications

84Cockpit

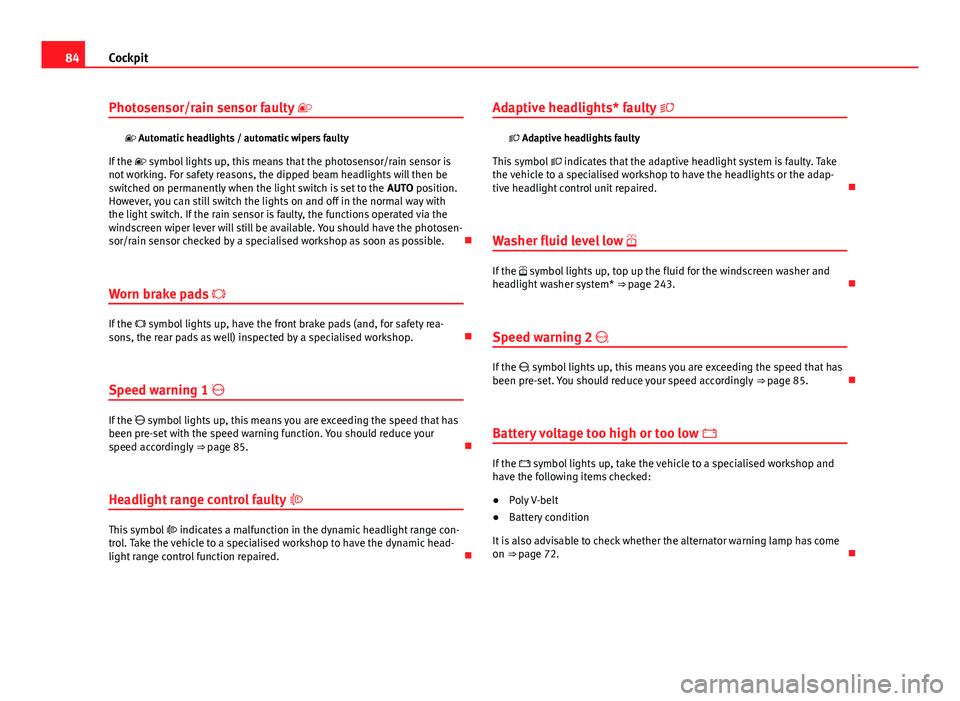

Photosensor/rain sensor faulty 
 Automatic headlights / automatic wipers faulty
If the  symbol lights up, this means that the photosensor/rain sensor is
not working. For safety reasons, the dipped beam headlights will then be
switched on permanently when the light switch is set to the AUTO position.
However, you can still switch the lights on and off in the normal way with
the light switch. If the rain sensor is faulty, the functions operated via the
windscreen wiper lever will still be available. You should have the photosen-
sor/rain sensor checked by a specialised workshop as soon as possible. 
Worn brake pads 
If the  symbol lights up, have the front brake pads (and, for safety rea-
sons, the rear pads as well) inspected by a specialised workshop. 
Speed warning 1 
If the  symbol lights up, this means you are exceeding the speed that has
been pre-set with the speed warning function. You should reduce your
speed accordingly ⇒ page 85. 
Headlight range control faulty 
This symbol  indicates a malfunction in the dynamic headlight range con-
trol. Take the vehicle to a specialised workshop to have the dynamic head-
light range control function repaired. Adaptive headlights* faulty

 Adaptive headlights faulty
This symbol  indicates that the adaptive headlight system is faulty. Take
the vehicle to a specialised workshop to have the headlights or the adap-
tive headlight control unit repaired. 
Washer fluid level low 
If the  symbol lights up, top up the fluid for the windscreen washer and
headlight washer system* ⇒ page 243. 
Speed warning 2 
If the  symbol lights up, this means you are exceeding the speed that has
been pre-set. You should reduce your speed accordingly ⇒ page 85.
Battery voltage too high or too low 
If the  symbol lights up, take the vehicle to a specialised workshop and
have the following items checked:
● Poly V-belt
● Battery condition
It is also advisable to check whether the alternator warning lamp has come
on ⇒ page 72. 

178Driving
● The Start-Stop System is manually deactivated.
● The windscreen de-mist function is turned on.
● The temperature of the passenger compartment exceeds the comfort
limits (button ECON
should not be selected).
● If more than 50% of the airflow that the fan can supply is ordered.
● Temperature setting HI or LO is selected.
● The engine coolant temperature is insufficient.
● The alternator is faulty, for example the V-belt has ruptured.
● If any of the conditions described in the previous section are not fulfil-
led.
WARNING
Never allow the vehicle to move with the engine off for any reason. You
could lose control of your vehicle. This could cause an accident and seri-
ous injury.
● Power steering does not work when the engine is not running. That is
why it is much more difficult to turn the steering wheel.
● Turn off the Start-Stop system when driving through water (fording
streams, etc.).
Note
● For vehicles with the Start-Stop function and a manual gearbox, when
the engine is started, the clutch must be pressed.
● When the conditions for the Start-Stop function are not fulfilled, the in-
strument panel displays the Start-Stop indicator dimmed.
● If the steering wheel is turned more than 270°, Stop will not function;
however, the angle of steering wheel turn does not affect starting the vehi-
cle. Activating and deactivating the Start-Stop function
Fig. 148 The Start-Stop
function button.
Every time the ignition is switched on, the Start-Stop function is au-
tomatically switched on.
Manually deactivating the Start-Stop function
– Press the  ⇒ Fig. 148 button located on the centre console.
When the Start-Stop function is deactivated, the pushbutton in-
dicator lights.
– If the Start-Stop function is operating then the engine starts im-
mediately.
Switching the Start-Stop function on manually
– Press the  ⇒ Fig. 148 button located on the centre console.
The indicator on the button will go out. 

205
Driving and the environment
Avoid idling
It is worthwhile switching off the engine when waiting in a traffic jam, at lev-
el crossings or at traffic lights with a long red phase. The fuel saved after
only 30 - 40 seconds is greater than the amount of fuel needed to restart
the engine.
The engine takes a long time to warm up when it is idling. Mechanical wear
and pollutant emissions are also especially high during this initial warm-up
phase. It is therefore best to drive off immediately after starting the engine.
Avoid running the engine at high speed.
Periodic maintenance
Periodic maintenance work guarantees that, before beginning a journey,
you will not consume more than the required amount of fuel. A well-serviced
engine gives you the benefit of improved fuel efficiency as well as maxi-
mum reliability and an enhanced resale value.
A badly serviced engine can consume up to 10% more fuel than necessary.
Avoid short journeys
To reduce the consumption and emission of polluting exhaust gases, the
engine and the exhaust gas filtration systems should reach the optimum
operating temperature.
With the engine cold, fuel consumption is proportionally higher. The engine
does not warm up and fuel consumption does not normalise until having
driven approximately four kilometres (2.5 miles). This is why we recommend
avoiding short trips whenever possible.
Maintain the correct tyre pressures
Bear in mind that keeping the tyres at an adequate pressure saves fuel. If
the tyre pressure is just one bar too low, fuel consumption can increase by
as much as 5%. Due to the greater rolling resistance, under-inflation also
increases tyre wear and impairs handling.
The tyre pressures should always be checked when the tyres are cold.Do not use
winter tyres all year round as they increase fuel consumption by
up to 10%.
Avoid unnecessary weight
Given that every kilo of extra weight will increase the fuel consumption, it is
advisable to always check the luggage compartment to make sure that no
unnecessary loads are being transported.
A roof rack is often left in place for the sake of convenience, even when it is
no longer needed. At a speed of 100-120 km/h (60-75 mph) your vehicle
will use about 12% more fuel as a result of the extra wind resistance caused
by the roof rack even when it is not in use.
Save electricity
The engine activates the alternator, which produces electricity. With the
need for electricity, fuel consumption is also increased. Because of this, al-
ways turn off electrical components when you do not need them. Examples
of components that use a lot of electricity are: the fan at high speeds, the
rear window heating or the seat heaters*.
Note
● If you vehicle has Start-Stop, it is not recommended to switch this func-
tion off.
● It is recommended to close the windows when driving at more than
60 km/h (40 mph)
● Do not drive with your foot resting on the clutch pedal, as the pressure
can make the plate spin, more fuel will be used and it can burn the clutch
plate lining, causing a serious fault.
● Do not hold the vehicle on a hill with the clutch, use the foot brake or
hand brake, using the latter to start. The fuel consumption will be lower and
you will prevent the clutch plate from being damaged.
● On descents, use the engine brake, changing to the gear that is more
suitable for the slope. The fuel consumption will be lower and the brakes
will not suffer. 
Safety FirstOperating instructionsPractical TipsTechnical Specifications

236Checking and refilling levels
WARNING (Continued)
● Protect face, hands and arms from any hot steam or hot coolant fluid
released by covering the cap with a large, thick rag when opening the ex-
pansion tank.
● If any tests have to be performed with the engine running, there is an
added safety risk from the rotating parts (e.g. drive belts, alternator, ra-
diator fan, etc.) and from the high-voltage ignition system.
● Observe the following additional warnings if work on the fuel system
or the electrical system is necessary:
–Always disconnect the battery from the on-board network.
– Do not smoke.
– Never work near open flames.
– Always keep an approved fire extinguisher immediately available.
CAUTION
When topping up fluids, make sure the correct fluid is put into the correct
filler opening. This can otherwise cause serious malfunctions or engine
damage.
For the sake of the environment
Inspect the ground underneath your vehicle regularly so that any leaks are
detected at an early stage. If you find spots of oil or other fluids, have your
vehicle inspected at the workshop.
● When the external temperature and level of humidity are high or when
the engine stops, it is possible for water to drop from the air conditioning
system evaporator potentially forming a small puddle on the ground. This is
normal and does not indicate a leak.
Note
On right-hand drive vehicles some of the reservoirs mentioned below are lo-
cated on the other side of the engine compartment. Releasing the bonnet
The bonnet is released from inside the vehicle.
Fig. 179 Detail of foot-
well area on driver side:
lever for unlocking the
bonnet
– To release the bonnet, pull the lever under the dash panel
⇒ Fig. 179 in the direction indicated (arrow).
The bonnet springs out of its lock. 

Index
Numbers and Symbols
230 V socket . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
A
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230 Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Adaptive headlights . . . . . . . . . . . . . . . . . . . . . 123 Faulty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Airbag Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 68
Airbag covers . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 31
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . 42
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . 33
side airbags . . . . . . . . . . . . . . . . . . . . . . . . . 39
Air conditioner 2C-Climatronic . . . . . . . . . . . . . . . . . . . . . . 163
Air distribution . . . . . . . . . . . . . . . . . . . . . . 170
Air outlets . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Air purity sensor . . . . . . . . . . . . . . . . . . . . . 168
Air recirculation . . . . . . . . . . . . . . . . . . . . . 167
Air recirculation (automatic) . . . . . . . . . . . 168
Automatic mode . . . . . . . . . . . . . . . . . . . . . 166
Blower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . 167
ECON Mode (economy) . . . . . . . . . . . . . . . 167 Economical use . . . . . . . . . . . . . . . . . . . . . 171
Key settings . . . . . . . . . . . . . . . . . . . . . . . . 171
Solar-powered blower/sunroof . . . . . . . . . 171
Temperature selection . . . . . . . . . . . . . . . . 166
Air duct Fitting . . . . . . . . . . . . . . . . . . . . . . . . . 276, 283
Removing . . . . . . . . . . . . . . . . . . . . . . 276, 282
Air purity sensor . . . . . . . . . . . . . . . . . . . . . . . . 168
Alcantara . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Alternator Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 72
Ambient lighting . . . . . . . . . . . . . . . . . . . . . . . 126
Anti-lock brake system How it works . . . . . . . . . . . . . . . . . . . . . . . . 197
Anti-theft alarm system . . . . . . . . . . . . . . . . . . 110 Interior monitoring . . . . . . . . . . . . . . . . . . . 111
Antifreeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Aquaplaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
Armrest Storage compartment in front armrest . . . 144
Armrests Adjusting the front armrest . . . . . . . . . . . . 144
Ashtray Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
ASR Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 71
How the system works . . . . . . . . . . . . . . . . 198
Athermic windscreen . . . . . . . . . . . . . . . . . . . . 231 Auto-check system . . . . . . . . . . . . . . . . . . . . . . . 78
Automatic car wash tunnel . . . . . . . . . . . . . . . 219
Automatic gearbox
Dynamic gear control programme . . . . . . . 192
Kick-down feature . . . . . . . . . . . . . . . . . . . . 192
multitronic® . . . . . . . . . . . . . . . . . . . . . . . . 188
Paddle levers (tiptronic mode) . . . . . . . . . 194
Safety interlock for ignition key . . . . . . . . . 174
Selector lever lock . . . . . . . . . . . . . . . . . . . 191
Selector lever positions . . . . . . . . . . . . . . . 190
Steering wheel with paddle levers . . . . . . 194
tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
tiptronic mode . . . . . . . . . . . . . . . . . . . . . . 193
Automatic headlight control . . . . . . . . . . . . . . 117
Auxiliary heater . . . . . . . . . . . . . . . . . . . . . . . . 172
B
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247 Battery voltage . . . . . . . . . . . . . . . . . . . . . . . 84
Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Disconnection . . . . . . . . . . . . . . . . . . . . . . . 248
Long periods of non-use . . . . . . . . . . 247, 248
Replacing . . . . . . . . . . . . . . . . . . . . . . 247, 248
Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Winter operation . . . . . . . . . . . . . . . . 247, 248
Bicycle rack Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Biodiesel fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 234
315
Index
