2013 Seat Altea Freetrack engine

281
Technical specifications
Technical specifications
Checking fluid levels
From time to time, the levels of the different fluids in the ve-
hicle must be checked. Never fill with incorrect fluids, other-
wise serious damage to the engine may be caused.
Fig. 201 Diagram for the
location of the various el-
ements
Coolant expansion tank
Windscreen washer reservoir
Engine oil filler cap
Engine oil dipstick
Brake fluid reservoir
Vehicle battery (underneath the cover)
The checking and refilling of service fluids are carried out on the compo-
nents mentioned above. These operations are described in the ⇒ page 222.
1
23456
Overview
Further explanations, instructions and restrictions on the technical data are
contained as of
⇒ page 277 
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

282Technical specifications
Petrol engine 2.0 155 kW (211 PS) Front-wheel drive
Engine specifications
Power output in kW (PS) rpm 155 (211)/ 5300-6200
Maximum torque in Nm at rpm 280/ 1700 - 5200
No. of cylinders/capacity in cm3
4/ 1984
Fuel Super 95 RON / Regular 91 RON a)
a)
With a slight power loss
Performance Maximum speed in km/h (mph) 220
Acceleration from 0-80 km/h (0-50 mph) in sec. 5,5
Acceleration from 0-100 km/h (0-60 mph) in sec. 7,7
Weights
Gross vehicle weight in kg 2150
Weight in running order (with driver) in kg 1606
Gross front axle weight in kg 1115
Gross rear axle weight in kg 1055
Permitted roof load in kg 75
Trailer weight
Trailer without brakes in kg 750
Trailer with brakes, gradients up to 8% in kg 1650
Trailer with brakes, gradients up to 12% in kg 1400


283
Technical specifications
Petrol engine 2.0 155 kW (211 PS) All-wheel drive
Engine specifications Power output in kW (PS) rpm 155 (211)/5300-6200
Maximum torque in Nm at rpm 280/ 1700 - 5200
No. of cylinders/capacity in cm3
4/ 1984
Fuel Super 95 RON / Regular 91 RON a)
a)
With a slight power loss
Performance Maximum speed in km/h (mph) 218
Acceleration from 0-80 km/h (0-50 mph) in sec. 5,3
Acceleration from 0-100 km/h (0-60 mph) in sec. 7,6
Weights
Gross vehicle weight in kg 2205
Weight in running order (with driver) in kg 1661
Gross front axle weight in kg 1140
Gross rear axle weight in kg 1085
Permitted roof load in kg 75
Trailer weight
Trailer without brakes in kg 750
Trailer with brakes, gradients up to 8% in kg 1650
Trailer with brakes, gradients up to 12% in kg 1650

Safety FirstOperating InstructionsPractical TipsTechnical Specifications

284Technical specifications
Diesel engine 1.6 TDI CR 77 kW (105 PS) DPF with/without Start-Stop
Engine specifications
Power output in kW (PS) rpm 77 (105)/ 4400
Maximum torque in Nm at rpm 250/ 1500 - 2500
No. of cylinders/capacity in cm3
4/ 1598
Fuel Min, diesel acc. to DIN EN 590 51 CN
Performance
Maximum speed in km/h (mph) 177
Acceleration from 0-80 km/h (0-50 mph) in sec. 8,3
Acceleration from 0-100 km/h (0-60 mph) in sec. 12,6
Weights
Gross vehicle weight in kg 2049
Weight in running order (with driver) in kg 1505
Gross front axle weight in kg 1045
Gross rear axle weight in kg 1035
Permitted roof load in kg 75
Trailer weight
Trailer without brakes in kg 740
Trailer with brakes, gradients up to 8% in kg 1500
Trailer with brakes, gradients up to 12% in kg 1400


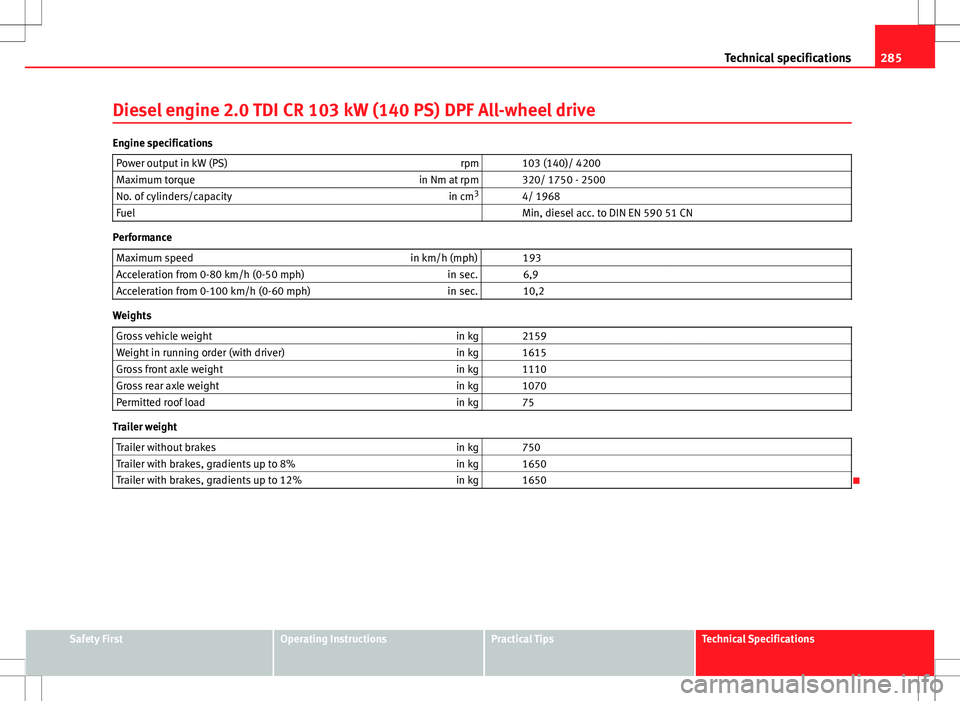

285
Technical specifications
Diesel engine 2.0 TDI CR 103 kW (140 PS) DPF All-wheel drive
Engine specifications Power output in kW (PS) rpm 103 (140)/ 4200
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders/capacity in cm3
4/ 1968
Fuel Min, diesel acc. to DIN EN 590 51 CN
Performance
Maximum speed in km/h (mph) 193
Acceleration from 0-80 km/h (0-50 mph) in sec. 6,9
Acceleration from 0-100 km/h (0-60 mph) in sec. 10,2
Weights
Gross vehicle weight in kg 2159
Weight in running order (with driver) in kg 1615
Gross front axle weight in kg 1110
Gross rear axle weight in kg 1070
Permitted roof load in kg 75
Trailer weight
Trailer without brakes in kg 750
Trailer with brakes, gradients up to 8% in kg 1650
Trailer with brakes, gradients up to 12% in kg 1650

Safety FirstOperating InstructionsPractical TipsTechnical Specifications

286Technical specifications
Diesel engine 2.0 TDI CR 125 kW (170 PS) DPF All-wheel drive
Engine specifications
Power output in kW (PS) rpm 125 (170)/ 4200
Maximum torque in Nm at rpm 350/1750-2500
No. of cylinders/capacity in cm3
4/ 1968
Fuel Min, diesel acc. to DIN EN 590 51 CN
Performance
Maximum speed in km/h (mph) 204
Acceleration from 0-80 km/h (0-50 mph) in sec. 5,9
Acceleration from 0-100 km/h (0-60 mph) in sec. 8,7
Weights
Gross vehicle weight in kg 2159
Weight in running order (with driver) in kg 1615
Gross front axle weight in kg 1110
Gross rear axle weight in kg 1070
Permitted roof load in kg 75
Trailer weight
Trailer without brakes in kg 750
Trailer with brakes, gradients up to 8% in kg 1650
Trailer with brakes, gradients up to 12% in kg 1650

