2013 RENAULT KANGOO Wipers And Washers Workshop Manual

8Electrical equipment
V1 MR-376-X76-85A000$TOC.mif
V1
85A
"The repair procedures given by the manufacturer in this document are based on the
technical specifications current when it was prepared.
The procedures may be modified as a result of changes introduced by the
manufacturer in the production of the various component units and accessories from
which his vehicles are constructed."
V1
All rights reserved by Renault s.a.s.
Edition Anglaise
Copying or translating, in part or in full, of this document or use of the service part
reference numbering system is forbidden without the prior written authority of
Renault s.a.s.
© Renault s.a.s. 2013
WIPERS - WASHERS
UCH
Vdiag No.: 0F
Fault finding – Introduction 85A - 2
Fault finding – Role of components 85A - 4
Fault finding – Operating diagram 85A - 5
Fault finding – Function 85A - 8
Fault finding – Configuration 85A - 11
Fault finding – Fault summary table 85A - 12
Fault finding – Interpretation of faults 85A - 13
Fault finding – Conformity check 85A - 15
Fault finding – Status summary table 85A - 16
Fault finding – Interpretation of statuses 85A - 17
Fault finding – Command summary table 85A - 23
Fault finding – Interpretation of commands 85A - 24
Fault finding – Customer complaints 85A - 26
Fault finding – Fault Finding Chart 85A - 27

85A-2V1 MR-376-X76-85A000$010.mif
85A
UCH
Vdiag No.: 0F

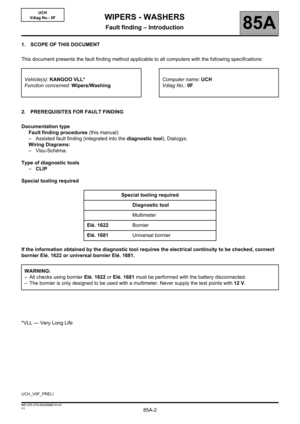

1. SCOPE OF THIS DOCUMENT
This document presents the fault finding method applicable to all computers with the following specifications:
2. PREREQUISITES FOR FAULT FINDING
Documentation type
Fault finding procedures (this manual):
– Assisted fault finding (integrated into the diagnostic tool), Dialogys.
Wiring Diagrams:
–Visu-Schéma.
Type of diagnostic tools
–CLIP
Special tooling required
If the information obtained by the diagnostic tool requires the electrical continuity to be checked, connect
bornier Elé. 1622 or universal bornier Elé. 1681.
*VLL — Very Long LifeVehicle(s): KANGOO VLL*
Function concerned: Wipers/WashingComputer name: UCH
Vdiag No.: 0F
Special tooling required
Diagnostic tool
Multimeter
Elé. 1622Bornier
Elé. 1681Universal bornier
WARNING:
– All checks using bornier Elé. 1622 or Elé. 1681 must be performed with the battery disconnected.
– The bornier is only designed to be used with a multimeter. Never supply the test points with 12 V.
UCH_V0F_PRELI
WIPERS - WASHERS
Fault finding – Introduction

85A-3V1 MR-376-X76-85A000$010.mif
WIPERS - WASHERS
Fault finding – Introduction85A
UCH
Vdiag No.: 0F
3. SAFETY INSTRUCTIONS
The safety instructions must be followed at all times when working on components, to avoid damage or injury:
– check the battery voltage to avoid incorrect operation of computer functions,
– use the proper tools.
Procedure for disconnecting the battery:
– switch off the ignition,
– switch off all electrical consumers,
– Wait at least 1 minute for the electronic systems to switch off,
– disconnect the battery, starting with the negative terminal.

85A-4V1 MR-376-X76-85A000$020.mif
85A
UCH
Vdiag No.: 0F
Screen wiper motor:
The role of the windscreen wiper motor is to provide windscreen cleaning.
Rear screen wiper motor:
The role of the rear screen wiper motor is to provide rear screen cleaning.
Combined wiper-washer:
The role of the combined wiper-washer control is to control the various washing and wiping functions.
Front and rear bidirectional washer pump:
– Without rear screen wiping:
The role of the screen washer pump is to supply washer fluid to the windscreen.
– With rear screen wiping:
The role of the bi-directional screen washer pump is to supply washer fluid from the same reservoir to either the
windscreen or the rear screen.
Heated rear screen:
The role of the heated rear screen is to defrost the rear screen.
UCH:
The UCH is used to manage all wiper functions (activation, wiper speed, etc).
WIPERS - WASHERS
Fault finding – Role of components

85A-5V1 MR-376-X76-85A000$030.mif
85A
UCH
Vdiag No.: 0F
Windscreen wiper/washer:
• List of system components and associated component codes:
•Windscreen washing/wiping diagram: 645 Passenger compartment electrical control unit
260 Passenger compartment fuse box and relay
677 Front and rear bidirectional washer pump
145 Combined wiper-washer
212 Windscreen wiper motor
WIPERS - WASHERS
Fault finding – Operating diagram

85A-6V1 MR-376-X76-85A000$030.mif
WIPERS - WASHERS
Fault finding – Operating diagram85A
UCH
Vdiag No.: 0F
Rear screen washing/wiping:
• List of system components and associated component codes:
• Rear screen washing/wiping diagram:
*PDB/ARG - intermediate connector (dashboard/rear left-hand) 645Passenger compartment electrical control unit
260Passenger compartment fuse box and relay
677Front and rear bidirectional washer pump
145Combined wiper-washer
1041Rear screen wiper relay
211Rear screen wiper motor
PDB/ARG
(dashboard/rear
left-hand)*

85A-7V1 MR-376-X76-85A000$030.mif
WIPERS - WASHERS
Fault finding – Operating diagram85A
UCH
Vdiag No.: 0F
Heated rear screen
• List of system components and associated component codes:
• Heated rear screen diagram128Heated rear screen switch
235Heated rear screen relay
200Heated rear screen
260Passenger compartment fuse box and relay
247Instrument panel

85A-8V1 MR-376-X76-85A000$040.mif
85A
UCH
Vdiag No.: 0F
Windscreen washing/wiping
The UCH receives the wiper speed, windscreen wiper park position and windscreen washer signals.
This ensures the following functions:
– intermittent wiper speed,
– extended wiper time after washing,
– return to park position.
In the park position, the switch is closed to earth, and the UCH receives logical signal 0.
This function is only active if + after ignition feed is present.
When the + after ignition feed is switched on, if the windscreen wiper park position is not detected, the wiper motor
relay is held.
Operation is interrupted in the following cases:
– wiper request stopped or no request,
–+ after ignition feed switched off,
– UCH reads park position information.
Detection of the park position should be made during transition and not level, that is, if the wiper stalk is moved from
the intermittent position to the park position while the wiper blade is in the park position and the wiper motor is
running, it will not be stopped until the next reading of the park position. This condition is necessary in order to obtain
an exact park position.
Intermittent
The intermittent wiper speed function is only active if the + after ignition is present and if the switch is in the
intermittent position.
The time delay between two wipes is 5 seconds, and this cannot be modified by the diagnostic tool.
When the windscreen intermittent speed function is activated, the windscreen intermitted speed relay is held by the
UCH until the park position is detected. When the intermittent speed time delay has elapsed, the relay is held again
and the cycle begins again.
Extended wiper time after washing
The UCH does not manage the windscreen washer pump command, it only deals with the windscreen washer
command input to provide screen wiping and the extended wiper time after washing.
This function is only active if + after ignition feed is present.
After the washer pump is activated, the first wiping is performed after a time delay of 750 ms.
When the washing control is pressed briefly, the windscreen wiper performs 1 wiping cycle.
When the washing control is pressed for longer, the UCH activates the windscreen wiper throughout the washing
phase. At the end of the washing phase, the UCH counts the park position status changes in order to stop the
extended wiping phase.
WIPERS - WASHERS

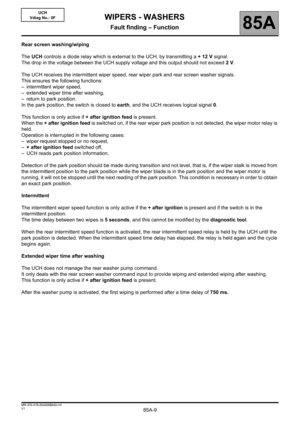

Fault finding – Function
