2013 RENAULT KANGOO ignition

36B-7V1 MR-376-X76-36B000$040.mif
36B
GEPDA
Vdiag No.: 04
System outline
The electric power-assisted steering system uses a pump assembly which generates the hydraulic pressure
assistance in the steering circuit. The electric motor turns at a constant speed and the system supplies a constant
level of power-assisted steering.
Operation of the electric power-assisted steering system is managed by a computer integrated into the pump
assembly.
Correct system operation is checked using sensors integrated into the pump assembly of the power-assisted
steering.
The power-assisted steering is only available when the ignition is on and the vehicle engine is running (the presence
of the alternator signal is interpreted by the computer as "engine running").
Functions provided
●Main function
Power-assisted steering: the system supplies a constant level of power-assisted steering. The electric motor of the
pump assembly in the power-assisted steering runs at a constant speed.
●Temperature Protection Function
The temperature of the pump assembly is monitored by two sensors, one for the oil temperature, the other for the
temperature of the internal electronics.
There are two possible cases:
●When the maximum of the two temperatures exceeds the high temperature threshold (107°C), the rotation
speed of the electric motor decreases from 2650 rpm to 800 rpm in increments of 40 rpm each second,
for as long as the temperature exceeds the threshold of 107°C,
●When the maximum of the two temperatures exceeds the overheating temperature threshold (125°C), the
pump assembly switches off and no steering assistance is provided for as long as it takes for the
temperature to return below this threshold.
●Fault finding function
The pump assembly computer includes a self-test procedure function. The required information can be accessed
using the diagnostic tool, by the HK line.
POWER-ASSISTED STEERING PUMP ASSEMBLY
Fault finding – Function

36B-9V1 MR-376-X76-36B000$070.mif
36B
GEPDA
Vdiag No.: 04
Precautions for use
●The power-assisted steering pump assembly (the computer, the electric motor, the hydraulic pump, the oil
reservoir) cannot be separated.
OPERATIONS FOR REPLACING THE PUMP ASSEMBLY
Before replacing the power-assisted steering pump assembly, perform fault finding on the system and apply the
appropriate fault finding procedure.
The power-assisted steering pump assembly may only be replaced after approval from Techline.
After replacing the pump assembly, calibrate the computer using the diagnostic tool.
When replacing the power-assisted steering pump assembly, perform the following operations:
●disconnect the vehicle battery,
●replace the power-assisted steering pump assembly (see MR 423 Mechanical, 36B, Power-assisted steering,
Power-assisted steering pump assembly: Removal - Refitting),
●reconnect the vehicle battery,
●connect the diagnostic tool, switch on the ignition and establish dialogue with the computer of the power-assisted
steering pump assembly,
●Enter the vehicle VIN using command VP001 Enter VIN (see Programming),
●write the date of the last After-Sales operation using command VP005 Enter After-Sales operation date (see
Programming),
●switch off the ignition for at least 15 seconds for the configurations to register, without disconnecting the battery,
●switch on the ignition and establish dialogue with the computer of the power-assisted steering pump assembly,
●check that there are no faults and that the parameters are correct,
●start the vehicle engine and check that the power-assisted steering pump assembly is operating correctly (power-
assisted steering available with the engine running),
●check that there are no faults and that the parameters are correct. WARNING:
To prevent any accidents, it is essential to disconnect the battery when performing operations on the front axle,
regardless of the operation, to remove the risk of trapping someone between a wheel and the body if the power-
assisted steering is accidentally triggered due to a fault in the pump assembly system.
POWER-ASSISTED STEERING PUMP ASSEMBLY
Fault finding – Replacement of components

36B-10V1 MR-376-X76-36B000$080.mif
36B
GEPDA
Vdiag No.: 04
Tool faultAssociated
DTCDiagnostic tool title
DF0025608 Computer
DF0175606 Motor circuit
DF0235613 + After ignition supply
DF0555607 Computer memory
POWER-ASSISTED STEERING PUMP ASSEMBLY
Fault finding – Fault summary table

36B-11
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
V1 MR-376-X76-36B000$090.mif
36B
GEPDA
Vdiag No.: 04
DF002
PRESENT
OR
STOREDCOMPUTER1.DEF: Supplier No. 1 signal
2.DEF: Supplier No. 2 signal
3.DEF: Supplier No. 3 signal
4.DEF: Supplier No. 4 signal
5.DEF: Supplier No. 5 signal
NOTESConditions for applying the fault finding procedure to stored faults:
The fault is declared present after starting or moving the steering wheel movement
from full lock to full lock.
Special note:
Use the Wiring Diagrams Technical Note for Thalia 2/Symbol 2 and Kangoo VLL.
Check for:
●a + 12 V before ignition supply on connection BP15 of the power-assisted steering pump assembly, component
code 186,
●an earth on connection M of component 186,
●a + 12 V after ignition supply on connection AP4 (for MERCOSUR) or AP23 (for BURSA or for Kangoo VLL)
of component 186.
If the connection or connections are faulty and if there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Check the supply fuses on the power-assisted steering pump assembly, component code 186 (see MR 423 or MR
374, Mechanical, 81C, Fuses, Fuses: List and location of components):
power fuse F02 (80A) (for MERCOSUR) or F05 (80A) (for BURSA or for Kangoo VLL) in the power supply fuse
board, component code 777 or 260, + after ignition supply fuse F18 (7.5A) in the passenger compartment fuse
box, component code 1016 or 260.
Replace the fuses if the checks are not correct.
If the fault is still present, contact the Techline.
GEPDA_V04_DF002
POWER-ASSISTED STEERING PUMP ASSEMBLY
Fault finding – Interpretation of faults

36B-12
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
V1 MR-376-X76-36B000$090.mif
POWER-ASSISTED STEERING PUMP ASSEMBLY
Fault finding – Interpretation of faults36B
GEPDA
Vdiag No.: 04

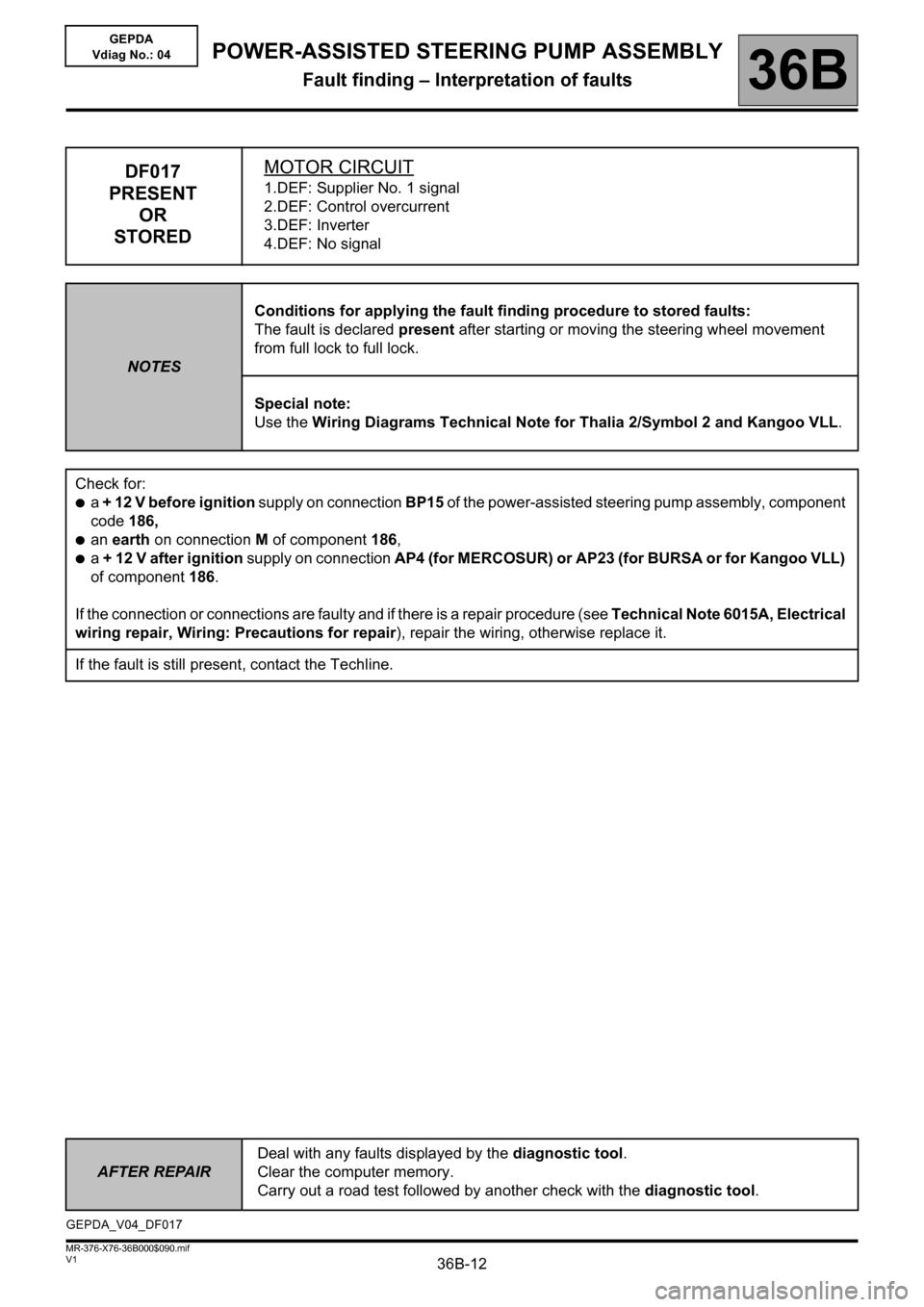

DF017
PRESENT
OR
STOREDMOTOR CIRCUIT1.DEF: Supplier No. 1 signal
2.DEF: Control overcurrent
3.DEF: Inverter
4.DEF: No signal
NOTESConditions for applying the fault finding procedure to stored faults:
The fault is declared present after starting or moving the steering wheel movement
from full lock to full lock.
Special note:
Use the Wiring Diagrams Technical Note for Thalia 2/Symbol 2 and Kangoo VLL.
Check for:
●a + 12 V before ignition supply on connection BP15 of the power-assisted steering pump assembly, component
code 186,
●an earth on connection M of component 186,
●a + 12 V after ignition supply on connection AP4 (for MERCOSUR) or AP23 (for BURSA or for Kangoo VLL)
of component 186.
If the connection or connections are faulty and if there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, contact the Techline.
GEPDA_V04_DF017

36B-13
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
V1 MR-376-X76-36B000$090.mif
POWER-ASSISTED STEERING PUMP ASSEMBLY
Fault finding – Interpretation of faults36B
GEPDA
Vdiag No.: 04
DF023
PRESENT
OR
STORED+ AFTER IGNITION FEED
1.DEF: No signal
NOTESConditions for applying the fault finding procedure to stored faults:
The fault is declared present after starting or moving the steering wheel movement
from full lock to full lock.
Special note:
Use the Wiring Diagrams Technical Note for Thalia 2/Symbol 2 and Kangoo VLL.
– Check the condition and conformity of the supply fuses for the computer of the power-assisted steering pump
assembly, component code 186 (see MR 423 or MR 374, Mechanical, 81C, Fuses, Fuses: List and location
of components):
– power fuse F02 (80A) (for MERCOSUR) or F05 (80A) (for BURSA or for Kangoo VLL) in the power
supply fuse board, component code 777 or 260,
–+ after ignition supply fuse F18 (7.5A) in the passenger compartment fuse box, component code 1016
or 260.
Disconnect the two connectors from the computer on the power-assisted steering pump assembly.
Check the condition and conformity of the connectors on the power-assisted steering pump assembly and their
clips.
If the connector or connectors are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check for:
●a + 12 V before ignition supply on connection BP15 of component 186,
●an earth on connection M of component 186,
●a + 12 V after ignition supply on connection AP4 (for MERCOSUR) or AP23 (for BURSA or for Kangoo VLL)
of component 186.
If the connection or connections are faulty and if there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Measure the battery voltage, component code 107 and check the charging circuit (see Technical Note 6014A,
Checking the charging circuit).
If the fault is still present, contact the Techline.
GEPDA_V04_DF023

36B-14
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
V1 MR-376-X76-36B000$090.mif
POWER-ASSISTED STEERING PUMP ASSEMBLY
Fault finding – Interpretation of faults36B
GEPDA
Vdiag No.: 04
DF055
PRESENT
OR
STOREDCOMPUTER MEMORY
1.DEF: Supplier No. 6 signal
2.DEF: Supplier No. 7 signal
3.DEF: Supplier No. 1 signal
NOTESSpecial notes:
The fault is declared present after the battery is disconnected.
Use the Wiring Diagrams Technical Note for Thalia 2/Symbol 2 and Kangoo VLL.
Check for:
●a + 12 V before ignition supply on connection BP15 of the power-assisted steering pump assembly, component
code 186,
●an earth on connection M of component 186,
●a + 12 V after ignition supply on connection AP4 (for MERCOSUR) or AP23 (for BURSA or for Kangoo VLL)
of component 186.
If the connection or connections are faulty and if there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Check the supply fuses on the power-assisted steering pump assembly, component code 186 (see MR 423 or MR
374, Mechanical, 81C, Fuses, Fuses: List and location of components):
power fuse F02 (80A) (for MERCOSUR) or F05 (80A) (for BURSA or for Kangoo VLL) in the power supply fuse
board, component code 777 or 260, + after ignition supply fuse F18 (7.5A) in the passenger compartment fuse
box, component code 1016 or 260.
Replace the fuses if the checks are not correct.
If the fault is still present, contact the Techline.
GEPDA_V04_DF055

36B-15V1 MR-376-X76-36B000$100.mif
36B
GEPDA
Vdiag No.: 04
Main screen
NOTESOnly perform this conformity check after a complete check with the diagnostic tool.
The values shown in this conformity check are given as a guide.
Test conditions: Engine stopped, ignition on.
FunctionParameter or status
Checked or actionDisplay
and notesFault finding
Computer
supplyPR108: Computer feed
voltage10 V < PR108 < 16 V.In the event of a fault,
apply the interpretation of
parameter PR108.
Oil
temperaturePR016: Oil temperatureIndicates the oil
temperature in °C. The
sensor is integrated into
the pump assembly.Without any action on the
steering wheel.
Computer
temperaturePR008: Computer
temperatureDisplays the temperature
of the electronics in °C.
The sensor is integrated
into the computer of the
pump assembly.Without any action on the
steering wheel.
GEPDA_V04_CCONF
POWER-ASSISTED STEERING PUMP ASSEMBLY
Fault finding – Conformity check
