2013 RENAULT KANGOO fuel

13B-197V1 MR-376-X76-13B000$160.mif
DIESEL INJECTION
Fault finding – Tests13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
TEST 8
CONTINUED 3
If the engine does not start, only the static leakage can be measured, i.e. the leakage with the injector closed, not
actuated and under high pressure.
Make sure that the ignition circuit is working correctly (minimum engine speed 200 rpm).
Tooling required
–Mot. 1711 Injector flow measuring kit.
Or: Use 4 pipes with internal diameter 4mm and approximately 50 cm in length, and a test adapter (TEST
IMV).
Procedure
– Switch off the ignition,
– disconnect the return pipes from the four injectors,
– cap the pump venturi tube to prevent the low-pressure circuit from depriming,
– connect the four transparent pipes in place of the return pipes (Mot. 1711),
– disconnect the low pressure actuator from the pump (brown IMV connector) and connect a test IMV or the Mot.
1711,
– electrically disconnect the four injectors,
– switch on the ignition and engage the starter for 5 seconds,
– measure the amount of diesel fuel in each pipe.
If the return leakage is greater than 10 cm, replace the injector(s) (see MR 388 (Logan/Sandero) or MR 451
(Duster), MR 423 (Thalia 2/Symbol 2) or MR 374 (Kangoo VLL), Mechanical, 13B, Diesel injection, Diesel
injector: Removal - Refitting).
Switch off the ignition, and reconnect the four injectors electrically.
Disconnect the test low pressure actuator and reconnect the low pressure actuator connector to the pump.
Disconnect the four transparent tubes and reconnect the injectors return circuit. Switch on the ignition again, and
clear the injection faults using the diagnostic tool.
A

13B-199V1 MR-376-X76-13B000$160.mif
DIESEL INJECTION
Fault finding – Tests13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
TEST 9 Diesel filter check
Check the conformity of the diesel filter.
Is the diesel filter in order?Replace the filter with an original
part (see MR 388 (Logan/Sandero),
MR 451 (Duster), MR 423 (Thalia 2/
Symbol 2) or MR 374 (Kangoo VLL),
Mechanical, 13A, Fuel supply, Fuel
filter: Removal - Refitting).
Switch off the ignition and analyse the diesel fuel in the diesel filter.
– Disconnect the diesel supply and return hoses from the filter.
– Block the filter inlets and outlets straight away with appropriate plugs.
– Remove the filter from its support and shake it well keeping the plugs in place and empty the contents of the
filter into a glass container by lifting up a protective plug and undoing the bleed screw.
Check whether there are black particles present at the bottom of the container.
Pass a magnet beneath the container to collect all the
metal particles.
Take the magnet away from the container.Diesel filter in good order.
Do the particles collected using the magnet cover a surface
area greater than 1 cm
2?
Replace the entire injection
system.Diesel filter in good
order.
NO
YES
YESNO
YESNO
DCM1.2_V08_TEST09

13B-200V1 MR-376-X76-13B000$160.mif
DIESEL INJECTION
Fault finding – Tests13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
TEST 11 Turbocharger air chain
Check for the air filter
Check the replacement interval of the air filter on the maintenance booklet.
Compare the part numbers of the air filter fitted to the vehicle and that of the air filter recommended by the
manufacturer.
Check the air filter direction of fitting.
Is the air filter fitted to the vehicle correct?
Check the condition of the air filter
Visually inspect the condition of the filtering section of the
air filter.
Is either the air filter or its seal damaged?
Is the air filter fouled (does it contain a lot of
impurities)?Replace the air filter (see MR 388
(Logan/Sandero), MR 423
(Thalia 2/Symbol 2), MR 451
(Duster) or MR 374 (Kangoo
VLL), Mechanical, 12A, Fuel
mixture, Air filter: Removal -
Refitting).
Low pressure circuit check
Note:
Depending on the vehicle type, the best visual access will
be either from above or from below.
Visually inspect the condition of the following
components:
– fresh air inlet scoop on the front panel of the vehicle,
– air inlet pipe to the air filter,
– air pipe of the filter until the compressor inlet,
– mountings of the air flowmeter.
Is one of these components incorrect (disconnected,
cut, bent, pierced or kinked pipes)?Replace the faulty parts (see MR
388 (Logan/Sandero), MR 451
(Duster), MR 423 (Thalia 2/
Symbol 2) or MR 374 (Kangoo
VLL), Mechanical, 12B,
Turbocharging).
YESNO
YES
NO
YES
A
NO
DCM1.2_V08_TEST11

13B-202V1 MR-376-X76-13B000$160.mif
DIESEL INJECTION
Fault finding – Tests13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
TEST 13 Diesel fuel conformity check
WARNING
During this operation, it is essential to:
– refrain from smoking or bringing incandescent objects close to the work area,
– guard against petrol splashes caused by the residual pressure in the pipes,
– wear safety goggles with side guards,
– wear leaktight gloves (Nitrile type).
IMPORTANT
– To avoid any corrosion or damage, protect the areas on which fuel is likely to run.
– To prevent impurities from entering the circuit, place protective plugs on all fuel circuit components
exposed to the open air.
Preparations:
Weigh an empty 1300 ml plastic cup (part no. 77 11 171 413) with its cover (part no. 77 11 171 416) using
electronic scales such as those used in body paint workshops (example: PANDA part no. 77 11 224 995). Record
the weight of the empty plastic cup.
This type of plastic cup is used to prepare paint.
Remove 1 l of fuel at the diesel filter outlet (see MR 388 (Logan/Sandero), MR 451 (Duster), MR 423 (Thalia
2/Symbol 2) or MR 374 (Kangoo VLL), Mechanical, 19C, Tank, Draining the fuel tank), using a pneumatic
transfer pump (part no. 634-200) and place it in the 1300 ml plastic cup.
Cover the plastic cup with its cover and let it settle for approximately 2 minutes.
Is the fuel cloudy or does
it separate into two
parts?Presence of water in diesel fuel, the fuel is not compliant.
Drain the fuel system, including the tank (see MR 388 (Logan/
Sandero), MR 451 (Duster), MR 423 (Thalia 2/Symbol 2) or MR 374
(Kangoo VLL), Mechanical, 19C, Tank, Draining the fuel tank).
YES
A
NO
DCM1.2_V08_TEST13

13B-203V1 MR-376-X76-13B000$160.mif
DIESEL INJECTION
Fault finding – Tests13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08

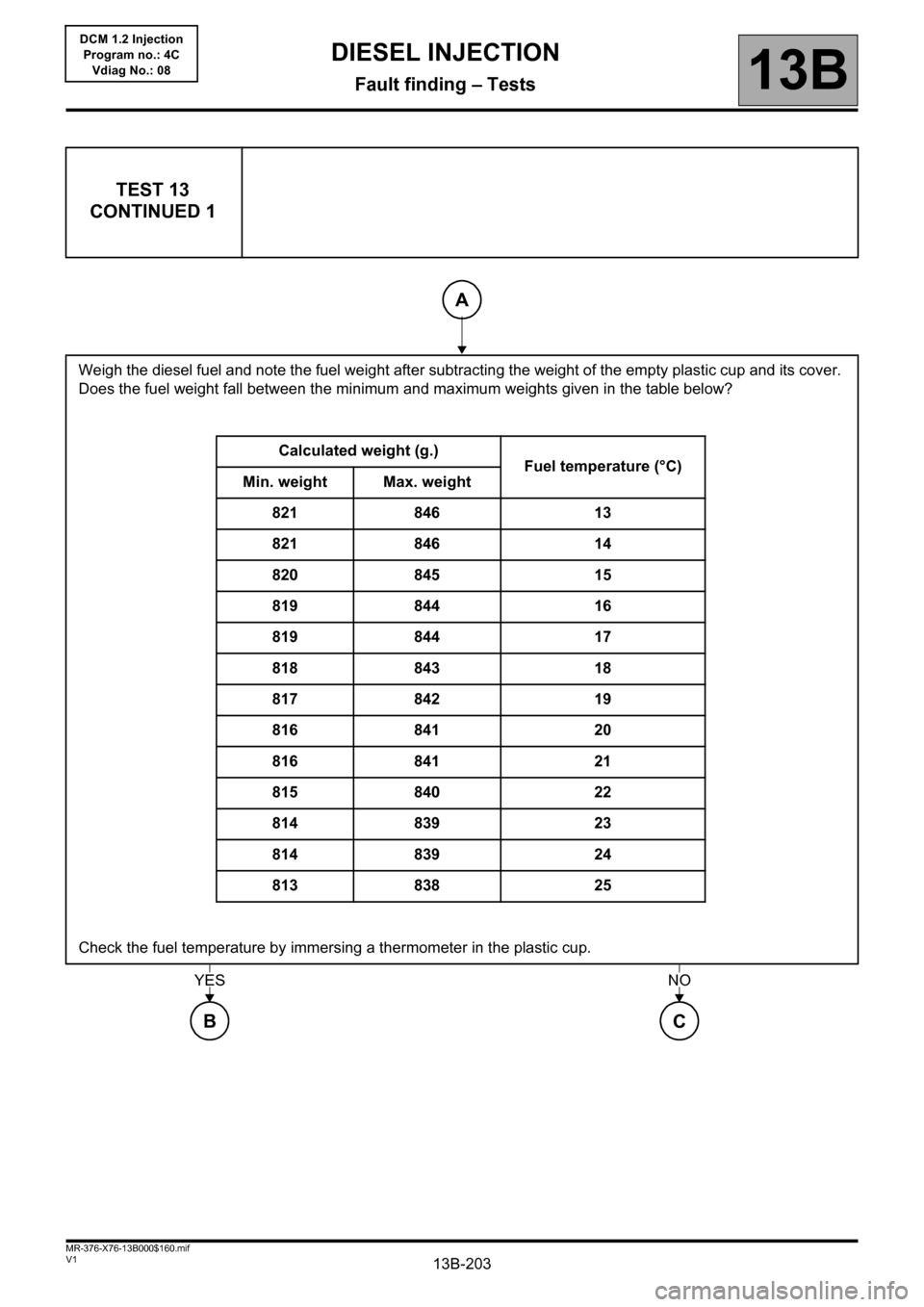

TEST 13
CONTINUED 1
Weigh the diesel fuel and note the fuel weight after subtracting the weight of the empty plastic cup and its cover.
Does the fuel weight fall between the minimum and maximum weights given in the table below?
Calculated weight (g.)
Fuel temperature (°C)
Min. weight Max. weight
821 846 13
821 846 14
820 845 15
819 844 16
819 844 17
818 843 18
817 842 19
816 841 20
816 841 21
815 840 22
814 839 23
814 839 24
813 838 25
Check the fuel temperature by immersing a thermometer in the plastic cup.
A
YESNO
BC

13B-204V1 MR-376-X76-13B000$160.mif
DIESEL INJECTION
Fault finding – Tests13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
TEST 13
CONTINUED 2
End of TEST 13The fuel is not correct.
If the fuel weight is less than the minimum value then there is petrol in the
diesel fuel.
If the fuel weight is greater than the minimum value then there is oil in the
diesel fuel.
Drain the fuel system, including the tank (see MR 388 (Logan/Sandero),
MR 451 (Duster), MR 423 (Thalia 2/Symbol 2) or MR 374 (Kangoo
VLL), Mechanical, 19C, Tank, Draining the fuel tank).
Note:
If the weight measured reaches the limit values, the measurement can be performed with a 2230 ml plastic cup
(part no. 77 11 171 414) and its cover (part no. 77 11 171 417):
– Carry out a quick test drive in order to mix the fuel, then remove 2 l of fuel.
– Perform the test again and check the results by multiplying the limit values by 2.
Contact the Techline if you have doubts or problems with the customer.
BC
YESNO
