B PRESENTATION

CONTENTS
B
PRESENTATION 2
B.1 IDENTIFICATION 4
B.1.1 ROLL CAGE 4
B.1.2 CHASSIS NUMBER 4
B.1.3 HOLOGRAMS 5
B.1.4 MARKINGS 5
B.2 DIMENSIONS 6
B.3 CAPACITIES 7
B.4 GENERAL CHARACTERISTICS 8
B.5 HANDLING 9
B.5.1 LIFTING 9
B.5.2 TOWING 9
B.6 USING THE CAR 10
B.6.1 FACIA SWITCH PANEL : XAP_SWT98 10
B.6.2 STEERING WHEEL SWITCH PANEL : XAP_STER98 11
B.6.3 DASHBOARD: COSWORTH ICD 01D-032954-RST 12
B.6.3.1 PAGES 12
B.6.3.1.1 DRIVER PAGE 1 : RACE PAGE 12
B.6.3.1.2 DRIVER PAGE 2 : QUALIFICATION PAGE 13
B.6.3.1.3 DRIVER PAGE 3 : CIRCUIT MAP PAGE 14
B.6.3.1.4 DIAGNOTIC PAGE 1 : ENGINE DIAGNOSTIC 14
B.6.3.1.5 DIAGNOSTIC PAGE 2 : GEARBOX DIAGNOSTIC 16
B.6.3.1.6 DIAGNOSTIC PAGE 3 : BRAKE / CHASSIS DIAGNOSTIC 17
B.6.3.1.7 DIAGNOSTIC PAGE 4 : CBNT DIAGNOSTIC (PAGE 1/2 : STATUS) 17
B.6.3.1.8 DIAGNOSTIC PAGE 5 : CBNT DIAGNOSTIC (PAGE 1/2 : STATES) 18
B.6.3.2 CHANGING PAGES 19
B.6.3.3 LEDS / SHIFTLIGHTS 19
B.6.3.4 ALARMS DISPLAYED ON THE DASHBOARD 20
B.6.3.4.1 MAIN ALARMS (CATEGORY A) 20
B.6.3.4.2 SECONDARY ALARMS (CATEGORY B) 21
B.6.3.4.3 ALARMS AND THRESHOLD 21
B.6.4 BASIC PROCEDURES 22
B.6.4.1 POWER-UP 22
B.6.4.2 STARTING 22
B.6.4.3 TURNING OFF THE ENGINE 23
B.6.4.4 SWITCHING OFF THE POWER SUPPLY 23
B.6.4.5 CHANGING GEARS 23
B.6.4.6 PIT LIMITER 23
B.6.4.7 CONTROLLING THE RAIN LIGHT 24
B.6.4.8 RESETTING THE CHASSIS SENSORS 25

Downloaded from www.Manualslib.com manuals search engine 98CUP_2013 Release

C-7

B.3 CAPACITIES

REGULATIONS / RECOMMENDATIONS

Capacity Characteristics Comments
Fuel tank 42L ·
Free practice or private testing: SP 98
grade unleaded
· Events: see technical regulations Tolerance:
-0L/+1.5L
Engine lubricant
4.0L : engine
(4.2L with the oil filter) Elf EXCELLIUM NF
5W40
See technical
regulations
Gearbox lubricant
Casing : 1.3L
(1.5L with the
cooling circuit) ELF HTX 755 or
Motul Gear Competition

(SADEV preconisation ) 80 W 140
75W140 See technical
regulations
Coolant 6.5L Glaceol RX Type D free
Front/rear brake
fluid <800mL CASTROL SRF See technical
regulations

The use of :
· Elf Excelcium 5W40 engine oil
· CASTROL SRF brake fluid

are mandatory
(refer to technical regulations).

You are free to use alternatives for all other flui ds, but they must comply with the
characteristics specified above.

All brand new cars are delivered with

TOTAL SP98 grade unleaded : 10L Elf Excellium NF 5w40 engine oil
CASTROL SRF brake fluid
ELF HTX 755 gearbox oil

Downloaded from www.Manualslib.com manuals search engine 98CUP_2013 Release

C-11

B.6.2 STEERING WHEEL SWITCH PANEL : XAP_STER98



Button Action Short press Long press
LIGHT Light management
(Front headlight and rear) Head light flasher 1st Long press :
light goes ON
2nd long press : light goes OFF
WIPER Wiper management 1 go/back wiper, return to
“0” position 1st Long press :
permanent wiper on only
one constant speed (maximum speed)
2nd long press : wiper stops and returns
at “0” position
CLEAN Windscreen cleaning (wiper + pump) While this push button is pressed, wiper and windsc
reen washer work
together. When released, wiper return to “0” positi on
PAGE Access to the dashboard
pages Change page
Switch between “diagnostic pages”
(3) and “driver pages” (5)
PIT Pit limiter management 1st short press :
enable (60kph)
2nd short press : Disable /
GEAR Gearbox barrel unlocking
(safety) Unlock the gearbox barrel (see
chapter
D “Trasnmission-sifting” ) /
GREEN
BUTTON Free button Management accessible using the
free connector on chassis loom (See
chapter
F “wiring looms”) /

Downloaded from www.Manualslib.com manuals search engine 98CUP_2013 Release

C-12

B.6.3 DASHBOARD: COSWORTH ICD 01D-032954-RST

B.6.3.1 Pages


The display contains 8 pages classified in 2 differ ent families :
- Family 1 : 3 “driver” pages
-
Family 2 : 5 “diagnostic” pages
B.6.3.1.1 D
RIVER PAGE 1 : RACE PAGE


Area “LAP” :
Time : Current lap time (stay displayed 10s after having being cut)
Lap # : number of lap completed during the RUN
Area “Speed” : Current speed displayed (depends on tyre diameter, configurable in Toolset (see
chapter G - Softwares )

Area “Default” :

When 1 or several defaults appear, they are scrolli ng on this area when the default is still
present.
NOTE :
Even if the defaults disappears (Oil_P min, or GB_p ot_def for example) :
- A letter in the area “Event” is recorded depending on the kind of default.
- A alarm LED appears on top right or top left positi on (engine or Gearbox alarm)

Area “Event: Each letter means that during the last or current R UN, an
alarm was recorded (even if it disappeared after) t o
encourage team to check the default.
W : Water temp alarm recorded (min or max)
O : Oil pressure recorded (min or max)
B : Battery voltage recorded (min or max)
E : engine alarm recorded (other engine sensor than W, O, B)
G : gearbox alarm recorded

Default
Engine alarm LED
Gearbox alarm LED

Downloaded from www.Manualslib.com manuals search engine 98CUP_2013 Release

C-13


Area “MAP” “DRY” or “WET” depending on the engine MAP selected on the Facia switch panel

Area “GEAR”
Corresponds to Gearbox ratio engaged (R, N, 1, 2, 3 , 4, 5, 6)

Area “RPM” Current engine speed in RPM (“xxxx RPM”)
Area “RAIN LIGHT”
“OFF” (grey background) or “ON” (green backgound) d epending on the Facia switch
panel interrupter position.
Area “Engine”
Engine oil pressure (bars)
Engine water temperature (°C)
Battery voltage (V)
NOTE :
these 3 Values corresponds to the Category A alarm s

B.6.3.1.2 D
RIVER PAGE 2 : QUALIFICATION PAGE



Area “LAP”, “Speed”, “MAP”, “Events”, “Default”, “r ain light”, “RPM”, “GEAR” and “alarms
LED” remains the same as the RACE PAGE. Only the “S plits” replace the “engine” area

Area “Splits” This Area represents the Qualifying mode (QM) confi guration

- Time difference : current split compared to split recorded from
the best lap
- Bargraph : 1 bar = 1 tenth (+/- 1 sec)
- Split : Current split time : reference


NOTE :
Refer to chapter G-Softwares for the full Qualifying mode configuration
Default
Engine alarm LED
Gearbox alarm
LED

Downloaded from www.Manualslib.com manuals search engine 98CUP_2013 Release

C-16


B.6.3.1.5 D

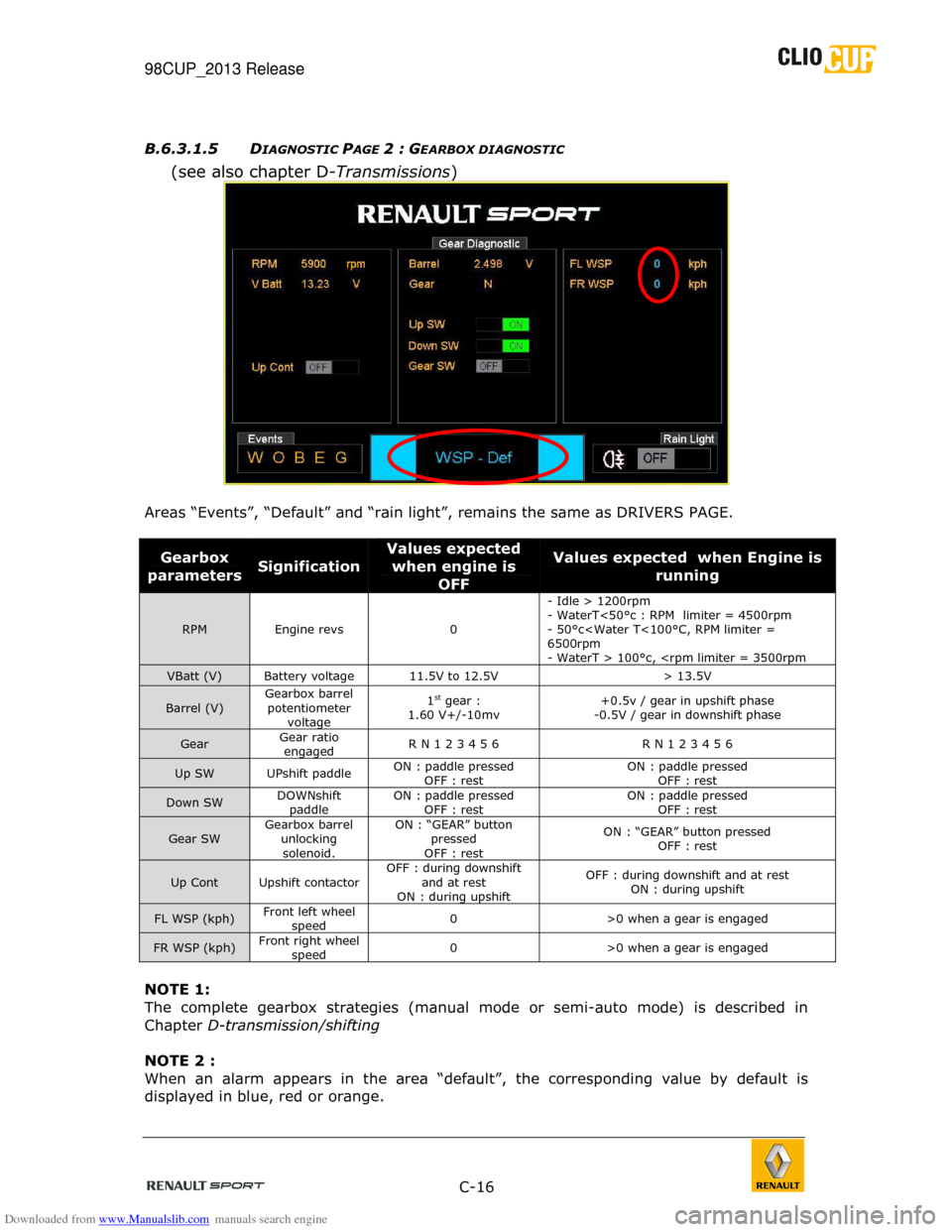

IAGNOSTIC PAGE 2 : GEARBOX DIAGNOSTIC
(see also chapter D -Transmissions)


Areas “Events”, “Default” and “rain light”, remains the same as DRIVERS PAGE.

Gearbox
parameters Signification
Values expected
when engine is
OFF
Values expected when Engine is
running
RPM Engine revs 0 - Idle > 1200rpm
- WaterT<50°c : RPM limiter = 4500rpm
- 50°c 6500rpm
- WaterT > 100°c, VBatt (V) Battery voltage 11.5V to 12.5V > 13.5V
Barrel (V)
Gearbox barrel
potentiometer voltage 1st gear :
1.60 V+/-10mv +0.5v / gear in upshift phase
-0.5V / gear in downshift phase
Gear Gear ratio
engaged R N 1 2 3 4 5 6 R N 1 2 3 4 5 6
Up SW UPshift paddle
ON : paddle pressed
OFF : rest ON : paddle pressed
OFF : rest
Down SW DOWNshift
paddle ON : paddle pressed
OFF : rest ON : paddle pressed
OFF : rest
Gear SW Gearbox barrel
unlocking solenoid. ON : “GEAR” button
pressed
OFF : rest ON : “GEAR” button pressed
OFF : rest
Up Cont Upshift contactor OFF : during downshift
and at rest
ON : during upshift OFF : during downshift and at rest
ON : during upshift
FL WSP (kph) Front left wheel
speed 0 >0 when a gear is engaged
FR WSP (kph)
Front right wheel
speed 0 >0 when a gear is engaged

NOTE 1:
The complete gearbox strategies (manual mode or sem
i-auto mode) is described in
Chapter D-transmission/shifting

NOTE 2 :
When an alarm appears in the area “default”, the co rresponding value by default is
displayed in blue, red or orange.

Downloaded from www.Manualslib.com manuals search engine 98CUP_2013 Release

C-19

B.6.3.2 Changing pages

The pages of the display may be changed by pressing on the push button ‘PAGE” of the
steering wheel - Pressing briefly on this button (one second) moves the display in the 3 driver
pages
- Pressing this button for longer (more than 2 second s) moves the display from
driver pages to diagnostic pages
- Pressing briefly on the button moves the display in the 5 diagnostic pages

You can return to the driver pages by pressing the button for a longer period (more than
2 seconds). The display returns to the first driver page

B.6.3.3 Leds / shiftlights



Shiftlights (8):
Shiftlight thresholds are fully configurable using the “Toolset” software, see chapter G-
Softwares
The LEDs light up in all gear ratios. By default, t he setup is the following one:

LEDs Alarm (2):
On the left side, 1 LED lights up when an engine al arm rises up
On the right side, 1 LED lights up when a Gearbox a larm rises up

These LEDs are associated with the message displaye d in the area “Default” and with the
letter recorded in the area “events”
Engine alarm LED gearbox
alarm LED
Shiftlights
5000 5200 5400 5600 5800 6000 6200 6300 Engine RPM at which LEDs
light up

Downloaded from www.Manualslib.com manuals search engine 98CUP_2013 Release

C-20

B.6.3.4 Alarms displayed on the dashboard

Alarms are generated by the ICD depending on engine / gearbox sensors values sent by
the ECU for display.
The alarm/default message disappears only when the problem is solved. Even if the
problem is solved, till the power supply is ON :
- The top left and/or right LEds alarms remain ON
- The letter in the area “event” is displayed

We distinguish 2 categories of alarms : A and B
B.6.3.4.1 M
AIN ALARMS (CATEGORY A)

The following alarms are displayed to the driver, m eaning that he must immediately
stop the car and cut the engine.
o Water T max
o Oil P min
o Vbatt min

See List on next page with the corresponding thresh olds.

A message is displayed on the full screen on the da shboard + in the Area ‘Default” to
force the driver to stop
In addition with the message displayed, all the fol lowing LEDs become RED:
- 3 on the Right column (above gearbox diagnostic L ED)
- 3 on the Left column (above engine diagnostic LED )
+ 1 engine alarm LED in RED
