WARNING!
Infants in rear facing child restraints should never ride
in the front seat of a vehicle with a passenger Advanced
Front Air Bag. An air bag deployment can cause severe
injury or death to infants in that position.
Children that are not big enough to wear the vehicle seat belt
properly (see section on Child Restraints) should be secured
in the rear seat in child restraints or belt-positioning booster
seats. Older children who do not use child restraints or
belt-positioning booster seats should ride properly buckled
up in the rear seat. Never allow children to slide the
shoulder belt behind them or under their arm.
If a child from 1 to 12 years old (not in a rear facing child
seat) must ride in the front passenger seat, move the seat
as far back as possible and use the proper child restraint.
(Refer to “Child Restraints”). You should read the instructions provided with your
child restraint to make sure that you are using it properly.
2.
All occupants should always wear their lap and
shoulder belts properly.
3. The driver and front passenger seats should be
moved back as far as practical to allow the Advanced
Front Air Bags room to inflate.
4. Do not lean against the door or window. If your
vehicle has side air bags, and deployment occurs, the
side air bags will inflate forcefully into the space
between you and the door.
5. If the air bag system in this vehicle needs to be
modified to accommodate a disabled person, contact
the Customer Center. Phone numbers are provided
under If You Need Assistance.
48 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

•Unlock the doors automatically.
In order to reset the Enhanced Accident Response System
functions after an event, the ignition switch must be
changed from IGN ON to IGN OFF.
9-1-1 Call Operating Instructions – If Equipped
1. Press the 9-1-1 Call buttonon the Rearview
Mirror;
NOTE: In case the 9-1-1 Call button is pushed in error,
there will be a 10 second delay before the 9-1-1 Call
system initiates a call to a 9-1-1 operator. To cancel the
9-1-1 Call connection, press the 9-1-1 Call button on the
Rearview Mirror or press the cancellation button on the
Phone Screen . Termination of the 9-1-1 Call will turn the
green LED light on the Rearview Mirror off.
2. The LED light located between the Assist and 9-1-1 buttons on the Rearview Mirror will turn green once a
connection to a 9-1-1 operator has been made; 3. Once a connection between the vehicle and a 9-1-1
operator is made, the 9-1-1 Call system may transmit
the following important vehicle information to a 9-1-1
operator:
• indication that the occupant placed a 9-1-1 Call;
• the vehicle brand; and
• the last known GPS coordinates of the vehicle.
4. You should be able to speak with the 9-1-1 operator through the vehicle audio system to determine if
additional help is needed.
NOTE: Once a connection is made between the vehicle’s
9-1-1 Call system and the 9-1-1 operator, the 9-1-1 opera-
tor may be able to open a voice connection with the
vehicle to determine if additional help is needed. Once
the 9-1-1 operator opens a voice connection with the
vehicle’s 9-1-1 Call system, the operator should be able to
speak with you or other vehicle occupants and hear
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 75

9-1-1 Call System Limitations
Vehicles sold in Canada and MexicoDO NOThave 9-1-1
Call system capabilities.
9-1-1 or other emergency line operators in Canada and
Mexico may not answer or respond to 9-1-1 system calls.
If the 9-1-1 Call system detects a malfunction, any of the
following may occur at the time the malfunction is
detected, and at the beginning of each ignition cycle:
• The Rearview Mirror light located between the Assist
and 9-1-1 buttons will continuously be illuminated
red;
• The Phone Screen will display the following message
“Vehicle phone requires service. Please contact your
dealer.”; and,
• An In-Vehicle Audio message will state “Vehicle phone
requires service. Please contact your dealer.”WARNING!
• Ignoring the Rearview Mirror light could mean you
will not have 9-1-1 Call services. If the Rearview
Mirror light is illuminated, have an authorized
dealer service the 9-1-1 Call system immediately.
• The ORC turns on the Air Bag Warning Light on
the instrument panel if a malfunction in any part of
the system is detected. If the Air Bag Warning Light
is illuminated, have an authorized dealer service
the ORC system immediately.
Even if the 9-1-1 Call system is fully functional, factors
beyond Chrysler Group LLC’s control may prevent or
stop the 9-1-1 Call system operation. These include, but
are not limited to, the following factors:
• The ignition key has been removed from the ignition
and the delayed accessories mode is active;2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 77

All accessories connected to the outlet(s) should be
removed or turned off when the vehicle is not in use to
protect the battery against discharge.
WARNING!
To avoid serious injury or death:
•Only devices designed for use in this type of outlet
should be inserted into any 12 Volt outlet.
• Do not touch with wet hands.
• Close the lid when not in use and while driving the
vehicle.
• If this outlet is mishandled, it may cause an electric
shock and failure.
CAUTION!
• Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life and/or
prevent the engine from starting.
• Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.), will discharge the
battery even more quickly. Only use these intermit-
tently and with greater caution.
• After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.
208 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

POWER INVERTER — IF EQUIPPED
A 115 Volt (150 Watts Maximum) outlet is located on the
center stack of the instrument panel, to the right of the
radio. This outlet can power cellular phones, electronics
and other low power devices requiring power up to 150
Watts. Certain high-end video games, such as Playsta-
tion3 and XBox360 will exceed this power limit, as will
most power tools.
The power inverter is designed with built-in overload
protection. If the power rating of 150 Watts is exceeded,
the power inverter will automatically shut down. Once
the electrical device has been removed from the outlet the
inverter should automatically reset.To turn on the power outlet, simply plug in the device.
The outlet automatically turns off when the device is
unplugged.
NOTE:Due to built-in overload protection, the power
inverter will shut down if the power rating is exceeded.
Power Inverter Outlet
210 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

With the upper lid closed, pull on the lower handle to
open the lower storage bin.WARNING!
Do not operate this vehicle with a console compart-
ment lid in the open position. Cellular phones, music
players, and other handheld electronic devices
(Continued)
Upper Storage CompartmentLower Storage Bin
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 217

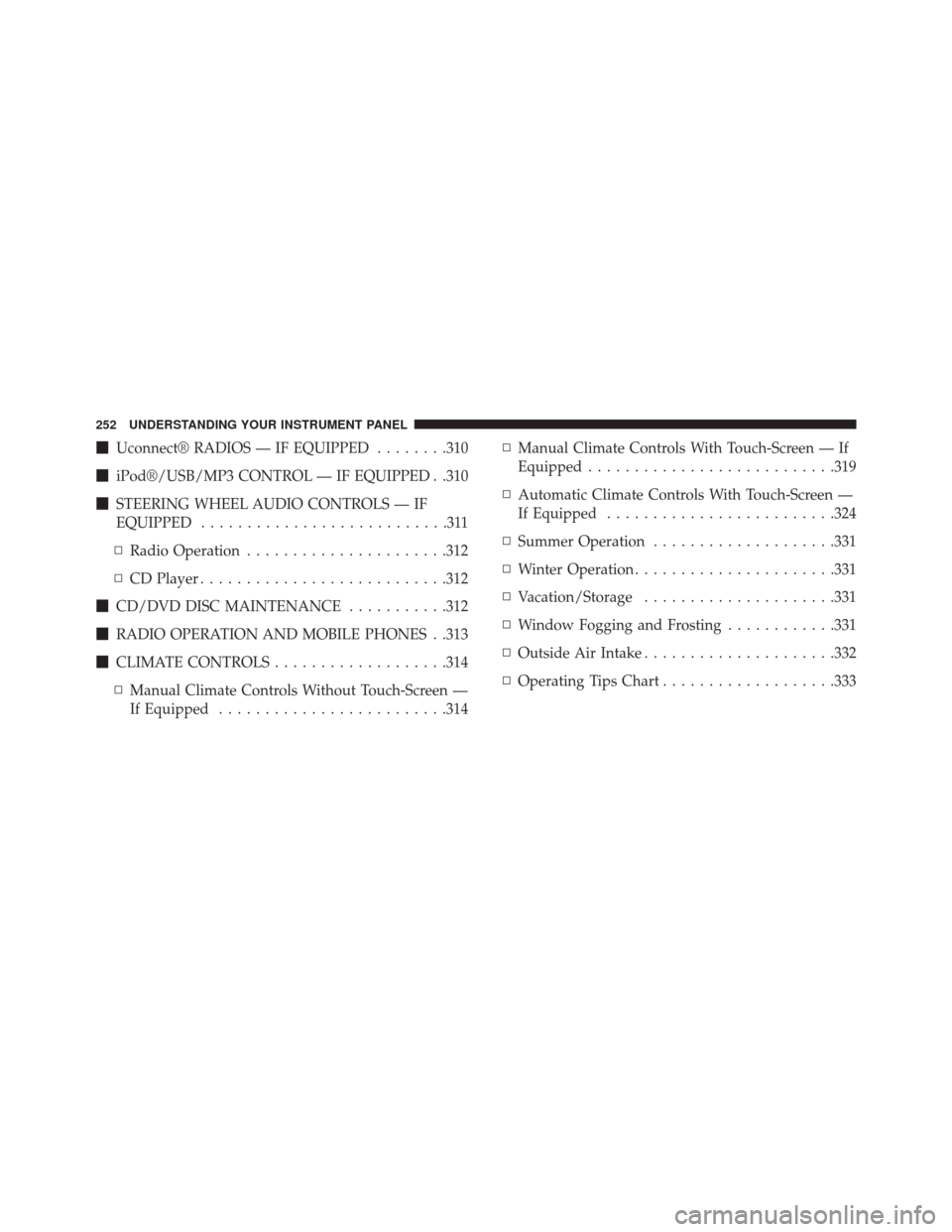

Uconnect® RADIOS — IF EQUIPPED ........310
 iPod®/USB/MP3 CONTROL — IF EQUIPPED . .310
 STEERING WHEEL AUDIO CONTROLS — IF
EQUIPPED ...........................311
▫ Radio Operation ..................... .312
▫ CD Player .......................... .312
 CD/DVD DISC MAINTENANCE ...........312
 RADIO OPERATION AND MOBILE PHONES . .313
 CLIMATE CONTROLS ...................314
▫ Manual Climate Controls Without Touch-Screen —
If Equipped ........................ .314▫
Manual Climate Controls With Touch-Screen — If
Equipped .......................... .319
▫ Automatic Climate Controls With Touch-Screen —
If Equipped ........................ .324
▫ Summer Operation ....................331
▫ Winter Operation ..................... .331
▫ Vacation/Storage .....................331
▫ Window Fogging and Frosting ............331
▫ Outside Air Intake .....................332
▫ Operating Tips Chart ...................333
252 UNDERSTANDING YOUR INSTRUMENT PANEL

Electronic Vehicle Information Center (EVIC)
Displays
The EVIC displays are located in the center portion of the
cluster and consists of eight sections:1. Main Screen — The inner ring of the display will
illuminate in grey under normal conditions, yellow for
non critical warnings, red for critical warnings and
white for on demand information.
2. Audio / Phone Information and Sub-menu Informa- tion — Whenever there are sub-menus available, the
position within the sub-menus is shown here.
3. Selectable Information (Compass, Temp, Range to Empty, Trip A, Trip B, Average MPG, Trailer Trip
(distance only), Trailer Brake Gain)
4. Telltales/Indicators
5. Shift Lever Status (PRNDL)
6. Selectable Menu Icons
7. Air Suspension Status – If Equipped
8. 4WD Status
