Uconnect® SETTINGS
The Uconnect® system uses a combination of soft and
hard keys located on the center of the instrument panel
that allows you to access and change the customer
programmable features.
Hard-Keys
Hard-Keys are located below the Uconnect® system in
the center of the instrument panel. In addition, there is a
Scroll/Enter control knob located on the right side of the
Climate Controls in the center of the instrument panel.
Turn the control knob to scroll through menus and
change settings (i.e., 30, 60, 90), press the center of the
control knob one or more times to select or change a
setting (i.e., ON, OFF).
Your Uconnect® system may also have a Screen Off and
Back hard-keys located below the system.Press the Screen Off hard-key to turn off the Uconnect®
screen. Press the Screen Off hard-key a second time to
turn the screen on.
Press the Back hard-key to exit out of a Menu or certain
option on the Uconnect® system.
Soft-Keys
Soft-Keys are accessible on the Uconnect® display.
Customer Programmable Features — Uconnect® 8.4
Settings
Press the Apps soft-key, then press the Settings soft-key
to display the menu setting screen. In this mode the
Uconnect® system allows you to access programmable
features that may be equipped such as Display, Clock,
Safety/Assistance, Lights, Doors & Locks, Auto-On
Comfort & Remote Start, Engine Off Operation, Compass
Settings, Audio, Phone/Bluetooth and SiriusXM Setup.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 295

•Auto Dim High Beams “SmartBeam™” — If
Equipped
When this feature is selected, the high beam headlights
will deactivate automatically under certain conditions. To
make your selection, touch the Auto High Beams softkey,
until a check-mark appears next to setting, showing that
setting has been selected. Touch the back arrow soft-key
to return to the previous menu. Refer to “Lights/ Smart-
Beam™ — If Equipped” in “Understanding The Features
Of Your Vehicle” for further information.
• Daytime Running Lights – If Equipped
When this feature is selected, the headlights will turn on
whenever the engine is running. To make your selection,
touch the Daytime Running Lights soft-key, until a
check-mark appears next to setting, showing that setting
has been selected. Touch the back arrow soft-key to
return to the previous menu. •
Flash Headlights With Lock
When this feature is selected, the headlights will flash
when the doors are locked or unlocked with the Remote
Keyless Entry (RKE) transmitter. This feature may be
selected with or without the sound horn on lock feature
selected. To make your selection, touch the Flash Head-
lights with Lock soft-key, until a check-mark appears
next to setting, showing that setting has been selected.
Touch the back arrow soft-key to return to the previous
menu.
Doors & Locks
After pressing the Doors & Locks soft-key the following
settings will be available.
• Auto Unlock On Exit
When this feature is selected, all doors will unlock when
the vehicle is stopped and the transmission is in the
PARK or NEUTRAL position and the driver’s door is
302 UNDERSTANDING YOUR INSTRUMENT PANEL

•Auto-On Driver Heated/Ventilated Seat & Steering
Wheel With Vehicle Start — If Equipped
When this feature is selected the driver’s heated seat and
heated steering wheel will automatically turn on when
temperatures are below 40° F (4.4° C). When tempera-
tures are above 80° F (26.7° C) the driver vented seat will
turn on. To make your selection, touch the Auto Heated
Seats soft-key, until a check-mark appears next to setting,
showing that setting has been selected. Touch the back
arrow soft-key to return to the previous menu.
Engine Off Options
After pressing the Engine Off Options soft-key the fol-
lowing settings will be available.
• Engine Off Power Delay
When this feature is selected, the power window
switches, radio, Uconnect® phone system (if equipped),
DVD video system (if equipped), power sunroof (if equipped), and power outlets will remain active for up to
10 minutes after the ignition is cycled to OFF. Opening
either front door will cancel this feature. To change the
Engine Off Power Delay status touch the 0 seconds, 45
seconds, 5 minutes or 10 minutes soft-key. Then touch the
arrow back soft-key.
•
Headlight Off Delay
When this feature is selected, the driver can choose to
have the headlights remain on for 0, 30, 60, or 90 seconds
when exiting the vehicle. To change the Headlight Off
Delay status touch the + or - soft-key to select your
desired time interval. Touch the back arrow soft-key to
return to the previous menu.
Compass Settings – If Equipped
After pressing the Compass Settings soft-key the follow-
ing settings will be available.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 305

Economy Mode
If ECONOMY mode is desired, press the A/C button to
turn off the LED indicator and the A/C compressor.
Rotate the temperature control knob to the desired tem-
perature. Also, make sure to select only Panel, Bi-Level or
Floor modes.
Stop/Start System – If Equipped
While in an Autostop, the Climate Controls system may
automatically adjust airflow to maintain cabin comfort.
Customer settings will be maintained upon return to an
engine running condition.
Manual Climate Controls With Touch-Screen — If
Equipped
Hard-Keys
The hard-keys are located below the radio touch-screen.
Climate Controls — Hard-keys
4
UNDERSTANDING YOUR INSTRUMENT PANEL 319

•The temperature can be displayed in U.S. or Metric
units by selecting the US/M customer-programmable
feature. Refer to the “Uconnect® System Settings” in
this section of the manual.
To provide you with maximum comfort in the Automatic
mode, during cold start-ups the blower fan will remain
on low until the engine warms up. The blower will
increase in speed and transition into Auto mode.
Recirculation Control
When outside air contains smoke, odors, or
high humidity, or if rapid cooling is desired,
you may wish to recirculate interior air by
pressing the RECIRCULATION control button.
Recirculation mode should only be used temporarily. The
recirculation LED will illuminate on the soft and hard
keys when either button is selected. Push either soft or hard key a second time to turn off the Recirculation mode
LED and allow outside air into the vehicle.
NOTE:
In cold weather, use of Recirculation mode may
lead to excessive window fogging. The recirculation
feature may be unavailable (soft-key button greyed out)
if conditions exist that could create fogging on the inside
of the windshield. On systems with Manual Climate
Controls, the recirculation mode is not allowed in Defrost
mode to improve window clearing operation. Recircula-
tion will be disabled automatically if this mode is se-
lected. Attempting to use Recirculation while in this
mode will cause the LED in the control button to blink
and then turn off.
330 UNDERSTANDING YOUR INSTRUMENT PANEL

Summer Operation
The engine cooling system must be protected with a
high-quality antifreeze coolant to provide proper corro-
sion protection and to protect against engine overheating.
A solution of 50% ethylene glycol antifreeze coolant and
50% water is recommended. Refer to “Maintenance Pro-
cedures” in “Maintaining Your Vehicle” for proper cool-
ant selection.
Winter Operation
To ensure the best possible heater and defroster perfor-
mance, make sure the engine cooling system is function-
ing properly and the proper amount, type, and concen-
tration of coolant is used. Refer to “Maintenance
Procedures” in “Maintaining Your Vehicle” for proper
coolant selection. Use of the air Recirculation mode
during Winter months is not recommended because it
may cause window fogging.
Vacation/Storage
Any time you store your vehicle or keep it out of service
(i.e., vacation) for two weeks or more, run the air
conditioning system at idle for about five minutes in
fresh air with the blower setting in high. This will ensure
adequate system lubrication to minimize the possibility
of compressor damage when the system is started again.
Window Fogging and Frosting
Vehicle windows tend to fog on the inside of the glass in
mild, rainy and/or humid weather. Windows may frost
on the inside of the glass in very cold weather. To clear
the windows, select Defrost or Mix mode and increase
the front blower speed. Do not use the Recirculation
mode without A/C for long periods, as fogging may
occur.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 331

STARTING AND OPERATING
CONTENTS
STARTING PROCEDURES ................342
▫ Normal Starting ...................... .342
▫ Automatic Transmission ................342
▫ Keyless Enter-N-Go™ ..................343
▫ Normal Starting ...................... .343
▫ Extreme Cold Weather (Below –20°F
Or 29°C) ......................... .345
▫ If Engine Fails To Start .................345
▫ After Starting ....................... .346
 STOP/START SYSTEM — IF EQUIPPED ......346▫
Automatic Mode ..................... .346
▫ Possible Reasons The Engine Does Not AUTO
STOP............................. .347
▫ To Start The Engine While In Autostop Mode . .348
▫ To Manually Turn Off The Start Stop System . .350
▫ To Manually Turn On The Start Stop System . .350
▫ System Malfunction ....................351
 ENGINE BLOCK HEATER — IF EQUIPPED . . .351
 AUTOMATIC TRANSMISSION ............352
▫ Key Ignition Park Interlock ...............354
5

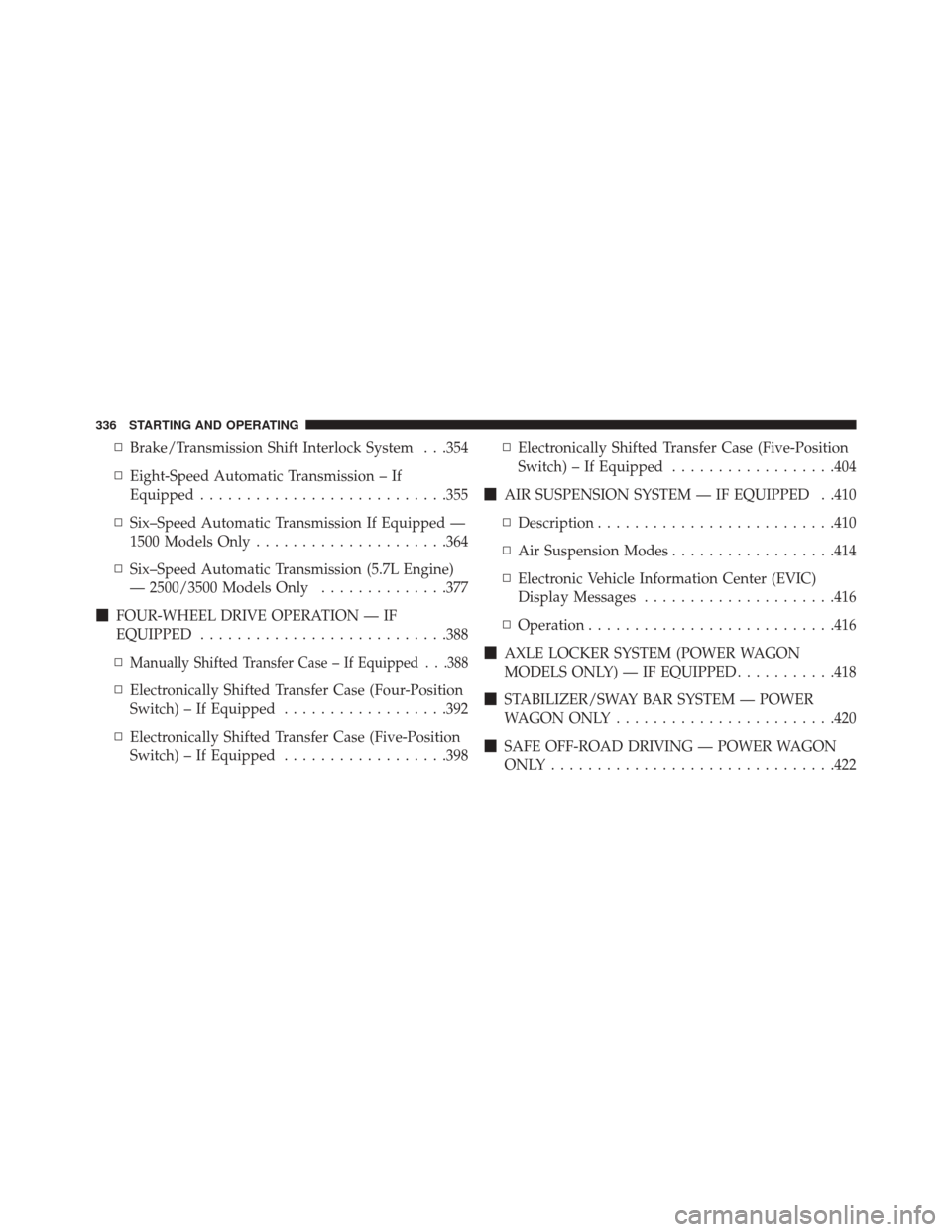

▫Brake/Transmission Shift Interlock System . . .354
▫ Eight-Speed Automatic Transmission – If
Equipped .......................... .355
▫ Six–Speed Automatic Transmission If Equipped —
1500 Models Only .....................364
▫ Six–Speed Automatic Transmission (5.7L Engine)
— 2500/3500 Models Only ..............377
 FOUR-WHEEL DRIVE OPERATION — IF
EQUIPPED .......................... .388
▫
Manually Shifted Transfer Case – If Equipped . . .388
▫ Electronically Shifted Transfer Case (Four-Position
Switch) – If Equipped ..................392
▫ Electronically Shifted Transfer Case (Five-Position
Switch) – If Equipped ..................398 ▫
Electronically Shifted Transfer Case (Five-Position
Switch) – If Equipped ..................404
 AIR SUSPENSION SYSTEM — IF EQUIPPED . .410
▫ Description ......................... .410
▫ Air Suspension Modes ..................414
▫ Electronic Vehicle Information Center (EVIC)
Display Messages .....................416
▫ Operation .......................... .416
 AXLE LOCKER SYSTEM (POWER WAGON
MODELS ONLY) — IF EQUIPPED ...........418
 STABILIZER/SWAY BAR SYSTEM — POWER
WAGON ONLY ....................... .420
 SAFE OFF-ROAD DRIVING — POWER WAGON
ONLY.............................. .422
336 STARTING AND OPERATING
