2013 PORSCHE 911 CARRERA dimensions

3435
Which vital ingredients do you need to
experience moments of true happiness?
It ’s our conviction, at least, that you need
impressive road holding. Plus safety,
reliabilit y and faith in technology that won’t
let you down when you need it most.
Because only when we have peace of

mind are we truly free.
All these ingredients have been brought
together in the 911 Carrera 4S Cabriolet.
The car, powered by a 3.8 ­litre direct fuel
injection (DFI) engine with a maximum out ­
put of 294 kW (400 hp) at 7,400 rpm,
sprints from 0 to 62 mph in 4.7 seconds
and boasts a top speed of 183 mph.

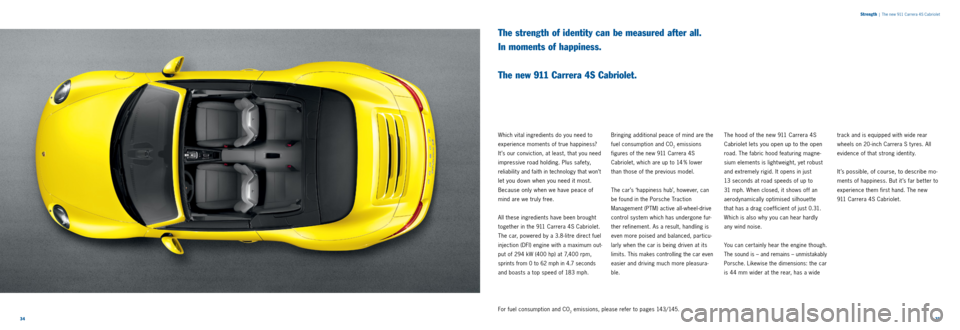

Strength | The new 911 Carrera 4S Cabriolet
The strength of identity can be measured after all.
In moments of happiness.

The new 911 Carrera 4S Cabriolet.
Bringing additional peace of mind are the
fuel consumption and CO
2 emissions
figures of the new 911 Carrera 4S
Cabriolet, which are up to 14 % lower
than those of the previous model.
The car’s ‘happiness hub’, however, can
be found in the Porsche Traction
Ma na
gement (PTM) active all ­wheel ­drive
control system which has undergone fur ­
ther refinement. As a result, handling is
even more poised and balanced, particu ­
larly when the car is being driven at its
limits.
This makes controlling the car even
easier
and driving much more pleasura ­
ble.
The hood of the new 911 Carrera 4S
Cabriolet lets you open up to the open
road. The fabric hood featuring magne­
sium elements is light weight, yet robust
and extremely rigid. It opens in just
13 seconds at road speeds of up to
31 mph. When closed, it shows off an
aerodynamically optimised silhouette
that has a drag coefficient of just 0.31.
Which is also why you can hear hardly
any wind noise.
You can certainly hear the engine though.
The sound is – and remains – unmistakably
Porsche. Likewise the dimensions:
the car
is 44 mm wider at the rear, has a wide track and is equipped with wide rear
wheels on 20
­inch Carrera S t yres. All
evidence of that strong identit y.
It’s possible, of course, to describe mo ­
ments of happiness. But it ’s far bet ter to
experience them first hand. The new
911 Carrera 4S Cabriolet.
For fuel consumption and CO
2 emissions, please refer to pages 143/145.

142143
1)
Weight is calculated in accordance with the relevant EC Directives and is valid for vehicles with standard specification only. Optional equipment increases this figure. The figure given includes 68 kg for the driver and 7 kg for luggage.2) Data determined in the NEDC (New European Driving Cycle) in accordance with the Euro 5 (715/2007/ EC and 692/2008/ EC) measurement method. The figures do not refer to an individual vehicle nor do they constitute part of the of fer.
They are intended solely as a means of comparing dif ferent t ypes of vehicle. You can obtain further information about individual vehicles from your Porsche Centre. Fuel consumption calculated for vehicles with standard specification
only. A vehicle’s fuel consumption and CO
2 emissions depend not only on its ef ficient use of fuel but also on driving st yle and other non ­technical factors. Actual consumption and per formance may var y with items of optional equipment.
Technical data.9 11 C a r r e r a 911 Carrera Cabriolet9 11 C a r r e r a S911 Carrera S Cabriolet
Weights
Manual / PDK Manual / PDK Manual / PDK Manual / PDK
Unladen (DIN) 1,380 kg / 1,400 kg1,450 kg / 1,470 kg1,395 kg / 1,415 kg1,465 kg / 1,485 kg
Unladen (EC)
1)1,455 kg / 1,475 kg 1,525 kg / 1,545 kg1,470 kg / 1,490 kg1,540 kg / 1,560 kg
Permissible gross weight 1,795 kg / 1,815 kg1,850 kg / 1,870 kg1,830 kg / 1,850 kg1,885 kg / 1,905 kg
PerformanceManual / PDK Manual / PDK Manual / PDK Manual / PDK
Top speed 179 mph / 178 mph177 mph / 176 mph188 mph / 187 mph187 mph / 185 mph
0 – 62 mph 4.8 secs / 4.6 secs 5.0 secs / 4.8 secs4.5 secs / 4.3 secs 4.7 secs / 4.5 secs
Sport Chrono Package (with PDK) 0 – 62 mph – / 4.4 secs – / 4.6 secs– / 4.1 secs – / 4.3 secs
0 –99 mph 10.4 secs / 10.0 secs 10.8 secs / 10.4 secs9.4 secs / 9.0 secs 9.8 secs / 9.4secs
Sport Chrono Package (with PDK) 0 –99 mph – / 9.7 secs – / 10.1 secs– / 8.7 secs – / 9.1 secs
Flexibilit y (49 –74 mph) in 5th gear 6.4 secs / –6.7 secs / –5.9 secs / –6.2 secs / –
Overtaking acceleration (49–74 mph) – / 2.8 secs – / 2.9 secs– / 2.4 secs – / 2.5 secs
Fuel consumption/emissions 2)Manual / PDK Manual / PDK Manual / PDK Manual / PDK
Urban in mpg 22.0 / 25.2 21.5 / 24.7 20.4 / 12.2 20.0 / 22.7
Extra urban in mpg 41.5 / 43.440.3 / 42.139.7 / 42.139.2 / 40.9
Combined in mpg 9.0 / 8.29.2 / 8.49.5 / 8.79.7 / 8.9
CO
2 emissions g/km 212 / 194217 / 198224 / 205229 / 210
Dimensions/aerodynamics
Length 4,491 m m4,491 m m4,491 m m4,491 m m
Width 1,808 mm1,808 mm1,808 mm1,808 mm
Height 1,303 mm1, 2 9 9 m m1, 2 95 m m1, 2 92 m m
Wheelbase 2,450 mm2,450 mm2,450 mm2,450 mm
Luggage compartment volume
(German Car Manufacturers’ Assoc.) 14 5 l i t r e s
14 5 l i t r e s14 5 l i t r e s14 5 l i t r e s
Tank capacity (refill volume) 64 litres64 litres64 litres64 litres
Drag coefficient 0.290.300.290.30
911 Carrera / 911 Carrera Cabriolet 911 Carrera S / 911 Carrera S Cabriolet
Engine
Cylinders 6 6
Displacement 3,436 cm
33,800 cm3
Max. power (DIN)
at rpm257 kW (350 hp)
7, 4 0 0 294 kW (400 hp)
7, 4 0 0
Max. torque
at rpm 390 Nm
5,600 440 Nm
5,600
Compression ratio 12.5 : 1 12.5 : 1
Transmission
LayoutRear­wheel drive Rear­wheel drive
Manual gearbox 7­speed 7­speed
PDK (optional) 7­speed 7­speed
Chassis
Front axle McPherson strut suspension McPherson strut suspension
Rear axle Multi­link suspension Multi­link suspension
Steering Variable steering ratio, power­assisted (electromechanical) Variable steering ratio, power­assisted (electromechanical)
Turning circle 11. 1 m 11. 1 m
Brakes Four­piston aluminium monobloc fixed calipers front and rear,
discs internally vented and cross ­drilled Six
­piston aluminium monobloc fixed calipers at front, four ­piston
aluminium monobloc fixed calipers at rear, discs internally vented
and cross ­drilled
Vehicle stabilit y system Porsche Stability Management (PSM) including ABS
with additional brake functions Porsche Stability Management (PSM) including ABS
with additional brake functions
Standard wheels Front: 8.5 J x 19 ET 54, Rear: 11 J x 19 ET 69 Front: 8.5 J x 20 ET 51, Rear: 11 J x 20 ET 70
Standard tyres Front: 235/40 ZR 19, Rear: 285/35 ZR 19 Front: 245/35 ZR 20, Rear: 295/30 ZR 20

144145
9 11 C a r r e r a 4911 Carrera 4 Cabriolet9 11 C a r r e r a 4 S911 Carrera 4S Cabriolet
Weights
Manual/PDK Manual/PDKManual/PDKManual/PDK
Unladen (DIN) 1,430 kg / 1,450 kg1,500 kg / 1,520 kg1,445 kg / 1,465 kg1,515 k g / 1,535 k g
Unladen (EC)
1)1,505 kg / 1,525 kg 1,575 kg / 1,595 kg1,520 kg / 1,540 kg1,590 kg / 1,610 kg
Permissible gross weight 1,845 kg / 1,865 kg1,900 kg / 1,920 kg1,875 kg / 1,895 kg1,935 kg / 1,955 kg
PerformanceManual / PDK Manual / PDK Manual / PDK Manual / PDK
Top speed 177 mph / 175 mph 175 mph / 173 mph 185 mph / 184 mph183 mph / 182 mph
0 – 62 mph 4.9 secs / 4.7 secs5.1 secs / 4.9 secs4.5 secs / 4.3 secs4.7 secs / 4.5 secs
Sport Chrono Package (with PDK) 0 – 62 mph – / 4.5 secs– / 4.7 secs– / 4.1 secs– / 4.3 secs
0 –99 mph 10.6 secs / 10.2 secs11.0 secs / 10.6 secs9.6 secs / 9.2 secs10.0 secs / 9.6 secs
Sport Chrono Package (with PDK) 0 –99 mph – / 9.9 secs– / 10.3 secs– / 8.9 secs– / 9.3 secs
Flexibilit y (49 –74 mph), in 5th gear 6.5 secs / –6.8 secs / –6.0 secs/ –6.3 secs / –
Overtaking acceleration (49–74 mph) – / 2.9 secs– / 3.1 secs– / 2.5 secs– / 2.7 secs
Fuel consumption/emissions 2)Manual / PDK Manual / PDK Manual / PDK Manual / PDK
Urban in mpg 21.4 / 24.1 20.9 / 23.7 19.8 / 22.219.6 / 21.9
Extra urban in mpg 39.7 / 41.539.2 / 40.937.6 / 40.337.1 / 39.7
Combined in in mpg 30.3 / 32.829.7 / 32.428.5 / 31.028.2 / 30.7
CO
2 emissions g/km 219 / 203224 / 205234 / 215236 / 217
Dimensions/aerodynamics
Length 4,491 m m4,491 m m4,491 m m4,491 m m
Width 1,8 52 m m1,8 52 m m1,8 52 m m1,8 52 m m
Height 1,3 0 4 m m1,3 0 0 m m1, 2 9 6 m m1, 2 9 4 m m
Wheelbase 2,450 mm2,450 mm2,450 mm2,450 mm
Luggage compartment volume
(German Car Manufacturers’ Assoc.) 125 l i t re s
125 l i t re s125 l i t re s125 l i t re s
Tank capacity (refill volume) 68 litres68 litres68 litres68 litres
Drag coefficient 0.300.31 0.30 0.31
911 Carrera 4 / 911 Carrera 4 Cabriolet 911 Carrera 4S / 911 Carrera 4S Cabriolet
Engine
Cylinders 6 6
Displacement 3,436 cm
33,800 cm3
Max. power (DIN)
at rpm257 kW (350 hp)
7, 4 0 0 294 kW (400 hp)
7, 4 0 0
Max. torque
at rpm 390 Nm
5,600 440 Nm
5,600
Compression ratio 12.5 : 1 12.5 : 1
Transmission
LayoutAll­wheel drive All­wheel drive
Manual gearbox 7­speed 7­speed
PDK (optional) 7­speed 7­speed
Chassis
Front a xle McPherson strut suspension McPherson strut suspension
Rear axle Multi­link suspension Multi­link suspension
Steering Variable steering ratio, power­assisted (electromechanical) Variable steering ratio, power­assisted (electromechanical)
Turning circle 11. 1 m 11. 1 m
Brakes Four­piston aluminium monobloc fixed calipers front and rear,
discs internally vented and and cross ­drilled Six
­piston aluminium monobloc fixed calipers at front, four ­piston
aluminium monobloc fixed calipers at rear, discs internally vented
and cross ­drilled
Vehicle stability system Porsche Stability Management (PSM)
including ABS with additional brake functions Porsche Stability Management (PSM)
including ABS with additional brake functions
Standard wheels Front: 8.5 J x 19 ET 54, Rear: 11 J x 19 ET 48 Front: 8.5 J x 20 ET 51, Rear: 11 J x 20 ET 52
Standard tyres Front: 235/40 ZR 19, Rear: 295/35 ZR 19 Front: 245/35 ZR 20, Rear: 305/30 ZR 20
1) Weight is calculated in accordance with the relevant EC Directives and is valid for vehicles with standard specification only. Optional equipment increases this figure. The figure given includes 68 kg for the driver and 7 kg for luggage.2) Data determined in the NEDC (New European Driving Cycle) in accordance with the Euro 5 (715/2007/ EC and 692/2008/ EC) measurement method. The figures do not refer to an individual vehicle nor do they constitute par t of the of fer.
They are intended solely as a means of comparing dif ferent t ypes of vehicle. You can obtain fur ther information about individual vehicles from your Porsche Centre. Fuel consumption calculated for vehicles with standard specification
only. A vehicle’s fuel consumption and CO
2 emissions depend not only on its ef ficient use of fuel but also on driving st yle and other non ­technical factors. Actual consumption and per formance may var y with items of optional equipment.

The models featured in this publication
are approved for road use in Germany.
Some items of equipment are available
as extra ­cost options only. The availabilit y
of models and options may vary from
market to market due to local restrictions
and regulations. For information on
standard and optional equipment, please
consult your Porsche Centre. All informa ­
tion regarding construction, features,
design, performance, dimensions, weight,
fuel consumption and running costs
is correct to the best of our knowledge
at the time of going to print (03/13).
Porsche reserves the right to alter
speci fications, equipment and delivery
scopes without prior notice. Colours
may differ from those illustrated. Errors
and omissions excepted.
