2013 Peugeot Partner Owner's Manual

9.83
FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION

There is a difference in sound quality betweenthe different audiosources (radio, CD...).
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambience, Loudness) can be adapted to the different sound sources,which may result in audible differences when changing source (radio,CD...).

Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted tothe sources listened to. It is advisable to setthe AUDIO functions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.

The CD is ejected automatically or is not played by the player.
The CD is inserted upside down, is unplayable, does not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.


- Check that the CD is inserted in the player the right way up.


- Check the condition of the CD: the CD cannot be played if it is too damaged.


- Check the content in the case of a recordedCD: consult the advice in the "Audio" section.


- The audio equipment's CD player does notplay DVDs.


- Due to their quality level, certain writeableCDs will not be played by the audio system.

The message "USB peripheral error" isdisplayed on the screen.

The Bluetooth connectionis cut.
The battery of the peripheral may not be suffi ciently charged.
Recharge the battery of the peripheral device.
The USB memory stick is not recognised.
The memory stick may be corrupt.

Reformat the memory stick.

The CD player sound ispoor.The CD used is scratched or of poor quality.
Insert good quality CDs and store them in suitable conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without selectingan ambience.

9.84
QUESTIONANSWERSOLUTION
The stored stations donot function (no sound, 87.5 Mhz is displayed...).

An incorrect waveband is selected.
Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on which thestations are stored.

The traffi c announcement(TA) is displayed. I donot receive any traffi c information.
The radio station is not part of the regional traffi c information network.
Tune to a radio station which broadcasts traffi c information.

The quality of receptionof the radio station listened to graduallydeteriorates or the stored stations do not function(no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listenedto or there is no transmitter in the geographical area through which the vehicle is travelling.
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block reception, including in RDS mode. This phenomenon is normal and does not indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when goingthrough a car wash or into an underground car park).
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to2 seconds in radio mode.During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station.
Deactivate the RDS function if the phenomenon is too frequent and always on the same route.

With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipment operating timedepends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the batterycharge.
The message "the audio system is overheated" appears on the display.
In order to protect the installation if the surrounding temperature is toohigh, the audio equipment switches to an automatic thermal protectionmode leading to a reduction of the volume or stopping of the playing of the CD.
Switch the audio system off for a few minutes toallow the system to cool.

141


Exterior

VISUAL SEARCH
10

EXTERIOR


Remote control 17-18
Changing the battery,
reinitialisation 18
Key 17
Starting 46
Hill start assist 47
Central locking /
unlocking 17, 26
Locking / unlocking
the load space 17, 26

Filler cap,
fuel tank 113-114
Fuel cut-off,
Diesel priming 114

Wiper blades 132
Door mirrors 78-79
Side repeater 125

Front lamps, foglamps, direction
indicators 48-49, 124-125
Headlamp beam height
adjustment 50
Changing front bulbs 123-125
Headlamp wash 52, 110
Snow cover 121

Front doors 20
Sliding side door 21
Key 17
Opening the bonnet 106

Infl ation,
pressures 140
Towing, lifting 102-103, 133
Towbar 102-103
Rear parking
sensors 82-83
Number
plate lamp 127
Spare wheel, jack,
changing a wheel,
tools 117-121
Rear lamps,
direction indicators 48-49, 125-126
3rd brake lamp 127
Changing
rear bulbs 126-127
Load space,
opening 17, 26
Doors, tailgate 22-25
Accessories 103
Roof bars 77

Rear roof fl ap 24
Emergency control 25

Dimensions 134-138
Floor cab dimensions 138

Brakes, pads 81, 109, 111
Emergency braking 84
ABS, EBFD 84
ASR, ESC 85
"Grip control" 86-87
Tyre, pressures 140
Tyre under-infl ation detection 36
Snow chains 122

142


Instruments and controls



ESC 85
Parking sensors 82-83
Electric mirrors 78

Headlamp beam height adjustment 50
Stop & Start 43-45
Starter, ignition 46
Wipers controls 51-52
Automatic wiping 51

Windscreen / headlamp wash 52, 110
Trip computer Section 9

Cruise control 53-55
Speed limiter 56-58
Lighting controls 48-50
Automatic illumination of
headlamps 49-50
Foglamps 49
LED daytime runing lamps 49

INSTRUMENTS AND CONTROLS


Dashboard, passenger
compartment fuses 128-130
Opening the bonnet 106

Parking brake,
handbrake 81
Instrument panels,
screens,
dials 27-28
Warning lamps,
indicator lamps 29-34
Indicators, gauge 35, 37-38

Setting the time in the instrument panel 28
Lighting dimmer 38
Gear shift indicator 39-40

Audio equipment steering
mounted controls Section 9

Steering wheel adjustment 42
Horn 81


Gearbox 39

143


Instruments and controls

10


Rear view mirror 79
Toll cards, car park tickets 79

On-board technology Section 9


- Peugeot Connect Navigation (RT6)

- Peugeot Connect Sound


Controls


- central locking 26

- load space locking 26

- electric windows 80

- hazard warning lamps 81

Emergency or
assistance call Section 9

Electronic
gearbox 40-42
Heating, ventilation


- heating 59

- air conditioning 60
Digital air conditioning 61-62
Demisting/defrosting 63-64
"Grip control" 86-87
Courtesy lamps 72, 125

Cab fi ttings 70-71


- glove box,

- overhead storage,

- console,

- sun visor,

- bottle holder,

- bag holder,

- storage compartments under
seats,

- storage compartment.


Screens, display 27, Section 9
Setting the time
in the screen Section 9

Passenger's airbag
deactivation 93

144


Interior



Rear view mirror 79
Toll cards, car park tickets 79
Front courtesy lamp 72
Changing courtesy
lamp bulbs 125

Spare wheel, jack,
changing a wheel, tools 117-121
Snow chains 122
Front, lateral airbags 91-94
Passenger's airbag
deactivation 94
Battery, recharging, starting 115

Opening the bonnet 106

Towing, towbar, coachbuilders,
fl oor cab fuses 130
Front seats, adjustments,
head restraint 65-66
Multi-Flex bench seat 67-68
Seat,
bench confi gurations 69
Seat belts 89-90

Accessories 103


INTERIOR


Rear courtesy lamp 72
Changing
courtesy lamp bulbs 125

Load space 75-76


- stowing rings,

- load retainer,

- trim,

- 12 volt socket,

- ladder separation or partition,

- removable fl ap.

Child seats 95-101
Parking brake,
handbrake 81

Towing, lifting,
towbar 102-103, 133
Towed loads 139

145


Technical data - Maintenance

VISUAL SEARCH
10

TECHNICAL DATA - MAINTENANCE


Identifi cation markings,
serial number, paint code,
tyres 140
Snow chains 122

Windscreen / headlamp wash,
levels 110

Changing bulbs,
lighting 123-127
Checks 111-112


- battery,

- gearbox,

- air/passenger compartment fi lter,

- oil fi lter,

- particle emission fi lter,

- parking brake,

- brake pads,

- brake drums, discs.
Emissions controls 36
Engine fuses 128, 131

Under the bonnet


- Diesel 108

- petrol 107
Fuel cut-off,
Diesel priming 114
Dimensions 134-137
Floor cab dimensions 138
Weights 139

Opening the bonnet, stay 106
Levels 109-110


- Diesel additive,

- dipstick,

- power steering fl uid,

- brake fl uid,

- coolant.
Bleeding water, Diesel fi lter 112
Warning lamps 29-34

Changing a wiper
blade 132

146

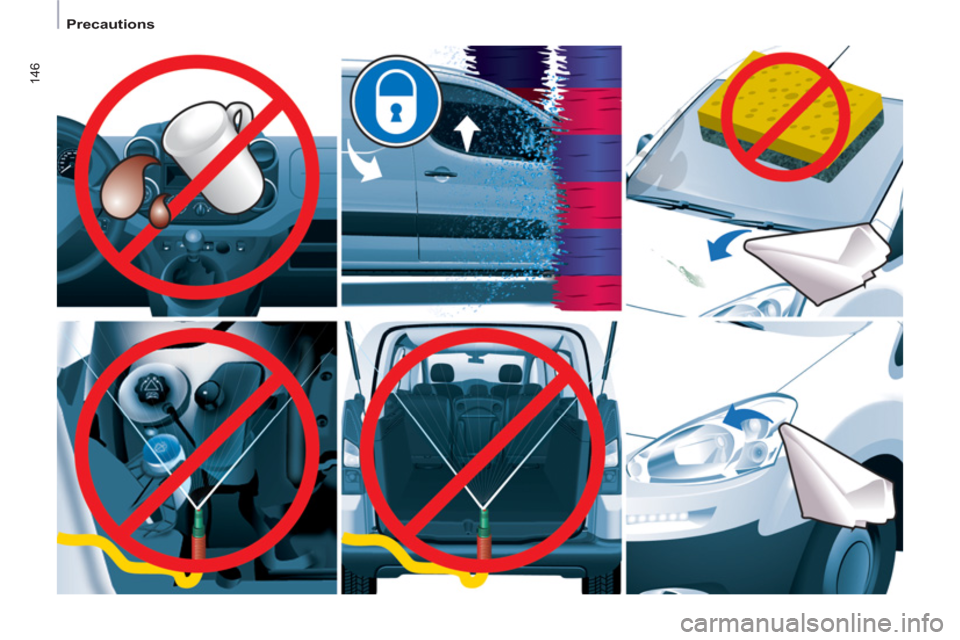

Precautions
