Fuel

CHECK
S
6

FUEL CUT-OFF
DIESEL PRIMING PUMP



If you should run out of fuel, it is necessary
to prime the circuit:


- fill the fuel tank with at least five litres of
diesel,

- squeeze and release the manual priming
pump, under the bonnet under the
protective cover, until fuel appears in the
transparent pipe,

- operate the starter until the engine
starts. In a serious collision, a mechanism
automatically prevents fuel from reaching
the engine.
The flashing of this warning lamp
is accompanied by a message in
the screen.
Check that there is no odour or leakage of
fuel outside the vehicle and re-establish the
fuel supply:


- switch off the ignition (STOP position),

- remove the key,

- put the key back in the ignition,

- switch on the ignition and start.











Quality of the fuel used for petrol
engines











Quality of the fuel used for Diesel
engines

The petrol engines are perfectly compatible
with E10 or E24 type petrol biofuels
(containing 10 % or 24 % ethanol),
conforming to European standards EN 228
and EN 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for
vehicles marketed for the use of this type
of fuel (BioFlex vehicles). The quality of
the ethanol must comply with European
standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up to
100 % ethanol (E100 type).

The Diesel engines are perfectly compatible
with biofuels which conform to current
and future European standards (Diesel
fuel which complies with standard EN 590
mixed with a biofuel which complies with
standard EN 14214) available at the pumps
(containing up to 7 % Fatty Acid Methyl
Ester).
The B30 biofuel can be used in certain
Diesel engines; however, this use is subject
to strict application of the special servicing
conditions. Contact a PEUGEOT dealer or a
qualified workshop.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or diluted,
domestic fuel...) is strictly prohibited (risk of
damage to the engine and fuel system).

Battery
QUICK HELP
7

BATTERY

This is housed in a compartment located
underneath the fl oor, in front of the front right seat.
Before disconnecting the battery, you must
wait for 2 minutes after switching off the
ignition.
Never disconnect a terminal when the
engine is running.
Never charge a battery without first
disconnecting the terminals.
After every reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to allow the electronic
systems to be initialised. If some problems
persist after this operation, please contact a
PEUGEOT dealer or a qualified workshop.
It is advisable to disconnect the battery
if the vehicle is not to be used for a
period of more than one month.
To charge the battery using a battery
charger
- Disconnect the battery,
- Follow the instructions for use given by
the battery charger manufacturer,

- Reconnect starting with the negative (-) terminal,

- Check that the terminals and connectors are clean. If they are covered with
sulphate (white or greenish deposit),
disconnect them and clean them.
To start the vehicle from another
battery
- Connect the red cable to the positive (+)
terminals of the two batteries,

- Connect one end of the green or black cable to the negative (-) terminal of the
slave battery,
- Connect the other end of the green or black cable to an earth point on the
broken down vehicle as far as possible
from the battery,
- Operate the starter, let the engine run,
- Wait for the engine to return to idle, then disconnect the cables.

The presence of this label indicates
the use of a 12 V lead-acid battery
with special technology and specification,
for which the involvement of a PEUGEOT
dealer or qualified workshop is required
when replacing or disconnecting the battery.
Failure to observe this recommendation may
cause premature ageing of the battery.

12
1

Repairing a wheel
QUICK HELP
7

PUNCTURE REPAIR KIT

The kit is located at the left hand rear of the
vehicle.
The temporary puncture repair kit consists
of a compressor and a cartridge (containing
a sealant).
Using the kit

- switch off the ignition,
- affix the speed limitation sticker to the
vehicle's steering wheel to remind you
that a wheel is in temporary use,
- check that the switch A
is at position " 0
",

- connect the pipe of the bottle 1
to the
valve of the tyre to be repaired,

- connect the compressor's electrical plug to the vehicle's 12V socket,

- start the vehicle and let the engine run,
- switch on the compressor by pressing the switch A
to position " 1
" until the tyre
pressure reaches 2.0 bars,
- remove the compressor, unclip and
store the bottle in a sealed bag to avoid
staining your vehicle with traces of fluid,
- drive immediately, for approximately two miles (three kilometres), at reduced
speed (between 12 and 37 mph (20 and
60 km/h)), to seal the puncture,
- stop to check the repair and the pressure,

Vehicles supplied with a temporary
puncture repair kit do not have a spare
wheel or tooling (jack, wheelbrace, ...). If, after approximately five to ten
minutes, you are not able to obtain
this pressure, the tyre cannot be
repaired; contact a PEUGEOT dealer
or a qualified workshop for roadside
assistance.

122
Repairing a wheel
- adjust the pressure using the
compressor (to inflate: switch A
in
position " 1
"; to deflate: switch A
in
position " 0
" and press button B
), in
accordance with the vehicle's tyre
pressure label (located on the door
aperture, on the driver's side), then
remember to check that the leak has
been sealed correctly (no further
loss of pressure after several miles
(kilometres)),
- remove the compressor, then stow the complete kit,

- drive at reduced speed (50 mph (80 km/h)
max) limiting the distance travelled to
approximately 125 miles (200 km),
- visit a PEUGEOT dealer or a qualified workshop as soon as possible to have
the tyre repaired or replaced by a
technician.
- connect the compressor pipe directly to
the valve of the repaired wheel.

- connect the compressor's electrical plug to the vehicle's 12V socket again,

- start the vehicle again and let the engine run,
Warning, the sealant cartridge contains
ethylene-glycol, this product is harmful
if swallowed and causes irritation to the
eyes. Keep this product out of reach of
children.
The expiry date of the sealant is indicated
under the cartridge.
The cartridge is intended for a single use;
once opened, it must be replaced.
After use, do not discard the cartridge into
the environment, take it to a PEUGEOT
dealer or to a specialised waste disposal
site.
Do not forget to obtain a new sealant
cartridge, available from a PEUGEOT dealer
or a qualified workshop.

9.84

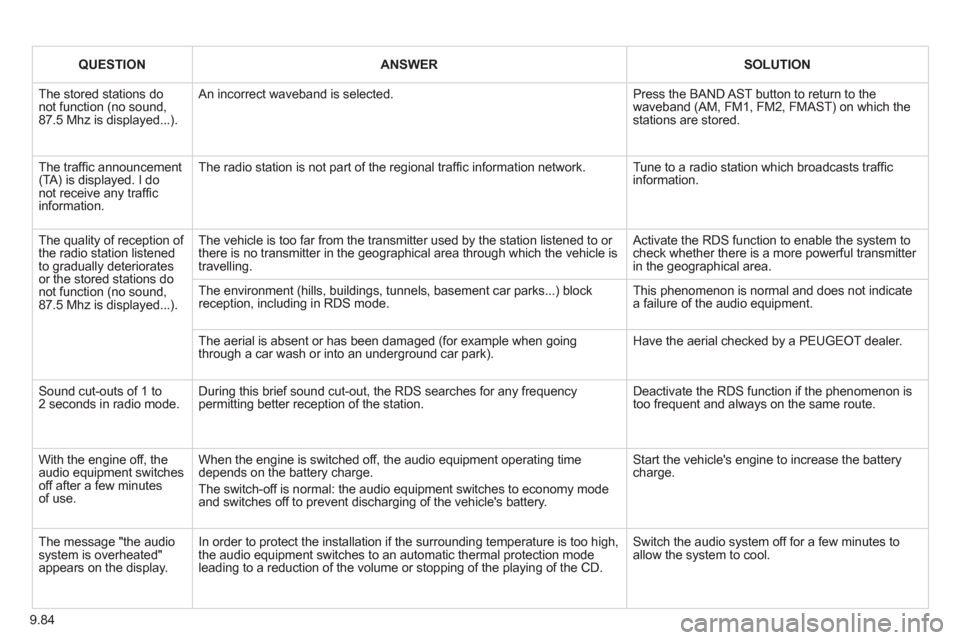

QUESTIONANSWERSOLUTION
The stored stations do not function (no sound,87.5 Mhz is displayed...).

An incorrect waveband is selected.
Press the BAND AST button to return to thewaveband (AM, FM1, FM2, FMAST) on which the stations are stored.

The traffi c announcement(TA) is displayed. I do not receive any traffi c information.
The radio station is not part of the regional traffi c information network.
Tune to a radio station which broadcasts traffi c information.

The quality of reception of the radio station listened to gradually deterioratesor the stored stations donot function (no sound,87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listened to or there is no transmitter in the geographical area through which the vehicle is travelling.
Activate the RDS function to enable the system tocheck whether there is a more powerful transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block reception, including in RDS mode. This phenomenon is normal and does not indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when goingthrough a car wash or into an underground car park).
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to 2 seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequencypermitting better reception of the station.
Deactivate the RDS function if the phenomenon istoo frequent and always on the same route.

With the engine off, theaudio equipment switches off after a few minutesof use.
When the engine is switched off, the audio equipment operating time depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy modeand switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
The message "the audio system is overheated" appears on the display.
In order to protect the installation if the surrounding temperature is too high,the audio equipment switches to an automatic thermal protection mode leading to a reduction of the volume or stopping of the playing of the CD.
Switch the audio system off for a few minutes to allow the system to cool.

Technical data - Maintenance

VISUAL SEARCH
10

TECHNICAL DATA - MAINTENANCE

Identifi cation markings,
serial number, paint code, tyres 150
Snow chains 128
Engine fuses 134, 137
Windscreen / headlamp wash, levels 112
Bulbs, lighting, changing bulbs 129-133
Opening the bonnet, stay 108 Warning lamps 29-34
Changing a wiper blade 139
Under the bonnet


- Diesel 109

- petrol 110
Fuel cut-off, Diesel priming 117-118
Van dimensions 142-145
Platform cab dimensions 146-147
Weights 148 Checks 113-114


- battery,

- gearbox,

- carbon/passenger compartment fi lter,

- oil fi lter,

- particle emission fi lter,

- parking brake,

- brake pads,

- brake drums, discs.
Emissions controls (EOBD) 36 Water bleeding, Diesel fi lter 112 Levels 111-112


- Diesel additive,

- dipstick,

- power steering fl uid,

- brake fl uid,

- coolant,

- screenwash and headlamp wash fl uid.

Towing, lifting 140-141
Towed loads 148
