2013 Peugeot Boxer mirror controls

Mirrors and windows
77
3
EASE OF USE and COMFOR
T
MIRRORS AND WINDOWS

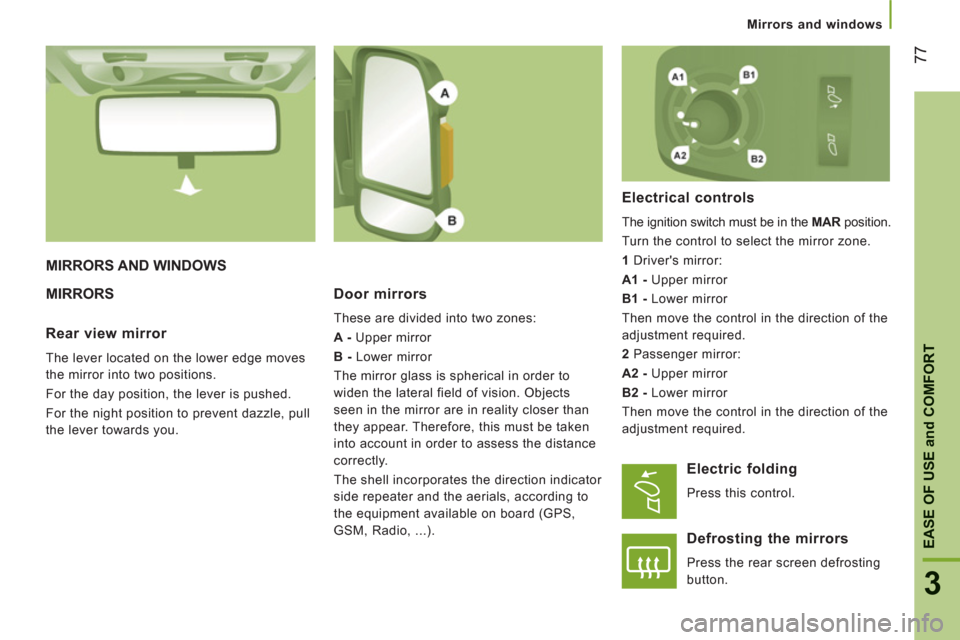

MIRROR
S Door mirrors

These are divided into two zones:

A -
Upper mirror

B -
Lower mirror
The mirror glass is spherical in order to
widen the lateral field of vision. Objects
seen in the mirror are in reality closer than
they appear. Therefore, this must be taken
into account in order to assess the distance
correctly.
The shell incorporates the direction indicator
side repeater and the aerials, according to
the equipment available on board (GPS,
GSM, Radio, ...).
Electrical controls

The ignition switch must be in the MAR
position.
Turn the control to select the mirror zone.

1
Driver's mirror:

A1 -
Upper mirror

B1 -
Lower mirror
Then move the control in the direction of the
adjustment required.

2
Passenger mirror:

A2 -
Upper mirror

B2 -
Lower mirror
Then move the control in the direction of the
adjustment required.
Rear view mirror

The lever located on the lower edge moves
the mirror into two positions.
For the day position, the lever is pushed.
For the night position to prevent dazzle, pull
the lever towards you.
Electric folding

Press this control.
Defrosting the mirrors

Press the rear screen defrosting
button.

Mirrors and windows

78

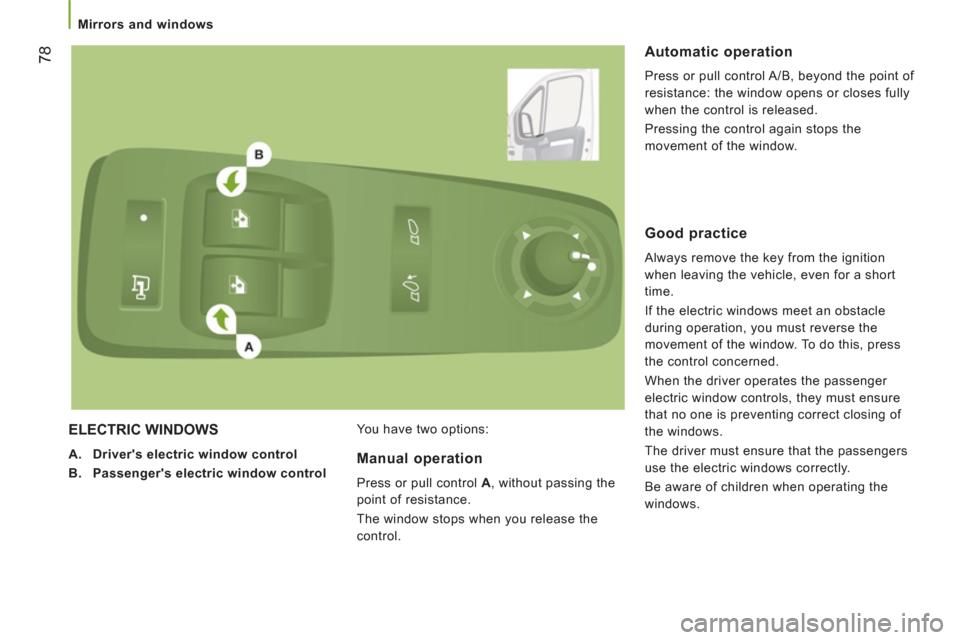

ELECTRIC WINDOWS



A.
Driver's electric window control

B.
Passenger's electric window control
You have two options:

Automatic operation

Press or pull control A/B , beyond the point of
resistance: the window opens or closes fully
when the control is released.
Pressing the control again stops the
movement of the window.
Manual operation

Press or pull control A
, without passing the
point of resistance.
The window stops when you release the
control.


Good practice

Always remove the key from the ignition
when leaving the vehicle, even for a short
time.
If the electric windows meet an obstacle
during operation, you must reverse the
movement of the window. To do this, press
the control concerned.
When the driver operates the passenger
electric window controls, they must ensure
that no one is preventing correct closing of
the windows.
The driver must ensure that the passengers
use the electric windows correctly.
Be aware of children when operating the
windows.

158


Changing a fuse

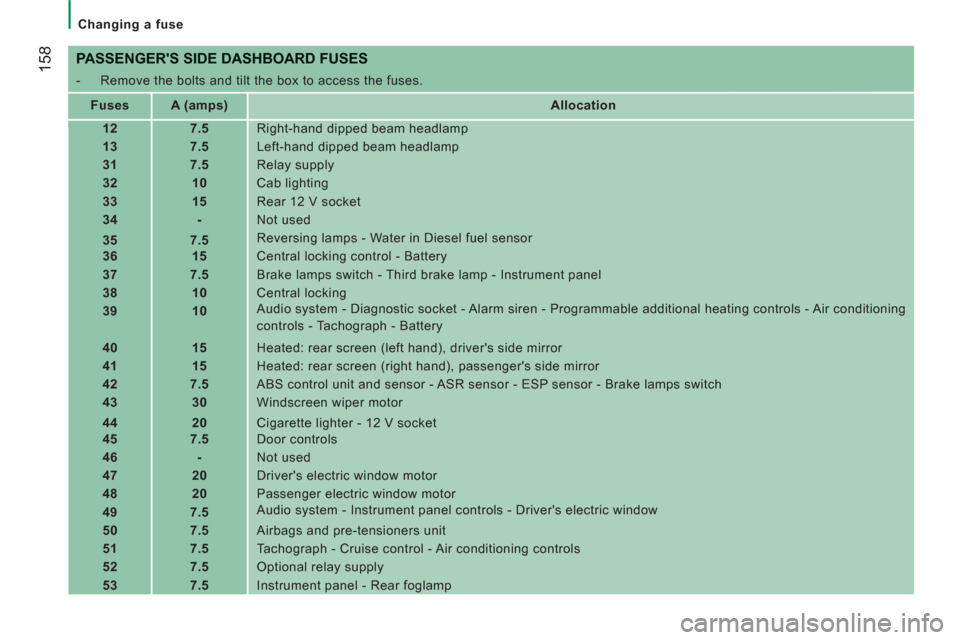

PASSENGER'S SIDE DASHBOARD FUSES



- Remove the bolts and tilt the box to access the fuses.


Fuses


A (amps)

Allocation


12


7.5
Right-hand dipped beam headlamp


13


7.5
Left-hand dipped beam headlamp


31


7.5
Relay supply


32


10
Cab lighting


33


15
Rear 12 V socket


34


-
Not used


35


7.5
Reversing lamps - Water in Diesel fuel sensor


36


15
Central locking control - Battery


37


7.5
Brake lamps switch - Third brake lamp - Instrument panel


38


10
Central locking


39


10
Audio system - Diagnostic socket - Alarm siren - Programmable additional heating controls - Air conditioning
controls - Tachograph - Battery


40


15
Heated: rear screen (left hand), driver's side mirror


41


15
Heated: rear screen (right hand), passenger's side mirror


42


7.5
ABS control unit and sensor - ASR sensor - ESP sensor - Brake lamps switch


43


30
Windscreen wiper motor


44


20
Cigarette lighter - 12 V socket


45


7.5
Door controls


46


-
Not used


47


20
Driver's electric window motor


48


20
Passenger electric window motor


49


7.5
Audio system - Instrument panel controls - Driver's electric window


50


7.5
Airbags and pre-tensioners unit


51


7.5
Tachograph - Cruise control - Air conditioning controls



52


7.5
Optional relay supply


53


7.5
Instrument panel - Rear foglamp

17
5
Instruments and controls
