SAFETY
Improved safety and security
IMPROVED SAFETY AND SECURITY
IMPACT RESISTANCE
Your vehicle has been designed to limit
the forces on the passenger compartment
as much as possible in the event of a
collision, the engine compartment adopts
a progressive deformation structure and
the front doors have been reinforced to
contribute to the rigidity of the whole.


ANTI-THEFT PROTECTION

Your vehicle, in the van version, comprises
two zones with separate locking: the cab
and the load space.
Depending on the way in which it is used,
this function provides increased protection
both for your personal belongings and for
your merchandise.
Details of these functions are given in
part 2. An exterior protection alarm with anti-tilt
detection is available (as standard or as an
option) in certain countries.

Child safety

132
ADVICE ON CHILD SEATS

The incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack
in
relation to the child's body to a minimum
,
even for short journeys.
For optimum installation of the "forward
facing" child seat, ensure that the back of
the child seat is in contact with the back of
the vehicle's seat and that the head restraint
does not cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached securely
to prevent it from being thrown around the
vehicle in the event of sharp braking.
Children under the age of 10 must not travel
in the "forward facing" position on the front
passenger seat, unless the rear seats are
already occupied by other children, cannot
be used or are absent. Deactivate the passenger's airbag when a
"rear facing" child seat is installed on the
front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag were
to inflate.

As a safety precaution, do not leave:


- one or more children alone and
unsupervised in a vehicle,

- a child or an animal in a vehicle which
is exposed to the sun, with the windows
closed,

- the keys within reach of children inside
the vehicle.
To prevent accidental opening of the doors,
use the "Child Lock".
Take care not to open the rear windows by
more than one third.
To protect young children from the rays of
the sun, fit side blinds to the rear windows.

Installing a booster seat

The chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
PEUGEOT recommends the use of a
booster seat which has a back, fitted with a
seat belt guide at shoulder level.


Crew cab

Do not install child seats, booster cushions
or carrycots on the rear seats of the cab.

14
6

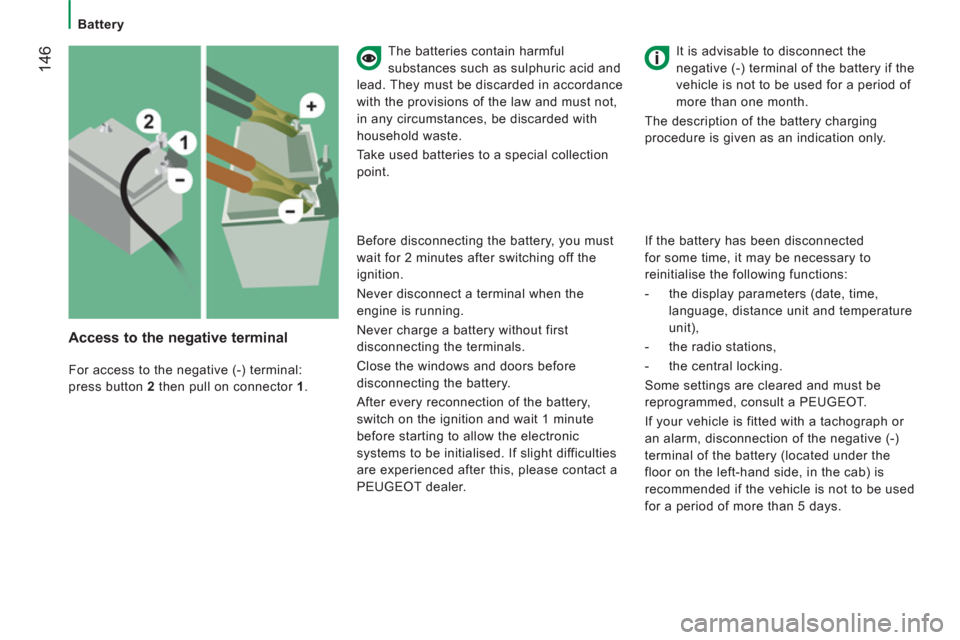

Battery


The batteries contain harmful
substances such as sulphuric acid and
lead. They must be discarded in accordance
with the provisions of the law and must not,
in any circumstances, be discarded with
household waste.
Take used batteries to a special collection
point.

It is advisable to disconnect the
negative (-) terminal of the battery if the
vehicle is not to be used for a period of
more than one month.
The description of the battery charging
procedure is given as an indication only.

Before disconnecting the battery, you must
wait for 2 minutes after switching off the
ignition.
Never disconnect a terminal when the
engine is running.
Never charge a battery without first
disconnecting the terminals.
Close the windows and doors before
disconnecting the battery.
After every reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to allow the electronic
systems to be initialised. If slight difficulties
are experienced after this, please contact a
PEUGEOT dealer.
If the battery has been disconnected
for some time, it may be necessary to
reinitialise the following functions:


- the display parameters (date, time,
language, distance unit and temperature
unit),

- the radio stations,

- the central locking.
Some settings are cleared and must be
reprogrammed, consult a PEUGEOT.
If your vehicle is fitted with a tachograph or
an alarm, disconnection of the negative (-)
terminal of the battery (located under the
floor on the left-hand side, in the cab) is
recommended if the vehicle is not to be used
for a period of more than 5 days.
For access to the negative (-) terminal:
press button 2
then pull on connector 1
.



Access to the negative terminal

156


Changing a bulb

REAR LAMPS

For more information on the bulbs, refer to
the table "Types of bulb".
- Remove the two fixing nuts.

- Pull the lens block from the outside.

- Unscrew the three screws using the
screwdriver supplied (under the front
passenger seat) and extract the bulb
holder.

- Remove the faulty bulb by pressing it
lightly while turning it anticlockwise.

- Change the bulb.

1.
Brake/sidelamps
Type B,
P 21/5 W - 5 W


Type B
, P21W - 21W


- Unscrew the two screws.

- Remove the lamp.

- Remove the bulb holder moving aside
the two tabs.

- Remove the faulty bulb by pressing it
lightly while turning it anticlockwise.

- Change the bulb.
2.
Direction indicators
Type B,
PY 21 W - 21 W

3.
Reversing lamps
Type B,
P 21 W - 21 W

4.
Foglamps
Type B,
P 21 W - 21 W


- Identify the faulty bulb then open the
rear doors.

- Disconnect the electrical connector.
NUMBER PLATE LAMPS


Type A,
C 5 W - 5 W


- Press the point, indicated by the arrow,
then remove the plastic lens.

- Change the bulb by moving aside the
two contacts.
- Ensure that the new bulbs are secured
correctly between the two contacts.

- Replace the plastic lens and press on it.

158


Changing a fuse


PASSENGER'S SIDE DASHBOARD FUSES



- Remove the bolts and tilt the box to access the fuses.


Fuses


A (amps)

Allocation


12


7.5
Right-hand dipped beam headlamp


13


7.5
Left-hand dipped beam headlamp


31


7.5
Relay supply


32


10
Cab lighting


33


15
Rear 12 V socket


34


-
Not used


35


7.5
Reversing lamps - Water in Diesel fuel sensor


36


15
Central locking control - Battery


37


7.5
Brake lamps switch - Third brake lamp - Instrument panel


38


10
Central locking


39


10
Audio system - Diagnostic socket - Alarm siren - Programmable additional heating controls - Air conditioning
controls - Tachograph - Battery


40


15
Heated: rear screen (left hand), driver's side mirror


41


15
Heated: rear screen (right hand), passenger's side mirror


42


7.5
ABS control unit and sensor - ASR sensor - ESP sensor - Brake lamps switch


43


30
Windscreen wiper motor


44


20
Cigarette lighter - 12 V socket


45


7.5
Door controls


46


-
Not used


47


20
Driver's electric window motor


48


20
Passenger electric window motor


49


7.5
Audio system - Instrument panel controls - Driver's electric window


50


7.5
Airbags and pre-tensioners unit


51


7.5
Tachograph - Cruise control - Air conditioning controls



52


7.5
Optional relay supply


53


7.5
Instrument panel - Rear foglamp

174
Exterior





EXTERIOR


Rear lamps, direction indicators,
3 rd
brake lamp,
foglamps 36, 47, 153, 156
Left-hand side:
fuel fi ller cap, fuel tank 144
Fuel cut-off 144

Load space 75-76
Rear doors 28

Number plate lamp 156

Parking sensors 83

Spare wheel, jack, changing a wheel,
tools, puncture repair kit 148-152
Infl ating, pressures 173

Towing, lifting 162
Towbar, towball 133-134
Dimensions 164-170

Accessories 135-136
Roof bars 135


Brakes, pads 139, 141
ABS, Electronic brake force distribution 11 5
EBA 11 5
ASR, ESP 116-117
Tyres, pressures 173
Pneumatic suspension 86



Key, remote control, battery 21-23
Starting 41-42
Central locking 29
Confi dential card 25
Alarm 26

Wiper blade 161
Door mirror 77
Side repeater 155

Front lamps, foglamps, direction
indicators 153-155
Headlamp beam height adjustment 49
Headlamp wash 50
Changing bulbs 153-155

Opening/closing doors 27-29
Key 23
Opening the bonnet, stay 137
Mode - autoclose 81
