160
Changing a fuse

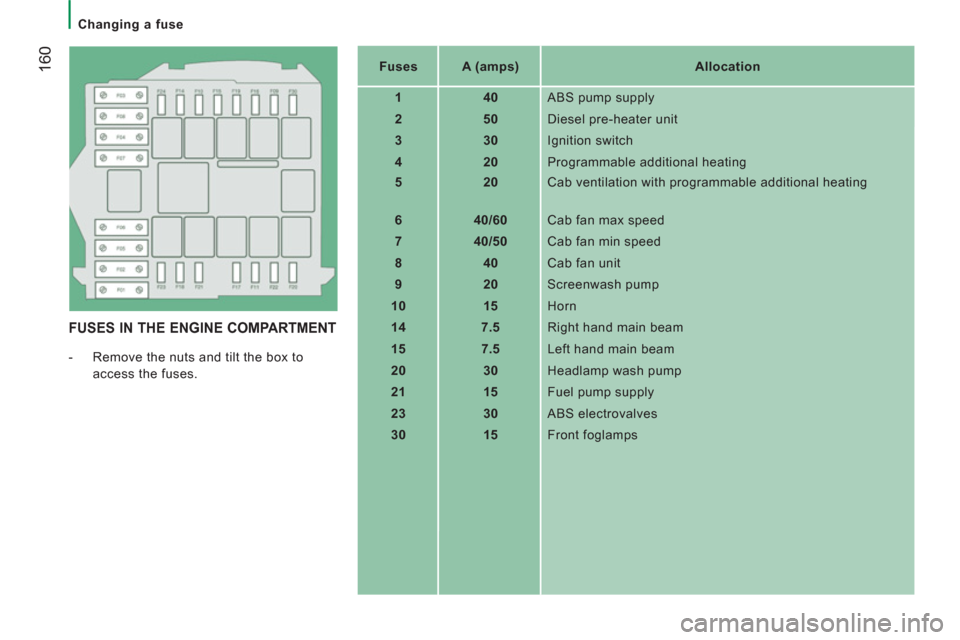

FUSES IN THE ENGINE COMPARTMENT
- Remove the nuts and tilt the box to
access the fuses.
Fuses
A (amps)
Allocation
1
40
ABS pump supply
2
50
Diesel pre-heater unit
3
30
Ignition switch
4
20
Programmable additional heating
5
20
Cab ventilation with programmable additional heating
6
40/60
Cab fan max speed
7
40/50
Cab fan min speed
8
40
Cab fan unit
9
20
Screenwash pump
10
15
Horn
14
7.5
Right hand main beam
15
7.5
Left hand main beam
20
30
Headlamp wash pump
21
15
Fuel pump supply
23
30
ABS electrovalves
30
15
Front foglamps
Diesel engines
17
1
9
TECHNI
CAL DATAQuality of the fuel used for Diesel engines
The Diesel engines are perfectly compatible with biofuels which conform to current and future European standards (Diesel fuel which
complies with standard EN 590 mixed with a biofuel which complies with standard EN 14214) available at the pumps (containing up to 7 %
Fatty Acid Methyl Ester).
The B30 biofuel can be used in certain Diesel engines; however, this use is subject to strict application of the special servicing conditions.
Consult a PEUGEOT dealer.
The use of any other type of (bio)fuel (vegetable or animal oils, pure or diluted, domestic fuel...) is strictly prohibited (risk of damage to the
engine and fuel system).
ENGINES and gearboxes - Diesel
2.2 litre HDi 110
2.2 litre HDi 130
2.2 litre
HDi 150
3 litre
HDi 155
3 litre
HDi 180
Gearbox
Manual
Gears
5
6
6
6
6
6
Maximum power (hp)
100
11 0
120
130
150
156
180
EU standard maximum power (kW)
74
81
88
96
11 0
11 5
130
Cubic capacity (cc)
2 198
2 198
2198
2 999
2 999
Bore x stroke (mm)
86 x 94.6
86 x 94.6
86 x 94.6
95.8 x 104
95.8 x 104
Max power engine speed (rpm)
2 900
3 500
3 500
3 500
3 500
3 600
EU standard max torque (daNm)
250
320
320
400
400
Max torque engine speed (rpm)
1 500
2 000
2 000
1 400
1 400
Fuel
Diesel
Diesel
Diesel
Diesel
Diesel
Catalytic converter
Ye s
Ye s
Ye s
Ye s
Ye s
Particle emissions filter
-
Ye s
-
Ye s
Ye s
Ye s
Ye s
Engine oil capacity (in litres) after
draining and oil filter replacement
6.4
6.2
6.4
6.2
6.2
