2013 Peugeot Boxer Owner's Manual - RHD (UK, Australia)

Pneumatic suspension
87
4
TECHNOLOGY on BOAR
D

Deactivation
Make a long press on both controls
simultaneously to deactivate the system.
The LEDs remain on.
Return to the nominal floor height
Press the same number of times in reverse
as the level of the position displayed.

Reactivation
A second long press on both controls
simultaneously reactivates the system. The
LEDs go off.
Automatic correction of loading floor height
Above 12 mph (20 km/h), the system
automatically returns the rear height to its
nominal value.

Warning lamp

Refer to the "Instruments and controls"
section of chapter 2.


Good practice

Driving with the suspension set too high or
too low risks damaging components under
the body.
The height may be adjusted automatically to
take account of changes of temperature or
loading.
You must avoid using this control in the
following circumstances:


- when working underneath the vehicle,

- when changing a wheel,

- when the vehicle is being transported by
lorry, train, ferry, boat, ...
Above 3 mph (5 km/h), the system
reactivates automatically.

Tachograph
88

TACHOGRAPH

If your vehicle is fitted with a tachograph,
this permits storing of all of the data relating
to the vehicle in the unit and on a card
inserted in it.
Example: at the beginning of each journey
or change of team. When the card is inserted, all of the data
can be:


- displayed on the tachograph screen,

- printed,

- transferred to external storage media via
an interface. For further information, refer to the
documents supplied by the manufacturer of
the tachograph.
If your vehicle is fitted with a tachograph,
disconnection of the negative (-) terminal of
the battery (located under the floor on the
left-hand side, in the cab) is recommended if
the vehicle is not to be used for a period of
more than 5 days.

Audio equipment
89
4
TECHNOLOGY on BOAR
D

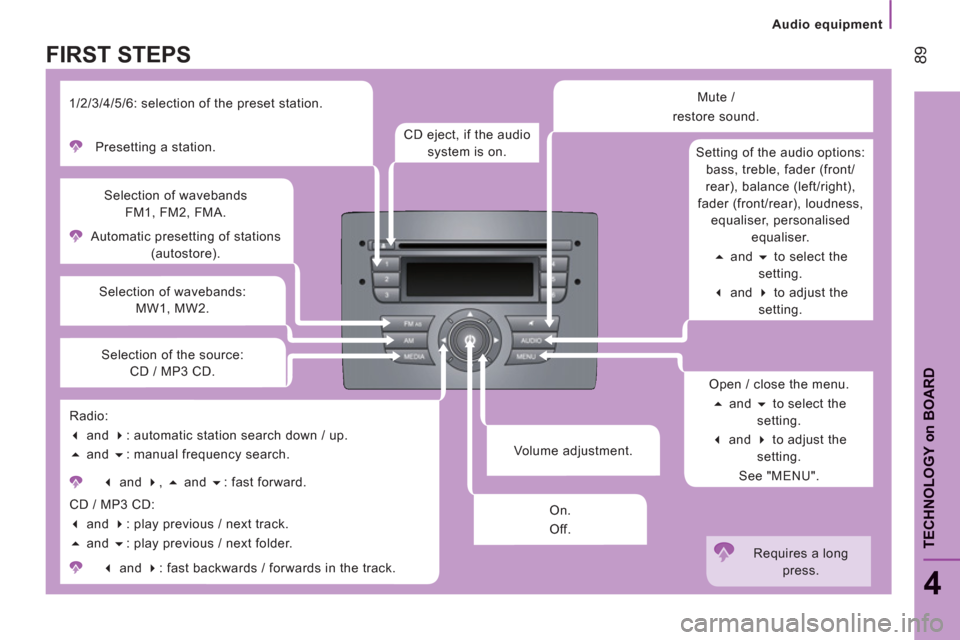

Volume adjustment. Automatic presetting of stations
(autostore).

Selection of wavebands
FM1, FM2, FMA.

Selection of wavebands:
MW1, MW2.
FIRST STEPS


On.
Off.
CD eject, if the audio
system is on.

Open / close the menu.


and
to select the
setting.


and
to adjust the
setting.
See "MENU".
Setting of the audio options:
bass, treble, fader (front/
rear), balance (left/right),
fader (front/rear), loudness,
equaliser, personalised
equaliser.


and
to select the
setting.


and
to adjust the
setting.
Mute /
restore sound.

CD / MP3 CD:


and
: play previous / next track.


and
: play previous / next folder.

Requires a long
press.
Radio:


and
: automatic station search down / up.


and
: manual frequency search.



and
,
and
: fast forward.



and
: fast backwards / forwards in the track. Presetting a station.

1/2/3/4/5/6: selection of the preset station.

Selection of the source:
CD / MP3 CD.

Audio equipment
90 STEERING MOUNTED CONTROLS








Change of source:
CD/MP3 CD or radio
frequency.

Automatic search for a
higher radio frequency.
Select the next CD/MP3
CD track.

Automatic search for a lower
frequency.
Select the previous CD/MP3
CD track.
Mute / restore the
sound.



Pause CD/MP3 CD
track.
Volume increase.

Volume decrease.

Audio equipment
91
4
TECHNOLOGY on BOAR
D

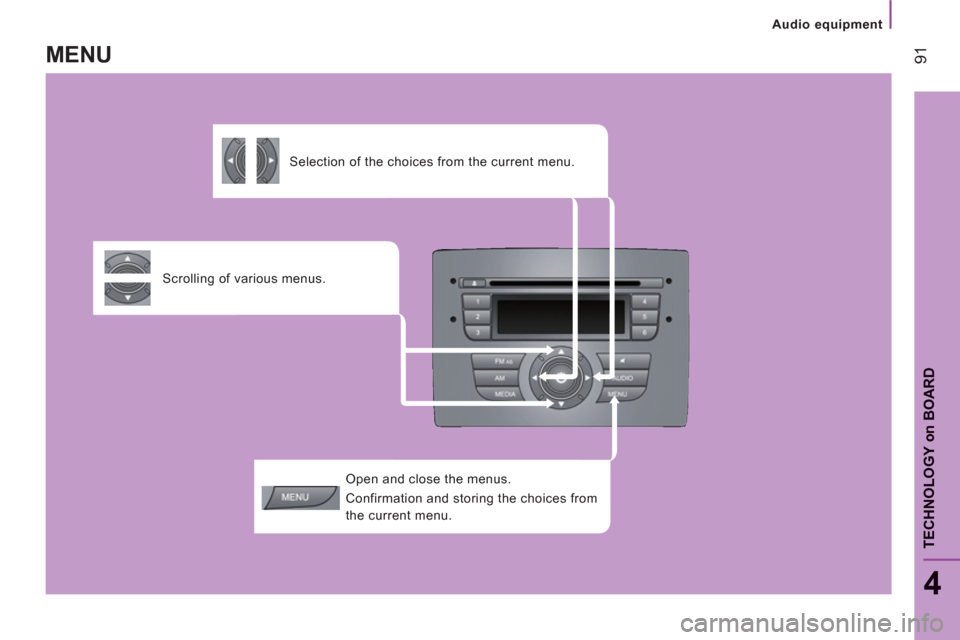

Open and close the menus.
Confirmation and storing the choices from
the current menu.

Scrolling of various menus.

Selection of the choices from the current menu.
MENU

Audio equipment
92

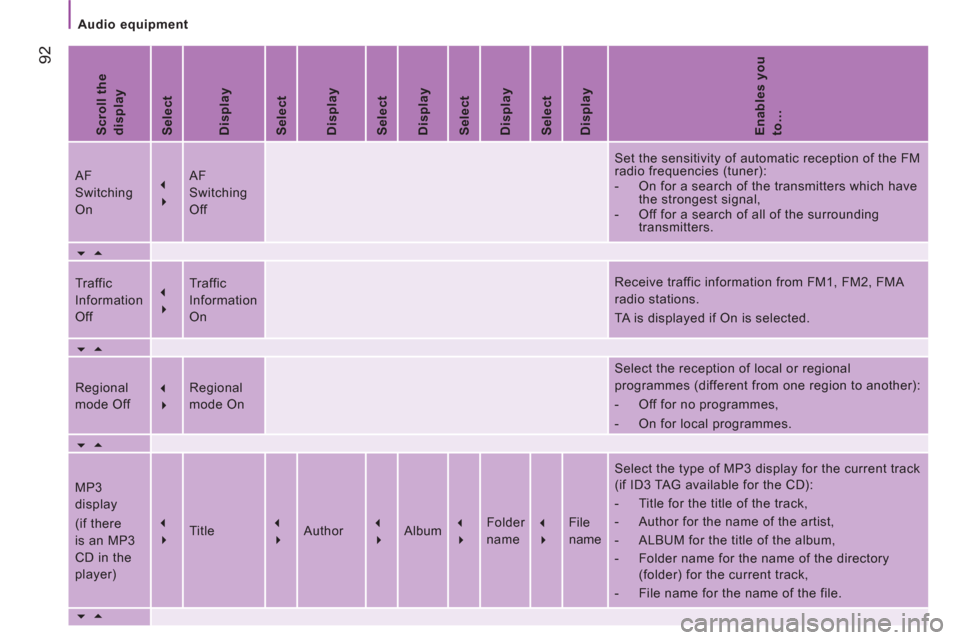

Scroll the
display

Select

Display

Select

Display

Select

Display

Select

Display

Select

Display

Enables you
to…

AF
Switching
On

 AF
Switching
Off Set the sensitivity of automatic reception of the FM
radio frequencies (tuner):


- On for a search of the transmitters which have
the strongest signal,

- Off for a search of all of the surrounding
transmitters.



Traffic
Information
Off

 Traffic
Information
On Receive traffic information from FM1, FM2, FMA
radio stations.
TA is displayed if On is selected.



Regional
mode Off

 Regional
mode On Select the reception of local or regional
programmes (different from one region to another):


- Off for no programmes,

- On for local programmes.



MP3
display
(if there
is an MP3
CD in the
player)


Title

 Author

 Album

 Folder
name

 File
name Select the type of MP3 display for the current track
(if ID3 TAG available for the CD):


- Title for the title of the track,

- Author for the name of the artist,

- ALBUM for the title of the album,

- Folder name for the name of the directory
(folder) for the current track,

- File name for the name of the file.




Audio equipment
93
4
TECHNOLOGY on BOAR
D

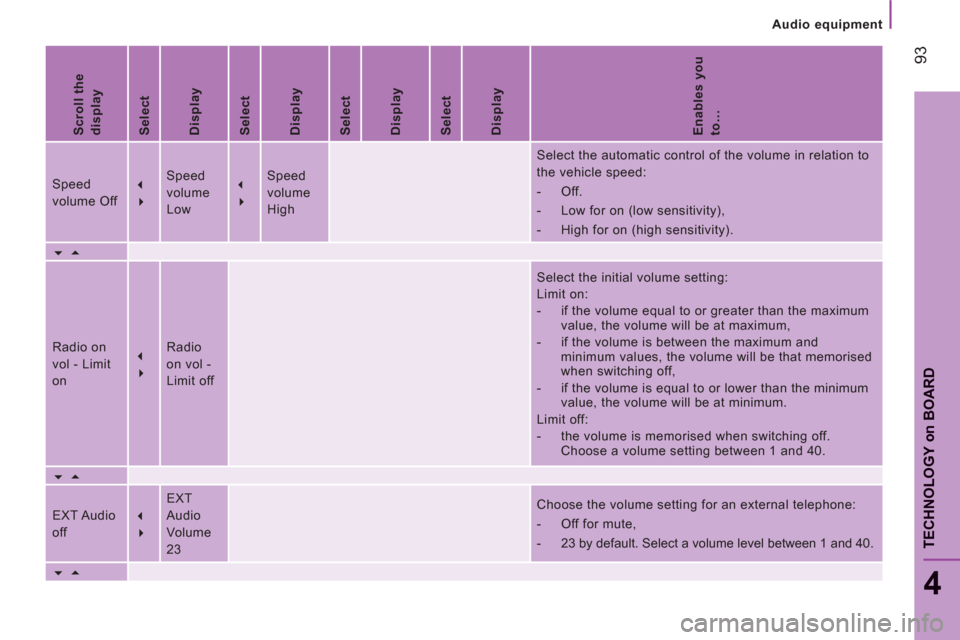

Scroll the
display

Select

Display

Select

Display

Select

Display

Select

Display

Enables you
to…

Speed
volume Off

 Speed
volume
Low

 Speed
volume
High Select the automatic control of the volume in relation to
the vehicle speed:


- Off.

- Low for on (low sensitivity),

- High for on (high sensitivity).



Radio on
vol - Limit
on

 Radio
on vol -
Limit off Select the initial volume setting:
Limit on:


- if the volume equal to or greater than the maximum
value, the volume will be at maximum,

- if the volume is between the maximum and
minimum values, the volume will be that memorised
when switching off,

- if the volume is equal to or lower than the minimum
value, the volume will be at minimum.
Limit off:


- the volume is memorised when switching off.
Choose a volume setting between 1 and 40.



EXT Audio
off

 EXT
Audio
Volume
23 Choose the volume setting for an external telephone:


- Off for mute,

- 23 by default. Select a volume level between 1 and 40.




Audio equipment
94

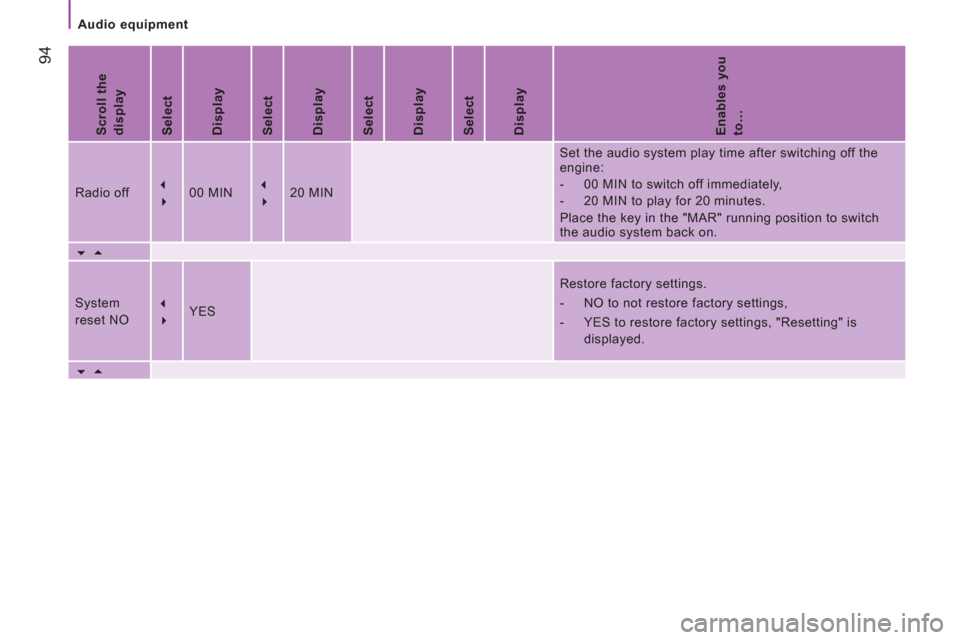

Scroll the
display

Select

Display

Select

Display

Select

Display

Select

Display

Enables you
to…

Radio off

 00 MIN

 20 MIN Set the audio system play time after switching off the
engine:


- 00 MIN to switch off immediately,

- 20 MIN to play for 20 minutes.
Place the key in the "MAR" running position to switch
the audio system back on.



System
reset NO

 YES Restore factory settings.


- NO to not restore factory settings,

- YES to restore factory settings, "Resetting" is
displayed.
