2013 PEUGEOT 5008 instrument panel

CONTENTS
FAMILIARISATION4-24
INSTRUMENTS and
CONTROLS 27-41
CHILD
SAFETY 115-128
MULTIFUNCTION
SCREEN
S42-55
SAFETY 129-140 COMFORT 56-7
3
ACCESS 74-88
VISIBILITY 89-100
FITTINGS 101-114
Instrument panels ...........................27Indicator and warning lamps ..........29Indicators........................................37Adjustment buttons.........................41
Child seats.....................................115ISOFIX child seats........................124Child lock......................................128
Screen A without audio equipment...t42Screen A with audio equipment......44Screen C (Peugeot Connect Sound (RD5))...........................................4616/9 retractable colour screen(Peugeot Connect Navigation (RT6) or Peugeot Connect Media
Navigation (NG4 3D))...................49Trip computer.................................r52
Direction indicators.......................129Hazard warning lamps..................129Horn..............................................129Tyre under-inflation detection .......130ESC system..................................131Front seat belts.............................133Airbags .........................................137
Heating and Ventilation ..................56Manual air conditioning ..................58Rear screen demist - defrost..........59Dual-zone digital air conditioning...60Front seats.....................................63Rear seats, 2nd row.........................67Access to the 3rdrow ......................69Rear seats, 3rdrow.........................70Seat modularity..............................71Mirrors............................................72Steering wheel adjustment .............73
Remote control key........................74Alarm..............................................79Electric windows.............................81Doors ..............................................83Boot................................................85Fuel tank.........................................87Misfuel prevention (Diesel).............88
Lighting controls.............................89LED lamps......................................91Automatic illumination
of headlamps................................92Headlamp adjustment ....................93Directional lighting..........................94Wiper controls................................95Automatic rain sensitive wipers ......97Courtesy lamps..............................98Interior mood lighting......................99
Interior fittings ...............................101Centre console .............................103Rear multimedia...........................106Panoramic sunroof.......................f107Boot fittings 5 seat version ...........108Boot fittings 7 seat version ...........109ECO-DRIVING 25-26

FA
M
9
INSTRUMENTS AND CONTROLS


1.
Cruise control / speed limiter
switches.

2.
Steering wheel adjustment.

3.
Lighting and direction indicator
stalk.

4.
Instrument panel.

5.
Driver's airbag.
Horn.

6.
Gear lever.

7.
Electric parking brake.

8.
12 V accessories socket.

9.
Panoramic sunroof control.

10.
Owner's Handbook storage
compartment.

11 .
Bonnet release.

12.
Door mirror controls.
Electric window controls.
Child lock.

13.
Manual headlamp height adjustment.

14.
Alarm button.
Parking sensors button.
Dynamic stability control (ESC/
ASR) button.
Stop & Start.

15.
Front door window demist/defrost
vent.

16.
Windscreen demist/defrost vent.

FA
M
16

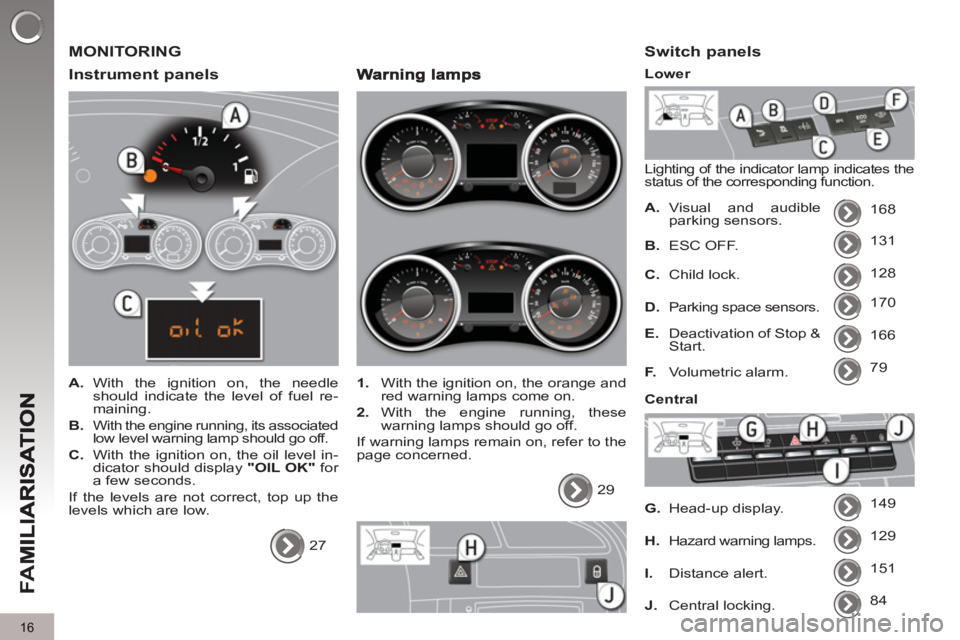

MONITORING

Instrument
panels



A.
With the ignition on, the needle
should indicate the level of fuel re-
maining.

B.
With the engine running, its associated
low level warning lamp should go off.

C.
With the ignition on, the oil level in-
dicator should display "OIL OK"
for
a few seconds.
If the levels are not correct, top up the
levels which are low.
27


1.
With the ignition on, the orange and
red warning lamps come on.

2.
With the engine running, these
warning lamps should go off.
If warning lamps remain on, refer to the
page concerned.
29


Switch panels

Lighting of the indicator lamp indicates the
status of the corresponding function.


A.
Visual and audible
parking sensors. 168
131
128
170
166
79
149
129
B.
ESC OFF.

C.
Child lock.

D.
Parking space sensors.

E.
Deactivation of Stop &
Start.

F.
Volumetric alarm.

G.
Head-up display.

H.
Hazard warning lamps.
Lower


Central

151

I.
Distance alert.
84


J.
Central locking.

FA
M
20

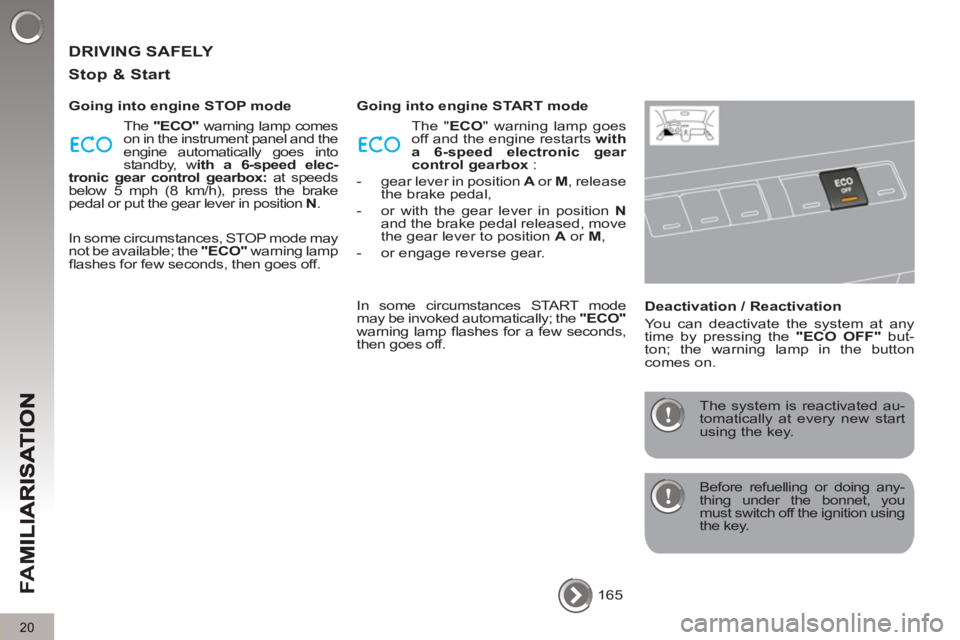

DRIVING SAFELY

Sto
p & Start


Going into engine STOP mode
The "ECO"
warning lamp comes
on in the instrument panel and the
engine automatically goes into
standby, w ith a 6-speed elec-
tronic gear control gearbox:
at speeds
below 5 mph (8 km/h), press the brake
pedal or put the gear lever in position N
.
In some circumstances, STOP mode may
not be available; the "ECO"
warning lamp
fl ashes for few seconds, then goes off.
Going into engine START mode
The "ECO" warning lamp goes
off and the engine restarts with
a 6-speed electronic gear
control gearbox
:


- gear lever in position A
or M
, release
the brake pedal,

- or with the gear lever in position N

and the brake pedal released, move
the gear lever to position A
or M
,

- or engage reverse gear.
In some circumstances START mode
may be invoked automatically; the "ECO"

warning lamp fl ashes for a few seconds,
then goes off.
Deactivation / Reactivation
You can deactivate the system at any
time by pressing the "ECO OFF"
but-
ton; the warning lamp in the button
comes on.
Before refuelling or doing any-
thing under the bonnet, you
must switch off the ignition using
the key.
The system is reactivated au-
tomatically at every new start
using the key.
165

FA
M
21
DRIVING SAFELY
Electric parkin
g brake

Manual application / release
The parking brake can be applied man-
ually
by pulling
the control lever A
.
When the ignition is on, the parking
brake can be released
manually by
pressing the brake pedal
and pulling

then releasing
the control lever A
.
Automatic application / release
Press the accelerator, press and and re-
lease the clutch (manual gearbox), the
parking brake is released automatically
and progressively on acceleration.
With the vehicle stationary, when the
engine is switched off
, the parking
brake is applied
automatically.
Before getting out of the
vehicle, check that the
braking warning lamp
( red!
) and the warning
lamp P
, located in the control lever A

are on fi xed (not fl ashing).
141 If this warning lamp is on in
the instrument panel, the auto-
matic application/release is de-
activated
, in this case use the
manual application/release.


When the door is opened with
the engine running an audible
signal is heard, apply the parking
brake manually.
Do not leave a child alone in the ve-
hicle with the ignition on, they could
release the parking brake.
If you are towing a trailer or
a caravan or if the gradient
is likely to change (transport
by ship, lorry, towing, ...), ap-
ply the parking brake manually to
maximum force (long pull on control
lever A
) to immobilise the vehicle.

FA
M
23

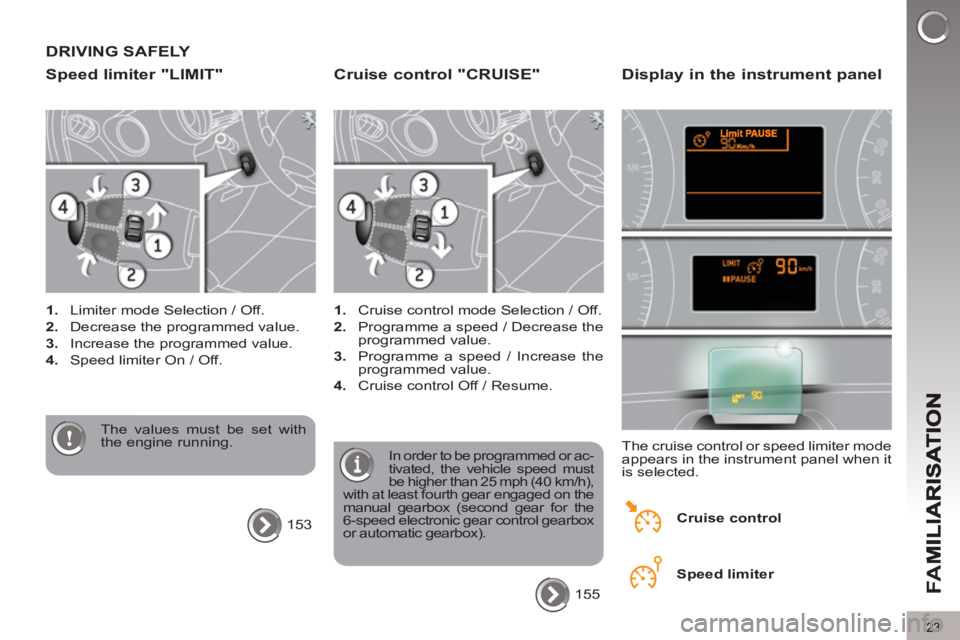

DRIVING SAFELY
S
peed limiter "LIMIT"


1.
Limiter mode Selection / Off.

2.
Decrease the programmed value.

3.
Increase the programmed value.

4.
Speed limiter On / Off.
The values must be set with
the engine running.
153


Cruise control "CRUISE"



1.
Cruise control mode Selection / Off.

2.
Programme a speed / Decrease the
programmed value.

3.
Programme a speed / Increase the
programmed value.

4.
Cruise control Off / Resume.
In order to be programmed or ac-
tivated, the vehicle speed must
be higher than 25 mph (40 km/h),
with at least fourth gear engaged on the
manual gearbox (second gear for the
6-speed electronic gear control gearbox
or automatic gearbox).
155
Display in the instrument panel

The cruise control or speed limiter mode
appears in the instrument panel when it
is selected.

Cruise control

Speed limiter

Optimise the use of your gearbox

With a manual gearbox, move off gen-
tly, change up without waiting and
drive by changing up quite soon. If
your vehicle has the system, the gear
shift indicator invites you to change up;
it is displayed in the instrument panel,
follow its instructions.

With an automatic or electronic gear-
box, stay in Drive "D"
or Auto "A"
, ac-
cording to the type of gearbox, without
pressing the accelerator pedal heavily
or suddenly.

Drive smoothly


Maintain a safe distance between ve-
hicles, use engine braking rather than
the brake pedal, and press the accel-
erator progressively. These practices
contribute towards a reduction in fuel
consumption and CO
2 emissions and
also helps reduce the background traf-
fi c noise.

If your vehicle has cruise control, make
use of the system at speeds above
25 mph (40 km/h) when the traffi c is
fl owing well.



Control the use of your electrical equipment


Before moving off, if the passenger
compartment is too warm, ventilate it by
opening the windows and air vents be-
fore using the air conditioning.
Above 30 mph (50 km/h), close the win-
dows and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature in
the passenger compartment down (sun-roof and window blinds...).
Switch off the air conditioning, unless
it has automatic digital regulation, as
soon as the desired temperature is at-
tained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.
Switch off the headlamps and front
foglamps when the level of light does
not require their use.

Avoid running the engine before mov-
ing off, particularly in winter; your ve-
hicle will warm up much faster while
driving.

As a passenger, if you avoid con-
necting your multimedia devices
(film, music, video game...), you will
contribute towards limiting the con-
sumption of electrical energy, and
so of fuel.
Disconnect your portable devices before
leaving the vehicle.

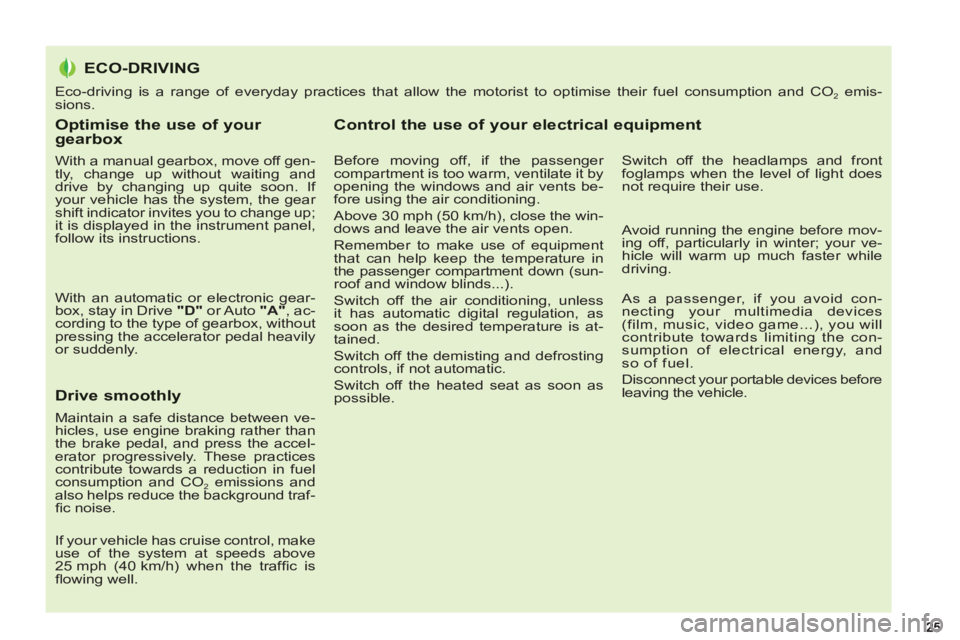

ECO-DRIVING
2525

Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emis-
sions.

27
IN
S

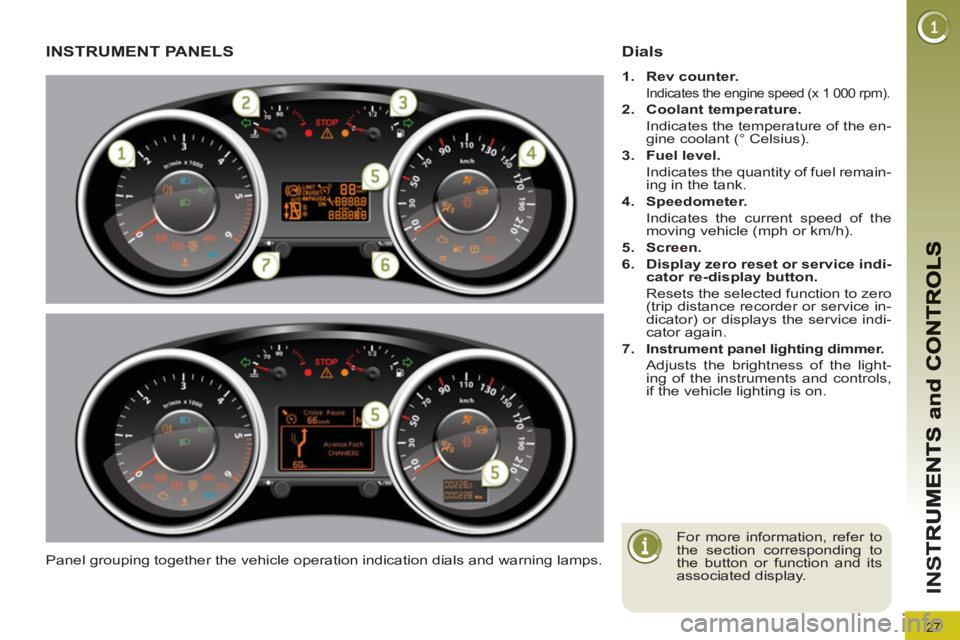

INSTRUMENT PANELS
Panel grouping together the vehicle operation indication dials and warning lamps.
Dials



1.
Rev counter.


Indicates the engine speed (x 1 000 rpm).

2.
Coolant temperature.

Indicates the temperature of the en-
gine coolant (° Celsius).

3.
Fuel level.

Indicates the quantity of fuel remain-
ing in the tank.

4.
Speedometer.

Indicates the current speed of the
moving vehicle (mph or km/h).

5.
Screen.


6.
Display zero reset or service indi-
cator re-display button.

Resets the selected function to zero
(trip distance recorder or service in-
dicator) or displays the service indi-
cator again.

7.
Instrument panel lighting dimmer.
Adjusts the brightness of the light-
ing of the instruments and controls,
if the vehicle lighting is on.


For more information, refer to
the section corresponding to
the button or function and its
associated display.
