FITTINGS
ILLUMINATED GLOVE BOX
This has areas for storing a bottle of wa-
ter, the vehicle's handbook pack...
Its lid has areas for storing a pen, a pair
of spectacles, tokens, cards, a can...
SUN VISOR
Component which protects against sunlight
from the front or the side, also equipped
with an illuminated courtesy mirror.


)
With the ignition on, raise the con-
cealing fl ap; the mirror is lit automat-
ically.
This sun visor is also equipped with a
ticket holder.
TOLL CARD / CAR PARK TICKET WINDOWS
Facility for affi xing toll cards and/or car
park tickets.
These windows are located on each
side of the base of the rear view mirror.
They are two non-refl ective areas of the
athermic windscreen.
The athermic windscreen limits
heating of the passenger compart-
ment by reducing the effects of the
sun's rays (ultra-violet). It consists
of a refl ective layer, which also
blocks certain radio-electric signals
(toll card payments, ...).

)
To open the glove box, raise the
handle.
The lamp comes on when the lid is
opened.
If your vehicle is fi tted with air condition-
ing, the glove box has an air vent A
,
which can be opened or closed. This
distributes the same conditioned air as
the vents in the passenger compart-
ment.

6
124
FITTINGS









Torch

This is a removable lamp, fi tted in the
boot wall, which can be used to light the
boot or as a torch.
For the boot lamp function, refer to the
"Visibility - § Boot lamp" section.

Operation
This torch operates with NiMH type re-
chargeable batteries.
It has a battery life of approximately
45 minutes and charges while you are
driving.
Use


)
Extract the torch from its location
pulling it upwards.

)
Press the switch, located on the
back, to switch the torch on or off.

)
Unfold the support, located on the
back, to set down and raise the
torch; for example, when changing
a wheel.


Storing


)
Put the torch back in place in its lo-
cation starting with the lower part.
If you have forgotten to switch off
the torch, this switches it off auto-
matically.










Side blinds

Fitted on the rear windows of the 2nd
row, these protect your young children
from the sun.


)
Pull the blind by the central tab.

)
Position the blind attachments on
the corresponding hooks.

Observe the polarities when fi tting
the rechargeable batteries.
Never replace the rechargeable
batteries with normal disposable
batteries. It the torch is not engaged correct-
ly, it may not charge and may not
come on when the boot is opened.

7
130
CHILD SAFETY

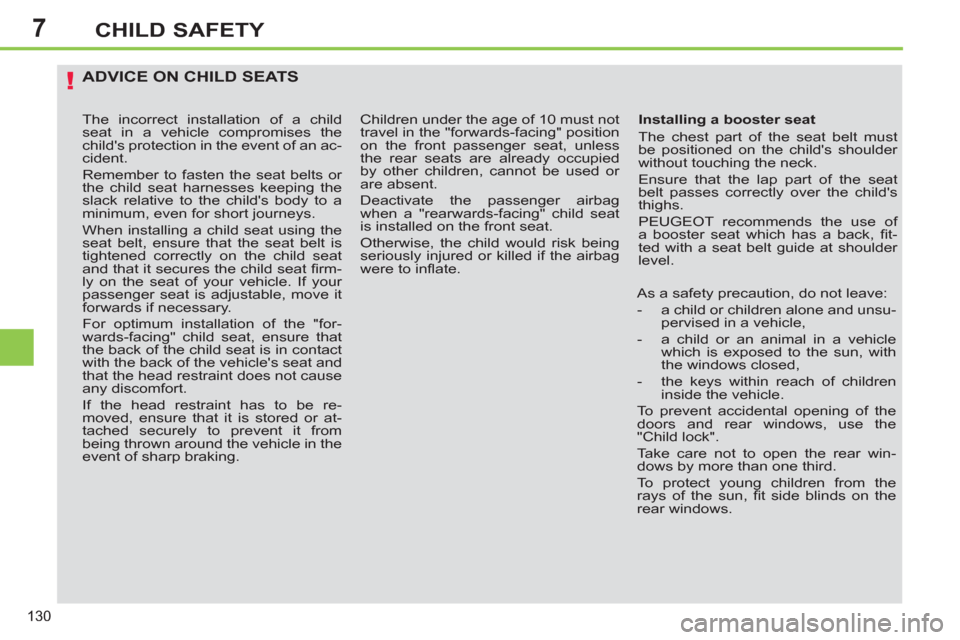

ADVICE ON CHILD SEATS

Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of
a booster seat which has a back, fi t-
ted with a seat belt guide at shoulder
level.
As a safety precaution, do not leave:


- a child or children alone and unsu-
pervised in a vehicle,

- a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,

- the keys within reach of children
inside the vehicle.
To prevent accidental opening of the
doors and rear windows, use the
"Child lock".
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
rays of the sun, fi t side blinds on the
rear windows.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an ac-
cident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack relative to the child's body to a
minimum, even for short journeys.
When installing a child seat using the
seat belt, ensure that the seat belt is
tightened correctly on the child seat
and that it secures the child seat fi rm-
ly on the seat of your vehicle. If your
passenger seat is adjustable, move it
forwards if necessary.
For optimum installation of the "for-
wards-facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat and
that the head restraint does not cause
any discomfort.
If the head restraint has to be re-
moved, ensure that it is stored or at-
tached securely to prevent it from
being thrown around the vehicle in the
event of sharp braking. Children under the age of 10 must not
travel in the "forwards-facing" position
on the front passenger seat, unless
the rear seats are already occupied
by other children, cannot be used or
are absent.
Deactivate the passenger airbag
when a "rearwards-facing" child seat
is installed on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were to infl ate.

7
136
CHILD SAFETY

This system is independent and in
no circumstances does it take the
place of the central locking control.
Check the status of the child lock
each time you switch on the ignition.
Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of a serious impact,
the electric child lock is deactivated
automatically to permit the exit of
the rear passengers.

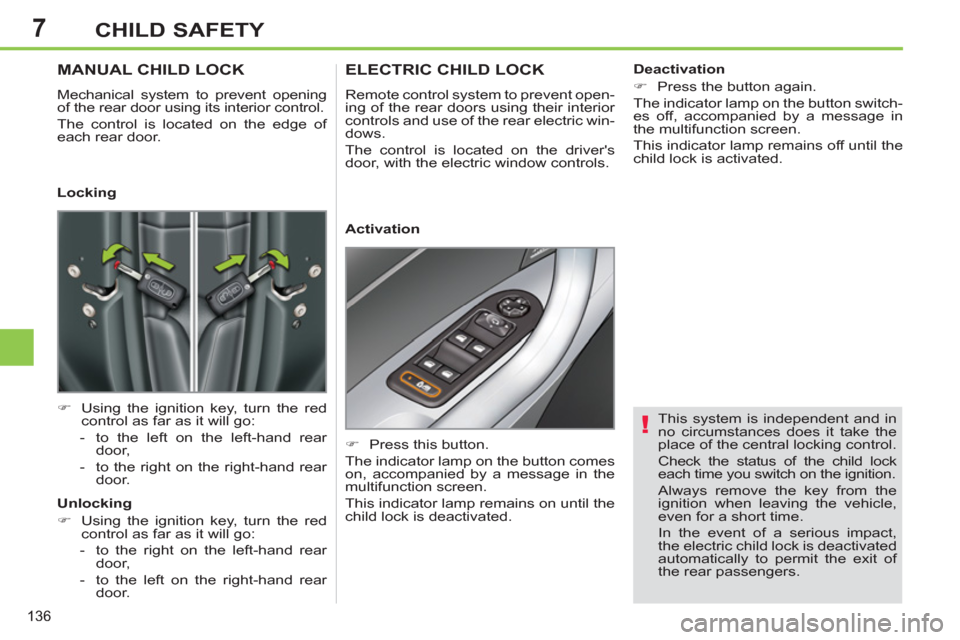

MANUAL CHILD LOCK

Mechanical system to prevent opening
of the rear door using its interior control.
The control is located on the edge of
each rear door.


)
Using the ignition key, turn the red
control as far as it will go:


- to the left on the left-hand rear
door,

- to the right on the right-hand rear
door.


ELECTRIC CHILD LOCK

Remote control system to prevent open-
ing of the rear doors using their interior
controls and use of the rear electric win-
dows.
The control is located on the driver's
door, with the electric window controls.


)
Press this button.
The indicator lamp on the button comes
on, accompanied by a message in the
multifunction screen.
This indicator lamp remains on until the
child lock is deactivated.
Locking

Unlocking


)
Using the ignition key, turn the red
control as far as it will go:


- to the right on the left-hand rear
door,

- to the left on the right-hand rear
door.



Activation
Deactivation


)
Press the button again.
The indicator lamp on the button switch-
es off, accompanied by a message in
the multifunction screen.
This indicator lamp remains off until the
child lock is activated.

8
148
SAFETY






Lateral airbags

System which protects the driver and
passengers (with the exception of the
rear centre passenger) in the event of a
serious side impact in order to limit the
risk of injury to the chest.
Each lateral airbag is fi tted:


- in the front, in the seat back frame,
on the door side,

- in the rear, in the side trim (except
SW models).

Deployment
The lateral airbags are deployed unilater-
ally in the event of a serious side impact
applied to all or part of the side impact
zone B
, perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside to-
wards the inside of the vehicle.






Curtain airbags

System which protects the driver and
passengers (with the exception of the
rear centre passenger) in the event of a
serious side impact in order to limit the
risk of injury to the side of the head.
Each curtain airbag is built into the pillars
and the upper passenger compartment
area.
Operating fault
Deployment
The curtain airbag is deployed at the same
time as the corresponding lateral airbag in
the event of a serious side impact applied
to all or part of the side impact zone B
, per-
pendicular to the longitudinal centreline of
the vehicle on a horizontal plane and di-
rected from the outside towards the inside
of the vehicle.
The curtain airbag infl ates between the
front or rear occupant of the vehicle and
the windows.
In the event of a minor impact or
bump on the side of the vehicle or
if the vehicle rolls over, the airbag
may not be deployed.
In the event of a rear or front colli-
sion, the airbag is not deployed.

Impact detection zones


A.
Front impact zone.

B.
Side impact zone.

If this warning lamp comes on
in the instrument panel, accom-
panied by an audible signal and
a message in the screen, con-
tact a PEUGEOT dealer or a qualifi ed
workshop to have the system checked.
The airbags may no longer be deployed
in the event of a serious impact. The lateral airbag infl ates between the
front or rear occupant of the vehicle and
the corresponding door trim panel.

11
202
PRACTICAL INFORMATION

Dashboard fuses

The fusebox is placed in the lower section
of the dashboard (left-hand side).

Access to the fuses


)
refer to the paragraph "Access to
the tools".

Fuse tables


Fuse N°



Rating


Functions



F1



15 A

Rear wiper.


F2



30 A

Locking and deadlocking earth.


F3



5 A

Airbags and pretensioners control unit.


F4



10 A

Clutch pedal and dual-function brake switches,
electrochromatic rear view mirror, air conditioning,
steering wheel angle sensor, automatic gearbox,
switching and protection unit.


F5



30 A

Front one-touch electric windows, folding mirrors
supply, panoramic sunroof blind.


F6



30 A

Rear one-touch electric windows, trailer fusebox.


F7



5 A

Front and rear courtesy lamps, map reading lamps,
rear reading lamps, sun visor illumination, glove
box illumination, torch.


F8



20 A

Audio equipment, audio/telephone, multifunction
screen, tyre under-infl ation detection.


F9



30 A

Front 12 V socket.


F10



15 A

Steering mounted controls, alarm siren, alarm
control unit.


F11



15 A

Low current ignition switch.

11
209
PRACTICAL INFORMATION

Charging


)
Disconnect the (+) terminal.

)
Follow the instructions for use pro-
vided by the manufacturer of the
charger.

)
Connect the charger's red cable to
the (+) terminal of the battery, then
the black cable to the (-) terminal.

)
Once the battery is fully charged,
disconnect the charger cables in re-
verse order.


Charging should be carried out in
a well-ventilated area and away
from naked fl ames and sources of
sparks, so as to avoid any risk of
explosion and fi re.
Do not try to charge a frozen bat-
tery; fi rst thaw it out so as to avoid
the risk of explosion.
If the battery had frozen, before
charging, have it checked by a
PEUGEOT dealer or qualifi ed
workshop who will ensure that
the internal components have not
been damaged and that the casing
is not cracked, which would cause
a leak of toxic and corrosive acid.


Reinitialisation after
reconnection

After any reconnection of the battery,
switch on the ignition and wait at least one
minute before starting, to allow time for the
initialisation of the electronic systems.
By referring to the corresponding sections,
you should set or initialise the following
systems yourself:


- remote control,

- one-touch electric windows,

- panoramic sunroof blind,

- time and date,

- audio and navigation system settings.


Check that no alert message or
warning lamp comes on after
switching on the ignition.
However, if minor problems per-
sist after carrying out these opera-
tions, contact a PEUGEOT dealer
or a qualifi ed workshop.


The Stop & Start battery does not
have to be disconnected for charging.












Charging the battery using
a battery charger

Before disconnecting


)
Go to the battery.

)
Check that the doors and boot are
closed but not locked.

)
Switch off the ignition and wait for at
least four minutes.



If the vehicle is to not going to be used for
more than a month, it is recommended
that the battery be disconnected.

When your vehicle's battery is dis-
charged or when the vehicle is to be
out of use for a prolonged period, you
can charge the battery using a battery
charger.
Contact a PEUGEOT dealer or a quali-
fi ed workshop for the specifi cation of
chargers compatible with your battery.

270
07MUSIC MEDIA PLAYERS






CD, MP3 / WMA CD, MP3 / WMA SD
CARD / USB PLAYER

In order to be able to play a recorded CDR or CDRW, when
recording it is preferable to select the ISO 9660 level 1, 2 or Joliet standard.
If the disc is recorded in another format it ma
y not be played correctly.

It is recommended that the same recording standard is always
used for an individual disc, with as low a speed as possible (4x maximum) for optimum sound quality.
In the particular case o
f a multi-session CD, the Joliet standard is
recommended.The audio equipment will onl
y play audio fi les with the extension".mp3" with a speed of between 8 Kbps and 320 Kbps and the extension ".wma" with a speed of between 5 Kbps and 384 Kbps.
It also supports the VBR
(Variable Bit Rate) mode.
No other t
ype of fi le (.mp4, .m3u...) can be played. The MP3 format, an abbreviation of MPEG 1, 2 & 2.5 Audio La
yer 3
and the WMA format, an abbreviation of Windows Media Audio and
the propert
y of Microsoft, are audio compression standards whichpermit the recording of several tens of music fi les on a single disc.

Connecting an IPod:
To pla
y MP3 type fi les, connect the IPod using the USB port(limited functions).
To pla
y ITunes fi les, connect the IPod using the auxiliary socket(AUX).

In order to be read, a U
SB memory stick must be formatted to FAT 32. It is advisable to restrict
fi le names to 20 characters, without usingof special characters (e.g.: " " ? ; ˘) to avoid any playing and
displaying problems.
Durin
g play, exit the "SD-Card" or "USB" source before removingthe SD card or the USB memory stick from its port.
To avoid an
y risk of theft, remove the SD card or the USB memorystick when you leave your vehicle with the roof open. INFORMATION AND ADVICE
