2013 PEUGEOT 3008 remote start

4

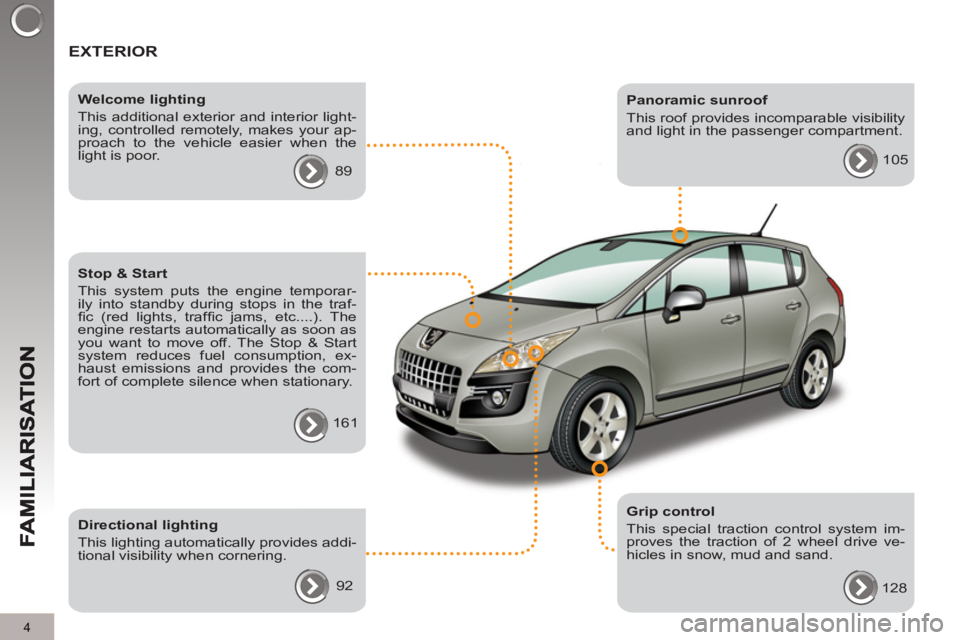

EXTERIOR


Grip control
This special traction control system im-
proves the traction of 2 wheel drive ve-
hicles in snow, mud and sand.
Welcome lighting
This additional exterior and interior light-
ing, controlled remotely, makes your ap-
proach to the vehicle easier when the
light is poor.
89

Directional lighting
This lighting automatically provides addi-
tional visibility when cornering.
92
Panoramic sunroof
This roof provides incomparable visibility
and light in the passenger compartment.
105

Stop & Start
This system puts the engine temporar-
ily into standby during stops in the traf-
fi c (red lights, traffi c jams, etc....). The
engine restarts automatically as soon as
you want to move off. The Stop & Start
system reduces fuel consumption, ex-
haust emissions and provides the com-
fort of complete silence when stationary.
128
161

IN
S










Warning lamps
When the engine is running or the vehicle is being driven, the illumination of one of the following warning lamps indicates a
fault which requires action on the part of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated further by reading the associated message in
the multifunction screen.
If you encounter any problems, do not hesitate to contact a PEUGEOT dealer or a qualifi ed workshop.



Warning lamp



is on



Cause



Action / Observations




STOP




fi xed, alone or
associated with
another warning lamp,
accompanied by an
audible signal and a
message in the screen.
Illumination of this warning
lamp is associated with a
serious braking system, power
steering, engine lubrication or
cooling system malfunction or
a punctured tyre. Stop as soon as it is safe to do so as
there is a risk that the engine will cut out
while driving.
Park, switch off the ignition and contact
a PEUGEOT dealer or a qualifi ed
workshop.




Service


on temporarily. A minor fault has occurred
for which there is no specifi c
warning lamp. Identify the fault by reading the message
shown in the screen, such as, for
example:


- the closing of the doors, boot or
bonnet,

- the engine oil level,

- the screenwash level,

- the remote control battery,

- the tyre pressures,

- saturation of the particle emission
fi lter (Diesel).

- ...
For any other faults, contact a PEUGEOT
dealer or a qualifi ed workshop.

fi xed. A major fault has occurred
for which there is no specifi c
warning lamp. Identify the fault by reading the message
shown on the screen and contact
a PEUGEOT dealer or a qualifi ed
workshop.


PEF:
particle
emissions
fi lter, Diesel


fi xed, associated
temporarily with a
message on the risk of
blockage of the PEF. This indicates the start of
saturation of the particle
emissions fi lter. As soon as traffi c conditions allow,
regenerate the fi lter by driving at a
speed of at least 35 mph (60 km/h) until
the service warning lamp goes off.

fi xed. This indicates the low level in
the Diesel additive reservoir. Have the level topped up by a PEUGEOT dealer
or a qualifi ed workshop as soon as possible.

72
AC
C

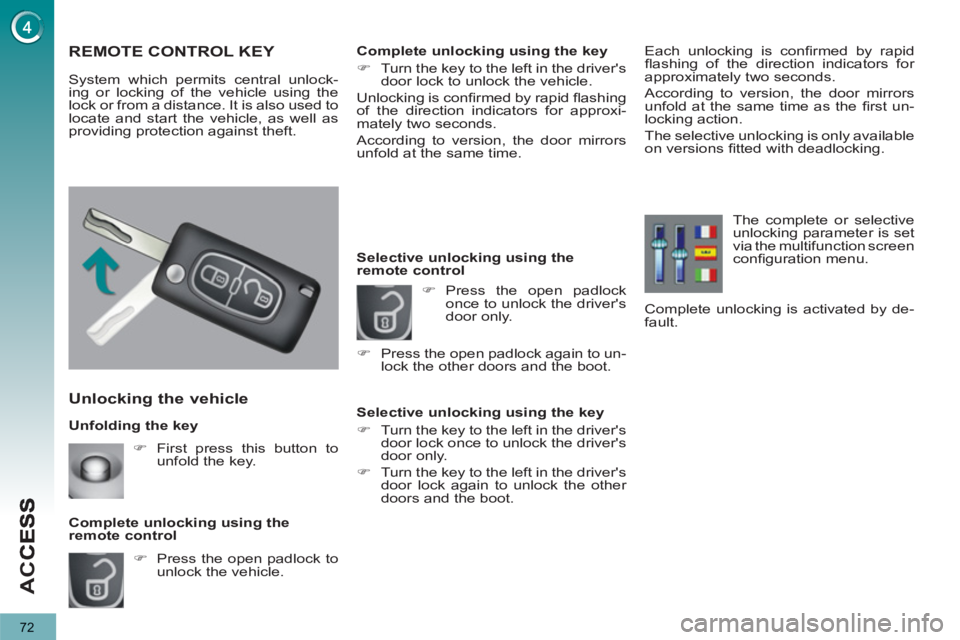

Unfolding the key


Unlocking the vehicle



)
Press the open padlock to
unlock the vehicle.

Complete unlocking using the
remote control
REMOTE CONTROL KEY
System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It is also used to
locate and start the vehicle, as well as
providing protection against theft.
Complete unlocking using the key


)
Turn the key to the left in the driver's
door lock to unlock the vehicle.
Unlocking is confi rmed by rapid fl ashing
of the direction indicators for approxi-
mately two seconds.
According to version, the door mirrors
unfold at the same time.



Selective unlocking using the
remote control

Selective unlocking using the key


)
Turn the key to the left in the driver's
door lock once to unlock the driver's
door only.

)
Turn the key to the left in the driver's
door lock again to unlock the other
doors and the boot.

)
Press the open padlock
once to unlock the driver's
door only.

)
Press the open padlock again to un-
lock the other doors and the boot.
Each unlocking is confi rmed by rapid
fl ashing of the direction indicators for
approximately two seconds.
According to version, the door mirrors
unfold at the same time as the fi rst un-
locking action.
The selective unlocking is only available
on versions fi tted with deadlocking.
The complete or selective
unlocking parameter is set
via the multifunction screen
confi guration menu.
Complete unlocking is activated by de-
fault.



)
First press this button to
unfold the key.

AC
C

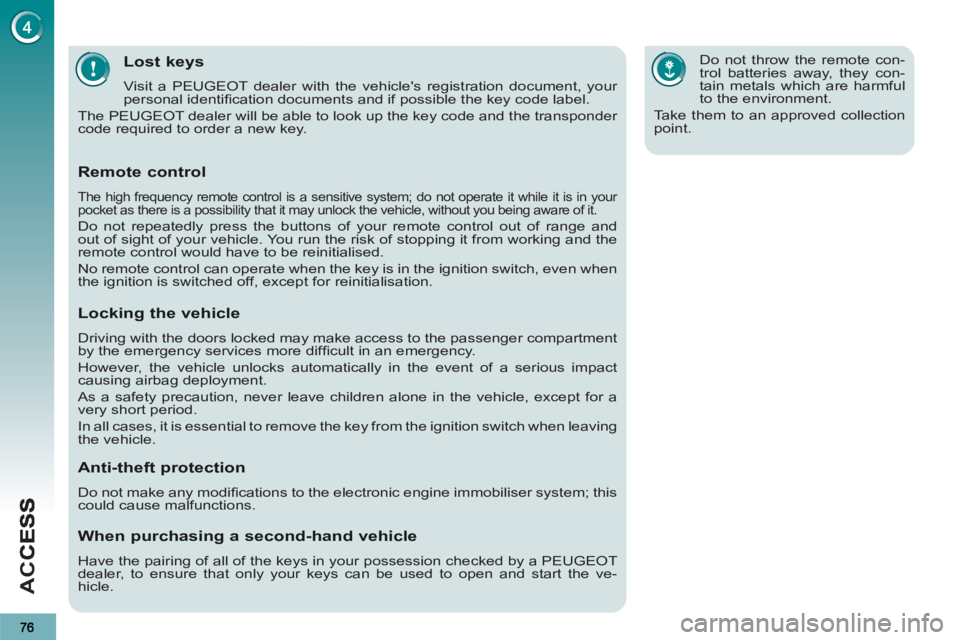

Lost keys
Visit a PEUGEOT dealer with the vehicle's registration document, your
personal identifi cation documents and if possible the key code label.
The PEUGEOT dealer will be able to look up the key code and the transponder
code required to order a new key.







Do not throw the remote con-
trol batteries away, they con-
tain metals which are harmful
to the environment.
Take them to an approved collection
point.

Remote control

The high frequency remote control is a sensitive system; do not operate it while it is in your
pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
No remote control can operate when the key is in the ignition switch, even when
the ignition is switched off, except for reinitialisation.


Locking the vehicle

Driving with the doors locked may make access to the passenger compartment
by the emergency services more diffi cult in an emergency.
However, the vehicle unlocks automatically in the event of a serious impact
causing airbag deployment.
As a safety precaution, never leave children alone in the vehicle, except for a
very short period.
In all cases, it is essential to remove the key from the ignition switch when leaving
the vehicle.


Anti-theft protection

Do not make any modifi cations to the electronic engine immobiliser system; this
could cause malfunctions.

When purchasing a second-hand vehicle

Have the pairing of all of the keys in your possession checked by a PEUGEOT
dealer, to ensure that only your keys can be used to open and start the ve-
hicle.

89
VIS
Manual guide-me-home lighting
The temporary illumination of the dipped
beam headlamps after the vehicle's ig-
nition has been switched off makes
the driver's exit easier when the light is
poor.

Switching on


)
With the ignition off, "fl ash" the
headlamps using the lighting stalk.

)
A further "headlamp fl ash" switches
the function off.


Switching off
The manual guide-me-home lighting
switches off automatically after a set
time.

EXTERIOR WELCOMELIGHTING

The remote switching on of the light-
ing makes your approach to the vehicle
easier in poor light. It is activated ac-
cording to the level of light detected by
the sunshine sensor.
Switching on
Switchin
g off







Programming
In countries in which this
function is not imposed by
regulations, with the ve-
hicle stationary, use the
navigator to activate or de-
activate the function in the
multifunction screen con-
fi guration menu.
The sidelamps and number plate lamps
come on as well. Programming


The lighting duration is se-
lected via the vehicle con-
fi guration menu.
The duration of the welcome
lighting is associated with and
identical to that of the automatic
guide-me-home lighting.


For countries where the function is a
legal requirement, it is activated by de-
fault.



)
Press the open padlock
on the remote control.
The dipped beam headlamps and the
sidelamps come on; your vehicle is also
unlocked.

In some weather conditions
(e.g. low temperature or hu-
midity), the presence of mist-
ing on the internal surface of
the glass of the headlamps and rear
lamps is normal; it disappears after
the lamps have been on for a few
minutes.


The exterior welcome lighting switches
off automatically after a set time, when
the ignition is switched on or on locking
the vehicle.

They come on when the engine is started.
Depending on the destination country,
they are used for:


- daytime running lamps in day mode
and sidelamps in night mode (they
are brighter when daytime running
lamps),
or


- sidelamps in day and night mode.

199
PRACTICAL INFORMATION


It is advisable to disconnect
the battery if the vehicle is to
be left unused for more than
one month.











The batteries contain harm-
ful substances such as sul-
phuric acid and lead. They
must be disposed of in accordance
with regulations and must not, in any
circumstances, be discarded with
household waste.
Take used remote control batteries
and vehicle batteries to a special col-
lection point.










Charging the battery using a
battery charger


)
Disconnect the battery from the vehicle.


)
Follow the instructions for use pro-
vided by the manufacturer of the
charger.

)
Connect the battery starting with the
negative terminal (-).

)
Check that the terminals and connec-
tors are clean. If they are covered with
sulphate (whitish or greenish deposit),
remove them and clean them.



)
Connect the red cable to the posi-
tive terminal (+) of the fl at battery A
,
then to the positive terminal (+) of
the slave battery B
.

)
Connect one end of the green or
black cable to the negative terminal
(-) of the slave battery B
(or earth
point on the other vehicle).

)
Connect the other end of the green
or black cable to the earth point C

on the broken down vehicle (or on
the engine mounting).

)
Start the engine of the vehicle with
the good battery and leave it run-
ning for a few minutes.

)
Operate the starter on the broken
down vehicle and let the engine run
If the engine does not start straight
away, switch off the ignition and wait
a few moments before trying again.
First check that the slave battery has a
nominal voltage of 12 V and a capacity
at least equal to that of the discharged
battery.
Do not try to start the engine by con-
necting a battery charger.
Do not disconnect the (+) terminal when
the engine is running.

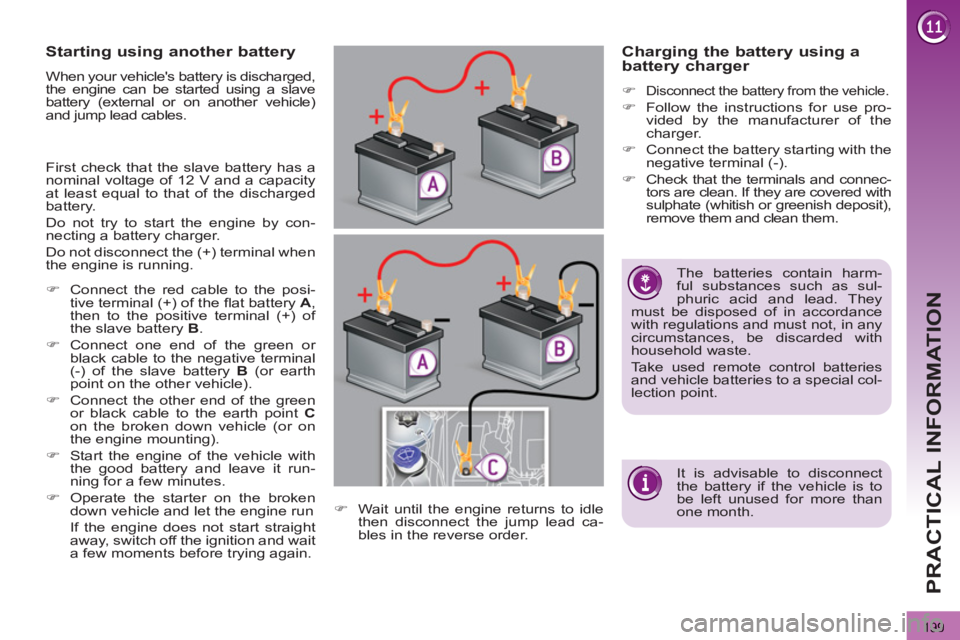

Starting using another battery

When your vehicle's battery is discharged,
the engine can be started using a slave
battery (external or on another vehicle)
and jump lead cables.

)
Wait until the engine returns to idle
then disconnect the jump lead ca-
bles in the reverse order.

200
PRACTICAL INFORMATION

Following reconnection of the
battery
Following reconnection of the battery,
switch on the ignition and wait 1 min-
ute before starting to permit initialisation
of the electronic systems. However, if
problems remain following this opera-
tion, contact a PEUGEOT dealer or a
qualifi ed workshop.
Referring to the corresponding section,
you must yourself reinitialise (depend-
ing on version):


- the remote control key,

- the electric blind(s),

- ...

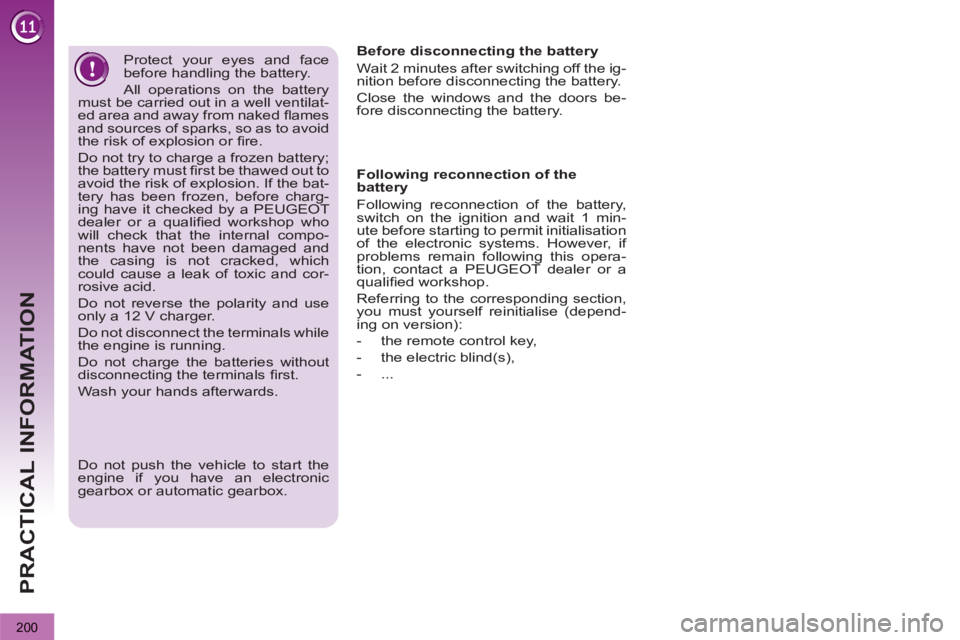

Before disconnecting the battery
Wait 2 minutes after switching off the ig-
nition before disconnecting the battery.
Close the windows and the doors be-
fore disconnecting the battery.









Do not push the vehicle to start the
engine if you have an electronic
gearbox or automatic gearbox.
Protect your eyes and face
before handling the battery.
All operations on the battery
must be carried out in a well ventilat-
ed area and away from naked fl ames
and sources of sparks, so as to avoid
the risk of explosion or fi re.
Do not try to charge a frozen battery;
the battery must fi rst be thawed out to
avoid the risk of explosion. If the bat-
tery has been frozen, before charg-
ing have it checked by a PEUGEOT
dealer or a qualifi ed workshop who
will check that the internal compo-
nents have not been damaged and
the casing is not cracked, which
could cause a leak of toxic and cor-
rosive acid.
Do not reverse the polarity and use
only a 12 V charger.
Do not disconnect the terminals while
the engine is running.
Do not charge the batteries without
disconnecting the terminals fi rst.
Wash your hands afterwards.

337
ALPHABETICAL INDEX
Accessories ................................206
Accessory socket,
12V ........................... 99, 101, 108
Adjusting headlamps ....................91
Adjusting head restraints ..............65
Adjusting seat belt height ...........130
Adjusting the steering wheel.........71
Airbags ................................. 36, 113
Airbags, curtain...................135, 136
Airbags, front ......................133, 136
Airbags, lateral....................135, 136
Air conditioning .............................25
Air conditioning, digital............57, 60
Air conditioning, manual .........57, 58
Air fi lter .......................................173
Air fl ow ..........................................25
Air vents........................................56
Alarm ............................................77
Anti-pinch..............................79, 105
Anti-theft .......................................74
Armrest .........................................99
Armrest, front ..............................101
Armrest, rear ...............................104
ASR ..............................................32
Assistance call ............................216
Audible warning ..........................124
Audio/video sockets....................246
Audio streaming
(Bluetooth) .......................302, 329
Audio systems ..............................51
Automatic illumination of
headlamps ...........................87, 90
Automatic operation of hazard
warning lamps .........................124
Automatic rain sensitive
windscreen wipers ...............93, 95
Auxiliary socket...................303, 326
Auxiliary sockets .................246, 324Capacity, fuel tank ........................85
CD MP3 ......................................323
Central locking ........................73, 82
Changing a bulb ........ 186, 189, 190
Changing a fuse .........................191
Changing a wheel ...............181, 183
Changing a wiper blade ........95, 202
Changing the date ............42, 44, 46
Changing the remote control
battery ........................................75
Changing the time ............42, 44, 46
Checking levels ..................171, 172
Checking the engine oil level ........40
Checking tyre pressures
(using the kit) ...........................175
Checks............... 169, 170, 173, 174
Child lock ....................................123Backup starting ...........................199
Battery ........................ 173, 198-200
Battery, charging .........................199
Battery, remote control ...........75, 76
Blind for panoramic sunroof........105
Blinds .......................................... 111
Bluetooth
(hands-free) ..... 247-249, 286, 327
Bluetooth (telephone) .... 247-249, 286
Bonnet ........................................167
Bonnet stay.................................167
Boot fl oor, adjustable .................. 110
Boot lamp ............................. 98, 111
Boot lid..........................................84
Brake discs .................................174
Brake lamps................................189
Brake pads .................................174
Brakes ........................................174
A
B
CChildren ...................... 118, 121, 122
Child seats ................. 112, 113, 119
Child seats, conventional ..... 116, 118
Closing the boot................73, 83, 84
Closing the doors....................73, 81
Cold climate screen ....................205
Colour screen, retractable ......49, 51
Connectors,
audio ............... 100, 101, 324, 326
Control for panoramic
sunroof blind ............................105
Coolant level .........................37, 172
Coolant temperature indicator ......37
Courtesy lamps.............................96
Courtesy mirror ...........................100
Cruise control .............................151
Cup holder ....................................99
D
Date (setting) ....................42, 44, 46Daytime running lamps .... 89, 186, 188
Deactivating
the passenger airbag ...............133
Deadlocking ..................................73
Defrosting .........................58, 59, 69
Demisting......................................58
Dials and gauges ..........................27
Diesel additive level ....................172
Dimensions .................................212
Dipped beam ............... 87, 186, 187
Dipstick .................................40, 171
Directional lighting ........................92
Direction indicators ..... 124, 186, 189
Distance alert..............................147
Doors ............................................81
Doors emergency control .............83
Door trays .....................................99
Dynamic emergency braking ......140
Dynamic stability
control (DSC) .............. 32, 35, 127
